Welded Spray-Painted Honeycomb Waveguide Window
Welded Spray-Painted Honeycomb Waveguide Window
EMC, Waveguide Window, EMI Honeycomb, Waveguide Window
Technical Data:
Refer to the table below
Product Description

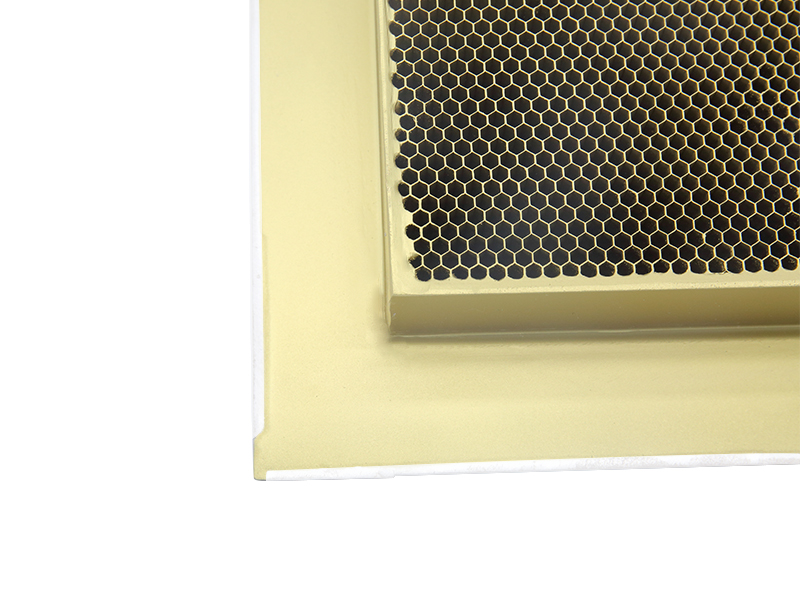

Honeycomb ventilation waveguide windows are crafted from tinned thin plates through stamping, assembling, and tin-dipping processes, resulting in a honeycomb-shaped shielding component. Our waveguide windows are available in steel and stainless-steel materials, featuring a specially designed frame structure suitable for welding, assembly, or other structural shielding enclosures.
These waveguide windows effectively solve common challenges such as maintaining high electromagnetic shielding while allowing adequate airflow. They prevent EMI leakage without compromising ventilation, making them ideal for applications requiring both thermal management and EMC compliance.
Compared to competing products, our Welded Spray-Painted Honeycomb Waveguide Windows offer superior corrosion resistance, precise dimensional tolerances, and flexible mounting options. The robust frame design ensures easier integration into welded or assembled shielded cabinets, enhancing overall durability and shielding effectiveness.
Learn more in our blog:
“Enhancing EMI Shielding and Ventilation with Honeycomb Waveguide Windows”
Typical Applications
The Welded Spray-Painted Honeycomb Waveguide Window is ideal for chassis and cabinets demanding high shielding effectiveness, ensuring reliable EMI protection without compromising ventilation.
In harsh environments where equipment must withstand shock and vibration, the Welded Spray-Painted Honeycomb Waveguide Window offers robust mechanical stability and long-term durability.
For maritime applications, the Welded Spray-Painted Honeycomb Waveguide Window provides excellent corrosion resistance while maintaining superior electromagnetic shielding.
Military shelters benefit from the Welded Spray-Painted Honeycomb Waveguide Window by combining effective shielding with easy integration into shielded rooms and secure enclosures.
Product Features
- Large ventilation capacity
- Durable and robust
- Resistant to deformation
- High mechanical impact resistance
- Wide frequency band
- High shielding effectiveness
Technical Data
| Bore Diameter | Φ3.0mm、Φ5mm，thickness 45mm |
| Material | Iron, Stainless-steel |
| Size | Fig 1 (A*B)
300×300mm, 300×600mm, 400×400mm, 500×500mm, 600×600mm |
Note: The appearance and size can be customized.
Circuit Diagrams
Currently, there is no circuit diagram available for Welded Spray-Painted Honeycomb Waveguide Window.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Fig 1
- Shielding efficiency
| Magnetic Field | 14KHz≥75dB
150KHz≥100dB |
| Electric Field | 200KHz～50MHz≥110dB |
| Flat Wave Surface | 50MHz～1GHz≥110dB |
| Microwave | 1GHz～10GHz≥100dB
10GHz～18GHz≥90dB |
Insertion Loss
Insertion loss data for Welded Spray-Painted Honeycomb Waveguide Window is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
