EMC/RF Absorber
EMC/RF Absorber
EMC & Microwave Absorbers, EMC & RF Absorbers, Radar Absorber
Technical Data:
- Frequency Range: 30 MHz – 18 GHz
- Reflectivity (Normal Incidence): ≤ –50 dB @ ≥ 1 GHz, ≤ –20 dB @ 80–100 MHz
- Power Handling Capacity: 0.5 – 1.5 kW/m²
- Environmental: RoHS compliant, low dust emission
Product Description

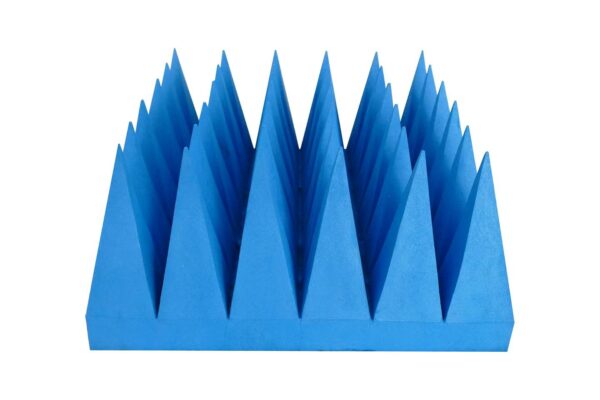

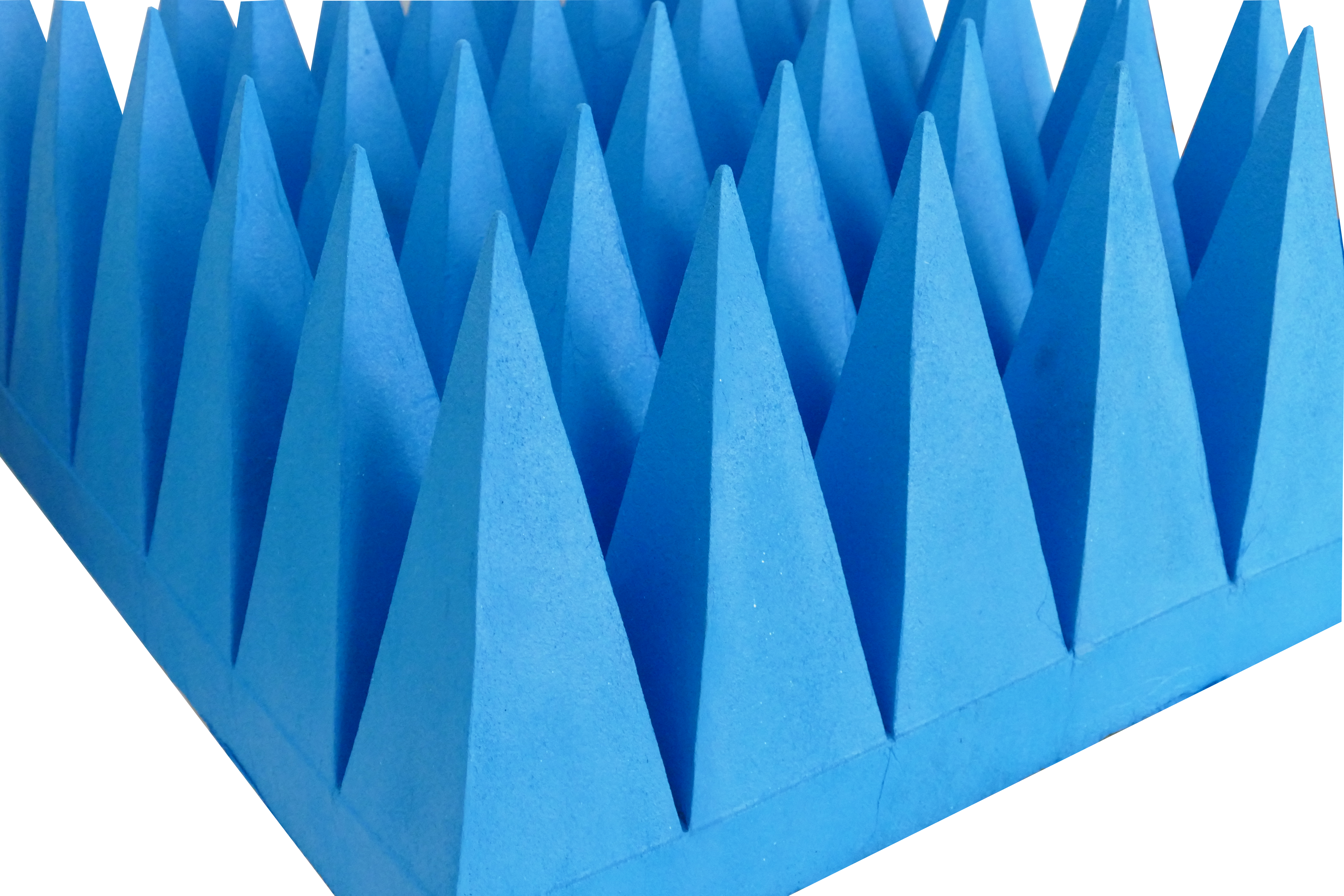

The EMC Absorber is a high-performance RF absorbing material tailored for use in anechoic chambers, EMC test sites, and shielding rooms. It features a truncated pyramidal shape, delivering wideband absorption with low reflectivity. Made from carbon-loaded polyurethane foam, it is lightweight, flame-retardant, and easy to install, making it suitable for both large facilities and compact setups.
This absorber effectively solves challenges such as limited chamber space, high reflectivity, and insufficient frequency coverage. Its truncated design helps reduce the overall height required in low-ceiling environments while maintaining excellent electromagnetic attenuation across a broad spectrum.
Compared to conventional absorbers, our EMC Absorber offers superior performance-to-height ratio, enhanced safety features, and greater installation flexibility. It’s particularly well-suited for hybrid test systems where both performance and space efficiency are critical.
Explore more on our blog: Choosing the Right RF Absorber: Performance, Safety, and Space Considerations
Typical Applications
EMC/RF Absorber is essential for semi-anechoic and fully anechoic chambers, providing wideband absorption to ensure accurate RF measurements.
In EMC/EMI compliance testing rooms, the EMC/RF Absorber minimizes reflections, enhancing test consistency and shielding effectiveness.
Military and aerospace labs rely on the EMC/RF Absorber for stable RF environments during sensitive radar and communication system testing.
For automotive radar and sensor testing, EMC/RF Absorber supports precise signal isolation and measurement reliability.
In 5G, IoT, and wireless communication testing, EMC/RF Absorber ensures low-noise environments inside shielded enclosures and antenna quiet zones.
Product Features
- Broadband absorption from 30 MHz to 18 GHz (or as customized)
- Truncated pyramid shape for space-saving installation
- Excellent reflectivity performance and low VSWR
- Meet IEC 61000-4-3, MIL STD 462D, SAE performance requirements.
- Flame retardant (UL 94 HBF / NRL 8093 Test 1-3 compliant)
- Lightweight and easy to cut or shape on-site
- Optional surface coatings for humidity or abrasion resistance
Technical Data
| Parameter | Typical Value |
| Frequency Range | 30 MHz – 18 GHz |
| Reflectivity (Normal Incidence) | ≤ –50 dB @ ≥ 1 GHz
≤ –20 dB @ 80–100 MHz |
| Power Handling Capacity | 0.5 – 1.5 kW/m² |
| Surface Treatment | Carbon-loaded polyurethane or foam |
| Flammability Rating | UL 94 HBF / NRL 8093 / ISO 11925 |
| Environmental | RoHS compliant, low dust emission |
| Size Code | Base Width (mm) | Height (mm) | Top Width (mm) | Notes |
| TP300 | 300 × 300 | 300 | ~30–50 | Standard for 18 GHz–40 GHz (shorter range) |
| TP450 | 450 × 450 | 450 | ~50–70 | General-purpose for 1–18 GHz |
| TP600 | 600 × 600 | 600 | ~80–100 | Optimal for 30 MHz–6 GHz range |
| TP900 | 600 × 600 | 900 | ~100 | Used in hybrid chambers, good low-frequency absorption |
Circuit Diagrams
Currently, there is no circuit diagram available for EMC/RF Absorber.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Unfortunately, we do not have dimensional drawings available for EMC/RF Absorber at this time.
For detailed size specifications, please reach out to our staff for further assistance.
Insertion Loss
Insertion loss data for EMC/RF Absorber is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
