Conductive EMI Shielding Tape
Conductive EMI Shielding Tape
EMI Shielding Tape, Electromagnetic Shielding Tape, Conductive EMI Tape, EMI Shielding Adhesive Tape
Technical Data:
- High conductivity pressure-sensitive adhesive ensures complete EMI shielding continuity.

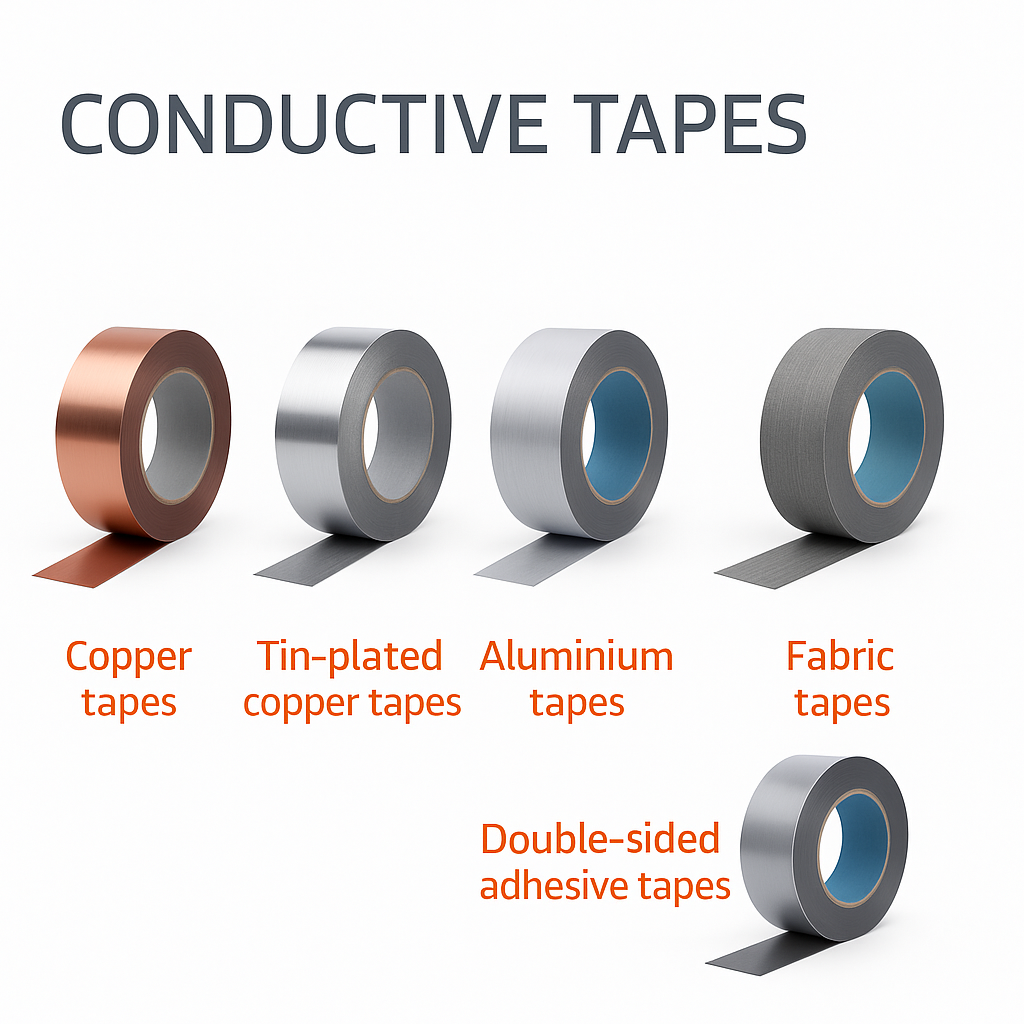

- Available in copper, tinned copper, aluminum foil, and conductive fabric backing materials.
- Total thickness ranges from 0.0737 mm to 0.1300 mm depending on material type.
- Operating temperature range: -40°C to 205°C (conductive fabric: -10°C to 120°C).
- Surface resistivity as low as <0.012 Ω/cm² for copper and tinned copper versions.
- Standard rolls and custom die-cut shapes available upon request.
- Conductive flange protection tapes provide corrosion-resistant, continuous conductive pathways.
- Protective films peel off easily after application, ensuring clean EMI grounding connections.
Product Description

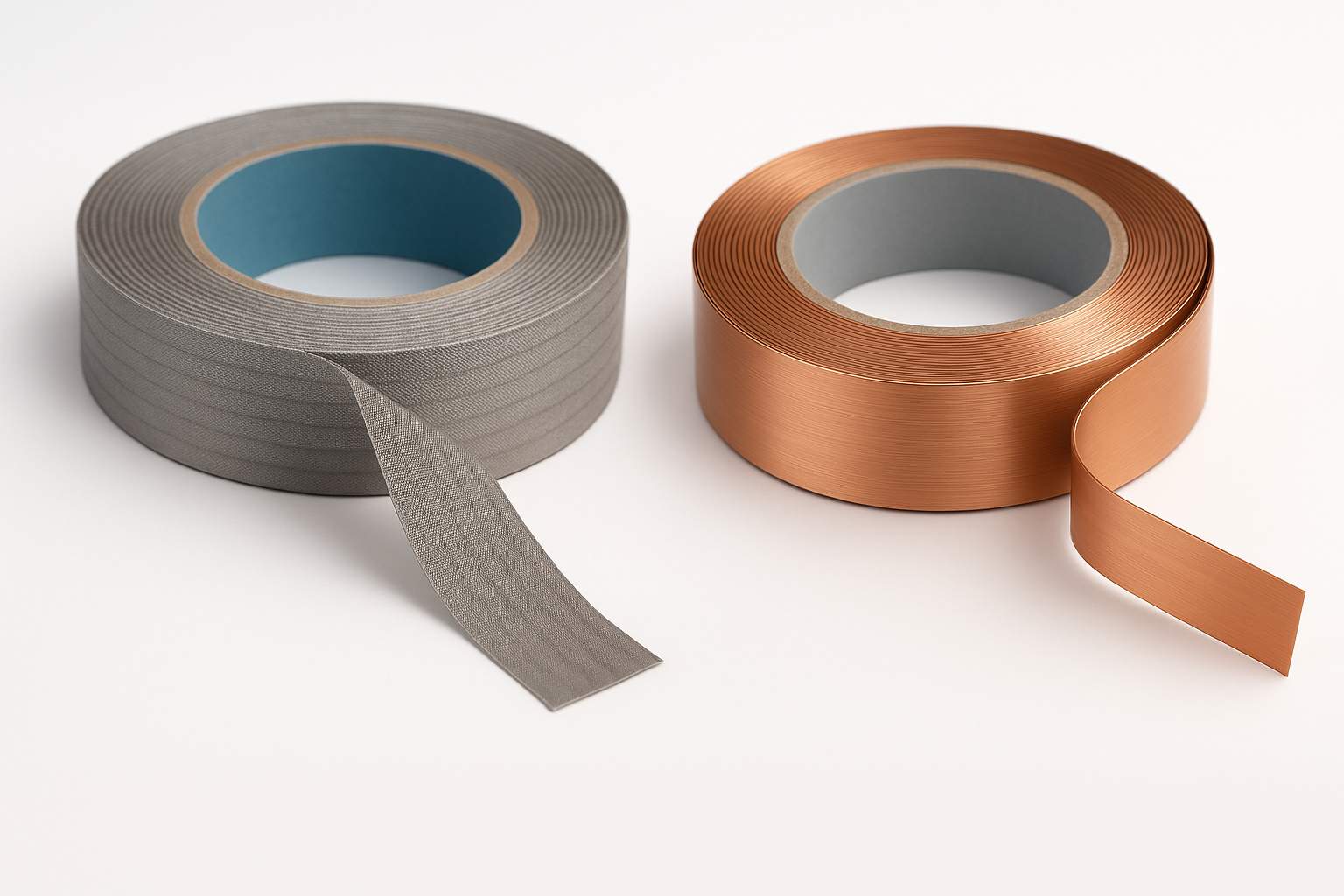

Conductive EMI Shielding Tapes are precision-engineered materials used for EMI shielding, grounding, and electrical continuity. The range includes copper foil tape, conductive fabric tape, and double-sided conductive adhesive tape, all built to meet stringent MIL-STD military specifications. Each tape integrates a conductive base layer with a high-conductivity pressure-sensitive adhesive (PSA) to ensure reliable bonding and signal continuity.
These tapes solve common issues like EMI leakage through seams, inconsistent grounding, and poor contact between conductive surfaces. They provide a durable, flexible solution for patching, wrapping, or sealing joints, even on irregular surfaces—making them ideal for enclosures, flex circuits, and shielded compartments.
Compared to alternatives, our EMI shielding tapes offer superior conductivity, stronger adhesion, and customizability in width, shape, and length. Whether for prototyping or volume production, they deliver stable, repeatable performance in demanding applications.
Explore more on our blog: How to Select the Right EMI Shielding Tape for Your Design
Typical Applications
Conductive EMI Shielding Tape is widely used for EMI/RFI shielding of enclosures, panels, and seams, providing a reliable conductive path.
In electronic assembly, Conductive EMI Shielding Tape ensures stable electrical grounding for devices, components, and frames.
Conductive EMI Shielding Tape is ideal for shielding cable joints and wire harnesses in compact or sensitive systems.
To enhance gasket interfaces, Conductive EMI Shielding Tape creates strong electrical continuity in shielding chambers.
Military systems use Conductive EMI Shielding Tape for chassis-to-chassis bonding and EMI control under rugged conditions.
Product Features
- Available in single- or double-sided conductivity
- Excellent adhesion to metal, plastic, and painted surfaces
- Conformable and easy to apply – die-cuttable for custom shapes
- UL94 & RoHS compliant (select types)
- Stable performance across wide temperature and humidity ranges
- Corrosion-resistant options for long-term reliability
- Compatible with MIL-STD-810, MIL-DTL-83528, MIL-STD-461
Technical Data
| Product Type | Foil / Substrate Thickness (mm) | Adhesive Thickness (mm) | Total Thickness (mm) | Temperature Range (°C) | Volume Resistivity (Ω/cm²) |
|---|---|---|---|---|---|
| Conductive Copper Tape | 0.0356 | 0.0381 | 0.0737 | –40 to +205 | < 0.012 |
| Tin-Plated Copper Tape | 0.0406 | 0.0381 | 0.0787 | –40 to +205 | < 0.012 |
| Aluminum Foil Tape | 0.0508 | 0.0381 | 0.0889 | –40 to +205 | < 0.065 |
| Conductive Fabric Tape | 0.1000 | 0.0300 | 0.1300 | –10 to +120 | < 0.060 |
| Conductive Double-Sided Tape | Custom | Custom | Custom | –20 to +150 | < 0.050 |
Note: Custom thickness, widths, or laminate types available upon request.
📡 EMI Shielding Effectiveness
| Material | Magnetic Field @100KHz (dB) | Electric Field @100MHz (dB) | Plane Wave @1GHz (dB) | Plane Wave @10GHz (dB) |
|---|---|---|---|---|
| Sn/Cu/Fe | 45 | 60 | 40 | 30 |
This shielding performance makes Sn/Cu/Fe composite wire ideal for EMI-sensitive applications such as shielded enclosures, defense electronics, and industrial control systems.
Circuit Diagrams
Currently, there is no circuit diagram available for Conductive EMI Shielding Tape.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Unfortunately, we do not have dimensional drawings available for Conductive EMI Shielding Tape at this time.
For detailed size specifications, please reach out to our staff for further assistance.
Insertion Loss
Insertion loss data for Conductive EMI Shielding Tape is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
