Enhancing EMI Shielding and Ventilation with Honeycomb Waveguide Windows

In today’s high-frequency, high-density electronic environments, balancing electromagnetic interference (EMI) shielding and adequate airflow presents a significant engineering challenge. Especially in systems like shielded enclosures, EMI test chambers, and telecom infrastructure, the demand for thermal control must be met without compromising EMI performance. Honeycomb waveguide windows offer an elegant and efficient solution to this dual-requirement dilemma. This article explores the design principles, performance benefits, applications, and critical considerations when integrating honeycomb waveguide windows in EMI-sensitive environments.

Understanding Honeycomb Waveguide Windows

Honeycomb waveguide windows are metallic structures composed of hexagonal cells (usually aluminum or brass), precisely sized to act as waveguides below cutoff for specific frequencies. These windows are embedded into EMI shielded panels, doors, or walls to allow airflow while effectively blocking electromagnetic radiation.

The waveguide below cutoff (WGBC) principle ensures that any electromagnetic wave below a certain frequency cannot propagate through the honeycomb structure. Thus, even as air and heat pass freely, EMI is kept out or contained within a designated boundary.

How They Work: The Science Behind the Shield

The core operating concept is based on waveguide theory. Each cell acts as a short waveguide that attenuates electromagnetic waves that are below its cutoff frequency. The cutoff frequency depends primarily on the diameter, shape, and length (depth) of the cells:

• Cutoff Frequency (fc) for a circular or hexagonal cell can be approximated using the formula:

  fc ≈ c / (2 × a)

  Where:

  • fc = cutoff frequency
  • c = speed of light (~3 x 10^8 m/s)
  • a = cell aperture (shortest path across the opening)

The deeper and smaller the cells, the higher the shielding effectiveness at lower frequencies.

Key Benefits of Honeycomb Waveguide Windows

1. Superior EMI Shielding
   • Effective attenuation over a broad frequency range, including microwave and radar bands
   • Often meets or exceeds MIL-STD-285, IEEE-299, and other shielding standards
2. Uncompromised Ventilation
   • High airflow rates with minimal pressure drop
   • Reduces reliance on expensive active cooling systems
3. Structural Lightweight and Strength
   • Aluminum honeycomb provides rigidity with low mass
   • Can be easily integrated into doors, vents, or panel cutouts
4. Customizable Design
   • Tailored to meet application-specific requirements such as frequency cutoff, airflow rate, and mechanical durability
   • Available with frames, gasketing, and EMI-compatible finishes

Typical Applications

Honeycomb waveguide windows are widely used across multiple industries and environments:

• EMI/RFI Shielded Enclosures: To enable passive cooling while preserving shielding integrity
• Telecom Base Stations: To protect sensitive RF components without causing thermal buildup
• Military and Aerospace: In radar, avionics, and ground systems where both shielding and heat dissipation are crucial
• Medical Equipment: Especially in MRI and diagnostic equipment where airflow and EMI shielding are non-negotiable
• Test Chambers: EMC test facilities require consistent airflow to stabilize internal conditions while maintaining isolation

Design Considerations When Selecting Honeycomb Waveguide Windows

1. Cell Size and Depth
   • Directly influences cutoff frequency and shielding effectiveness
   • Typical sizes: 3.2 mm, 6.4 mm, or custom
2. Material Choice
   • Aluminum: lightweight, corrosion-resistant, and thermally conductive
   • Brass or stainless steel: for harsh or high-radiation environments
3. Mounting Method
   • Flanged, press-fit, or framed versions available
   • Gasketed frames for enhanced EMI seal
4. Finish and Coating
   • Conductive coatings (e.g., nickel or chromate) to prevent galvanic corrosion
   • Anodized finishes for aesthetic and environmental protection
5. Environmental Considerations
   • Temperature, humidity, corrosion potential
   • Compliance with IP ratings or military standards

Integration Tips for System Designers

• Combine with EMI Gaskets: Ensure full contact around frame edges
• Consider Airflow Modeling: Use CFD tools to simulate pressure drops and optimize placement
• Plan for Maintenance Access: Honeycomb vents may need periodic cleaning, especially in dusty environments
• Test for Compliance: Always validate shielding performance under real-world conditions using standards such as IEEE-299

Future Trends in EMI Shielding and Ventilation

As system frequencies rise and thermal loads increase, hybrid materials and active-passive combinations are gaining attention. For example, integrating honeycomb vents with intelligent airflow controls or thermal interface materials (TIMs) may improve overall system efficiency. Additive manufacturing may also allow more complex vent geometries tailored to unique performance envelopes.

Furthermore, growing interest in 5G, autonomous vehicles, and high-altitude platforms will continue to push demand for advanced EMI shielding solutions with integrated thermal management.

Conclusion

Honeycomb waveguide windows offer a reliable and efficient way to address the twin challenges of EMI shielding and ventilation. Their unique structural design ensures that systems remain both cool and electromagnetically secure. For engineers, designers, and technical buyers, understanding how to properly select and integrate these components is critical to long-term system reliability and regulatory compliance.

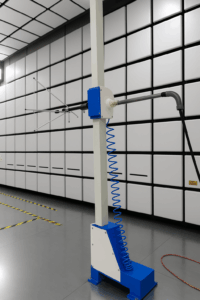

For more information, see: Optimizing Antenna Positioning with the NDAM Antenna Mast for EMC and OTA Testing.
