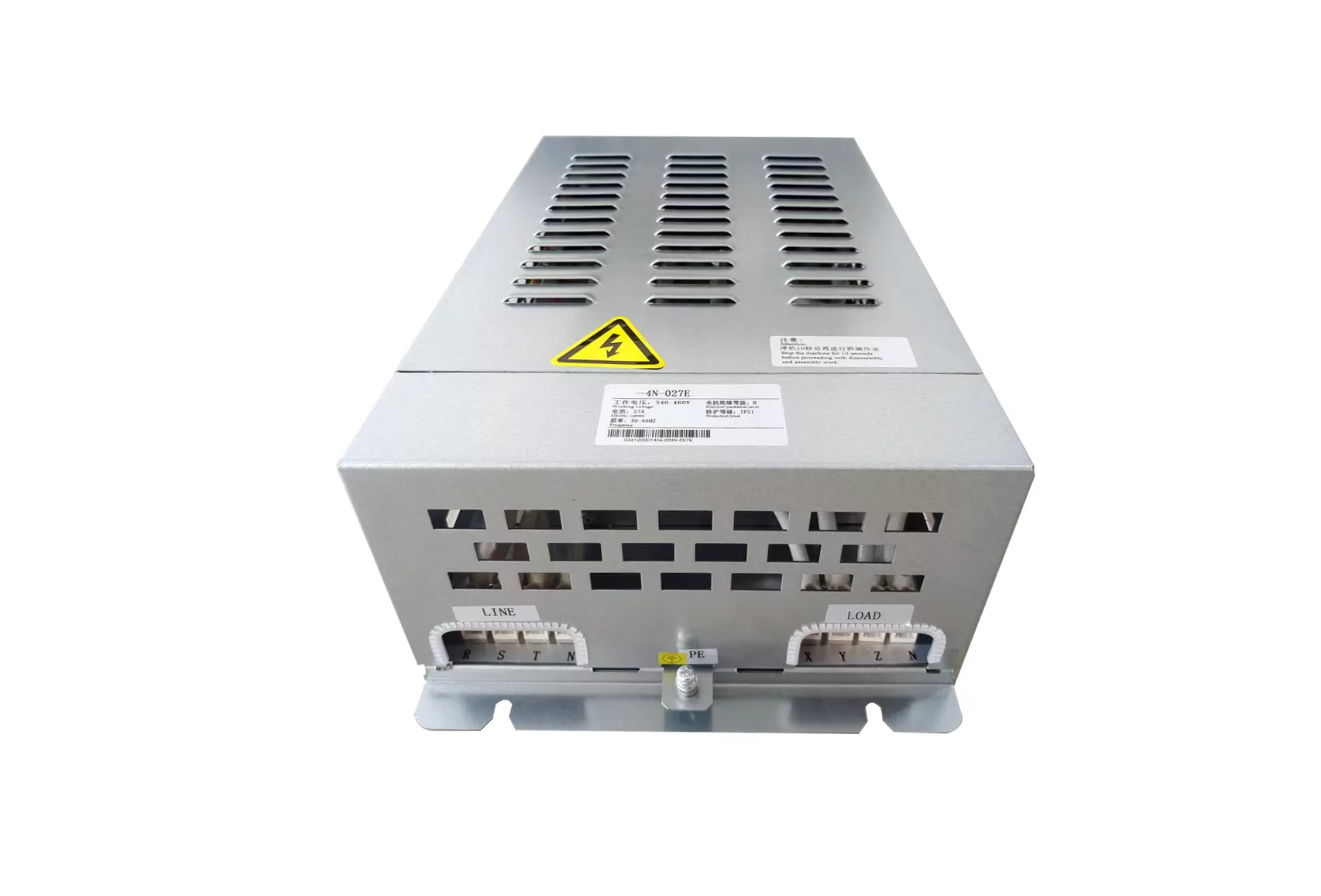

Power line filter for inverter
Single/Three-phase, 10-30A, 250/480VAC, 50/60Hz
What Is Power line filter for inverter
Power line filters for inverters are specialized electromagnetic interference (EMI) suppression systems designed to mitigate high-frequency noise (10kHz–30MHz) generated by switching operations in DC/AC or AC/DC conversion processes. These filters address harmonics (e.g., 3rd, 5th, 7th order) and common-mode/differential-mode noise caused by IGBT, SiC, or GaN-based switching modules. Typical topologies include LCL filters for grid-tied inverters and π-type configurations for standalone systems, integrating components such as X2/Y1 safety capacitors, nanocrystalline core chokes, and varistors for surge protection (up to 20kV/10kA per IEC 61000-4-5). Critical design parameters include rated voltage (1500VDC for solar inverters, 480VAC for industrial drives), insertion loss (>50dB@100kHz), and leakage current limits (<1mA for residential applications). Advanced variants incorporate active noise cancellation circuits using DSP-controlled feedback loops to adaptively suppress variable-frequency noise in real time.
What Are Inverter Power Line Filters Used For?
These filters are essential for ensuring electromagnetic compatibility (EMC) and operational stability across inverter-dependent systems. In photovoltaic (PV) solar inverters, they block switching noise (2–150kHz) from perturbing grid synchronization, complying with IEEE 1547-2023 anti-islanding requirements and reducing total harmonic distortion (THD) to <3%. Electric vehicle (EV) onboard chargers integrate compact filters to suppress 20–100MHz noise from SiC MOSFETs, preventing interference with CAN bus communication. Industrial motor drives deploy them to neutralize voltage spikes (dV/dt >10kV/μs) from PWM-controlled VFDs, extending motor insulation lifespan in HVAC and conveyor systems. Microgrid energy storage systems (ESS) use bidirectional filters to manage harmonic feedback during charge/discharge cycles, maintaining IEEE 519-2022 compliance. Aerospace applications, such as UAV power systems, require MIL-STD-461G-certified filters to eliminate EMI from high-frequency DC-DC converters while withstanding -55°C to +125°C thermal extremes.
Types of Inverter Power Line Filters
Inverter filters are categorized by operational topology, application specificity, and regulatory compliance. Passive LCL Filters dominate grid-tied solar inverters, combining inductors and capacitors to attenuate switching harmonics (e.g., 5–25kHz) while minimizing resonance risks. Active EMI Filters (AEF) employ op-amp-based cancellation circuits for high-density EV traction inverters, achieving >30dB noise reduction in 1–30MHz bands. Military-Grade DC-Link Filters feature hermetic sealing and EMP hardening for naval propulsion inverters, meeting MIL-STD-704F voltage transient requirements. Ultra-Compact PCB Filters with integrated magnetics target drone and robotics inverters, offering 40dB@10MHz attenuation in <50mm² footprints. Regenerative Snubber Filters are optimized for braking energy recovery in elevator and crane inverters, absorbing regenerative surges up to 200% rated current.
