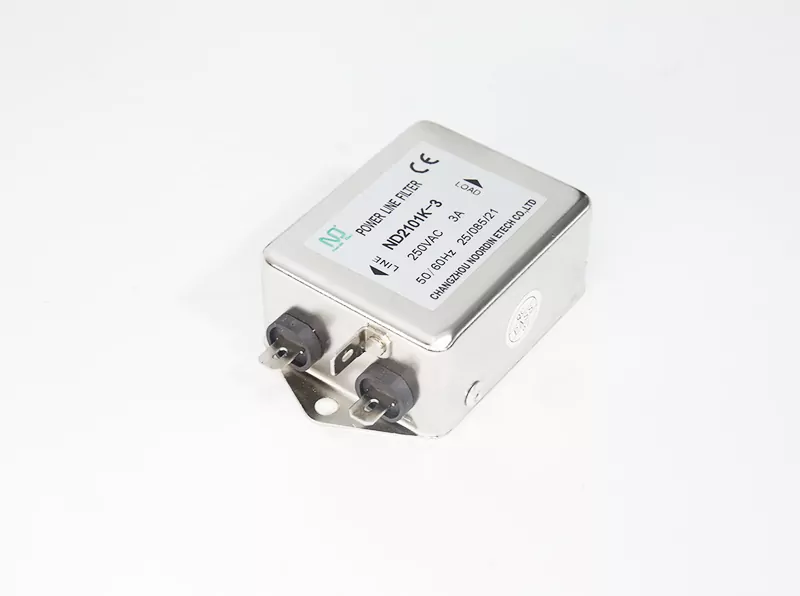

Power Line Filter For Military

Single/There-phase, 1-100A, 125/250VAC, 50-400Hz

What Is Power line filter for military

Military-grade power line filters are ruggedized electromagnetic interference (EMI) suppression devices engineered to meet stringent defense standards (e.g., MIL-STD-461G, MIL-STD-704F) for noise attenuation (10kHz–40GHz), surge protection, and operational reliability in extreme environments. These filters utilize radiation-hardened components, including hermetically sealed X/Y capacitors with ceramic dielectric coatings, toroidal common-mode chokes using amorphous metal alloys, and transient voltage suppressors (TVS) rated for 100kV/μs pulse immunity. Key specifications encompass ultra-wide temperature tolerance (-55°C to +125°C), vibration resistance (up to 15G @ 2kHz per MIL-STD-810H), and EMP/HEMP hardening (IEC 61000-4-25 Level 5). Advanced designs integrate fault-tolerant redundancy architectures and self-diagnostic circuits to ensure mission-critical continuity in battlefield conditions.

What Are Military Power Line Filters Used For?

These filters are mission-critical for maintaining electromagnetic compatibility (EMC) in defense systems. Naval vessels deploy IP68-rated filters to suppress harmonics from radar arrays and propulsion drives, preventing interference with sonar and encrypted communication systems (MIL-STD-1399-300B). Aircraft avionics rely on lightweight, DO-160G-compliant filters to neutralize 400Hz power line noise in flight control systems and EO/IR sensor suites. Field-deployable shelters use EMP-shielded variants to protect tactical networks and jamming equipment from high-altitude electromagnetic pulse (HEMP) threats. Armored vehicles integrate filters with anti-icing coatings to stabilize power for fire control systems and active protection systems (APS) in desert or Arctic environments. Satellite ground stations employ filters with ultra-low outgassing materials to block switching noise from phased array antennas while complying with NASA S-311-P-822-2.0 vacuum compatibility requirements.

Types of Military Power Line Filters

Military filters are classified by environmental resilience, threat mitigation capability, and platform integration. EMP/HEMP Hardened Filters feature multi-stage gas discharge tubes (GDT) and ferrite bead matrices to withstand 50kV/m transient fields, critical for C4ISR (Command, Control, Communications, Computers, Intelligence, Surveillance, and Reconnaissance) systems. Hermetic Sealed Filters with welded stainless steel enclosures (MIL-STD-202H) resist salt fog and chemical agents in naval and coastal deployments. High-Density DC Filters optimize SWaP-C (Size, Weight, Power, and Cost) for UAV power modules, delivering 60dB@1MHz attenuation in <100cm³ volumes. Hybrid Active-Passive Filters combine GaN-based active cancellation and passive LC networks to neutralize variable-frequency noise from directed energy weapons (DEW) power supplies. Ruggedized Ripple Filters suppress 100kHz–10MHz switching noise in vehicle-mounted counter-UAS (Unmanned Aerial System) jammers, ensuring stable operation under 30G shock loads.
