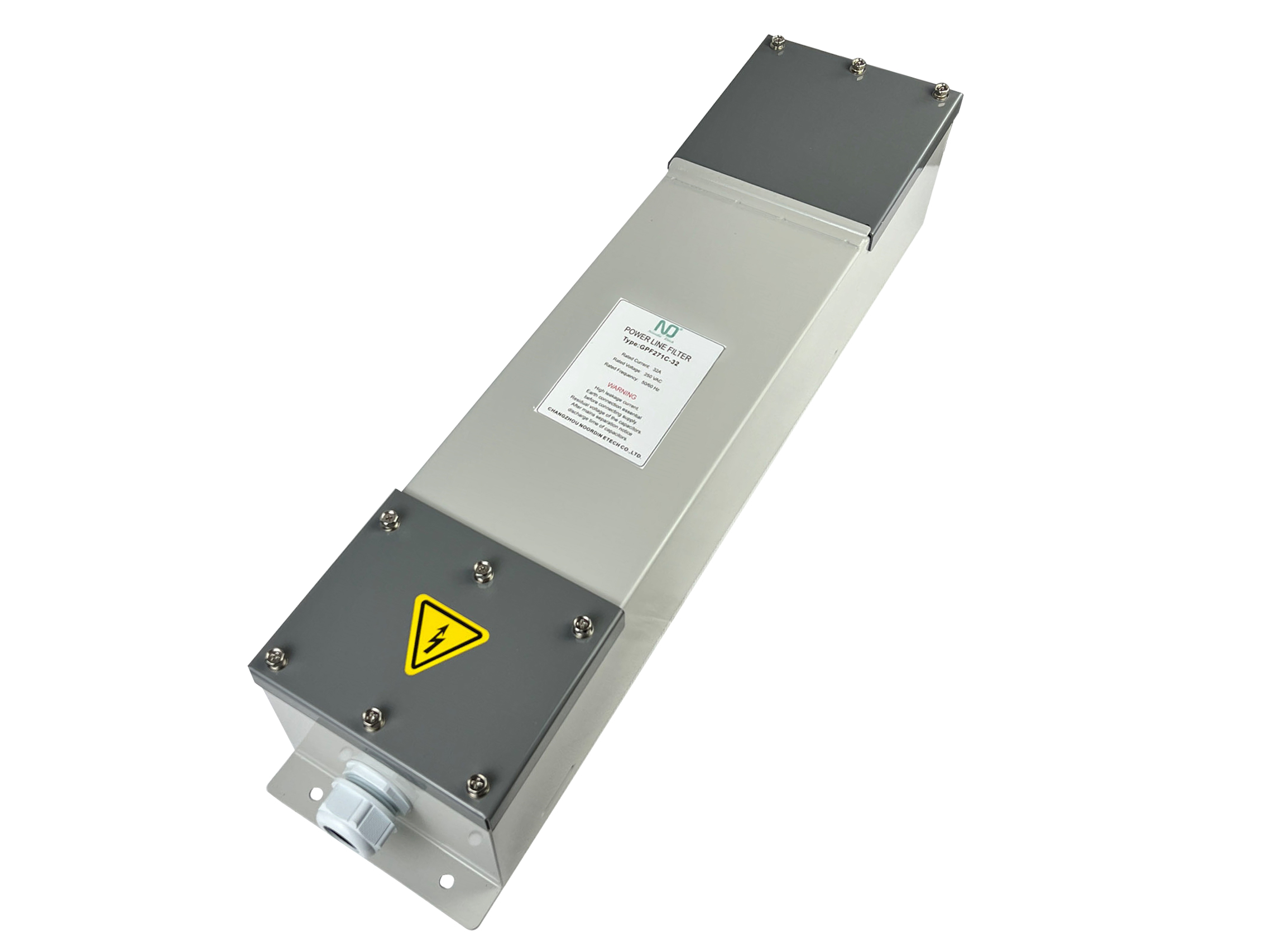

Power line filters for anechoic chamber

What are Power line filters for anechoic chamber

Anechoic chamber power line filters are high-performance electromagnetic interference (EMI) suppression devices engineered to eliminate conducted noise across a 10kHz–40GHz frequency spectrum in radio frequency (RF) testing environments. These filters comply with EN 60939-1 for civilian applications and MIL-STD-461G for military-grade requirements, ensuring signal integrity during critical measurements such as antenna calibration, radar cross-section analysis, and 5G millimeter-wave device validation. Their patented coaxial shielding design (Utility Model Patent ZL2023 2XXXXXXX.X) resolves ground plane resonance in multi-channel setups, while hermetically sealed stainless steel housings guarantee durability in humidity-controlled chambers.

What Are Anechoic Chamber Power Line Filters Used For?

These filters are essential in environments requiring electromagnetic silence to achieve accurate test results. In automotive EMC laboratories, they enable CISPR 25-compliant testing for electric vehicle powertrains and infotainment systems. Aerospace R&D facilities deploy them to validate satellite communication payloads and phased-array radar systems. Military applications include electronic warfare simulation chambers, where they prevent interference leakage during radar jamming tests. Additionally, they support 5G NR (New Radio) base station calibration by ensuring precise over-the-air (OTA) performance measurements, critical for network deployment in urban and industrial IoT environments.

Types of Anechoic Chamber Power Line Filters

The product line is categorized by technology and certification. Technology-driven variants include multi-stage LC circuit filters with feedthrough capacitors for 40GHz suppression and modular designs for scalable RF testing setups. Certification-specific models cover civilian standards (EN 60939-1, CE) for automotive labs and military-grade units (MIL-STD-461G, TEMPEST) for defense applications. Hybrid versions integrate IP67-rated connectors for harsh environments and real-time health monitoring via front-panel LEDs, aligning with ISO 9001:2015 quality protocols for mission-critical operations.
