Fabric Over Foam Gasket
Fabric Over Foam Gasket
Conductive foam gasket，EMI shielding gasket
Technical Data:
- Conductive Outer Layer: Nickel-copper plated fabric, silver-copper foil, aluminum foil
- Core Material: PU foam, PE foam (optional flame retardant)
- Thickness Range: 0.8 mm – 10 mm (customizable)
- Compression Recommended: 30% – 50%
- Surface Resistivity: ≤ 0.05 Ω/sq
- Shielding Effectiveness: ≥ 60 dB @ 30 MHz – 10 GHz
Product Description
Fabric-over-Foam (FOF) Gaskets are advanced EMI shielding components made by wrapping conductive fabric or metal foil over a soft foam core. They combine excellent shielding effectiveness with mechanical flexibility and environmental sealing, making them ideal for use in electronic enclosures, seams, and access panels.
These gaskets address key challenges such as EMI leakage, irregular surface contact, and mechanical misalignment. Their compressible core ensures consistent shielding even under low closure force, while also compensating for uneven surfaces and gaps in device assemblies.
Compared to traditional EMI gaskets, our FOF gaskets offer superior elasticity, longer compression life, and custom profile options. Their enhanced conformability and durable construction make them a top choice for reliable and cost-effective EMI management.
Read more in our blog: Choosing the Right EMI Gasket: Fabric-over-Foam vs. Metal Finger Strips
Typical Applications
Fabric Over Foam Gasket is widely used in telecommunications equipment to ensure EMI shielding and grounding reliability in tight spaces.
In server cabinets and network enclosures, Fabric Over Foam Gasket maintains electrical continuity across seams and doors.
Fabric Over Foam Gasket is essential in military systems and aerospace applications where rugged EMI protection is critical.
For consumer electronics, Fabric Over Foam Gasket supports compact device designs while delivering reliable EMI suppression.
In automotive electronics, Fabric Over Foam Gasket helps shield sensitive modules from engine-related interference.
Fabric Over Foam Gasket ensures EMI integrity in medical devices operating in electromagnetically sensitive environments.
Used in industrial control systems, Fabric Over Foam Gasket offers long-life compression and stable shielding under vibration.
Fabric Over Foam Gasket is also ideal for shielded rooms or chambers, offering easy installation and consistent shielding.
Product Features
- Easy to Process: easily cut and shaped with scissors or cutters, allowing flexible customization.
- Excellent Abrasion Resistance: designed to withstand frequent mechanical contact and maintain long service life.
- Low Compression Force Required: effective shielding with minimal pressure, allowing the use of thinner metal sheets and reducing material costs.
- Low Surface Resistance: ensures consistent electrical conductivity and EMI shielding effectiveness.
- Cost-Effective Sealing and Shielding: an economical EMI/RFI shielding solution for enclosures, panels, and electronic assemblies.
Technical Data
| Parameter | Typical Value / Range | Notes / Standards |
| Conductive Outer Layer | Nickel-copper plated fabric, silver-copper foil, aluminum foil | High conductivity and corrosion resistance |
| Core Material | PU foam, PE foam (optional flame retardant) | Excellent compressibility and rebound |
| Thickness Range | 0.8 mm – 10 mm(standard thickness) | Other thicknesses customizable upon request |
| Compression Recommended | 30% – 50% | Ensures optimal EMI contact and mechanical seal |
| Surface Resistivity | ≤ 0.05 Ω/sq | ASTM D257 |
| Shielding Effectiveness | ≥ 60 dB @ 30 MHz – 10 GHz | Based on MIL-STD-285 or IEEE-299 testing |
| Adhesive Options | Pressure-sensitive adhesive (PSA), conductive adhesive, 3M tape, halogen-free types | Facilitates quick and easy installation |
| Operating Temp Range | -40°C to +85°C (some models up to 125°C) | Suitable for harsh environments |
| Flammability Rating | UL 94 V-0 (optional models) | Flame retardant safety certification |
| Environmental Compliance | RoHS 2011/65/EU, REACH EC No. 1907/2006 | Environmentally compliant |
| EMC Standards | MIL-STD-285, IEEE-299, MIL-G-83528 | Reference shielding measurement and gasket specs |
| Quality Certifications | ISO 9001, IATF 16949 (optional for automotive applications) | Quality assurance |

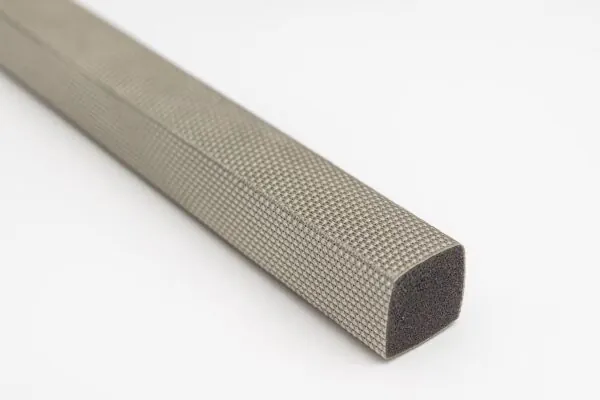

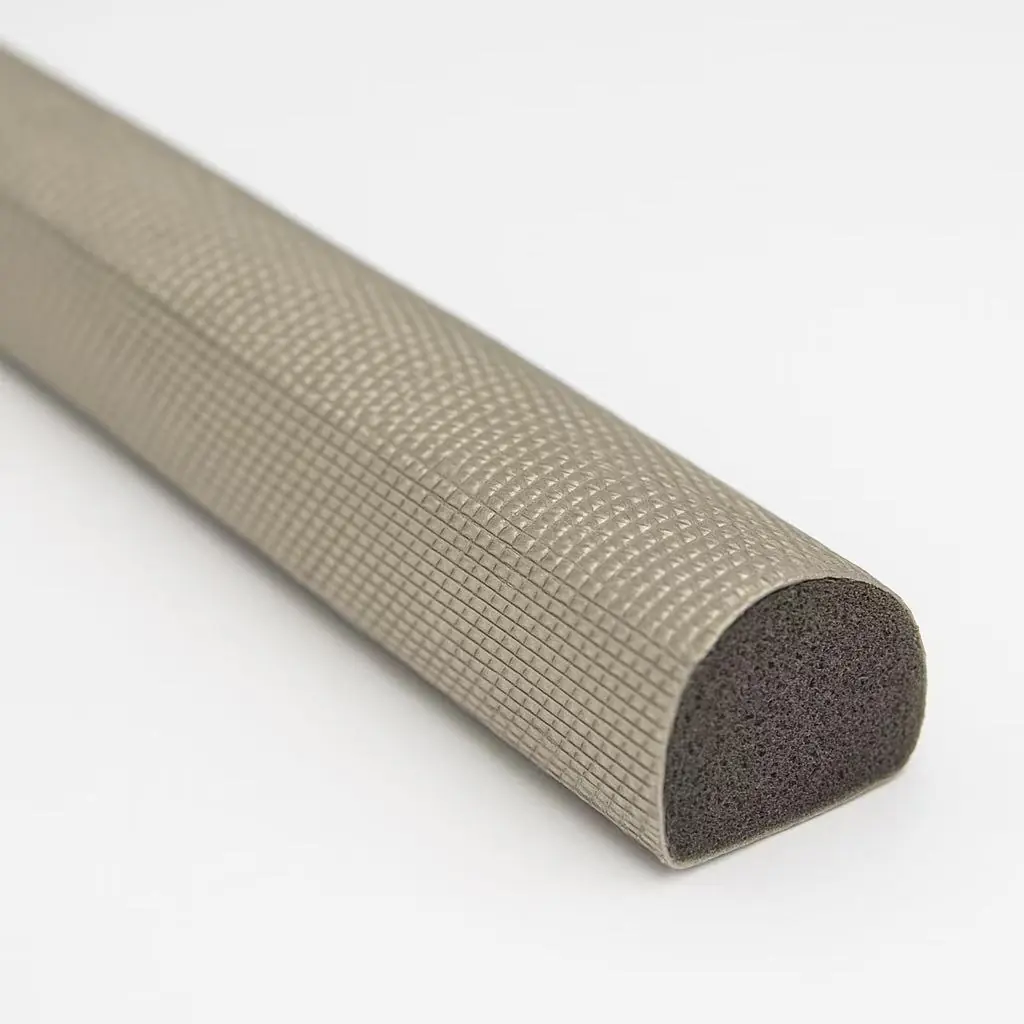

Available Profile Shapes
Circuit Diagrams
Currently, there is no circuit diagram available for Fabric Over Foam Gasket.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Unfortunately, we do not have dimensional drawings available for Fabric Over Foam Gasket at this time.
For detailed size specifications, please reach out to our staff for further assistance.
Insertion Loss
Insertion loss data for Fabric Over Foam Gasket is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
