EMC Turntable
EMC Turntable
Electromagnetic Compatibility Turntable, EMI/EMC Test Turntable, EMC Test Table, RF Shielded Turntable
Technical Data:
- Platform Diameter: 1.2m, 1.5m, 2.0m, 3.0m, 4.0m, 5.0m, 6.0m
- Load Capacity: 300 Kg to 15 Tons
- Rotation Speed: 0.4 – 2.0 rpm adjustable
- Rotational Accuracy: ±1°
- Rotating Angle Range: 380° to -20°
- Drive System: Precision Chain Drive (small models) / Gear Drive (heavy models)
- Motor Type: EMC-shielded Stepper Motor or EMC-hardened AC Motor
- Control Interface: Shielded Fiber Optic Lines
- Material: Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant)
- EMI Compliance: MIL-STD-461G RE102 (2 MHz–40 GHz, 3m distance)
- Power Supply: 220V Single-phase or 380V Three-phase, EMC compliant
Product Description
The EMC Turntable Series is specifically engineered for electromagnetic compatibility (EMC) testing in military, aerospace, automotive, and commercial industries. Designed and manufactured in full compliance with MIL-STD-461G RE102 and MIL-STD-810G, these turntables provide high-precision rotational motion for devices under test (DUT) in anechoic chambers or open-area test sites. With platform diameters from 1.2 to 6 meters and load capacities up to 15 tons, they are ideal for both compact electronics and large-scale defense systems.
In EMC testing scenarios, especially under high-load or high-frequency test conditions, inconsistent DUT positioning or unstable rotation can compromise measurement accuracy. The EMC Turntable Series addresses this challenge by ensuring smooth, noise-isolated movement and reliable 360° DUT orientation, enabling repeatable, interference-free radiated emissions and susceptibility assessments.
Compared to other solutions on the market, our EMC turntables stand out with fully shielded motor-drive systems, precision gear alignment, and modular upgrade options such as remote control and synchronized antenna tracking. Our systems are field-proven in mission-critical defense and aerospace projects where accuracy, durability, and electromagnetic integrity cannot be compromised.
Explore more on our blog:
“How EMC Turntables Enhance Test Accuracy in Military RE/RS Testing”
Typical Applications
The EMC Turntable plays a critical role in radiated emissions (RE) and radiated susceptibility (RS) testing, providing stable and precise rotation of the test object for full angular coverage during EMC certification.
For military communication equipment, radar systems, and avionics, the EMC Turntable ensures accurate positioning and repeatable orientation, enabling reliable EMC performance evaluation under controlled test conditions.
In antenna pattern measurements and wireless device testing, the EMC Turntable facilitates precise rotational scanning, helping characterize directional behavior and ensure compliance with regulatory standards.

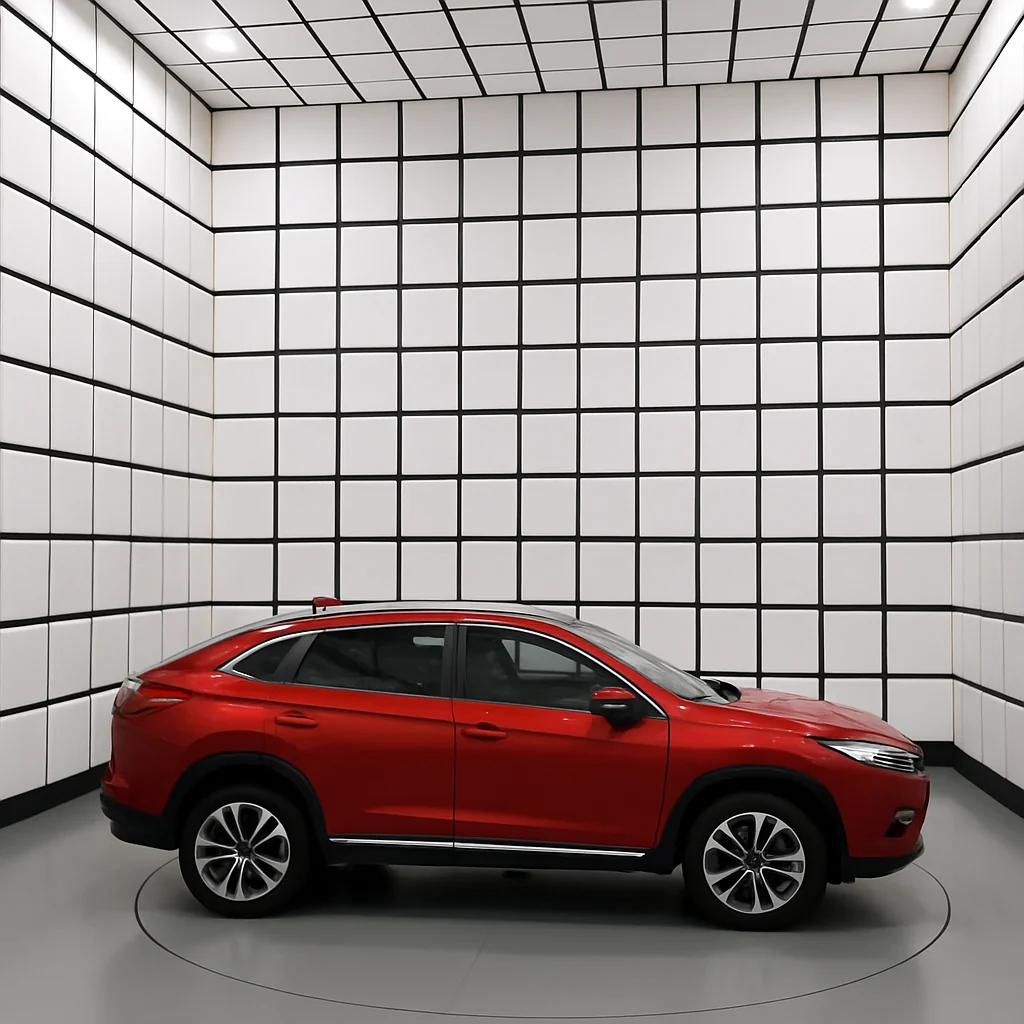

When testing heavy military vehicles and aerospace platforms, the robust load-bearing capability of the EMC Turntable supports dynamic testing of large structures in demanding EMC environments.
Large industrial systems can be assessed using the EMC Turntable to meet MIL-STD and CISPR requirements, ensuring consistent orientation control for radiated EMC evaluations.
Product Features
- Wide Size Range: Platform diameters available from 1.2m to 6.0m
- High Load Capacity: Supports loads from 300 Kg up to 15 Tons, meeting demanding test needs
- Precision Drive Systems: Chain drive for small models; high-precision gear drive for heavy-duty models
- Rotational Accuracy: ±1° for reliable and repeatable DUT positioning
- Controlled Speed Range: Smooth rotation adjustable between 0.4–2.0 rpm
- Extended Rotation Angle: 380° to -20°, allowing overshoot and full angular range testing
- Advanced EMI Protection: Shielded fiber optic control lines and EMC-shielded stepper/AC motors
- Corrosion-Resistant Structure: Stainless steel compliant with MIL-STD-810G environmental durability requirements
- Flexible Power Supply: Options for 220V Single-phase or 380V Three-phase input
Technical Data
| Model | Platform Diameter | Platform Height | Load Capacity | Drive Mechanism | Material | Rotational Accuracy | Rotation Speed Range | Rotating Angle | Control Interface | Motor Type | EMI Compliance | Power Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NDZT-1.2 WF | 1.2m | 150mm | 300 Kg | Precision Chain Drive | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.5–2 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-shielded Stepper Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 220V AC, Single-phase, EMC compliant |
| NDZT-1.5 WF | 1.5m | 170mm | 500 Kg | Precision Chain Drive | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.5–2 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-shielded Stepper Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 220V AC, Single-phase, EMC compliant |
| NDZT-1.2 | 1.2m | 140mm (min) | 300 Kg (500 Kg, 1T) | Precision Chain Drive | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.5–2 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-shielded Stepper Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 220V AC, Single-phase, EMC compliant |
| NDZT-1.5 | 1.5m | 160mm (min) | 500 Kg (1T) | Precision Chain Drive | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.5–2 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-shielded Stepper Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 220V AC, Single-phase, EMC compliant |
| NDZT-2.0 | 2.0m | 170mm (300mm) | 1T, 2T (3T) | Chain and Gear System | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.5–2 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-shielded Stepper Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 220V AC, Single-phase, EMC compliant |
| NDZT-3.0 | 3.0m | 400mm (min) | 3T (5T) | Precision Gear Drive | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.4–1.5 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-hardened AC Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 380V AC Three-phase or 220V AC Single-phase |
| NDZT-4.0 | 4.0m | 450mm (min) | 5T (10T) | Precision Gear Drive | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.4–1.5 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-hardened AC Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 380V AC Three-phase or 220V AC Single-phase |
| NDZT-5.0 | 5.0m | 600mm (min) | 5T (10T) | Precision Gear Drive | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.4–1.5 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-hardened AC Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 380V AC Three-phase or 220V AC Single-phase |
| NDZT-6.0 | 6.0m | 600mm (min) | 6T (15T) | Precision Gear Drive | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | ±1° | 0.4–1.5 rpm | 380° to -20° | Shielded Fiber Optic Lines | EMC-hardened AC Motor | MIL-STD-461G RE102 (2MHz–40GHz, 3m distance) | 380V AC Three-phase or 220V AC Single-phase |
Circuit Diagrams
Currently, there is no circuit diagram available for EMC Turntable.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Unfortunately, we do not have dimensional drawings available for EMC Turntable at this time.
For detailed size specifications, please reach out to our staff for further assistance.
Insertion Loss
Insertion loss data for EMC Turntable is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
