Modular RF Shielded Room
Modular RF Shielded Room
Modular EMI Shielding Enclosure, EMC Shielded Chamber, EMC Room, Shielding Enclosure, RF Test Chamber
Technical Data:
- Shielding Effectiveness:
≥ 100 dB @ 100 kHz – 10 GHz
≥ 110 dB @ 50 MHz – 1 GHz
≥ 90 dB @ 10 – 18 GHz
(Tested per IEEE-STD-299 / MIL-STD-285 standards) - Panel Thickness:
2.0 mm galvanized steel, CNC-formed, powder-coated - Standard Door Sizes:
900 × 2000 mm, 1000 × 2000 mm, 1200 × 2000 mm - Optional Waveguide Vents:
300×300 mm, 300×600 mm, 600×600 mm - Power Filter System:
High-efficiency EMI filters for low-noise environments
Product Description

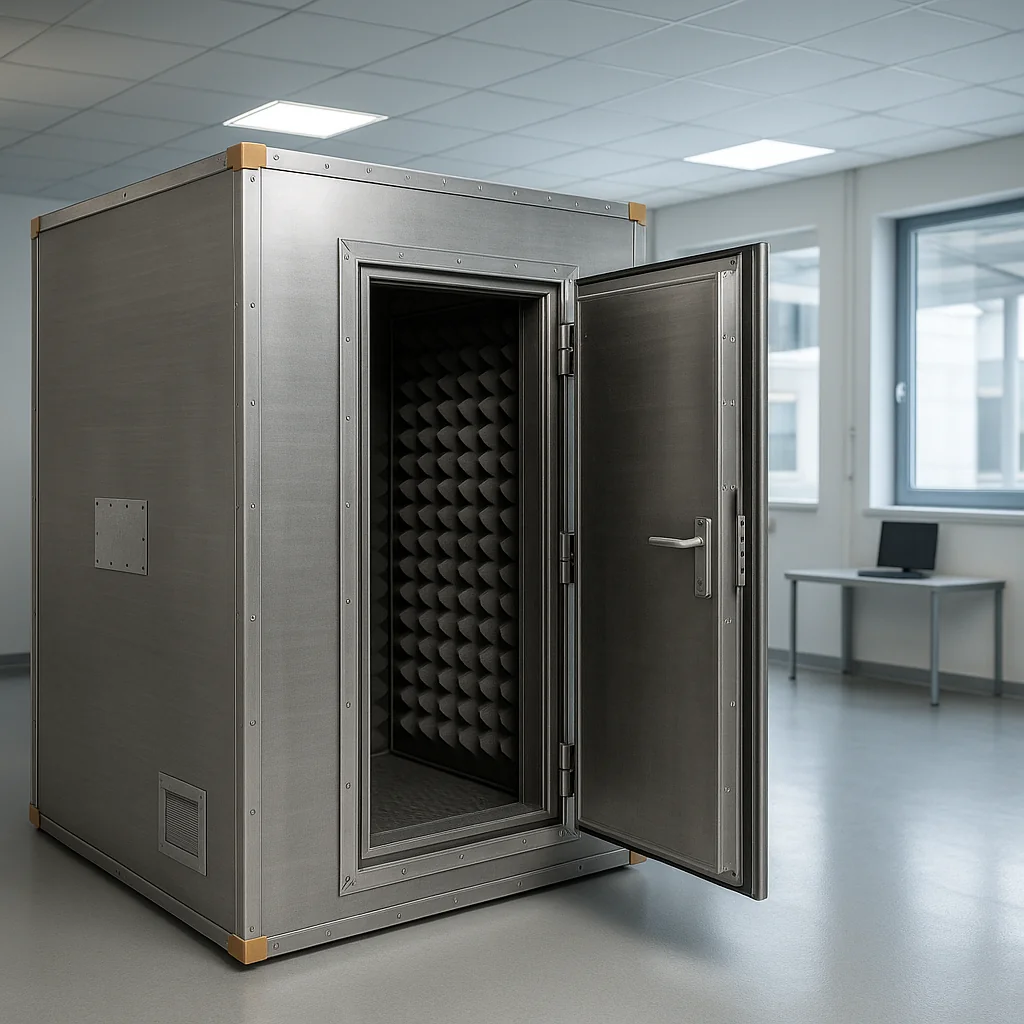

The Modular RF Shielded Room is a high-performance shielding solution designed for applications such as metrology testing, information security, EMC compliance testing, and wireless measurement. Its demountable and expandable structure makes it easy to install, relocate, or reconfigure, offering a flexible and reliable environment for critical testing and protection needs.
This product addresses common challenges in RF-sensitive environments by offering exceptional shielding effectiveness, rapid deployment, and modular scalability. It effectively isolates equipment and personnel from external RF interference, solving problems such as data leakage, unreliable signal measurements, and non-compliant EMC setups.
Compared to traditional shielded rooms, our Modular RF Shielded Room provides faster lead times, simpler on-site assembly, and customizable configurations to fit various space and performance requirements. Our designs also support integration with ventilation, lighting, power filters, and waveguide solutions, making them more adaptable than many competitors’ fixed systems.
Explore more on our blog: Why Modular Shielded Rooms Are the Future of EMC Testing
Typical Applications
Modular RF Shielded Room is ideal for EMC and EMI testing environments, providing a controlled space with excellent shielding effectiveness.
In information security and anti-eavesdropping facilities, Modular RF Shielded Room ensures confidential communication by blocking external RF interference.
Wireless and antenna measurement chambers benefit from Modular RF Shielded Room structures to deliver accurate, repeatable signal testing.
For precision metrology laboratories, Modular RF Shielded Room maintains a low-noise environment essential for high-accuracy instrumentation.
Temporary or relocatable shielding enclosures are easily achieved with Modular RF Shielded Room, offering flexibility without compromising shielding performance.
Product Features
- Modular structure allows for easy disassembly, transport, and expansion
- Attractive appearance with powder-coated panels and clean interior finish
- Lightweight yet durable design
- Supports customization of dimensions, interfaces, and interior systems such as air conditioning, audio, fire monitoring, and signal routing
- Optional configurations include:

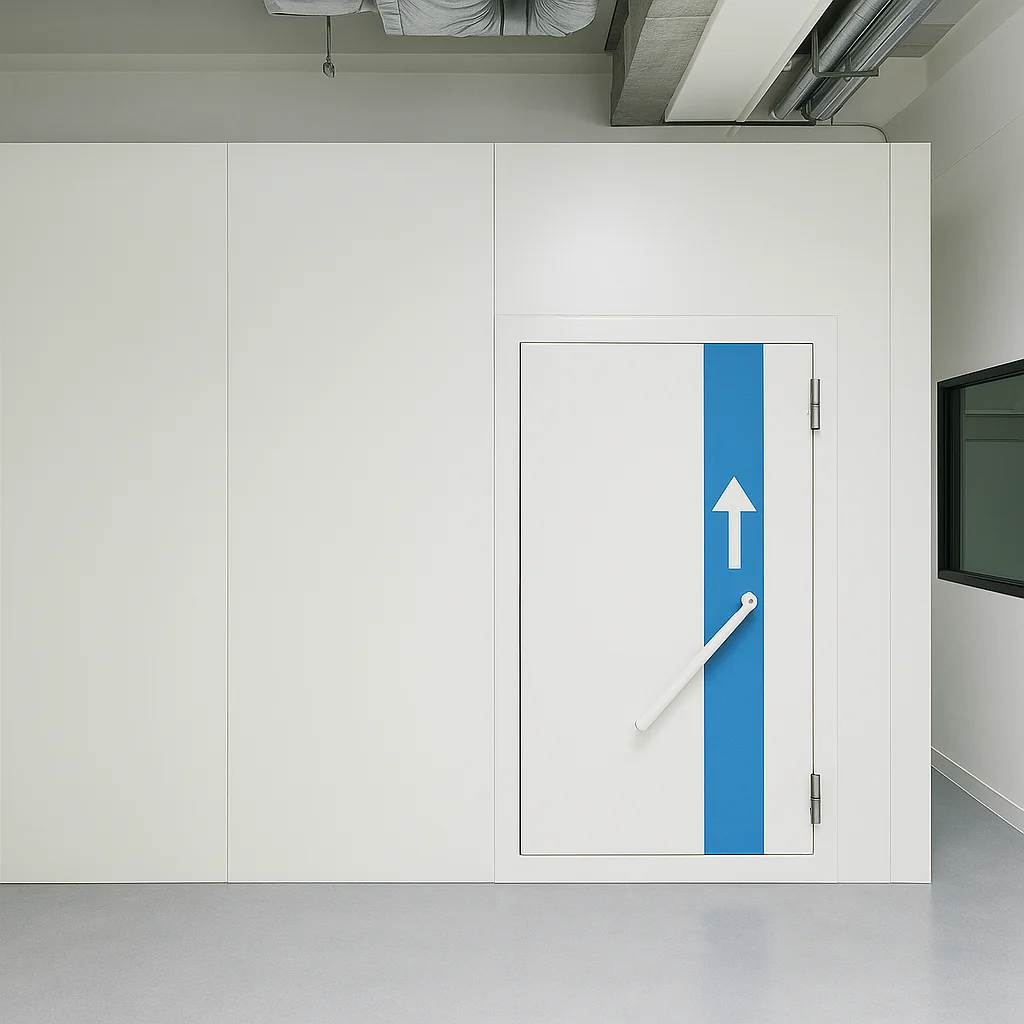

- Electric/manual shielded doors (hinged or sliding types)

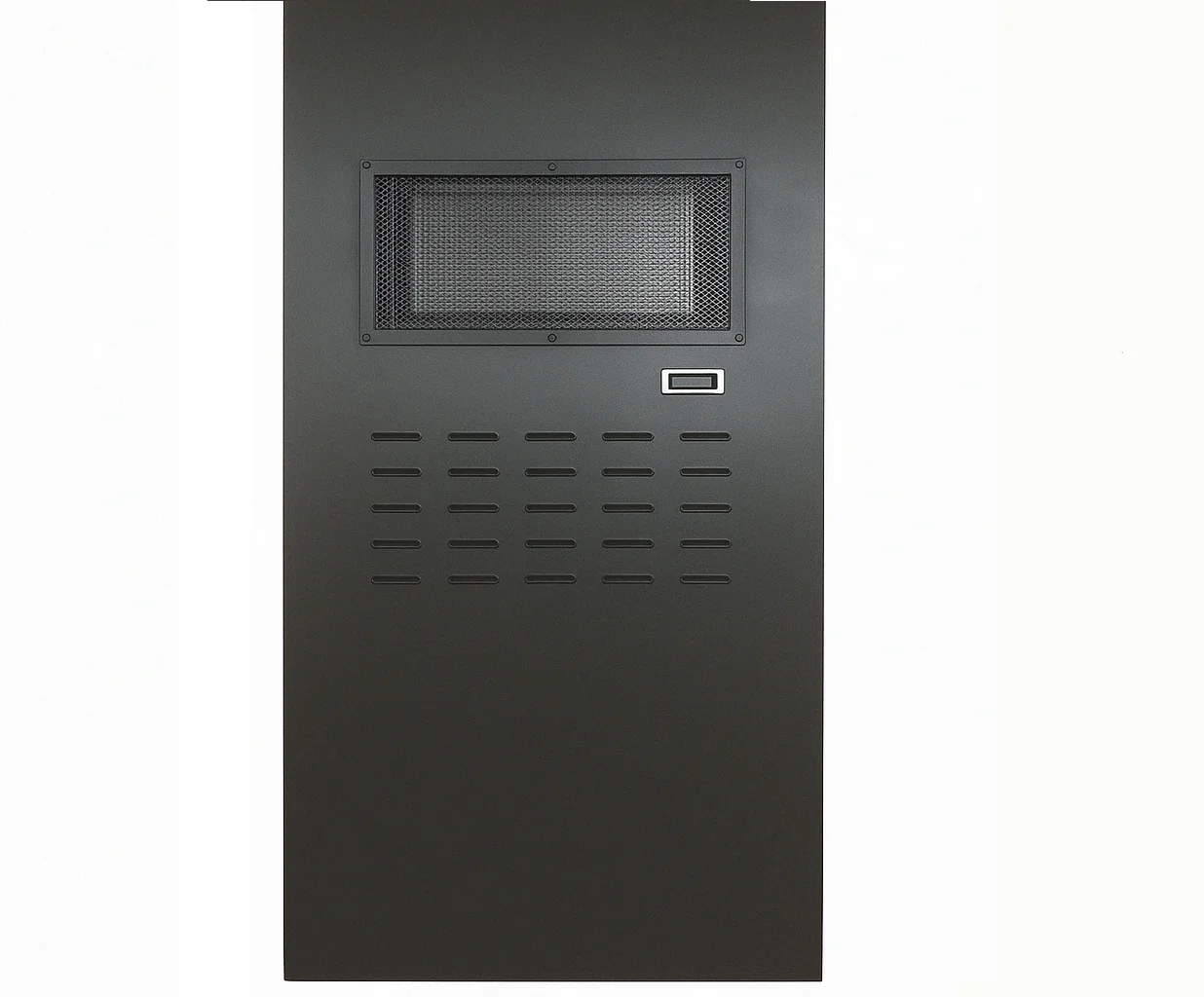

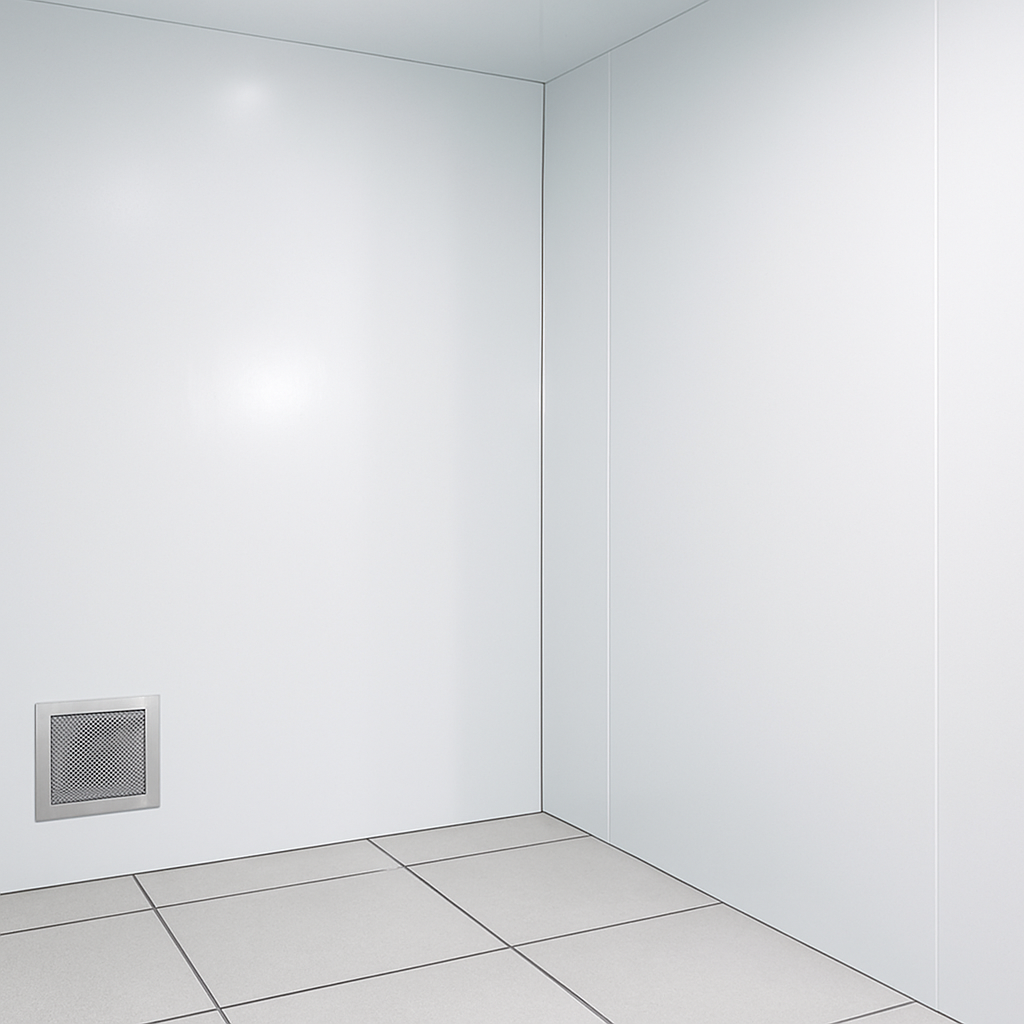

- Shielded windows and air vents with waveguides
- Power and signal line filters
- Interior power distribution and decoration
- Compatible with various shielding interfaces such as RF connectors, fiber-optic interfaces, or waveguide penetrations
Technical Data
| Model | Magnetic Field (14kHz) | Magnetic Field (100kHz) | Electric Field (200kHz–50MHz) | Plane Wave (50–1000MHz) | Microwave (1–10GHz) | Microwave (10–18GHz) | Microwave (18–40GHz) |
|---|---|---|---|---|---|---|---|
| Modular Type | ≥75 dB | ≥100 dB | ≥100 dB | ≥110 dB | ≥100 dB | ≥90 dB | / |
- Test Method: Compliant with MIL-STD-285 (Historical) and IEEE-STD-299 shielding performance test methods. Shielding effectiveness meets or exceeds 100 dB from 14kHz to 10GHz, suitable for high-security, EMC, and military-grade environments.
- Panel Material: 2.0 mm high-quality galvanized steel plate with CNC precision shaping, gas shielded welding, and powder coating
- Standard Door Sizes: 0.9×2.0 m, 1.0×2.0 m, 1.2×2.0 m
- Optional Waveguide Vent Sizes: 300×300 mm, 300×600 mm, 600×600 mm
- Power System: Supports high-efficiency filters for low-noise environments
- Installation Options: Fixed or mobile structure; suitable for permanent or semi-permanent use
Circuit Diagrams
Currently, there is no circuit diagram available for Modular RF Shielded Room.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Unfortunately, we do not have dimensional drawings available for Modular RF Shielded Room at this time.
For detailed size specifications, please reach out to our staff for further assistance.
Insertion Loss
Insertion loss data for Modular RF Shielded Room is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
