In modern military electronics, electromagnetic compatibility (EMC) testing plays a critical role in ensuring that devices perform reliably in complex and hostile electromagnetic environments. Radiated Emission (RE) and Radiated Susceptibility (RS) testing are key processes in this validation, designed to verify that military equipment neither emits harmful electromagnetic interference nor fails when exposed to external electromagnetic sources.
One of the fundamental components that enhance the precision and reliability of these tests is the EMC turntable. This article explores the function and importance of EMC turntables in military RE/RS testing, how they improve test accuracy, and their overall contribution to meeting rigorous military standards.
Understanding EMC Turntables

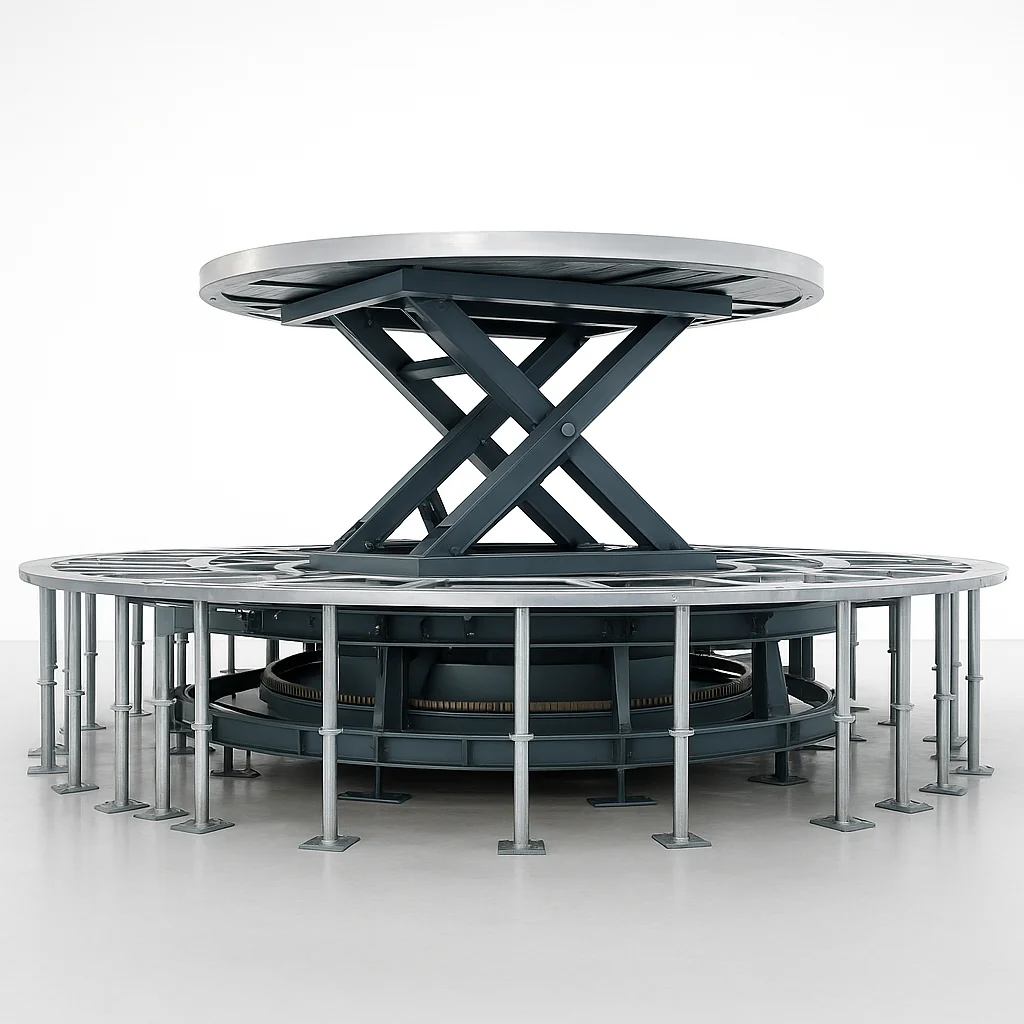

An EMC turntable is a precision motorized platform located inside anechoic or shielded test chambers. It holds the Device Under Test (DUT) and rotates it through 360 degrees during emission and susceptibility measurements.
The rotation of the DUT is essential for replicating real-world conditions where equipment encounters electromagnetic fields from various directions. Without rotation, tests would only capture emissions or susceptibility in a fixed orientation, which risks missing critical angles of vulnerability or emission peaks.
How EMC Turntables Improve Test Accuracy
1. Comprehensive Angular Coverage
Military systems are subjected to electromagnetic fields from all directions in operational environments. An EMC turntable enables the DUT to be rotated continuously or in set increments, ensuring measurements capture emissions or susceptibility from every possible angle.
This comprehensive angular coverage helps identify the worst-case scenario emissions or vulnerabilities, which might remain undetected in fixed-orientation testing.
2. Repeatability and Consistency
Automation in EMC turntables provides precise control over rotation angles and speeds, allowing tests to be repeated exactly under the same conditions. This consistency is vital for reliable data collection, comparison between different test runs, and validation of mitigation techniques.
Manual rotation introduces variability, while automated turntables ensure that any changes in results reflect actual DUT behavior, not testing inconsistencies.
3. Compliance with Military Standards
Military EMC testing must conform to strict guidelines such as MIL-STD-461 (Electromagnetic Interference Control) and MIL-STD-464 (Electromagnetic Environmental Effects). These standards specify the need for full 360-degree evaluation of emissions and susceptibility.
EMC turntables facilitate compliance by providing a standardized, measurable way to assess device performance in all orientations, ensuring the DUT meets or exceeds required thresholds.
4. Efficient Testing Process
Automated turntables streamline the testing workflow by reducing manual handling and setup time. Multiple tests across different frequencies and polarizations can be conducted more efficiently with the turntable in place.
This efficiency is particularly important in military programs where development timelines are tight and testing budgets limited.
Key Features of Military-Grade EMC Turntables
Military-grade EMC turntables incorporate advanced features designed to meet the demands of defense testing environments:
-
High Load Capacity: Able to support heavy or bulky military equipment without compromising rotational precision.
-
Precision Control: Stepper motors or servo systems provide fine angular resolution, often better than 0.1 degrees.
-
Non-conductive Materials: Use of materials that minimize interference and reflection inside anechoic chambers.
-
Integration with Measurement Systems: Synchronization with antennas, sensors, and data acquisition software for automated data capture.
-
Environmental Compatibility: Designed to operate within controlled temperature and humidity conditions typical of military test labs.
Common Applications of EMC Turntables in Military Testing
Radiated Emission (RE) Testing
In RE testing, the device’s electromagnetic emissions are measured while it operates. The turntable rotates the DUT so that emissions can be recorded from every angle. This helps ensure that the device does not emit interference exceeding military regulatory limits that could affect other systems.
Radiated Susceptibility (RS) Testing
RS testing exposes the DUT to controlled electromagnetic fields to evaluate its resilience. The turntable rotates the device to test susceptibility at different orientations relative to the source, identifying the orientations where the DUT might fail or degrade in performance.
Advantages Over Fixed or Manual Testing Setups
-
Detection of Directional Anomalies: Fixed setups can miss emission peaks or susceptibility hotspots that only appear at certain orientations. Turntables uncover these by systematic rotation.
-
Reduction of Human Error: Manual repositioning can be inconsistent and time-consuming, potentially leading to incomplete or unreliable test data. Turntables eliminate this variability.
-
Data Quality and Confidence: With precise and reproducible rotation, test engineers gain higher confidence in data accuracy, aiding design verification and certification.
Integration of EMC Turntables with Test Chambers
EMC turntables are a critical component within fully equipped test chambers, often anechoic or semi-anechoic, designed to absorb reflections and create controlled electromagnetic environments. Integration considerations include:
-
Positioning: The turntable must be aligned correctly with antennas and sensors for accurate measurement.
-
Control Software: Modern test setups include software that coordinates turntable rotation, signal generation, and data logging seamlessly.
-
Calibration: Periodic calibration ensures the turntable and measurement system maintain accuracy and comply with military standards.
Future Trends in EMC Turntable Technology
Emerging trends that will shape the next generation of EMC turntables include:
-
Enhanced Automation: Greater integration with AI-based data analysis for faster anomaly detection.
-
Higher Precision: Improved motor control and feedback for sub-degree accuracy.
-
Larger and More Flexible Platforms: To accommodate bigger, more complex military systems such as UAVs or radar components.
-
Wireless Data Integration: Minimizing cabling around the DUT to reduce measurement interference.
Conclusion
EMC turntables are indispensable in military RE/RS testing, providing comprehensive angular exposure, repeatable conditions, and compliance with rigorous standards. Their use ensures that military electronic systems are accurately assessed for electromagnetic emissions and susceptibility, enhancing reliability and operational readiness in demanding environments.
Incorporating EMC turntables into military EMC testing protocols results in improved test accuracy, efficiency, and confidence in product performance.
