Fiber Optic Converter
Fiber Optic Converter
Ethernet Media Converter, Media Converter Fiber To Ethernet, Fiber To Ethernet Converter, Fiber Optic To Ethernet
Technical Data:
- Multi-Protocol Support: LIN 2.0/2.1/2.2A, CAN-FD (up to 5Mbps), Automotive Ethernet (100/1000Base-T1), Analog signals up to 1MHz
- High-Speed Transmission: Supports data rates up to 1Gbps (Ethernet) and 1MHz bandwidth for analog signals
- EMI Protection: Full compliance with MIL-STD-461G (RE102, CE102) and ISO 10605 (ESD ±15kV)
- Optical Isolation: Fiber optic transmission via ST, LC, or SFP interfaces (Single-mode or Multi-mode fiber)
- Power Supply: Built-in lithium battery, working time ≥12–72 hours depending on model
- Robust Signal Integrity: Supports differential and single-ended signal types with ultra-low noise (10mV RMS for analog)
- Ultra-Low Radiation Emission: Designed for critical EMI/EME testing environments
- Flexible Configuration: Master/Slave switchable, power level indicator (4 stages)
- Compact Size: Lightweight, portable, suitable for automotive, defense, and lab use
Product Description

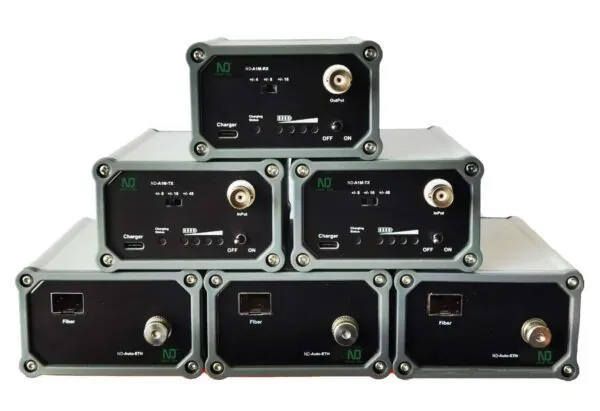

The Fiber Optic Converter Series is a high-reliability optical transmission solution that supports a broad range of signals, including LIN, CAN-FD, Ethernet (T1), and analog. With ultra-low electromagnetic radiation and superior EMI immunity, it’s built for demanding applications such as EMI/EMC testing, automotive communication, and defense systems. Each unit includes optical isolation, lithium battery power, and flexible Master/Slave configuration.
This series solves critical challenges in high-EMI environments where traditional copper connections fail to ensure stable and noise-free communication. By eliminating ground loops and providing full galvanic isolation, the Fiber Optic Converter ensures precise signal transmission even in harsh EMI and environmental conditions.
Compared to conventional converters, our solution offers higher compliance to MIL-STD-461G and MIL-STD-810G standards, longer battery life, and a more compact design. With proven performance in both lab and field conditions, our converters offer unmatched reliability and convenience for system integrators and test engineers.
Explore more on our blog: How Fiber Optic Converters Enhance EMI Testing Accuracy
Typical Applications
Fiber Optic Converter is essential for EMI/EMC validation in high field strength environments, ensuring signal integrity without interference.
In automotive communication system testing such as LIN, CAN-FD, and Ethernet T1, Fiber Optic Converter enables reliable, isolated data transmission.
Over-the-Air (OTA) validation in anechoic and semi-anechoic chambers benefits from Fiber Optic Converter use to avoid EMI disruptions.
Defense communication and radar testing scenarios rely on Fiber Optic Converter for robust, interference-free connectivity under harsh conditions.
In high-EMI laboratory environments requiring optical isolation, Fiber Optic Converter provides critical optical isolation to maintain measurement accuracy and safety.
Product Features
- Optical isolation for maximum EMI immunity
- MIL-STD-461G RE102, CE102 compliant EMC performance
- Ultra-low radiation emission, suitable for EME tests
- Master/Slave mode configurable
- Built-in lithium battery with long working time
- 4-level power indicator for easy monitoring
- Supports LIN, CAN-FD, Automotive Ethernet (100/1000Base-T1), and analog signals
- Portable design with compact and ruggedized housing
Technical Data
| Item | ND-LIN | ND-CAN-FD | ND-AUTO-ETH | ND-A1M-TX/RX |
|---|---|---|---|---|
| Supported Protocols | LIN 2.0/2.1/2.2/2.2A | CAN-FD (ISO 11898-2:2016) | 100BASE-T1, 1000BASE-T1 (IEEE 802.3bp/bw) | Analog signal transmission (up to 1MHz) |
| Max Transmission Rate | 20kbps | 5Mbps | 1Gbps | 1MHz bandwidth (-3dB), flatness ±1dB up to 500kHz |
| Bus Connectors | D-Sub 9 | D-Sub 9 | HSD, SFP (optical), RJ45 (via module) | BNC, LC connectors |
| Optical Fiber Type | ST, MM 62.5/125μm | ST, MM 62.5/125μm | DLC, SM 9/125μm (single-mode fiber) | LC, SM 9/125μm |
| Input Signal Range (only TP-A1M) | – | – | – | ±8V / ±16V / ±48V (selectable by DIP switch) |
| Input Impedance (only TP-A1M) | – | – | – | 72.5kΩ / 145kΩ / 435kΩ |
| ADC Resolution (only TP-A1M) | – | – | – | 10-bit |
| Receiving Noise (only TP-A1M) | – | – | – | 10mV RMS |
| Drive Capability (only TP-A1M) | – | – | – | 16mA |
| Signal Type | Differential or Single-Ended | Differential or Single-Ended | Differential or Single-Ended | Differential or Single-Ended |
| Battery Type | Lithium battery | Lithium battery | Lithium battery | Lithium battery |
| Charging Interface | DC charger | DC charger | Type-C charger | Type-C charger |
| Working Time | ≥72 hours | ≥72 hours | ≥12 hours | ≥20 hours |
| EMC Compliance | MIL-STD-461G RE102, CE102; ISO 10605 (ESD ±15kV); Radar wave 600V/m; BCI 200mA | Same as ND-LIN | Same as ND-LIN | Same as ND-LIN |
| Master/Slave Configuration | Supported | Supported | Supported | Supported |
| Special Features | Power level indicator (4 levels) | Power level indicator (4 levels) | Power level indicator (4 levels), Ultra-low EMI | Power indicator, adjustable input range, ultra-low latency (1.3μs) |
Circuit Diagrams
Currently, there is no circuit diagram available for Fiber Optic Converter.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Unfortunately, we do not have dimensional drawings available for Fiber Optic Converter at this time.
For detailed size specifications, please reach out to our staff for further assistance.
Insertion Loss
Insertion loss data for Fiber Optic Converter is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
