EMI Shielding Honeycomb Vent Panels
EMI Shielding Honeycomb Vent Panels
Air Ventilation Panels, EMI Shielded Air Ventilation Panels, Honeycomb Vent
Technical Data:
- Cell Open Rate: 95%
- Shielding Effectiveness: >90dB
- Surface Treatment: Chromium, Tin, Nickel, Flame resistant paint
- Frame Material: Aluminum Alloy
Product Description
EMI Shielding Honeycomb Vent Panels are high-performance, cost-effective components designed to provide both electromagnetic shielding and airflow management in telecom applications such as base stations and network cabinets. Built to meet NEBS and Bellcore GR-63-CORE standards, these panels ensure compliance while maintaining system ventilation and shielding integrity.
Traditional ventilation openings often become EMI leakage points, especially in high-density electronic enclosures. These honeycomb vent panels solve this issue by delivering low-resistance airflow while providing reliable EMI suppression, helping equipment meet stringent regulatory and operational requirements.
Compared to conventional metal mesh or perforated vents, our honeycomb panels offer superior shielding effectiveness, customizable frame and plating options, and enhanced mechanical strength, making them ideal for both retrofit and new equipment designs in critical communication infrastructure.
Learn more in our blog:
“Balancing Ventilation and EMI Shielding in Telecom Systems: Why Honeycomb Vents Matter”
Typical Applications
The EMI Shielding Honeycomb Vent Panels enables precise orientation of base stations during testing, ensuring consistent signal exposure and accurate electromagnetic compatibility evaluation.
In network cabinet testing, the EMI Shielding Honeycomb Vent Panels allows controlled rotation to assess emissions and susceptibility from different angles without repositioning heavy enclosures.
Shielded rooms benefit from the EMI Shielding Honeycomb Vent Panels by enabling automated DUT rotation inside confined EMC test environments, improving efficiency and measurement consistency.
For shielded cabinets, the EMI Shielding Honeycomb Vent Panels supports seamless integration and smooth rotation of bulky devices under test, enhancing overall EMC test reliability.
Product Features
- High EMI shielding over 90dB with low cost
- Wide Choice of materials and surface treatment.
- Standard mounting gaskets are Monel wire mesh and neoprene sponge environmental gaskets
- Round panel and protective grille is available
- Intumescent coating is available to meet NEBS and Bellcore GR-63-Core standard.
- Drip-Proof design to against driving rain in outdoor.
Technical Data
Surface treatment:
- Standard plating is clear chromium coating per Mil-C-5541 class 3 ( RoHS compliance)
- Yellow chromium coating per Mil-C-5541 class 3
- (Not be suggested, base on RoHS Problem)
- Tin plating per ASTM-B545 type C.
- Nickel plated
- Flame resistant paint, always used in Network equipment where need pass NEBS or Bellcore GR-63-CORE
Material and Standard:
| Frame Material | Honeycomb Material |
| aluminum Alloy
6063- T4 |
Aluminum Alloy
5052/ 3003 |
| Standard: QQ-A-200/9 | Standard: Mil-C-7438 |
Shielding Performance:
Air Flow: The honeycomb cell open rate is approximately 95%, resulting in a very low air pressure drop.
Circuit Diagrams
Currently, there is no circuit diagram available for EMI Shielding Honeycomb Vent Panels.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
For: Style01/ Style02/ Style03/ Style04
| Sequential | Opening | Holes or Fasteners | Holes or Fasteners | Total Holes | |||||
| Part No. | Dimensions | (B) | (A) | or Fasteners | |||||
| XXXX | B” | A” | Numbers | D | SP | Numbers | C | SP | Numbers |
| 0303 | 3 | 3 | 1 | 1.75 | 1 | 1.75 | 4 | ||
| 0305 | 3 | 5 | 1 | 1.75 | 2 | 1 | 3.5 | 6 | |
| 0311 | 3 | 11 | 1 | 1.75 | 4 | 1.25 | 3 | 10 | |
| 0404 | 4 | 4 | 1 | 2.25 | 2 | 0.75 | 3 | 6 | |
| 0409 | 4 | 9 | 1 | 2.25 | 3 | 1.25 | 3.5 | 8 | |
| 0505 | 5 | 5 | 2 | 1 | 3.5 | 2 | 1 | 3.5 | 8 |
| 0511 | 5 | 11 | 2 | 1 | 3.5 | 4 | 1.25 | 3 | 12 |
| 0606 | 6 | 6 | 2 | 1.5 | 3.5 | 2 | 1.5 | 3.5 | 8 |
| 0609 | 6 | 9 | 2 | 1.5 | 3.5 | 3 | 1.25 | 3.5 | 10 |
| 0714 | 7 | 14 | 3 | 0.75 | 3 | 5 | 0.75 | 3.25 | 16 |
| 0909 | 9 | 9 | 3 | 1.25 | 3.5 | 3 | 1.25 | 3.5 | 12 |
| 1111 | 11 | 11 | 4 | 1.25 | 3 | 4 | 1.25 | 3 | 16 |
| 1414 | 14 | 14 | 5 | 1.25 | 3 | 5 | 1.25 | 3 | 20 |
| 1818 | 18 | 18 | 6 | 1.75 | 3 | 6 | 1.75 | 3 | 24 |

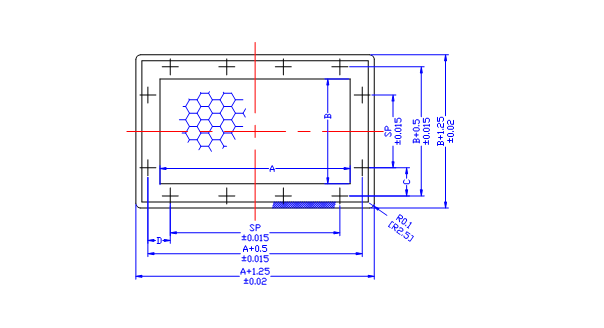

For: Style21/ Style22/ Style23/
| Sequential | Opening | Holes or Fasteners | Holes or Fasteners | Total Holes | |||||
| Part No. | Dimensions | (B) | (A) | or Fasteners | |||||
| XXXX | B” | A” | Numbers | D | SP | Numbers | C | SP | Numbers |
| 0303 | 3 | 3 | 1 | 1.75 | 1 | 1.75 | 4 | ||
| 0305 | 3 | 5 | 1 | 1.75 | 2 | 1 | 3.5 | 6 | |
| 0311 | 3 | 11 | 1 | 1.75 | 4 | 1.25 | 3 | 10 | |
| 0404 | 4 | 4 | 1 | 2.25 | 2 | 0.75 | 3 | 6 | |
| 0409 | 4 | 9 | 1 | 2.25 | 3 | 1.25 | 3.5 | 8 | |
| 0505 | 5 | 5 | 2 | 1 | 3.5 | 2 | 1 | 3.5 | 8 |
| 0511 | 5 | 11 | 2 | 1 | 3.5 | 4 | 1.25 | 3 | 12 |
| 0606 | 6 | 6 | 2 | 1.5 | 3.5 | 2 | 1.5 | 3.5 | 8 |
| 0609 | 6 | 9 | 2 | 1.5 | 3.5 | 3 | 1.25 | 3.5 | 10 |
| 0714 | 7 | 14 | 3 | 0.75 | 3 | 5 | 0.75 | 3.25 | 16 |
| 0909 | 9 | 9 | 3 | 1.25 | 3.5 | 3 | 1.25 | 3.5 | 12 |
| 1111 | 11 | 11 | 4 | 1.25 | 3 | 4 | 1.25 | 3 | 16 |
| 1414 | 14 | 14 | 5 | 1.25 | 3 | 5 | 1.25 | 3 | 20 |
| 1818 | 18 | 18 | 6 | 1.75 | 3 | 6 | 1.75 | 3 | 24 |
Insertion Loss
Insertion loss data for EMI Shielding Honeycomb Vent Panels is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
