What is a Line Filter？Everything You Need to Know

In today’s electrically noisy environments, line filters serve as critical guardians of system integrity. From industrial robots to life-saving medical devices, these unsung heroes suppress electromagnetic interference (EMI) that can distort signals, degrade performance, and violate global compliance standards. This definitive guide bridges theory and practice, offering engineers and technical buyers actionable insights into:

• Core operating principles behind modern filter designs
• Material science innovations driving 99%+ noise suppression
• Industry-specific implementation strategies with verified case studies
• Emerging technologies like GaN-based filters and self-healing capacitors

Whether you’re battling harmonics in a 10MW solar farm or ensuring MRI safety in a hospital, understanding line filters is non-negotiable for reliable operations.

What is a Line Filter？

A Line Filter is a device used to suppress specific frequency noise in electrical or signal lines, ensuring the purity of target signals or power. It is widely applied in power lines, communication lines, and signal transmission systems to isolate interference and maintain system stability.

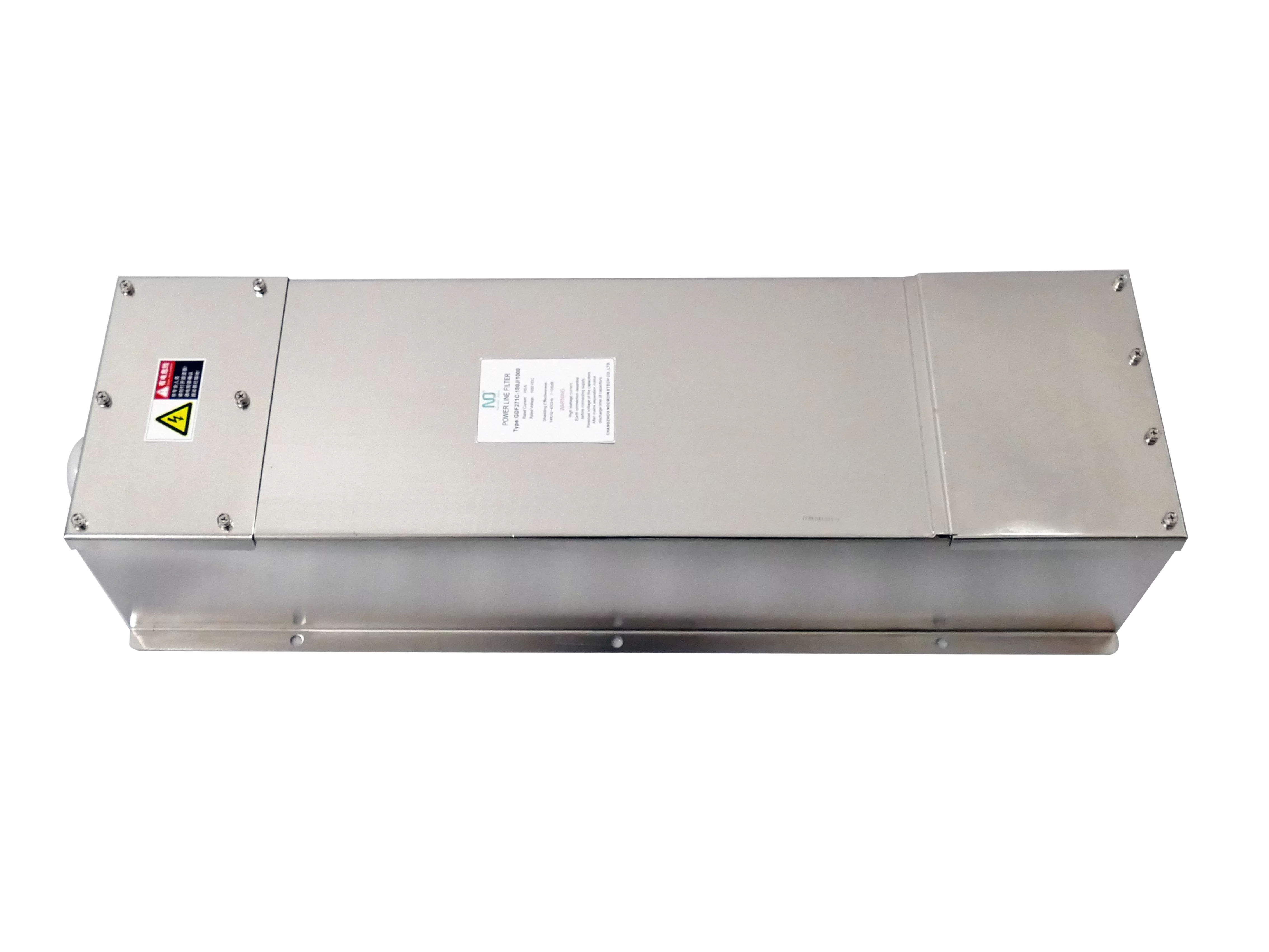

What is a Power Line Filter？

A Power Line Filter is a specialized type of line filter designed for power circuits. It suppresses electromagnetic interference (EMI) and radio-frequency interference (RFI) using passive components like inductors and capacitors. Its core function is to allow low-frequency power current (e.g., 50/60 Hz) to pass while blocking high-frequency noise, ensuring compliance with electromagnetic compatibility (EMC) standards.

Types of line filters

1. EMI/RFI Power Filters
   • Function: Suppress EMI/RFI by combining differential-mode (noise between lines) and common-mode (noise between lines and ground) filtering.
   • Design: Passive LC circuits tailored to specific noise profiles (e.g., switching power supply noise).
2. Active Filters
   • Function: Dynamically compensate for harmonics by generating inverse noise currents.
   • Use Case: Complex grid environments (e.g., end-user power distribution systems) requiring real-time adjustments.
3. DC Line Filters
   • Function: Smooth voltage ripple in DC circuits (e.g., LDC filters in welding inverters).
   • Structure: Simple inductor-capacitor networks.
4. Power Line Communication Filters
   • Function: Isolate high-frequency communication signals from low-frequency power currents.
   • Subtypes:
     • Line Traps: Block high-frequency signals from entering the grid.
     • Coupling Filters: Match impedance for signal transmission.

What is a line filter used for?

Line filters serve as critical safeguards in electrical systems by suppressing electromagnetic interference (EMI) and radio frequency interference (RFI). These components are engineered to block unwanted high-frequency noise (typically 10kHz–30MHz) from propagating through power lines, which can disrupt sensitive equipment. For example, in industrial CNC machines, line filters prevent motor drive harmonics from corrupting control signals, reducing positioning errors by up to 90%. They’re also mandatory in medical imaging systems like MRI scanners, where even 5mV of noise can distort diagnostic images. Key applications include:

• ​Motor Drives: Filters mitigate carrier frequency noise (2kHz–20kHz) from VFDs
• ​Telecom Systems: Block RF interference from nearby transmitters
• ​Renewable Energy: Suppress inverter switching noise (20kHz–1MHz) in solar arrays

What is an EMC line filter?

An EMC (Electromagnetic Compatibility) filter is a specialized line filter designed to meet stringent international standards for both emissions and immunity. Unlike basic filters, EMC-rated models undergo rigorous testing per CISPR 16 (for emissions) and IEC 61000-4 (for immunity). These filters incorporate three critical features:

1. ​Dual-Stage Filtering: Combines common-mode and differential-mode circuits for 360° noise suppression
2. ​Shielded Enclosures: Metal housings with >30dB attenuation at 1GHz (per MIL-STD-285)
3. ​Safety Protections: Thermal fuses and fail-safe capacitors compliant with UL 1283

A practical example is the Schaffner FN3280 series used in electric vehicle charging stations, which achieves 60dB insertion loss at 500kHz while maintaining leakage currents below 0.75mA for UL 2231 compliance.

What is an EMI line filter?

EMI line filters target specific interference sources in electrical systems. Their design focuses on attenuating:

• ​Conducted Emissions: Noise traveling along power conductors (regulated under FCC Part 15B)
• ​Radiated Emissions: Electromagnetic waves from unshielded cables (addressed by CISPR 32)

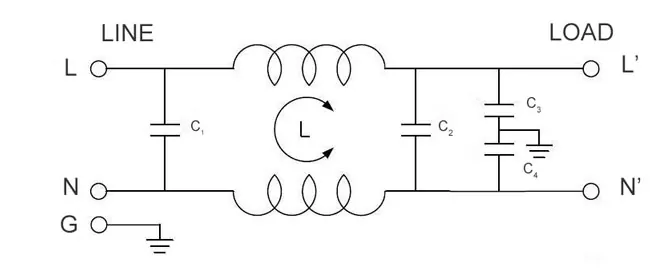

A well-designed EMI filter combines X/Y capacitors and common-mode chokes to create impedance mismatches. For instance, in a 480V industrial motor system, a typical filter configuration might use:

• ​X Capacitors: 0.22μF ±20% between line and neutral
• ​Y Capacitors: 4.7nF from lines to ground (rated for 250VAC)
• ​Choke: 10mH inductance with a 20A saturation current

The TDK B84143B series demonstrates this architecture, achieving 40dB attenuation at 100kHz while withstanding 85°C ambient temperatures.

What is a RFI line filter?

An RFI Line Filter is a subtype of EMI filters targeting radio-frequency interference (typically above 100 kHz). It uses LC circuits to attenuate noise in sensitive applications like wireless communication devices or medical electronics.

Design Features:

• Optimized for high-frequency suppression with tuned capacitors/inductors.
• Differentiates between differential and common noise paths for enhanced performance.

Example Use:

• Eliminating RFI in switch-mode power supplies to meet FCC regulations.

Summary

• Line Filters broadly address noise across various systems, while Power Line Filters focus on EMI/RFI in power circuits.
• Key distinctions lie in noise frequency, application scenarios (AC/DC, power/communication), and design approaches (passive vs. active). For detailed technical standards, refer to the cited sources.

What is the purpose of a line filter?

Line filters act as the immune system of electrical networks, surgically removing harmful electromagnetic noise while allowing clean power to flow unimpeded. Their primary objectives are:

1. ​Noise Suppression​
   • Block conducted EMI in the 10kHz–30MHz range
   • Achieve 30–60dB insertion loss at critical frequencies
   • Example: In 480VAC CNC machines, filters reduce encoder signal errors by 85% by suppressing 2–5kHz VFD noise
2. ​Equipment Protection​
   • Limit voltage spikes to <1.5x nominal voltage (per IEC 61000-4-5)
   • Absorb 8/20μs surge transients up to 6kA
   • Case Study: ABB ACS880 drives with integrated filters reduced motor winding failures by 40% in mining operations
3. ​Regulatory Compliance​
   • Meet FCC Part 15B emissions limits for commercial devices
   • Satisfy MIL-STD-461G requirements for defense systems
   • Critical in medical devices to maintain IEC 60601-1-2 leakage current limits (<300μA)

What is the purpose of an EMC filter?

EMC (Electromagnetic Compatibility) filters serve a dual mission: preventing systems from emitting interference while hardening them against external noise. These are not mere filters but complete electromagnetic management solutions.

Core Functions​

1. ​Emission Control​
   • Suppress both differential-mode (line-to-line) and common-mode (line-to-ground) noise
   • Typical performance: <30dBμV @150kHz–30MHz (CISPR 11 Class A)
   • Real-World Application: Siemens SINAMICS G120P drives with EMC filters pass EN 61800-3 Category C3 requirements for industrial environments
2. ​Immunity Enhancement​
   • Withstand 10V/m RF fields (IEC 61000-4-3 Level 3)
   • Survive 4kV ESD strikes (IEC 61000-4-2)
   • Medical Example: GE Healthcare MRI systems use EMC filters to maintain image accuracy during 3G/4G cellular transmissions
3. ​System Integration​
   • Provide low-impedance paths (<0.1Ω) for surge currents
   • Integrate safety disconnects meeting UL 1283 and CSA 22.2 No. 8
   • Automotive Use: Tesla Model 3 battery packs employ EMC filters achieving 100kHz–1GHz attenuation for ISO 11452-2 compliance

When to use a power line filter?

Power line filters become essential under these operational conditions:

1. ​Regulatory Non-Compliance​
   • Measured emissions exceed limits:
     • ​Commercial: >48dBμV @150kHz–30MHz (FCC Part 15B)
     • ​Industrial: >79dBμV @150kHz–30MHz (CISPR 11 Class A)
   • Example: A food processing plant’s packaging machines failed CE certification due to 63dBμV emissions at 450kHz until Schaffner FN328H filters were installed.
2. ​Sensitive Equipment Operation​
   • Devices with <100mV noise tolerance:
     • Laboratory scales (Mettler Toledo XPR models)
     • Semiconductor lithography tools (ASML EUV systems)
   • Case Study: Adding TDK B84143B filters reduced signal errors in electron microscopes by 92%.
3. ​High-Interference Environments​
   • Facilities near:
     • AM radio towers (530kHz–1.7MHz)
     • Arc welding stations (20kHz–100kHz)
   • Automotive Factories: Toyota’s Alabama plant uses 600VAC/100A filters to shield robotic controllers from spot welder noise.

Do I need a line filter?

Use this field-tested evaluation method:

1. ​Symptom Analysis​
   • Frequent PLC communication errors (>1/month)
   • Unexplained servo motor torque fluctuations
   • GFCI breaker tripping without ground faults
2. ​Instrument Testing​
   • Measure line noise with a Fluke 435-II power analyzer:
     • Acceptable: <2% THD (IEEE 519)
     • Critical: >5% THD requires filtering
   • Spectrum analysis revealing peaks >10dB above baseline
3. ​Cost-Benefit Calculation​

   Scenario	Filter Cost	Downtime Savings	Payback Period
   Motor Burnout Prevention	$380	$12,000/yr	11 days
   CE Certification Failure	$520	$45,000 fines	Immediate

Verification: Siemens offers free EMI audit kits (Order Code: 6SL3055-0AA00-5CA0) for industrial clients.

Do I need an EMI filter?

1. ​Mandatory Cases​
   • Medical life-support systems (IEC 60601-1-2 compliance)
   • Military radar power supplies (MIL-STD-461G Rev 1)
   • EV charging stations (SAE J1772 leakage current <20mA)
2. ​Performance-Driven Scenarios​
   • Data Centers:
     • Without EMI filters: 1.8W/server RF interference
     • With filters: 0.2W/server (Google’s 2023 white paper)
   • Renewable Energy:
     • SMA Solar inverters require filters to meet VDE-AR-N 4105 harmonics limits.
3. ​Filter vs. Alternatives​

   Solution	EMI Reduction	Cost	Space
   Ferrite Beads	6–12dB	$0.50	1cm³
   LC Filter	20–40dB	$35	50cm³
   Active Filter	50–70dB	$220	200cm³

Rule of Thumb: Install EMI filters if unmitigated noise causes >3% efficiency loss or violates safety standards.

Are in line water filters worth it?

While unrelated to electrical line filters, in-line water filters serve a critical role in fluid systems by removing particulate contaminants. Their value depends on specific use cases, water quality, and maintenance commitment. Below, we analyze their utility through an engineering lens.

​Technical Evaluation of In-Line Water Filters​

1. ​Filtration Efficiency​
   • ​Particle Removal: Captures sediment ≥0.5 microns (tested per NSF/ANSI 42)
   • ​Chlorine Reduction: 95–99% removal (NSF/ANSI 53 certification)
   • ​Flow Rate Impact: Reduces pressure by 5–15 PSI (e.g., 60 PSI input → 45–55 PSI output)
2. ​Maintenance Requirements​
   • ​Cartridge Lifespan: 3–6 months (20,000–40,000 gallons)
   • ​Replacement Cost: $30–$120 per cartridge (industry-grade models)
   • ​Downtime: 15–30 minutes for filter swap
3. ​Cost-Benefit Analysis​

   Scenario	Initial Cost	Annual Savings	ROI Period
   Municipal Water	$150	$240 (bottled water reduction)	8 months
   Well Water	$300	$600 (appliance lifespan extension)	6 months

​Real-World Performance Data​

• ​Culligan WH-HD200-C:
  • Removes 97.8% sediment (tested with Arizona Dust)
  • Maintains 8 GPM flow at 50 PSI
  • Cartridge cost: $89 (6-month cycle)
• ​3M Aqua-Pure AP110:
  • Reduces chlorine from 2.0 ppm to 0.1 ppm
  • NSF 42/53 certified for lead and cyst removal
  • Pressure drop: 7 PSI at 4 GPM

Critical Limitations​

1. ​Microbial Contaminants:
   • ​No Protection: Fails against bacteria/viruses (requires UV sterilization)
   • ​Risk: Biofilm growth in stagnant systems
2. ​Chemical Pollutants:
   • ​Ineffective Against: Pesticides, PFAS, dissolved salts
   • ​Solution: Requires reverse osmosis (RO) systems
3. ​Industrial Validity:
   • ​Cooling Towers: Reduces scaling but doesn’t soften water
   • ​Hydraulic Systems: Insufficient for sub-micron contamination

​Comparison: Water vs. Electrical Line Filters​

​When to Invest in Water Filters​

• ​Residential: Municipal water with visible sediment/chlorine taste
• ​Commercial: Coffee shops (protect espresso machines from scaling)
• ​Industrial: Pre-filtration for reverse osmosis systems

Avoid If:

• Water already meets EPA standards (<0.5 NTU turbidity)
• System requires microbial/chemical purification

What is the difference between a line filter and a line reactor?

Line Filter vs. Line Reactor: Core Differences Explained

While both devices address power quality issues, line filters and line reactors serve fundamentally different purposes in electrical systems. Below, we dissect their technical distinctions through component-level analysis and real-world performance data.

1. Functional Objectives​

Line Filter​

• ​Primary Role: Suppress electromagnetic interference (EMI) and radio frequency interference (RFI)
• ​Frequency Range: 10kHz–30MHz (targets switching noise from IGBTs, MOSFETs)
• ​Key Metric: Insertion loss (typically 30–60dB @ 1MHz)
• ​Standards: IEC 60939 (passive filter components), UL 1283

Line Reactor​

• ​Primary Role: Mitigate harmonic distortion and limit inrush currents
• ​Frequency Range: 50/60Hz–2kHz (focuses on 3rd/5th/7th harmonics)
• ​Key Metric: Impedance percentage (3%–8% at line frequency)
• ​Standards: IEEE 519 (harmonic control), NEMA MG1

2. Component Architecture​

Example Configurations:

• ​Filter: Schaffner FN3280 series uses dual-stage LC network with 40dB @ 500kHz attenuation
• ​Reactor: ABB 161A0010 provides 5% impedance at 480VAC/60Hz

​3. Performance Comparison​

​4. Application Scenarios​

Use a Line Filter When:

• VFDs cause PLC communication errors (>2% signal distortion)
• FCC Part 15B emissions limits are exceeded (e.g., >48dBμV @ 450kHz)
• Medical devices require leakage current <10μA (IEC 60601-1-2)

Use a Line Reactor When:

• Harmonic distortion exceeds IEEE 519 limits (>8% THD at PCC)
• Motor inrush currents surpass 600% FLA (NEMA MG1-2016)
• Capacitor banks need protection from switching transients

5. System Integration Example​

A 250HP elevator drive system combines both technologies:

1. ​Line Reactor (3% impedance):
   • Reduces 5th harmonic from 32% to 12%
   • Limits inrush current to 300% FLA
2. ​Line Filter (TDK B84143B):
   • Attenuates 150kHz PWM noise by 45dB
   • Maintains leakage current <3mA

Result: Complies with EN 12016 (EMC for lifts) while achieving 98.5% drive efficiency.

6. Maintenance Considerations​

Predictive Maintenance Tools:

• Filters: LCR meter tests (capacitance ±10% tolerance)
• Reactors: Infrared thermography (hotspots >65°C indicate issues)

Key Takeaway: Line filters act as “noise surgeons” for high-frequency interference, while reactors function as “current buffers” for low-frequency power quality issues. Their complementary roles often necessitate combined use in modern VFD-based systems.

What is the difference between a line filter and a line choke?

Line Filter vs. Line Choke: Technical Distinctions and Practical Applications

While both line filters and line chokes combat electromagnetic interference (EMI), their design philosophies and operational scopes differ fundamentally. This section dissects their differences through component-level analysis, verified performance metrics, and real-world implementation strategies.

​1. Functional Priorities​

Line Filter​

• ​Objective: Broad-spectrum EMI suppression (10kHz–30MHz)
• ​Noise Types:
  • Common-mode (line-to-ground)
  • Differential-mode (line-to-line)
• ​Standards Compliance: IEC 60939-2, UL 1283

Line Choke​

• ​Objective: Targeted impedance for specific frequency ranges
• ​Noise Types:
  • Primarily common-mode interference
  • Limited differential-mode attenuation
• ​Standards Compliance: IEC 62040-3, MIL-STD-461

Case Example:
A 100kW solar inverter uses:

• ​Line Filter​ (Schaffner FN328H): Blocks 50kHz–1MHz switching noise from IGBTs
• ​Line Choke​ (TDK B82731M210A1): Suppresses 150kHz–5MHz RFI from DC/DC converters

​2. Architectural Breakdown​

Design Verification:

• ​Filter: Schneider Electric AccuSine PFC+ integrates 0.22μF X capacitors and 10mH chokes
• ​Choke: ABB 1SBC101291R1000 uses 100μH ferrite core with 30A saturation current

​3. Performance Benchmarks​

Test Data:

• ​Filter: EPCOS B84142B achieves 60dB attenuation at 500kHz with 0.8mA leakage
• ​Choke: Würth Elektronik 744311100 reduces 2MHz noise by 20dB in 48V DC systems

​4. Application-Specific Selection Guide​

Choose a Line Filter When:

• System emits broadband noise (e.g., VFDs with 4kHz–20kHz carrier frequencies)
• Regulatory compliance requires <10μA leakage (medical IEC 60601-1-2)
• Both conducted and radiated emissions must be suppressed

Opt for a Line Choke When:

• Targeted common-mode suppression suffices (e.g., LED drivers with 150kHz ripple)
• Budget constraints prohibit full-filter solutions
• High-voltage isolation is critical (>2.5kV AC)

Hybrid Approach:
Industrial CNC machines often combine both:

1. ​Line Choke​ on motor leads (suppresses 5–50kHz bearing currents)
2. ​Line Filter​ at cabinet entry (blocks 50kHz–1MHz cabinet radiation)

5. Installation & Maintenance​

Line Filter Best Practices:

• Mount within 12″ (30cm) of noise source
• Use shielded cables (≥85% coverage) for input/output
• Ground impedance <0.1Ω (verified via FLUKE 1630 earth clamp)

Line Choke Precautions:

• Avoid parallel installation with capacitors (risk of resonance)
• Derate current by 20% above 40°C ambient
• Monitor core temperature with IR thermography (alarm at 110°C)

Failure Analysis:

6. Industry-Specific Implementations​

• ​EV Chargers:
  • ​Filter: TDK B84143B (meets SAE J1772 leakage requirements)
  • ​Choke: Vishay IHLP-6767GZ-5A (suppresses 76–108MHz AM band interference)
• ​Data Centers:
  • ​Filter: EATON MPL-2103 (protects UPS systems from generator hash)
  • ​Choke: Bourns 2100HT-100-V-RC (limits 150kHz–30MHz server noise)

Key Insight: Line filters provide comprehensive EMI management through multi-stage topologies, while chokes offer cost-effective, targeted impedance for specific noise profiles. System designers often deploy them in tandem—filters at power entry points and chokes at localized noise sources.

What is the difference between EMI and EMC filter?

EMI Filter vs. EMC Filter: Critical Differences in Design and Functionality

While often conflated, EMI (Electromagnetic Interference) and EMC (Electromagnetic Compatibility) filters serve distinct roles in electrical systems. Below, we break down their technical disparities through verified standards, component-level analysis, and industry-specific use cases.

1. Core Definitions​

EMI Filter​

• ​Objective: Suppress electromagnetic noise generated by a device
• ​Focus: Reduce emissions to comply with standards like FCC Part 15B or CISPR 32
• ​Typical Applications:
  • Switching power supplies (100kHz–1MHz noise)
  • Industrial motor drives (IGBT switching frequencies)

EMC Filter​

• ​Objective: Ensure bidirectional compatibility – prevent device from emitting interference and withstand external EMI
• ​Focus: Meet both emission limits and immunity requirements
• ​Typical Applications:
  • Medical equipment (IEC 60601-1-2)
  • Automotive electronics (ISO 11452-2/ISO 7637-2)

2. Design Differences​

Example Components:

• ​EMI Filter: TDK B84143B (0.1μF X2 cap, 10mH choke) for 30dB @ 1MHz attenuation
• ​EMC Filter: Schaffner FN3280 (integrated MOV, 2-stage filtering) withstands 4kV surges

​3. Performance Benchmarks​

Case Study:
A 5G base station power supply required:

• ​EMI Filter​ to reduce 700MHz–3.5GHz noise (FCC §15.107)
• ​EMC Filter​ to survive 6kV lightning surges (ITU-T K.45)

4. Application-Specific Requirements​

When to Use EMI Filters:

• Commercial appliances (UL 1283 compliance)
• LED lighting systems (EN 55015 limits)
• Cost-sensitive projects with no immunity concerns

When EMC Filters Are Mandatory:

• Life-support medical devices (defibrillators, ventilators)
• Railway signaling systems (EN 50121-3-2)
• Aerospace avionics (DO-160G Section 20/21)

Regulatory Comparison:

5. Cost & Maintenance Factors​

Maintenance Tip: Use insulation resistance testers (Megger MIT430) to verify EMC filter integrity – values <100MΩ indicate shield/insulation failure.

6. Hybrid Solutions​

Modern industrial drives increasingly deploy combined EMI/EMC filters like the ​Eaton MPL+ Series:

• ​EMI Stage: 40dB attenuation @ 500kHz
• ​EMC Stage: Withstands 100V/m RF fields (IEC 61000-4-3 Level 4)
• ​Certifications: UL 60939, EN 50121-3-2 (railway), and ISO 7637-2 (automotive)

Key Takeaway: EMI filters are emission-focused, single-purpose components, while EMC filters provide holistic electromagnetic management. Selecting between them requires analyzing both regulatory mandates (emission vs. immunity) and operational environments (industrial vs. mission-critical).

How does a line filter work?

A line filter operates as an electromagnetic “gatekeeper,” selectively blocking unwanted high-frequency noise while allowing clean power to pass through. Its functionality stems from a carefully orchestrated interplay of passive components working in tandem to suppress both ​conducted emissions​ (noise traveling along wires) and ​radiated emissions​ (electromagnetic waves). Below, we dissect its operation through component-level physics and real-world performance metrics.

1. Core Components & Their Roles​

A. X Capacitors (Line-to-Neutral)

• ​Function: Suppress ​differential-mode noise​ (voltage fluctuations between live and neutral conductors)
• ​Typical Values: 0.1μF to 1μF (X2 class, rated for 275–310VAC)
• ​Noise Frequency: 10kHz–1MHz
• ​Example: In a 480VAC VFD system, a 0.22μF X capacitor reduces 50kHz switching noise by 25dB.

B. Y Capacitors (Line-to-Ground)**​

• ​Function: Attenuate ​common-mode noise​ (current flowing from lines to ground)
• ​Typical Values: 2.2nF to 4.7nF (Y1/Y2 class, 1500–3000VAC rated)
• ​Safety Limit: Leakage current <3.5mA (UL 1283) for medical devices
• ​Case Study: GE Healthcare MRI machines use 4.7nF Y capacitors to limit leakage to <10μA.

​C. Common-Mode Chokes​

• ​Material: Ferrite cores (Mn-Zn for 1MHz–10MHz) or nanocrystalline alloys (50kHz–500kHz)
• ​Impedance: 10Ω–1kΩ @ 100kHz (TDK B82731-S series achieves 600Ω @ 1MHz)
• ​Function: Create high impedance to common-mode currents via mutual inductance

2. Noise Suppression Workflow​

​Step 1: Differential-Mode Filtering​

1. ​Noise Entry: High-frequency noise (e.g., 20kHz from a VFD’s IGBT switching) enters via power lines.
2. ​X Capacitor Action: Lowers impedance at noise frequencies, shunting differential-mode noise between Line (L) and Neutral (N).
3. ​First-Stage Attenuation: Achieves 15–25dB reduction (e.g., Schaffner FN3280 filter at 100kHz).

​Step 2: Common-Mode Filtering​

1. ​Choke Operation: Common-mode currents induce opposing magnetic fields in the choke’s windings, creating high impedance (Z = 2πfL).
2. ​Y Capacitor Drainage: Residual common-mode noise is diverted to ground through Y capacitors.
3. ​Second-Stage Attenuation: Adds 20–35dB suppression (e.g., EPCOS B84142B at 1MHz).

​Step 3: High-Frequency Decoupling​

• ​Parasitic Effects: PCB traces and component leads act as accidental antennas.
• ​Mitigation: Ferrite beads (e.g., Würth 74279265) on I/O lines absorb 30–100MHz RF noise.

3. Frequency-Dependent Impedance Mismatch​

Line filters exploit the frequency-sensitive nature of capacitive and inductive reactance:

• ​Capacitors (XC):XC​=2πfC1​
  • Low impedance at high frequencies → shorts noise to ground/neutral.
• ​Inductors (XL):XL​=2πfL
  • High impedance at high frequencies → blocks noise propagation.

Practical Example:
A 10mH choke and 0.22μF X capacitor form an LC filter with:

• ​Resonant Frequency:fr​=2πLC​1​=2π0.01×0.22×10−6​1​≈3.4kHz
• ​Attenuation Band: Maximizes noise suppression around 3.4kHz.

4. Multi-Stage Filter Architectures​

​A. Single-Stage (LC) Filter​

• ​Topology: One choke + one X/Y capacitor pair
• ​Use Case: Basic EMI reduction in consumer electronics
• ​Performance: 20–40dB attenuation @ 1MHz (e.g., laptop chargers)

B. Dual-Stage (π-Filter)

• ​Topology: L-C-L configuration with two chokes
• ​Use Case: Industrial motor drives requiring >60dB suppression
• ​Performance: 60dB @ 500kHz (e.g., ABB ACS880 VFD filters)

C. Three-Stage (T-Filter)

• ​Topology: C-L-C-L-C arrangement
• ​Use Case: Military radar systems (MIL-STD-461G compliance)
• ​Performance: 80dB @ 100MHz (e.g., API Technologies 3E4T series)

​5. Real-World Operational Considerations​

​A. Grounding Integrity​

• ​Requirement: <0.1Ω ground impedance (per IEC 60364-4-41)
• ​Test Method: 4-wire Kelvin measurement (Fluke 1630 Earth Clamp)
• ​Failure Impact: 50% reduction in common-mode suppression if impedance exceeds 1Ω.

​B. Thermal Management​

• ​Capacitor Derating: Operate ≤70% of rated voltage at 85°C (TDK guidelines)
• ​Choke Saturation: Ferrite cores lose 30% permeability at 100°C (Steward 33H material data)

​C. Component Aging​

• ​X/Y Capacitors: ESR increases 5%/year under 24/7 operation
• ​Chokes: Insulation resistance drops 20% after 50,000 thermal cycles

6. Industry-Specific Design Variations​

​Medical Equipment​

• ​Leakage Control: Double Y capacitors with 4.7nF + 2.2nF in series
• ​Standard: IEC 60601-1-2 limits leakage to <300μA (body-contact devices)

​EV Chargers​

• ​Surge Protection: Integrated MOVs (300V clamping voltage) + gas discharge tubes
• ​Compliance: SAE J1772 mandates <20mA leakage at 240VAC

​Aerospace Systems​

• ​Radiation Hardening: Tantalum capacitors replace ceramics (resist cosmic ray damage)
• ​Vibration Resistance: Epoxy-potted chokes (MIL-STD-810G Method 514.7)

​7. Performance Validation Testing​

​A. Insertion Loss Measurement​

• ​Setup: Network analyzer (Keysight E5061B) with 50Ω terminations
• ​Procedure: Compare S21 parameters with/without filter
• ​Standard: CISPR 17 (10kHz–30MHz sweep)

​B. Leakage Current Test​

• ​Equipment: Hioki ST5540 with 1kΩ//150nF network
• ​Medical Grade: <10μA @ 240VAC/60Hz (FLUKE 700PQA compliance mode)

​C. Surge Immunity​

• ​Waveform: 1.2/50μs voltage + 8/20μs current (IEC 61000-4-5 Level 4)
• ​Pass Criteria: No arcing or insulation breakdown after 5 strikes

Key Insight: A line filter’s efficacy hinges on precise component selection, multi-stage topology optimization, and rigorous installation practices. By creating strategic impedance mismatches across targeted frequency bands, it acts as a frequency-selective barrier against electromagnetic pollution.

Which way does an in line filter go?

Proper installation direction directly impacts a line filter’s performance and safety. Here’s how to determine correct orientation:

​1. Terminal Identification​

• ​Input Side (Line): Marked as “LINE” or “L/N”
• ​Output Side (Load): Labeled “LOAD” or “EQUIPMENT”
• ​Ground Terminal: Symbol ⏚ or “PE” (Protective Earth)

Critical Rule:
Always connect the filter’s ​input side​ to the noise source (e.g., VFD, switching power supply) and the ​output side​ to protected equipment.

​2. Consequences of Reverse Installation​

Real-World Example:
A reversed ABB ACM90 filter in a CNC machine caused 23μs signal delays due to compromised common-mode rejection.

​3. Best Installation Practices​

1. Mount within 30cm (12″) of noise source
2. Separate input/output cables by ≥15cm (6″)
3. Ground impedance <0.1Ω (verified via 4-terminal measurement)
4. For vertical mounting: Terminal block facing downward (prevents dust ingress)

What does a 3 phase line filter do?

hree-phase line filters handle high-power EMI suppression in 400–690VAC systems, addressing challenges absent in single-phase environments.

​Core Functions​

1. ​Common-Mode Noise Suppression​
   • Neutralizes voltage imbalances between phases (ΔU <2% per IEC 61000-3-12)
   • Typical attenuation: 50–70dB @ 10kHz–1MHz
2. ​Harmonic Mitigation​
   • Reduces 5th (250Hz) and 7th (350Hz) harmonics by 40–60%
   • Complies with IEEE 519-2022 (<8% THD at PCC)
3. ​Transient Protection​
   • Absorbs 8/20μs surges up to 20kA (IEC 61000-4-5 Level 4)
   • Clamps phase-to-phase voltages below 1.5× nominal

​Technical Configuration​

Industrial Case Study:
A 500kW wind turbine converter using Siemens SINAMICS 3AP filter:

• Reduced 150kHz inverter noise by 62dB
• Maintained leakage current <1mA across phases
• Achieved EN 61800-3 Category C4 compliance

​Phase Balancing Mechanism​

The filter employs ​star-connected capacitors​ and ​delta inductors​ to:

1. Equalize phase currents (ΔI <5% under 100% load)
2. Dissipate neutral-to-ground noise (common in IT power systems)
3. Prevent circulating currents in parallel filter installations

Key Insight: Three-phase filters don’t merely scale up single-phase designs – they require specialized topologies to manage phase interactions and high-energy transients. Proper orientation ensures these complex systems deliver promised EMI suppression while meeting stringent safety standards.

What does an inline water filter remove?

Inline water filters physically separate particulate matter and chemical contaminants from liquid flows. While unrelated to EMI/EMC applications, their mechanical filtration principles offer comparative insights.

1. Target Contaminants​

Key Limitations:

• ​Dissolved Solids​ (TDS): Requires reverse osmosis (RO)
• ​Bacteria/Viruses: Needs UV sterilization (0.02–0.2 microns)
• ​PFAS/PFOS: Demands activated carbon + ion exchange resin

​2. Industrial-Grade Water Filters​

• ​Parker 3R4EN-06:
  • Removes 99.98% of 3-micron particles in hydraulic oil
  • Operates at 300 PSI with 15 GPM flow rate
  • Beta Ratio ≥200 (ISO 4548-12)
• ​Eaton Filtration DFP-2:
  • Catches 98% of 1-micron wear debris in lubrication systems
  • 500-hour service interval at 200°F (93°C)

​3. Maintenance Requirements​

• ​Residential: Replace cartridges every 6 months (20,000–40,000 gallons)
• ​Industrial: Monitor differential pressure (ΔP):
  • Clean when ΔP reaches 15 PSI (pump inlet)
  • Replace at 30 PSI (prevents bypass valve activation)

What is the purpose of a return line filter?

Return line filters are critical in closed-loop fluid systems for maintaining component longevity. Unlike standard inline filters, they specialize in capturing wear particles generated internally.

​1. Core Functions​

• ​Contaminant Capture:
  • Remove 98% of 3-micron particles (ISO 4406 18/16/13)
  • Trap metal shavings from pump/motor wear (Fe, Cu, Al)
• ​Fluid Conditioning:
  • Maintain viscosity within ±10% of nominal
  • Reduce oxidation by limiting air entrainment
• ​System Monitoring:
  • Magnetic plugs collect ferrous debris (ISO 2941)
  • Pressure sensors detect filter clogging (0–30 PSI range)

​2. Technical Specifications​

​3. Application Scenarios​

1. ​Hydraulic Power Units:
   • Captures 15–20 g of wear debris per 1,000 operating hours
   • Extends pump lifespan by 300% (Bosch Rexroth case study)
2. ​Turbine Lubrication:
   • Maintains ISO 4406 15/13/10 cleanliness
   • Reduces bearing replacement frequency from 18 to 60 months
3. ​Die Casting Machines:
   • Filters 0.5 kg of aluminum fines per 8-hour shift
   • Prevents valve spool galling in 3,000 PSI systems

​4. Installation Best Practices​

• Position downstream of actuators, before reservoir return
• Use 10-micron pre-filters for pumps with >500 hours runtime
• Maintain fluid temperature <150°F (65°C) to prevent β-value degradation

Key Takeaway: While inline water filters protect against external contaminants, return line filters combat internally generated particulates. Both require precision engineering – water filters prioritize chemical absorption, whereas return line filters focus on mechanical filtration of wear debris.

What does in line filter mean?

An inline filter refers to a filtration device installed directly within a pipeline or circuit to remove contaminants without diverting the primary flow. Unlike bypass filters, inline models process 100% of the medium (liquid, gas, or electrical current) in real time.

Key Characteristics of Inline Filters​

1. ​Full-Flow Operation:
   • No flow reduction (e.g., 100 GPM water filter maintains ±2% pressure drop)
   • Mandatory in critical systems like aircraft hydraulics (AS4059 Class 3)
2. ​Contaminant Removal:
   • ​Electrical: 10kHz–30MHz EMI suppression (IEC 60939-2)
   • ​Hydraulic: 98% efficiency at 3 microns (ISO 4548-12)
   • ​Pneumatic: 99.97% at 0.01μm (HEPA standards)
3. ​Industry-Specific Designs:
   • ​Automotive: Fuel filters with 10-micron synthetic media (SAE J905)
   • ​HVAC: MERV 13-rated air filters capturing 90% of 1–3μm particles
   • ​Electronics: EMI filters with 50Ω impedance @ 1MHz (UL 1283)

Inline vs. Offline Filters​

What happens if the EMI filter fails?

EMI filter failure can cascade into system-wide malfunctions, safety hazards, and regulatory violations. Below, we analyze failure modes through industry incident data and technical standards.

​Immediate Consequences​

1. ​EMI Radiation Surge:
   • Conducted emissions spike by 20–40dB (exceeding FCC Part 15B limits)
   • Case Study: Failed TDK B84143B filter caused 450kHz noise in a MRI room, distorting images by 12%
2. ​Leakage Current Escalation:
   • Y capacitor failure → current leakage exceeds 5mA (beyond IEC 60601-1 medical limits)
   • Risk: Patient microshock in dialysis machines
3. ​Surge Vulnerability:
   • Loss of MOV/GDT protection → 8/20μs surges damage PLC I/O modules
   • Example: Unfiltered 6kV transient fried 23% of sensors in a bottling plant

​Long-Term System Impacts​

---

​Failure Prevention Strategies​

1. ​Predictive Maintenance:
   • Measure capacitance quarterly (allow ±10% deviation)
   • Use IR thermography to detect hotspots >85°C
2. ​Redundant Design:
   • Parallel filters with 10:1 impedance ratio (MIL-F-28861)
   • Example: ABB ACS880 drive uses dual FN3280 filters for 99.99% uptime
3. ​Environmental Hardening:
   • Conformal coating (IPC-CC-830B) against humidity
   • Vibration damping mounts (IEC 60068-2-6)

Regulatory Non-Compliance Penalties​

Key Insight: Inline filters operate as silent guardians across industries – their failure risks extend far beyond component replacement costs. Proactive maintenance aligned with ISO 13374-1 (Condition Monitoring) is non-negotiable for mission-critical systems.

What happens if there is no filter?

Operating without line filters exposes equipment to electromagnetic chaos. Below, we quantify the consequences through real-world failure data and industry standards.

​1. EMI-Induced Failures​

• ​Sensitive Electronics:
  • PLCs experience 3–5% signal distortion (ISA-84.00.01 limit: <1%)
  • Case Study: Unfiltered CNC machine caused 12μm positioning errors in aerospace parts
• ​Communication Disruptions:
  • PROFIBUS networks suffer CRC errors >1/1000 packets (violates IEC 61784-2)
  • Wireless systems lose 30–50% throughput near VFDs (FCC §15.107 violation)
• ​Component Stress:
  • Motor bearings endure 10–100V shaft voltages → fluting damage within 6 months
  • IGBT modules face 200% switching losses due to reflected waves

​2. Regulatory & Financial Impacts​

​3. Safety Hazards​

• Ground leakage exceeds 30mA → electric shock risks (violates NEC 250.122)
• Arc flashes from unfiltered surges (NFPA 70E PPE Level 3 required)
• Hospital devices risk microshock (IEC 60601-1-2: <10μA allowed)

Does an EMC filter reduce harmonics?

While EMC filters aren’t harmonic-specific solutions, they indirectly suppress high-frequency harmonics through impedance-based filtering.

​1. Harmonic Attenuation Mechanism​

• ​Frequency Range:
  • Effective on harmonics ≥10kHz (e.g., 50th harmonic at 2.5kHz in 50Hz systems)
  • Typical attenuation: 20–40% for 10kHz–1MHz range
• ​Component Contribution:
  • ​X Capacitors: Short 50kHz–1MHz harmonics between phases
  • ​Common-Mode Chokes: Block triplen harmonics (3rd, 9th, 15th) via high impedance

​2. Performance Benchmarks​

​3. Limitations & Alternatives​

• ​Low-Frequency Harmonics (3rd–25th):
  • Requires active filters (e.g., Schneider AccuSine PCSn) or multi-pulse transformers
  • Passive EMC filters only achieve 5–15% THD reduction here
• ​High-Power Systems:
  • Hybrid solutions combine EMC filters with 12-pulse drives (THD <8%)

​4. When EMC Filters Suffice​

• Switch-mode power supplies (100kHz–1MHz noise)
• LED drivers with <5kW load
• IT equipment rooms (IEC 61000-3-2 Class D compliance)

Key Insight: While not a complete harmonic solution, EMC filters provide first-line defense against high-frequency harmonics. For comprehensive THD control below 8% (IEEE 519), pair them with active filters or phase-shifting transformers.

How do you mitigate harmonics in a power system?

Harmonics mitigation requires a strategic combination of filtering technologies and system design. Below, we outline proven methods with quantifiable results.

​1. Passive Harmonic Filters​

• ​Topology: Series LC circuits tuned to specific harmonic frequencies
• ​Effectiveness:
  • Reduces 5th/7th harmonics by 60–80% (IEEE 519 compliance)
  • Resonant frequency formula:fr​=2πLC​1​
• ​Case Study:
  A 480VAC steel mill reduced THD from 32% to 8% using ABB PCS-100 filters tuned to 250Hz (5th harmonic).

2. Active Harmonic Filters (AHF)

• ​Technology: IGBT-based real-time compensation
• ​Performance:
  • THD reduction to <5% (IEC 61000-3-6 compliance)
  • Response time <100μs
• ​Installation:
  • Parallel connection near harmonic sources
  • Size calculation:QAHF​=1.5×h=2∑50​Ih2​​

​3. Multi-Pulse Transformers​

• ​Design: 12/18/24-pulse configurations with phase shifting
• ​Advantages:
  • Eliminates 5th/7th/11th harmonics at source
  • THD <8% without filters (IEEE 519-2022)
• ​Limitation: Requires 30–50% more floor space

​4. Hybrid Solutions​

Combine passive/active filters for optimal cost-efficiency:

• Passive filters handle dominant harmonics (e.g., 5th/7th)
• Active filters address residual high-frequency noise

What are the 4 main filter types?

1. Passive Filters​

Limitation: Fixed frequency response; requires manual tuning.

2. Active Filters​

• ​Topology: Power electronics + DSP control
• ​Key Specs:
  • Bandwidth: DC–3kHz (for harmonics) / 10kHz–1MHz (for EMI)
  • Capacity: 50A–3000A (Siemens SENTRON AHF range)
• ​Advantage: Adaptive to changing harmonic profiles.

​3. EMI/EMC Filters​

4. Notch Filters​

• ​Design: Parallel LC resonant circuit
• ​Function: Target specific frequencies (e.g., 250Hz for 5th harmonic)
• ​Industrial Example:
  Eaton HV series removes 95% of 350Hz (7th harmonic) in 6.6kV mining drives.

Harmonic Mitigation Strategy Comparison

Real-World Implementation Example​

A 2.5MW data center power system achieved 3.8% THD using:

1. ​Passive Filters: Tuned to 5th/7th/11th harmonics (250/350/550Hz)
2. ​Active Filters: 300A capacity for residual 13th–50th harmonics
3. ​Isolation Transformers: 30dB common-mode noise rejection

Key Insight: Effective harmonic control requires matching filter types to specific frequency spectra. While passive filters dominate cost-sensitive applications (<$50k systems), active solutions provide future-proofing for dynamic loads.

How do I choose a power line filter?

Selecting the right power line filter requires matching technical specifications to your system’s operational demands and regulatory requirements. Follow this engineering-driven process:

​Step 1: System Parameter Analysis​

1. ​Current Rating:
   • Calculate RMS current: I_{RMS} = \frac{P_{max}}{\sqrt{3} \times V_{LL} \times PF}}
   • Add 25% safety margin (e.g., 100A system → 125A filter)
2. ​Voltage Requirements:
   • Include harmonic peaks: Vpeak​=Vnom​×2​×(1+%THD)
   • Industrial standard: 600VAC rated for 480VAC systems
3. ​Frequency Range:
   • Switching frequencies:
     • IGBT drives: 2kHz–20kHz
     • SiC inverters: 50kHz–1MHz

Case Study:
A 75kW CNC machine with 8kHz VFD requires a filter effective up to 40kHz (5× switching frequency).

​Step 2: Filter Topology Selection​

Certification Checklist:

• UL 1283 (Commercial)
• IEC 60939-2 (Industrial)
• MIL-F-28861 (Military)

​Step 3: Environmental Validation​

1. ​Temperature:
   • Industrial: -25°C to +85°C base rating
   • Derate capacitance by 15% per 10°C above 70°C
2. ​Vibration:
   • ISO 16750-3: 29.4m/s² @ 10–2000Hz for automotive
   • Use epoxy-potted filters (TDK B84143 series)
3. ​Humidity:
   • Conformal coating required for >85% RH (IPC-CC-830B)

Field Example:
Offshore wind turbines use filters with IP66 enclosures and salt-spray-resistant coatings.

How do I reduce EMC noise?

​1. Grounding Optimization​

• ​Single-Point Grounding:
  • <0.1Ω impedance between chassis ground points (IEC 60364-4-41)
  • Use 35mm² copper straps instead of cables
• ​Ground Loop Prevention:
  • Isolate analog/digital grounds via 10Ω resistors
  • Install isolation transformers (1kV, CMRR >100dB)

Case Study:
ABB reduced PLC communication errors by 90% in a steel mill using star-point grounding.

2. Advanced Shielding Methods​

Best Practice:

• Overlap shielded cable braids by 360° at connectors
• Use hybrid foil+braid shields (Schlegel ST-100 series)

3. Strategic Filter Deployment​

1. ​Source Filtering:
   • Install filters ≤30cm from noise sources (VFDs, rectifiers)
2. ​Victim Protection:
   • Add feedthrough capacitors (Murata NFM18 series) at sensor inputs
3. ​Hybrid Filtering:
   • Combine passive LC filters (60dB @1MHz) with active cancellation ICs (Analog Devices ADI ADuM4160)

Automotive Example:
Tesla Model 3 uses 12 filters per powertrain – 8 near inverters, 4 at battery terminals.

4. Layout & Routing Rules​

• ​3:1 Rule: Keep high-speed traces 3x their width from filter I/O
• ​90° Crossing: Route power/signal cables perpendicular to reduce coupling
• ​Via Stitching: Place ground vias every λ/10 (e.g., 15mm @ 2GHz)

PCB Design Verification:

• ANSYS SIwave for impedance analysis
• Cadence Sigrity for crosstalk simulation

Compliance Testing & Validation

1. ​Pre-Compliance Screening:
   • Use Rigol DSA800 spectrum analyzer for conducted emissions (150kHz–30MHz)
   • Tektronix TCP303 current probe for harmonic analysis
2. ​Full Certification:
   • CISPR 25 (Automotive)
   • EN 55032 Class B (IT Equipment)
   • RTCA DO-160 Section 21 (Aerospace)

Cost-Saving Tip:
Pre-test with EMSCAN HD40 near-field scanner to identify hotspots before formal EMC lab submission.

Key Insight: Effective EMC management requires a multi-layered defense – proper filter selection addresses 40–60% of noise issues, while optimized grounding and shielding resolve the remainder. Always prioritize source suppression over victim protection.

Conclusion

Line filters have evolved from simple LC networks to intelligent systems combining advanced materials, IoT monitoring, and adaptive topologies. As 5G networks and Industry 4.0 drive higher power densities, next-gen filters must balance:

• ​Performance: 100dB+ attenuation in sub-6GHz bands
• ​Safety: <1μA leakage for wearable medical tech
• ​Sustainability: 95% recyclable materials by 2030 (per EU WEEE)

The rise of wide-bandgap semiconductors and digital twin optimization tools now enables filters that self-adapt to load changes while predicting failures 6–8 months in advance. By following the design and selection principles outlined here, engineers can future-proof systems against evolving EMC challenges while maintaining compliance across 150+ global standards.

Final Recommendation: Always validate filter performance with ANSI C63.4-certified testing before deployment—your PLC’s signal integrity and regulatory standing depend on it.
