What is a Power Line Filter？

In an era dominated by high-frequency electronics and interconnected systems, electromagnetic interference (EMI) has emerged as a critical threat to device reliability and regulatory compliance. Power line filters serve as the first line of defense, strategically attenuating unwanted noise across differential and common modes while preserving signal integrity. This article dissects the operational principles of these filters, their design parameters – from voltage/current ratings to insertion loss – and their role in meeting global standards like EN 55032 and MIL-STD-461. Whether shielding medical imaging systems from microsurges or ensuring uninterrupted 5G base station operations, power line filters bridge the gap between raw electrical power and precision-driven technology.

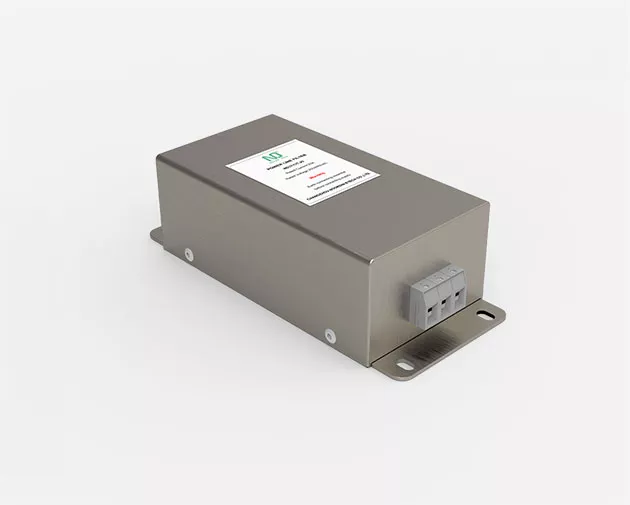

What is a Power Line EMI filter?

A power line EMI filter is a passive bidirectional network designed to suppress conducted electromagnetic interference (EMI) and radio frequency interference (RFI) in power lines. It functions as a frequency-selective device, allowing low-frequency power signals (e.g., 50/60/400 Hz) to pass through while attenuating high-frequency noise generated by sources such as switching power supplies, electric motors, lightning surges, or radio transmitters. This filter ensures electromagnetic compatibility (EMC) by preventing two types of interference:

1. External Noise Intrusion: Blocks high-frequency disturbances from entering sensitive equipment through power lines.
2. Internal Noise Emission: Stops internally generated noise (e.g., from motors or RF circuits) from leaking into the power grid.

The filter is typically connected between the power input and the equipment, acting as a barrier that isolates the device from both incoming and outgoing interference. Its core structure combines inductors and capacitors arranged in specific configurations (e.g., π-type or T-type topologies) to create impedance mismatches. This design reflects unwanted frequencies back to the noise source while maintaining unimpeded power transmission. Additionally, shielding materials or potting compounds are often integrated to prevent radiated EMI from bypassing the filter.

Design Considerations

When selecting a power line EMI filter, three primary parameters must be prioritized:

1. Voltage/Current Ratings: The filter must match the operational limits of the system to avoid saturation or component failure.
2. Insertion Loss: A critical metric quantifying the filter’s attenuation efficiency at target frequencies, typically measured in decibels (dB).
3. Physical Constraints: Size and structural compatibility with the host device or power supply.

Environmental factors, though secondary due to the common use of potting materials, still influence long-term reliability. For example, temperature fluctuations may degrade capacitor performance or alter the thermal stability of potting compounds. Leakage current, particularly in medical or precision equipment, must also be minimized to meet safety standards. The filter’s effectiveness in suppressing differential-mode (line-to-line) and common-mode (line-to-ground) noise depends on component quality and topology selection, with advanced applications often requiring custom configurations validated through EMC testing.

What is the frequency of a power line filter?

Power line filters are designed to operate within two distinct frequency ranges:

1. Passband Frequency: The intended power frequency (e.g., 50 Hz, 60 Hz, or 400 Hz for aerospace) that the filter allows to pass with minimal attenuation.
2. Stopband Frequency: The high-frequency noise range (typically 150 kHz–30 MHz) where the filter suppresses electromagnetic interference (EMI) and radio frequency interference (RFI).

Key Factors Influencing Frequency Performance

1. Cutoff Frequency (fc)
   • Defined as the frequency where insertion loss reaches 3 dB attenuation.
   • Calculated using the filter’s inductor (L) and capacitor (C) values:fc = 1/(2π√(LC))
     fc​=2πLC​1​
   • Example: A filter with L = 1 mH and C = 1 μF has fc ≈ 5 kHz, meaning it attenuates noise above this threshold.
2. Insertion Loss vs. Frequency
   • Filters are optimized for frequency-dependent attenuation:
     • At 50/60 Hz: Loss < 0.5 dB (ensures minimal power dissipation).
     • At 1 MHz: Loss > 40 dB (blocks most high-frequency noise).
   • Performance varies with topology:
     • π-type filters excel at suppressing common-mode noise above 10 MHz.
     • T-type filters target differential-mode noise below 1 MHz.
3. Application-Specific Frequency Requirements
   • Industrial motor drives: Focus on suppressing harmonics (e.g., 2–150 kHz from PWM switching).
   • Medical devices: Prioritize compliance with CISPR 11 standards (150 kHz–80 MHz).
   • Military/aerospace: Extended range up to 1 GHz for radar and communication interference mitigation.

Design Considerations for Frequency Stability

• Component Tolerance: Capacitors and inductors must maintain stable values across operating temperatures (e.g., ±10% variation in C/L can shift fc​ by 5–15%).
• Parasitic Effects: Stray capacitance/inductance in PCB traces or connectors can reduce high-frequency attenuation.
• Leakage Current: Higher Y-capacitance improves common-mode filtering but increases leakage, requiring tradeoffs in safety-critical applications.

Standards and Testing Frequencies

Power line filter structure

A power line EMI filter is a passive bidirectional network composed of resistors, capacitors, and inductors, with no active components. Its primary structural elements include:

1. Capacitors:
   • X-capacitors: Connected between the live and neutral lines to suppress differential-mode noise (line-to-line interference). Typical capacitance ranges from 0.01μF to 2.22μF.
   • Y-capacitors: Placed between live/neutral lines and ground to divert common-mode noise (line-to-ground interference). Capacitance is limited to several nanofarads (nF) to avoid excessive leakage currents.
2. Inductors:
   • Common-mode chokes: A pair of coils wound in the same direction around a ferrite core. These provide high impedance to common-mode noise while allowing power-frequency currents (50/60/400 Hz) to pass unaffected. Inductance typically ranges from 1–10 mH.
3. Topologies:
   • π-type (C-L-C): Features two capacitors flanking an inductor, offering high attenuation for both common-mode and differential-mode noise.
   • T-type (L-C-L): Uses two inductors with a central capacitor, balancing cost and performance in moderate-noise environments.
   • Single-stage vs. multi-stage: Single-stage designs (e.g., basic π or T filters) are common, while multi-stage configurations (e.g., cascaded filters) enhance attenuation for critical applications.
4. Physical Layout:
   • Components are housed in shielded enclosures to prevent radiated EMI bypass.
   • Bidirectional design ensures noise suppression in both directions (grid-to-device and device-to-grid).

Power line filter working principle

Power line filters function as low-pass impedance networks that suppress high-frequency electromagnetic interference (EMI) while allowing power-frequency currents (DC or 50/60/400 Hz) to pass unimpeded. The core principles are outlined below:

1. Low-Pass Filtering Mechanism

• Attenuation of High-Frequency Noise:
  Inductors ($L$) block high-frequency currents by presenting high impedance (ZL​=2πfL), while capacitors ($C$) shunt noise to ground via low impedance (ZC​=1/(2πfC)).
  • Example: An LC filter attenuates noise above its cutoff frequency (f_c = 1/(2π√(LC))).
• Bidirectional Suppression:
  Filters suppress both incoming grid noise (e.g., lightning surges) and outgoing device-generated noise (e.g., switching transients from power supplies).

2. Noise Path Management

• Differential-Mode Noise:
  Noise between live and neutral lines is suppressed by X-capacitors (connected line-to-line) and series inductors.
• Common-Mode Noise:
  Noise between lines and ground is diverted by Y-capacitors (line-to-ground) and common-mode chokes.
• Ground Referencing:
  High-frequency noise currents are either:
  • Diverted to ground (via Y-capacitors).
  • Reflected back to the source (via impedance mismatching).

3. Ripple Reduction in DC Systems

• After rectification, pulsating DC contains ripple (residual AC components). Filters smooth this waveform:
  • Capacitors store charge during voltage peaks and discharge during troughs.
  • Inductors resist rapid current changes, stabilizing output.
• Ripple Coefficient (S):
  S = (AC Component Amplitude) / (DC Component)​. Lower $S$ indicates better filtering.

4. Topology-Specific Behavior

• LC Filter: Simplest design; combines series inductors and parallel capacitors for moderate attenuation.
• π-Filter (C-L-C): Two capacitors flanking an inductor, providing high attenuation for both noise modes.
• T-Filter (L-C-L): Balances cost and performance, suitable for low-to-moderate noise environments.
• Cascaded Filters: Multi-stage designs (e.g., LC + π) achieve steeper attenuation curves for critical applications.

5. Impedance Mismatch Principle

• Effective EMI suppression requires impedance mismatching between:
  • Noise Source vs. Filter Input: High source impedance + low filter input impedance reflects noise.
  • Filter Output vs. Load: High filter output impedance + low load impedance isolates noise.

Key Performance Metrics

Types of power line EMI filters

Power line EMI filters are categorized based on their network configuration, application scenarios, and filtering modes. Below is a systematic classification:

1. By Network Configuration

(a) 2-Line Filters

• Structure: Designed for DC or single-phase AC systems (Live + Neutral lines).
• Applications:
  • Consumer electronics (e.g., laptops, LED drivers).
  • Small-scale industrial equipment (e.g., PLC controllers).
• Design Focus:
  • Compact size and cost-efficiency.
  • Emphasis on differential-mode noise suppression.

(b) 3-Line Filters (No Neutral)

• Structure: Tailored for three-phase AC systems (3 Live lines).
• Applications:
  • Heavy machinery (e.g., CNC machines, industrial motors).
  • Renewable energy systems (e.g., solar/wind inverters).
• Design Focus:
  • High-current handling (up to 1,000A).
  • Balanced attenuation across phases.

(c) 4-Line Filters (With Neutral)

• Structure: Supports three-phase AC systems with a neutral line (3 Live + 1 Neutral).
• Applications:
  • Data centers and server farms.
  • Medical imaging systems (e.g., MRI machines).
• Design Focus:
  • Enhanced common-mode noise filtering.
  • Compliance with strict leakage current limits (e.g., IEC 60601-1 for medical devices).

2. By Filtering Mode

(a) Differential-Mode Filters

• Mechanism: Targets noise between Live and Neutral/Live lines.
• Components: X-capacitors and series inductors.
• Use Case: Low-cost solutions for switch-mode power supplies.

(b) Common-Mode Filters

• Mechanism: Suppresses noise between lines and ground.
• Components: Y-capacitors and common-mode chokes.
• Use Case: Sensitive equipment in high-noise environments (e.g., audio systems).

(c) Hybrid Filters

• Mechanism: Combines differential- and common-mode filtering.
• Components: Integrated LC networks with shielding.
• Use Case: Aerospace systems, military-grade electronics.

3. By Application-Specific Design

Why Do We Need a Power Line Filter and Where to Place It?

Modern electronic systems, especially those using switch-mode power supplies (SMPS) or high-speed digital circuits, generate high-frequency noise during operation. Without proper filtering, this noise propagates through power lines, violating EMC standards like EN55032 (limits for conducted emissions: 150kHz–30MHz) and EN55035 (immunity to surges/RF disturbances). Power line filters address two critical functions:

1. Block internal noise (e.g., SMPS switching harmonics) from contaminating the AC mains.
2. Prevent external grid disturbances (e.g., industrial transients) from entering sensitive equipment.

Optimal Placement for Maximum Effectiveness

Filters must be installed at the power entry point (POE) of the device enclosure. Any deviation drastically reduces performance:

• Incorrect Example: Mounting the filter away from the POE allows unfiltered wiring to act as an antenna, coupling noise from internal fields.
• Correct Practice: Secure the filter’s metal case directly to the equipment’s unpainted conductive surface. This eliminates inductive grounding loops and ensures Y-capacitors function properly.

Critical Installation Guidelines

• Grounding: Use zero-length metal-to-metal contact between the filter case and chassis. Avoid painted surfaces or wires, which introduce inductance and degrade high-frequency filtering.
• Cable Routing:
  • Keep unfiltered input wires away from filtered DC lines to prevent capacitive coupling.
  • Never route input lines near digital signal cables or PCBs.
  • For sensitive audio/video systems (e.g., high-end amplifiers), use filters with instant current delivery (e.g., Lightspeed) to avoid dynamic distortion.

Common Failures and Fixes

• Issue 1: Filter placed >5cm from POE.
  • Result: Radiated noise bypasses the filter.
  • Solution: Integrate the filter with the AC power connector to enforce POE placement.
• Issue 2: Input/output wires parallel and unshielded.
  • Result: Cross-talk via parasitic capacitance.
  • Fix: Cross wires at 90° or separate by ≥10cm.

Industry-Specific Requirements

• Medical Devices: Filters must limit leakage current (<0.1mA per IEC 60601-1) while handling high isolation voltages.
• Military/Aerospace: EMP shielding and ruggedized designs (e.g., MIL-STD-461 compliance) are mandatory.
• Audio Systems: Prioritize filters with zero current lag and ultra-low contamination (e.g., Lightspeed’s surge clamping + 60dB attenuation at 400MHz).

Standards and Testing Validation

• EN55035 §4.2.2.3: Filters must attenuate 3V RMS RF noise (150kHz–10MHz) injected into power lines.
• Schurter Filters: Optimized for 150kHz–30MHz attenuation, with 20dB suppression at 400MHz to reduce cord radiation.

Design Philosophy

While electrical specs (L/C values, cutoff frequency) matter, physical implementation determines 50% of filter performance. Premier Filters, for instance, combines metal-case bonding and POE-mandated layouts to preempt installation errors.

How to select a power line EMI filter?

When selecting a power line EMI filter, the process must align with the specific electrical and mechanical requirements of the application. Below is a structured approach based on your provided technical specifications and industry best practices:

1. Electrical Configuration

Number of Lines: Determine the power system type. For single-phase or DC systems, a 2-line filter (line + neutral) is required. For three-phase systems, choose between 3-line filters (delta configuration) or 4-line filters (wye configuration) based on the grounding scheme.

Rated Voltage: The filter’s voltage rating must exceed the maximum operating voltage of the equipment. For example, a 480VAC industrial motor requires a filter rated for ≥480VAC, accounting for both line-to-line and line-to-ground potentials to prevent dielectric breakdown.

Current Rating: Select a filter capable of handling the system’s peak current, including transient surges. A 100A-rated filter may derate to 80A in high-temperature environments (e.g., 60°C ambient), necessitating thermal margin calculations.

2. Safety and Performance Metrics

Leakage Current: Critical for compliance with safety standards. Medical devices (per IEC 60601-1) require leakage currents <0.1mA, achieved by optimizing Y-capacitor values. For general-purpose equipment, <1mA is typical.

Insulation Resistance: Filters with insulation resistance >100MΩ minimize leakage paths and enhance long-term reliability, especially in humid or contaminated environments.

Insertion Loss:

• Prioritize differential mode (DM) attenuation for noise below 10MHz (e.g., motor drives) and common mode (CM) attenuation for noise above 30MHz (e.g., SMPS).
• Account for real-world impedance mismatches: If lab tests show 20dB attenuation at 100kHz under 50Ω conditions, assume only ~13dB in actual use. Select filters with 33dB+ rated loss to compensate.

3. Mechanical and Environmental Compatibility

Package Type:

• Space-constrained designs (e.g., IoT devices): Use PCB-mount filters or DIN rail modules.
• High-power systems (e.g., industrial inverters): Opt for chassis-mount filters with screw terminals for robust connectivity.

Connection Type: Match the filter’s terminals to the system’s wiring—FastON tabs for quick-connect applications, terminal blocks for modular setups, or soldered leads for compact PCB integration.

4. Customization for EMC Failures

If pre-compliance testing identifies emissions exceeding EN55032 limits (e.g., 15dBµV over at 150kHz):

1. Noise Profiling: Provide a spectrum analyzer plot of the non-compliant frequency range.For instance, a 150kHz spike in a motor drive indicates DM noise, necessitating a filter with high DM inductance (e.g., 10mH) and X2 capacitors.
2. Impedance Matching: Test the filter prototype under actual load conditions. A 50Ω lab test underestimates real-world losses; field validation is mandatory.
3. Installation Compliance:
   • Ground the filter’s metal case directly to the chassis via unpainted surfaces.
   • Separate input and output cables by ≥10cm or cross them at 90° to prevent capacitive coupling.

5. Industry-Specific Considerations

Medical Equipment: Filters must balance low leakage (<0.1mA) and high isolation voltage (4kV). Schurter’s RSEN series meets IEC 60601-1 without compromising CM attenuation.

Aerospace/Military: Filters require EMP hardening (per MIL-STD-461) and survival under 4kV transients. Ruggedized designs with conformal coating or hermetic sealing are essential.

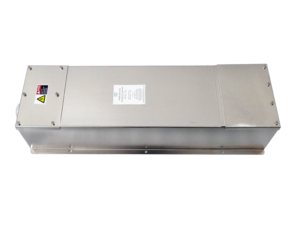

Renewable Energy: For solar inverters, select filters rated for 690VAC and wide temperature ranges (-40°C to +85°C) to handle DC bus harmonics and outdoor exposure.

Final Validation Protocol

1. Bench Testing: Measure insertion loss using a network analyzer with actual load impedance.
2. In-Situ EMC Testing: Install the filter and re-run emissions/immunity tests per EN55032/35.
3. Thermal Cycling: Operate the filter at 125% rated current for 24 hours to validate derating and longevity.

Noordin has listed Power Line EMI Filters from multiple manufacturers. Click here to view power line EMI Filters.

Conclusion

The silent efficacy of power line filters underpins modern electrification, from household IoT devices to aerospace propulsion systems. By understanding their dual-stage LC/RC topologies, engineers can tailor solutions for leakage current-sensitive applications (e.g., MRI machines) or high-surge environments (e.g., EV charging stations). As 6G networks and AI-driven automation push EMI frequencies beyond 10GHz, next-generation filters will demand nanocrystalline cores and adaptive impedance matching. This article equips designers with a framework to balance attenuation depth, thermal resilience, and cost – transforming EMI challenges into opportunities for innovation.
