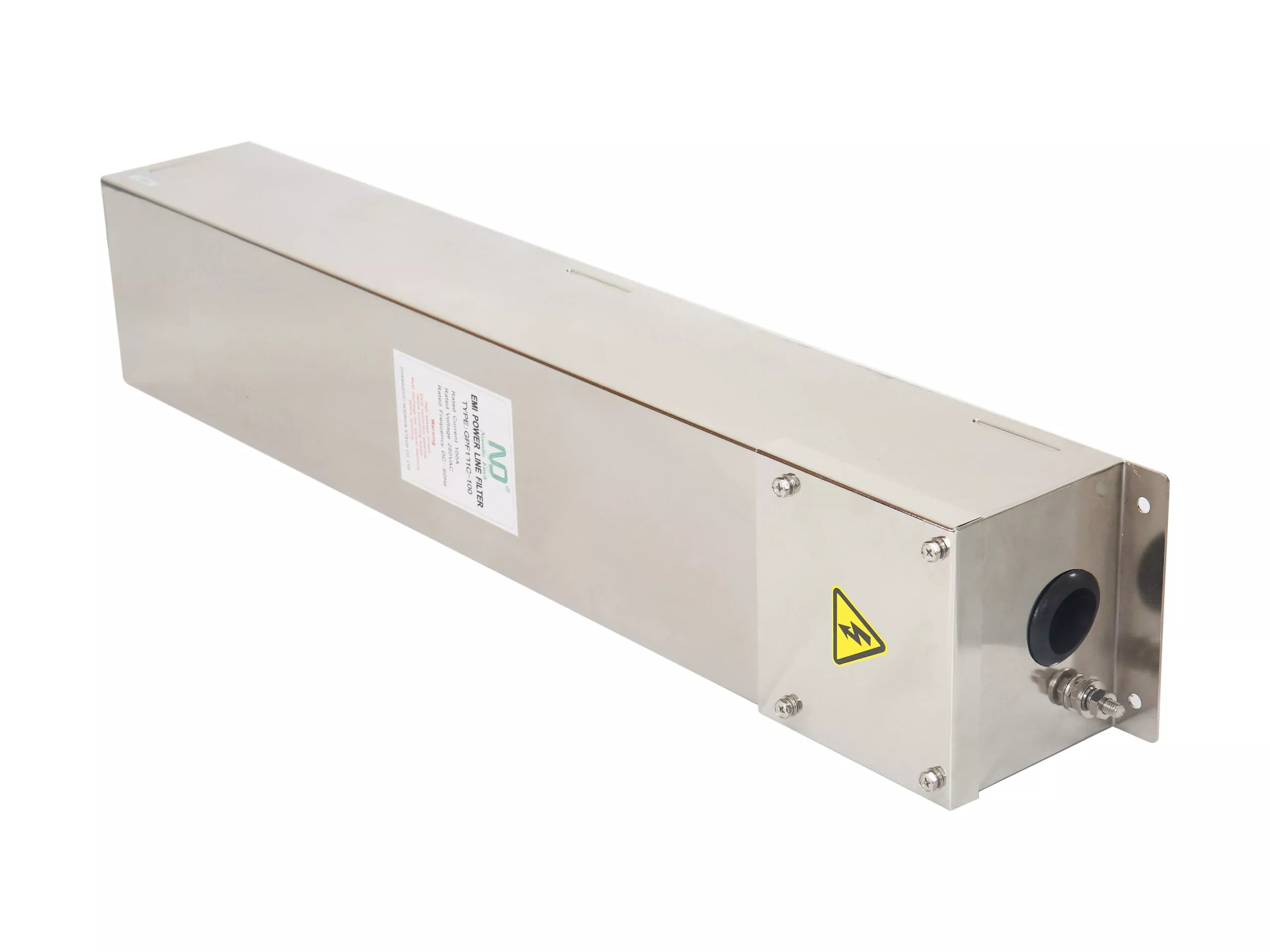

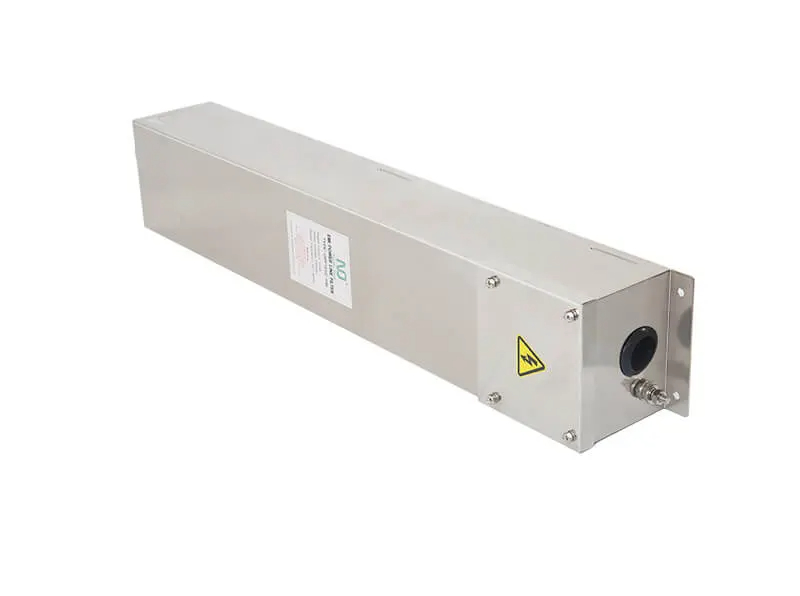

Power Line Filters For Ground Wire

Power Line Filters For Ground Wire

Ground Wire Filter, EMC, EMI filter

Technical Data:

Rated Voltage: 250VAC
Rated Current: 16-600A
Rated Frequency: 0-60Hz
Test Voltage: 1000VDC/2s
Climatic Category: 25/070/21

Product Description

Our ground power line filter is specifically designed to suppress electromagnetic interference (EMI) on the ground line. It effectively reduces noise in power systems, ensuring stable operation of equipment in complex electromagnetic environments. By filtering unnecessary signals and noise on the ground line, the filter prevents electromagnetic interference from affecting the normal functioning of the equipment, providing a reliable electromagnetic compatibility solution.

Typical Applications

Anechoic Chamber
Shielding Room
Electronic Shelter
Shielded Cabinet

Product Features

Compact Size, High Cost-Performance: Sleek design offering exceptional performance and excellent cost-effectiveness.
Voltage Drop Below 1V: Maintains a voltage drop below 1V, ensuring a stable power supply.
Premium Metal Enclosure: The metal shell used nickel-plated steel or stainless steel, offering an elegant appearance, high mechanical strength, and outstanding corrosion resistance.
Compliance with Standards: Meets CISPR 16/25, MIL-STD-461, IEC 61000-4-3, EN 60939, and other stringent military and international standards.

Technical Data

Type	Rated Current (A)	Dimension										Dim.
		A	B	C	D	E	F	G	H	I	J
GPF131C-16	16	560	130	100	590	575	90	40	M24	M6	/	Fig 1
GPF131C-32	32
GPF131C-63	63
GPF131C-100	100	730	150	120	760	745	110	50	M33	M8	/
GPF131C-150	150
GPF131C-200	200									M12
GPF131C-250	250
GPF131C-300	300	840	150	150	870	855	120	60	M45	M12	4*25	Fig 2
GPF131C-400	400	945	180	180	975	960	140	60	M45	8*25	6*25	Fig 3
GPF131C-600	600	945	180	180	975	960	140	60	M45	8*25	8*25

Circuit Diagrams

Outline Drawing (mm)

Insertion Loss

Frequency of 14kHz-40GHz, insertion loss over 100dB.

Factory and Production Line

Why choose us?

10+ years experience

With 10+ years experience in manufacturing power line filters, we bring deep industry knowledge to every product we create.

Wide Client Base

We are trusted by 1,000+ long-term customers, showcasing our ability to consistently meet and exceed client expectations.

Proven Quality

10,000+ positive feedbacks from satisfied clients attest to the quality and reliability of our products.

Customized Solutions

We offer tailored services to meet the specific needs of our customers, ensuring that every solution is perfect for your requirements.

Competitive Advantage

We prioritize innovation, offering products with excellent performance at a competitive price, ensuring the best value for your investment.

FAQs

How to choose the appropriate product model?

Do you provide customization services?

Yes, we can provide customization services according to your requirements.

Are there samples available for viewing or testing?

Yes, we offer sample services for testing. （What is the minimum order quantity for the product? Usually, we support a minimum order quantity of one. ）

What material is the product made of?

Typically, our products are made of stainless steel, nickel-plated carbon steel, aluminum, or other specified materials. Additionally, we can accommodate special material requests.

What are the specifications and dimensions of the product?

Generally, we provide specific product dimension information on the product page. However, if you require custom dimensions, please contact us.

Do you offer global shipping?

Yes, we provide global shipping. With convenient international freight services, we can deliver goods to wherever you need.

How long does it take to ship after order confirmation?

Typically, for small batch orders, we ship within 1-3 weeks upon receiving the prepayment.

How can I place an order?

Feel free to reach out to us by submitting an inquiry form or visiting our “Contact Us” page,and we will respond to you within 24 hours.

Which payment methods do you accept?

We accept various payment methods including T/T, letter of credit, and PayPal.

Are there wholesale prices or discounts available?

We offer tiered pricing, with more favorable prices for bulk orders.

How long does shipping take?

Shipping times vary depending on the method chosen, but generally, goods are delivered within 7-30 days after dispatch.

What shipping methods are available?

We offer various shipping methods including by sea, air, truck, and railway.

How do you handle product quality issues?

For any product quality issues, we will respond within 24 hours and provide effective solutions.

Do you provide after-sales service?

Yes, we offer a comprehensive after-sales service, including a 2-year warranty on our products. You can rest assured after purchasing from us.

Do you have a technical support team?

Yes, we have a professional technical team and our own EMC laboratory.

Do you provide opportunities for distributor or reseller partnerships?

Yes, but we will review your qualifications to determine if you can become our distributor.

Do you accept OEM or ODM orders?

Yes, we accept OEM or ODM orders.

Contact us to get your quote!

Product Category

Contact Us

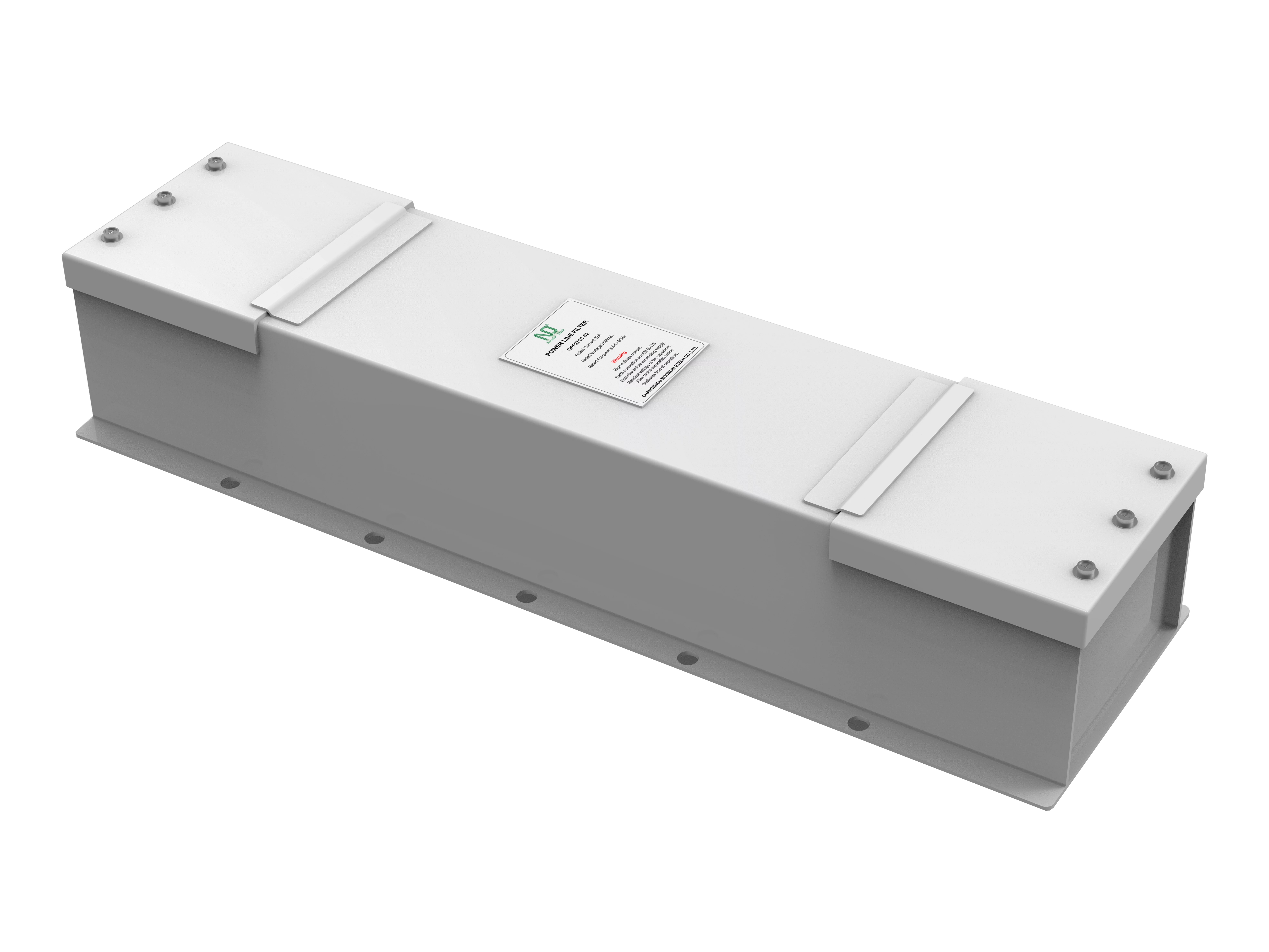

Standard EMI Filter For Anechoic Chamber

Single/Three-phase, 16-800A, 250/440VAC, DC/50/60Hz

Signal Filters For Communication And Control

1A, 0-250VAC/DC, 200KHz

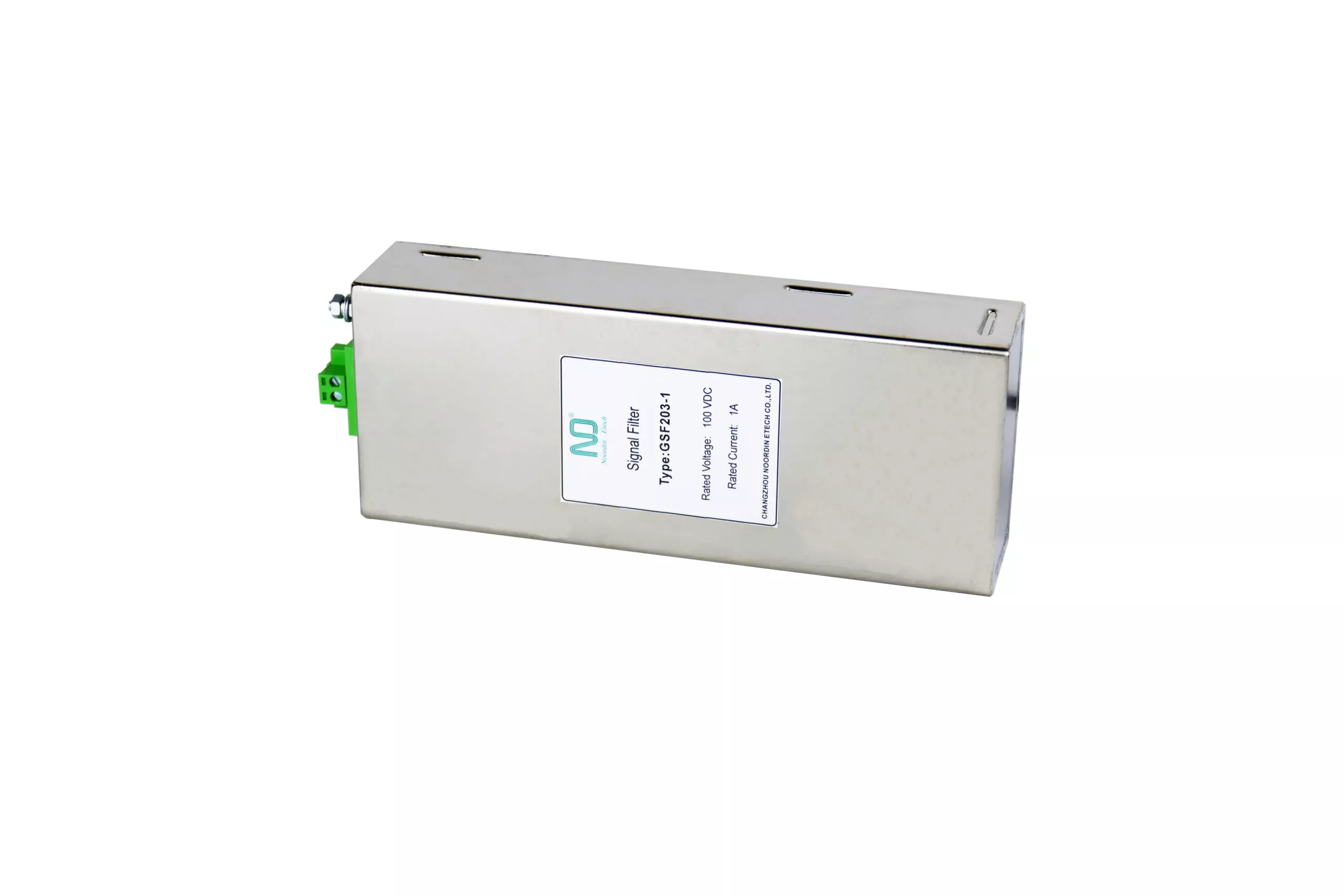

Gigabit Network Signal Filter

1A, 100VDC

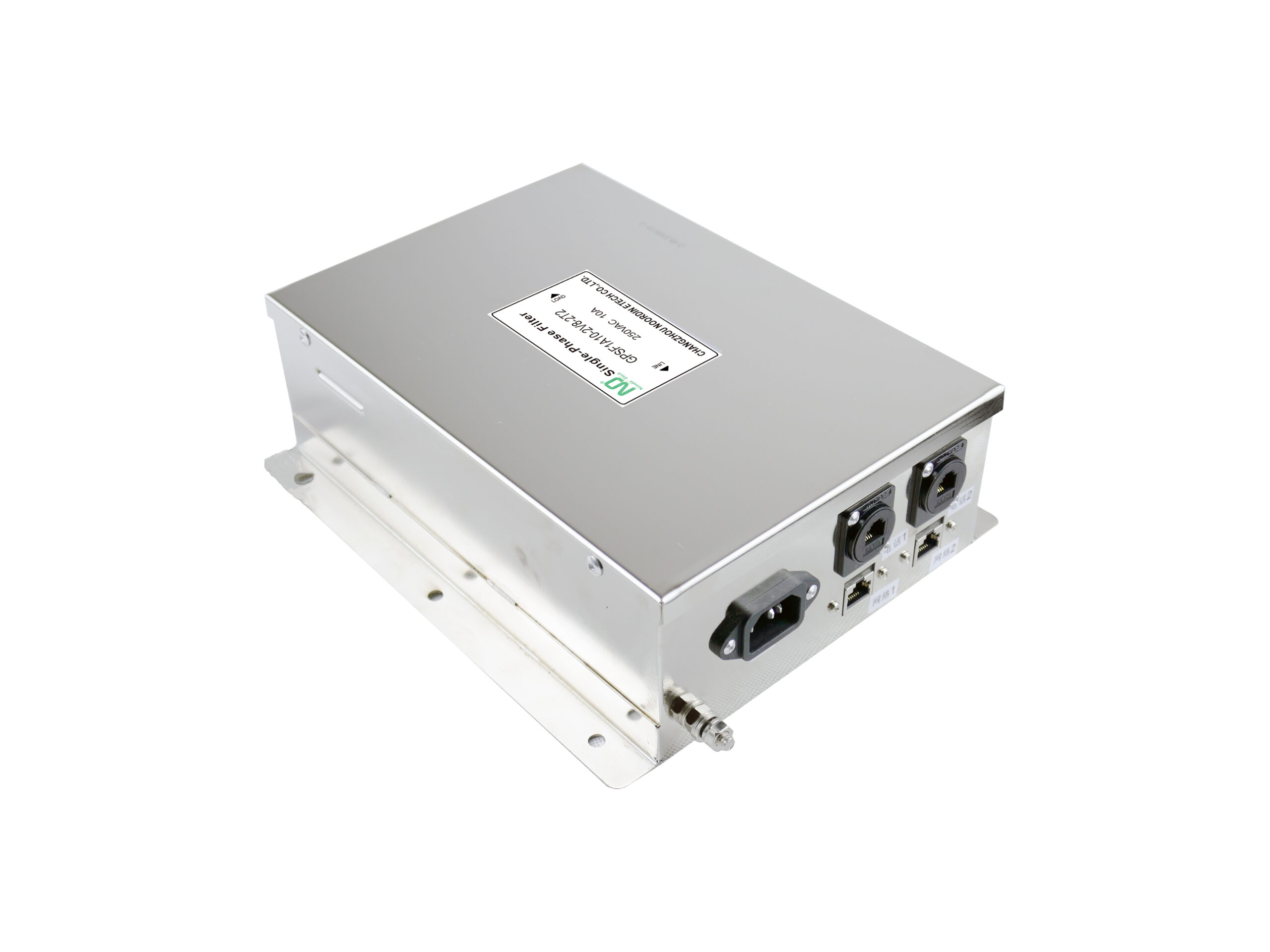

Power Line Filter For Shielded Cabinets
