High Precision OTA Turntable, Over-The-Air Testing Turntable
Technical Data:
- Platform Diameter: 0.6m (NDZT-0.6-HP) / 7.0m (NDZT-7.0-HP)
- Load Capacity: 150kg / 10 tons
- Positioning Accuracy: Absolute ±0.05° (NDZT-7.0-HP) / ±0.1° (NDZT-0.6-HP)
- Rotation Speed: 0.1–5 rpm (small model) / 0.4–1.5 rpm (large model)
- Rotating Angle: 380° to -20° (continuous rotation with over-travel)
- Drive System: Precision gear drive with servo motor control
- Material: Aluminium alloy (small model) / Stainless steel (large model)
- EMI Compliance: MIL-STD-461G RE102, CE102 certified
- Environmental Standard: MIL-STD-810G (resistant to temperature, vibration, and shock)
- Power Supply: 220V Single-phase / 380V Three-phase
Product Description
The NDZT-7.0-HP and NDZT-0.6-HP are high-precision turntables engineered for demanding EMC and OTA testing environments. Both models are built in compliance with MIL-STD-461G (RE102, CE102) and MIL-STD-810G, ensuring excellent electromagnetic compatibility, mechanical durability, and accurate DUT positioning. The NDZT-7.0-HP features a 7-meter stainless steel platform with a 10-ton load capacity for heavy-duty systems, while the NDZT-0.6-HP offers a compact 0.6-meter aluminum platform ideal for testing smaller wireless devices.
These turntables address common testing challenges such as inconsistent angular positioning, electromagnetic interference, and manual realignment delays. By providing stable 360° motion with minimal EMI, they help ensure reliable, repeatable measurements for both radiated emission and antenna performance evaluations.
Compared to conventional turntables, our NDZT series stands out for its shielded motor control system, low-profile structure for better chamber integration, and customizable interfaces for synchronized testing with antennas or probes. The precision gear system also enables smoother, low-noise rotation even under high loads.
Learn more in our latest blog:
“How Precision Turntables Improve Accuracy in EMC and OTA Test Chambers”
Typical Applications

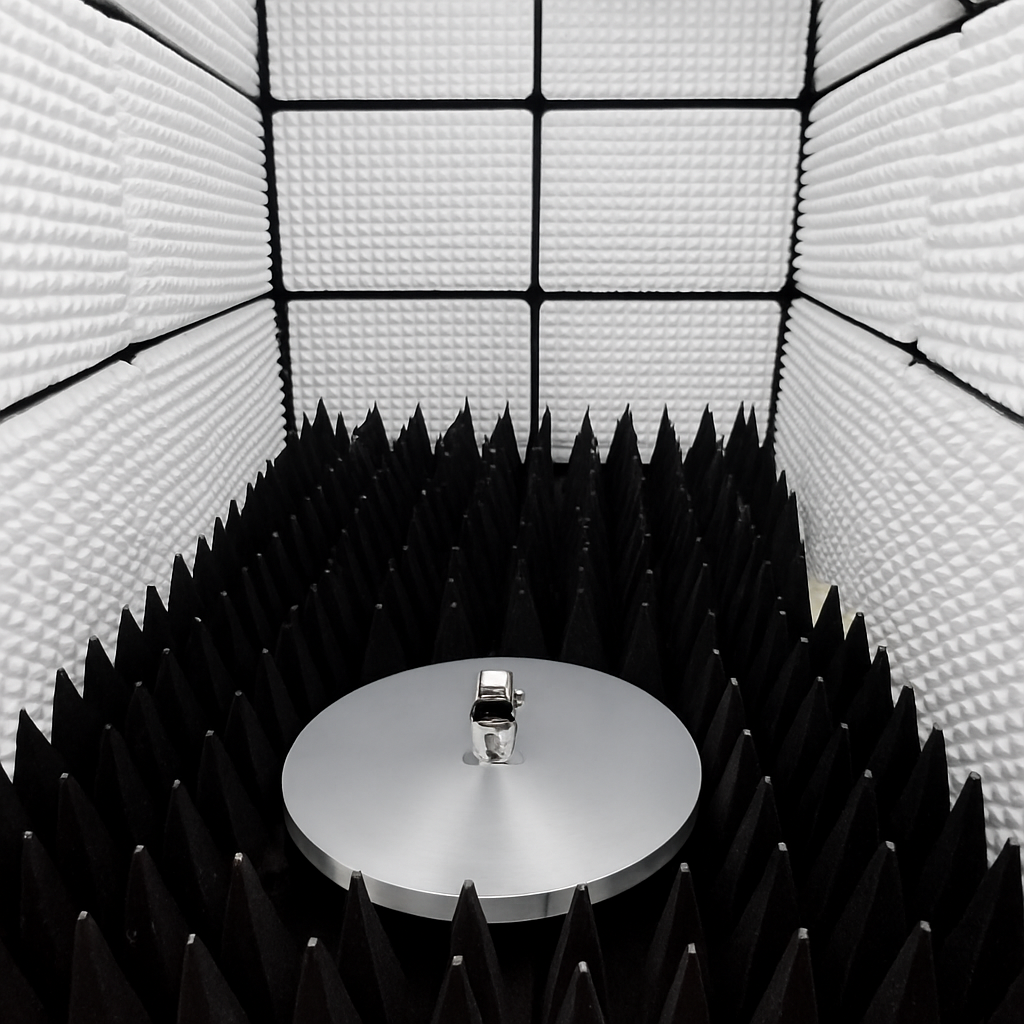

The OTA Turntable enables precise rotation of wireless devices during over-the-air (OTA) testing, ensuring consistent orientation and accurate measurement in anechoic chambers.
For EMC compliance and susceptibility assessments, the OTA Turntable provides stable and repeatable positioning, minimizing test variability caused by manual adjustments.
The OTA Turntable supports accurate antenna pattern measurement by allowing fine angular control, critical for characterizing radiation performance across all axes.
When testing heavy machinery or vehicles, the OTA Turntable offers high load capacity and smooth rotation, ideal for full-system EMC evaluations in large-scale setups.
Product Features
- High Accuracy: ±0.05° (NDZT-7.0-HP), ±0.1° (NDZT-0.6-HP)
- Gear Drive System: Precision rotation with stable speed control
- Wide Speed Range: 0.1–5 rpm (NDZT-0.6-HP) / 0.4–1.5 rpm (NDZT-7.0-HP)
- Heavy Load Capacity: Up to 10 tons (NDZT-7.0-HP)
- EMI Shielding: Full compliance with MIL-STD-461G, low emission design
- Environmental Durability: Built to MIL-STD-810G standards
Technical Data
| Specification | NDZT-7.0-HP | NDZT-0.6-HP |
|---|---|---|
| Model | NDZT-7.0-HP | NDZT-0.6-HP |
| Diameter | 7m | 0.6m |
| Load Capacity | 10T | 150Kg |
| Drive Mechanism | Gear Drive | Gear Drive |
| Material | Corrosion-resistant Stainless Steel (MIL-STD-810G Compliant) | Aluminium (with anti-corrosion treatment) |
| Absolute Accuracy | ±0.05° | ±0.1° |
| Repetitive Accuracy | ±0.05° | ±0.05° |
| Rotation Speed Range | 0.4–1.5 rpm | 0.1–5 rpm |
| Rotating Angle | 380° to -20° | 380° to -20° |
| Lift Size | 2220 × 4500 mm | N/A |
| Motor Type | EMC-hardened Servo Motor | EMC-shielded Stepper Motor (optional) |
| EMI Compliance | MIL-STD-461G RE102 (2 MHz–40 GHz), CE102 | MIL-STD-461G RE102 (2 MHz–40 GHz), CE102 (if tested with shielded motor) |
| Power Supply | AC380V Three-phase / AC220V Single-phase | AC220V Single-phase |
Circuit Diagrams
Currently, there is no circuit diagram available for OTA Turntable.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Unfortunately, we do not have dimensional drawings available for OTA Turntable at this time.
For detailed size specifications, please reach out to our staff for further assistance.
Insertion Loss
Insertion loss data for OTA Turntable is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
