EMC Chamber Monitoring System
EMC Chamber Monitoring System
EMC Chamber, Monitoring System
Technical Data:
- Focal Length: 3.5 ~ 135 mm
- Full HD: 1080p from sensor to display
- Optic zoom 36x, digital zoom 16x
- 5 million day and night superelevation
Product Description

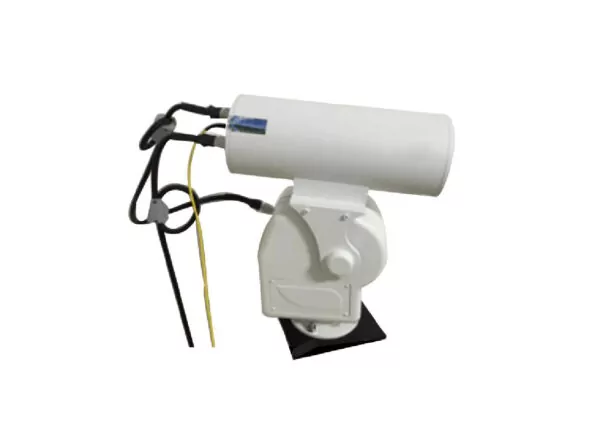

The NDX monitor series is specifically designed for EMC chambers and shielded rooms, offering features such as monitoring, archiving, and more. Each camera is housed in a protective shell to prevent electric field interference, with all signals transmitted via optical fiber to eliminate conduction interference. With remote control capability, every corner of the chamber can be clearly observed.
The system includes various types of CCTV setups, such as top-mounted fixed cameras for comprehensive monitoring and ground portable cameras for localized observation, meeting the diverse needs of different testing scenarios.
Typical Applications
- Anechoic chamber
- Shielded room
Product Features
- EMC compliant to CISPR 22 Class B
- Automatic / manual focus
- 24 / 7 operation
- Motion Detection Function with RS (Radiation Immunity)
Technical Data
| Focal Length | 3.5 ~ 135 mm |
| Zoom | Optic zoom 36x, digital zoom 16x |
| Camera Unit | 5 million day and night superelevation |
| Resolution Ratio | HD1080P, 1920*1080 |
| Effective Pixel | ≥2000,000 |
| Monitoring Performance | Motion Detection, i.e. RS (Radiated Immunity)
Monitoring function, the monitor display screen is different during the test Often, the monitoring system will automatically capture the dynamics and send out an alarm. Alert testers |
| Horizontal View Angle | 0°~180° |
| Tilt View Angle | -30°~90° |
| Optical Fiber Cable | 62.5 u glass optical fiber |
| Control Form
|
Manual, automatic and remote network control |
| Minimum of illuminance | Colour：0.05Lux@（F1.6,AGC ON） Black-and-white：0.01Lux@（F1.6,AGC ON） |
| Display | Four-channel display
Controller integrated frequency divider Record all day |
| Transmission Mode | Optical fiber control |
| Electric Field Strength | @10kHz~40GHz Continued field strength: 200V/m Instantaneous field strength: 600V/m |
| Test Standard | Meet CISPR 22 Class B |
Circuit Diagrams
Outline Drawing (mm)
Component
- Camera Unit: Each camera includes a pan/tilt mechanism for adjustable positioning.
- Built-in Converter: Ensures compatibility and efficient signal processing.
- Camera Controller: Model NDX-CBOX21, an independent controller in a 19” flat rack design.
- Mounting Options: Tripod and wall mount holders provided for versatile camera installation.
- Shielded Cables: Supplied with two sets of 25-meter shielded cables for reliable, interference-free connectivity.
Top fixed Ground portable
1.CCTV Connection Schematic
Note: The camera system is EMC-shielded. Customers can configure the number of cameras as needed, with the option to display targets individually or simultaneously.
Insertion Loss
