Combination EMI Shielding Gaskets
Combination EMI Shielding Gaskets
Combination EMI/RFI Gaskets, Dual-layer EMI Gasket, EMI Mesh Gasket, Metal mesh EMI seal
Technical Data:
- Dual-function gasket providing EMI/RFI shielding and environmental sealing
- Constructed from expanded silicone or fluorosilicone with knitted metal mesh (e.g. Monel)
- Shielding effectiveness up to 120 dB (10 kHz – 10 GHz), meets MIL-DTL-83528
- Operates across wide temperature range: -55°C to +200°C
- Soft, compressible design ideal for low clamping force applications
- Available in custom shapes, sizes, and profiles (D, C, hollow, etc.)
- Optional adhesive backing for simplified installation
- Meets RoHS & REACH compliance
Product Description

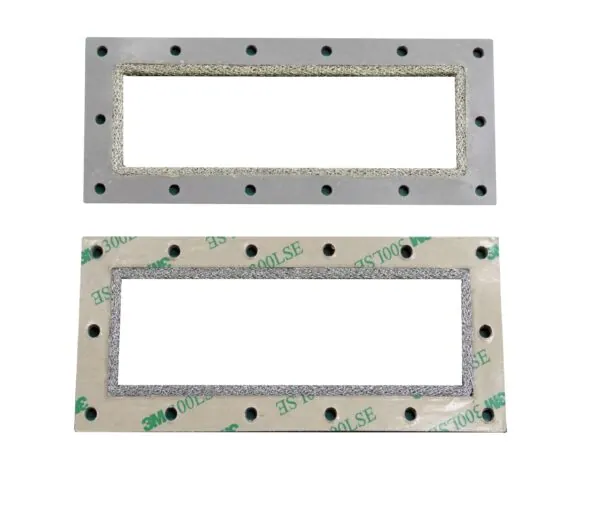

The Metal Mesh EMI/RFI Shielding Gasket from Noordin combines a resilient expanded silicone or fluorosilicone sponge core with an outer layer of knitted metal wire mesh such as Monel, stainless steel, or tin-plated copper. This dual-structure design ensures excellent conductivity and mechanical flexibility for both shielding and environmental sealing in critical applications.
It solves key issues faced in traditional solid conductive rubber gaskets, such as poor conformability to uneven surfaces and high compression force. The sponge core provides superior compressibility, while the mesh delivers consistent EMI/RFI shielding performance under low pressure and irregular mounting conditions.
Compared to other offerings, Noordin’s Metal Mesh EMI/RFI Shielding Gasket offers better resilience, lighter compression, and customizability in shapes, thicknesses, and mounting styles. This makes it ideal for advanced shielding needs in harsh or space-constrained environments.
Read more in our blog: How to Choose the Right EMI Gasket for Complex Sealing and Shielding Needs
Typical Applications
Combination EMI Shielding Gaskets are essential in outdoor telecom equipment like 5G base stations and remote radio heads, offering both robust EMI shielding and weatherproof sealing in harsh environments.
In military and aerospace systems, Combination EMI Shielding Gaskets ensure low-resistance EMI protection for enclosures such as radar terminals and satellite modules, even under extreme thermal or vibration conditions.
Industrial automation cabinets benefit from Combination EMI Shielding Gaskets, which maintain electrical continuity and environmental protection for components like PLCs and motor controllers.
Medical equipment and power distribution boxes rely on Combination EMI Shielding Gaskets to deliver consistent EMI control and airtight sealing in sensitive, high-reliability applications.
Product Features
- Dual-layer design for EMI shielding + environmental sealing
- Knitted Monel mesh: corrosion-resistant, excellent conductivity
- Flexible sponge core: absorbs vibration, fills gaps, resists compression set
- Ideal for non-flat mating surfaces and irregular housings
- Low clamping force requirement – protects sensitive components
- Suitable for indoor and outdoor use, even in extreme conditions
- Available with conductive or non-conductive adhesive for easy installation
Technical Data
- Sponge Material Options: Expanded silicone / fluorosilicone
- Mesh Types: Monel, stainless steel, aluminum, tin-plated copper
- Shielding Effectiveness: Up to 100–120 dB (10 kHz – 10 GHz)
- Temperature Range: -55°C to +160°C (fluorosilicone up to +200°C)
- Custom Profiles: D, C, P, hollow, solid, rectangular cross-sections
- Available Forms: Die-cut, extruded, or molded to spec
- Environmental Sealing: IP-rated performance possible
- Flame Retardancy: UL 94 V-0 available upon request
- RoHS & REACH: Fully compliant
✅ Designed to meet the shielding performance and material requirements of MIL-DTL-83528 for EMI/RFI gasket applications.
✅ Expanded silicone and fluorosilicone options tested per MIL-R-25988 for fuel/oil resistance.
✅ Environmental durability in accordance with MIL-STD-810 for temperature, humidity, and vibration.
✅ Shielding effectiveness exceeds 100 dB from 10 kHz to 10 GHz, per MIL-DTL-83528 test methods.
Customization Options
- Custom length, width, thickness, or cross-sectional geometry
- Mounting methods: adhesive backing, channel-fit, fastener notches
- Integration with aluminum frames or compression stops
Circuit Diagrams
Currently, there is no circuit diagram available for Combination EMI Shielding Gaskets.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
Unfortunately, we do not have dimensional drawings available for Combination EMI Shielding Gaskets at this time.
For detailed size specifications, please reach out to our staff for further assistance.
Insertion Loss
Insertion loss data for Combination EMI Shielding Gaskets is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
