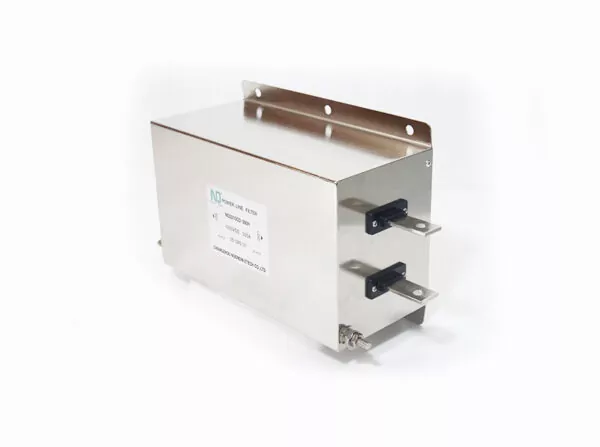

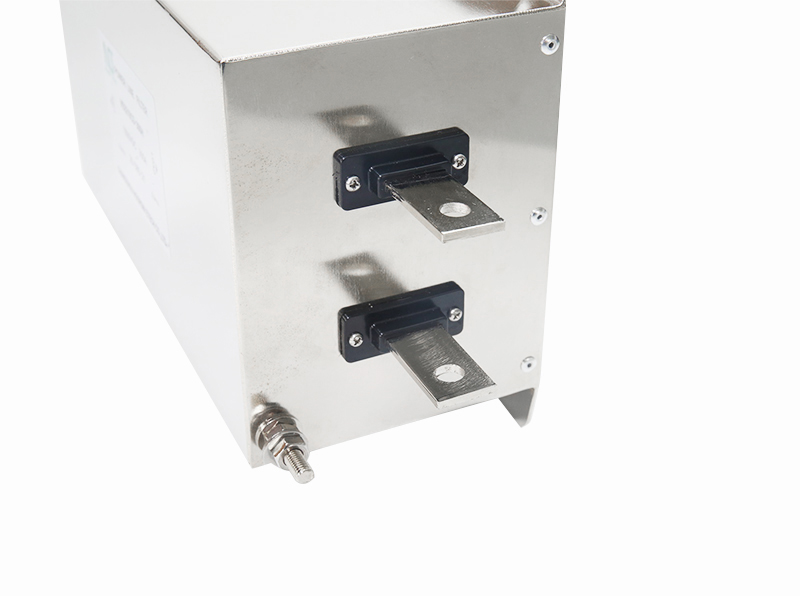

High Current Copper Busbar Filter
High Current Copper Busbar Filter
Single-phase, EMI Filter for industrial, High Current
Technical Data:
- Product Type: ND2110-300C
- 1000VDC
- 300A
- 50/60Hz
- 1500VDC line/line, 2250VDC Line/Ground
- 25/085/21
Product Description
The High Current Copper Busbar Filter is one of our standard single-phase filters. The Standard Single-phase Filter is designed to provide reliable electromagnetic interference (EMI) suppression in a wide range of electronic applications. It offers excellent performance in filtering both common and differential mode noise, ensuring stable operation of sensitive equipment. With its compact size and easy installation, this filter is ideal for use in consumer electronics, industrial machines, and power supply systems. It meets international standards, offering an efficient solution to minimize noise and prevent disruption to your system’s performance.
Typical Applications
- Electronic equipment and measuring instruments.
- White goods, single-phase industrial equipment, power supply, and control systems.
- Compatible with single-phase power supply, switch-mode power supply, and PLC controllers.
- Medical equipment and typical medical applications, offering low current leakage.
Product Features
- Offers excellent general-purpose filtering performance with a cost-effective design.
- Available with various output connection options.
- Certifications: CE and UL approved.
- Compact, general-purpose single-phase filter with embedded/nut/copper bar/blade terminal
- Easy to install, cost-effective solution, ensuring high performance with space-saving design.
Technical Data
| Type | Rated Current (A) | Rated Voltage | Rated Frequency | I Leakage (≤mA) | Test Voltage (2s) | Dim. | Circuit | Output | Climate Category |
| ND2104-1Q | 1 | 125/250VAC | 50/60Hz | 0.5 250VAC/50Hz |
Line/Line 1500VDC Line/ Ground 2250VDC |
Fig 1 | Fig 1 |  |
25/85/21 |
| ND2201-3Z | 3 | Fig 2 |  |
||||||
| ND2104-3Q | 3 | Fig 1 | |
||||||
| ND2104-6Q | 6 | ||||||||
| ND2105-10Q | 10 | Fig 3 | Fig 2 | ||||||
| ND2107-20S | 20 | Fig 5 |  |
||||||
| ND2107-30S | 30 | ||||||||

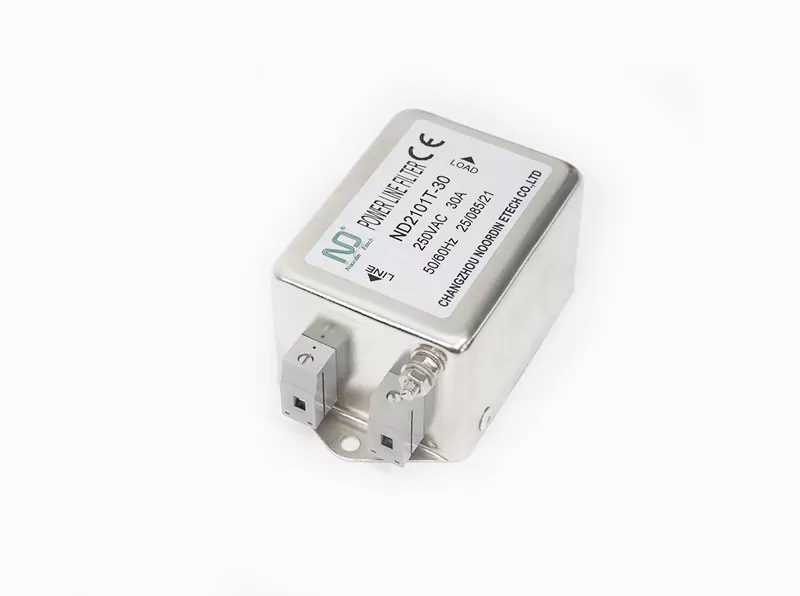

| ND2101-30T | 30 | Fig 4 |  |
||||||
| ND2109-50S | 50 | Fig 6 |  |
||||||
| ND2110-100S | 100 | Fig 7 | |||||||
| ND2111-200S | 200 | Fig 8 | |||||||
| ND2110-300C | 300 | Fig 9 | 4*25 |
||||||
| ND2110-400C | 400 | 6*25 |
|||||||
| ND2110-600C | 600 | 8*25 |
|||||||
| ND2110-800C | 800 | Fig 10 |  |
||||||
| ND2110-1000C | 1000 |
Circuit Diagrams
Outline Drawing (mm)
Insertion Loss
Insertion loss measured in 50Ω/50Ω system, as IEC/CISPR No. 17
A=Differential mode B=Common Mode
