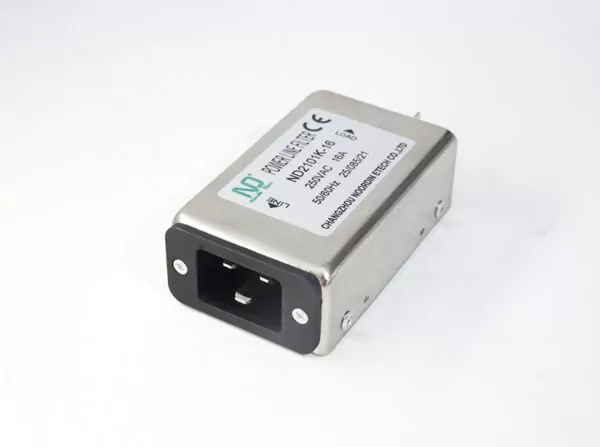

IEC Connector Filter 16A

IEC Connector Filter 16A

EMC, IEC Connector, Power Line Filter

Technical Data:

Product Type: ND2102-16K
Rated Voltage: 250VAC
Rated Current: 16A
Rated Frequency: 50/60Hz
Test Voltage: 1500VDC line/line, 2250VDC Line/Ground
Climatic Category: 25/085/21
Approval: CE UL

Product Description

IEC connector filters are essential components used to reduce electromagnetic interference (EMI) in electrical systems. They are designed to provide reliable power filtering while maintaining safety standards and compatibility with IEC power connectors. These filters help ensure smooth operation of sensitive equipment by minimizing noise and interference from the power supply. Ideal for use in a wide range of applications, IEC connector filters support both industrial and consumer electronics, improving overall system performance.

Typical Applications

LCD and PDP TVs, medical applications, and general electrical appliances.
Medical equipment.
Test and measurement equipment.
Small and medium-sized machines and household appliances.
Single-phase power supplies and switch-mode power supplies.

Product Features

Easy Installation: Secured with screws on both sides for hassle-free setup.
Medical-Grade Models Available: Compliant with IEC/EN60601-1 standards, meeting safety requirements for clearance, leakage current, and high-voltage testing.
Versatile Connection Options: Supports quick-connect terminals, soldering, or wiring for flexible integration.
High-Performance Filters: Features high attenuation power filters equipped with IEC 320 sockets for superior performance.
Customizable Solutions: Tailored product designs available to meet specific customer requirements.

Technical Data

Type	Rated Current (A)	Rated Voltage (VAC)	Rated Frequency	I Leakage (≤mA)	Test Voltage (2s)	Dim.	Circuit	Terminal	Climate Category
ND2101-1K	1	125/250	50/60Hz	0.5 250VAC/50Hz	Line/Line 1500VDC Line/Ground 2250VDC	Fig1	Fig1		25/85/21
ND2101-3K	3
ND2101-6K	6
ND2101-10K	10
ND2103-1KS	1					Fig2	Fig2
ND2103-3KS	3
ND2103-6KS	6
ND2103-10KS	10
ND2102-10K	10					Fig1	Fig3
ND2102-16K	16					Fig1	Fig4

Circuit Diagrams

Outline Drawing (mm)

Insertion Loss

Insertion loss measured in 50Ω/50Ω system, as IEC/CISPR No. 17

A=Differential mode B=Common Mode
