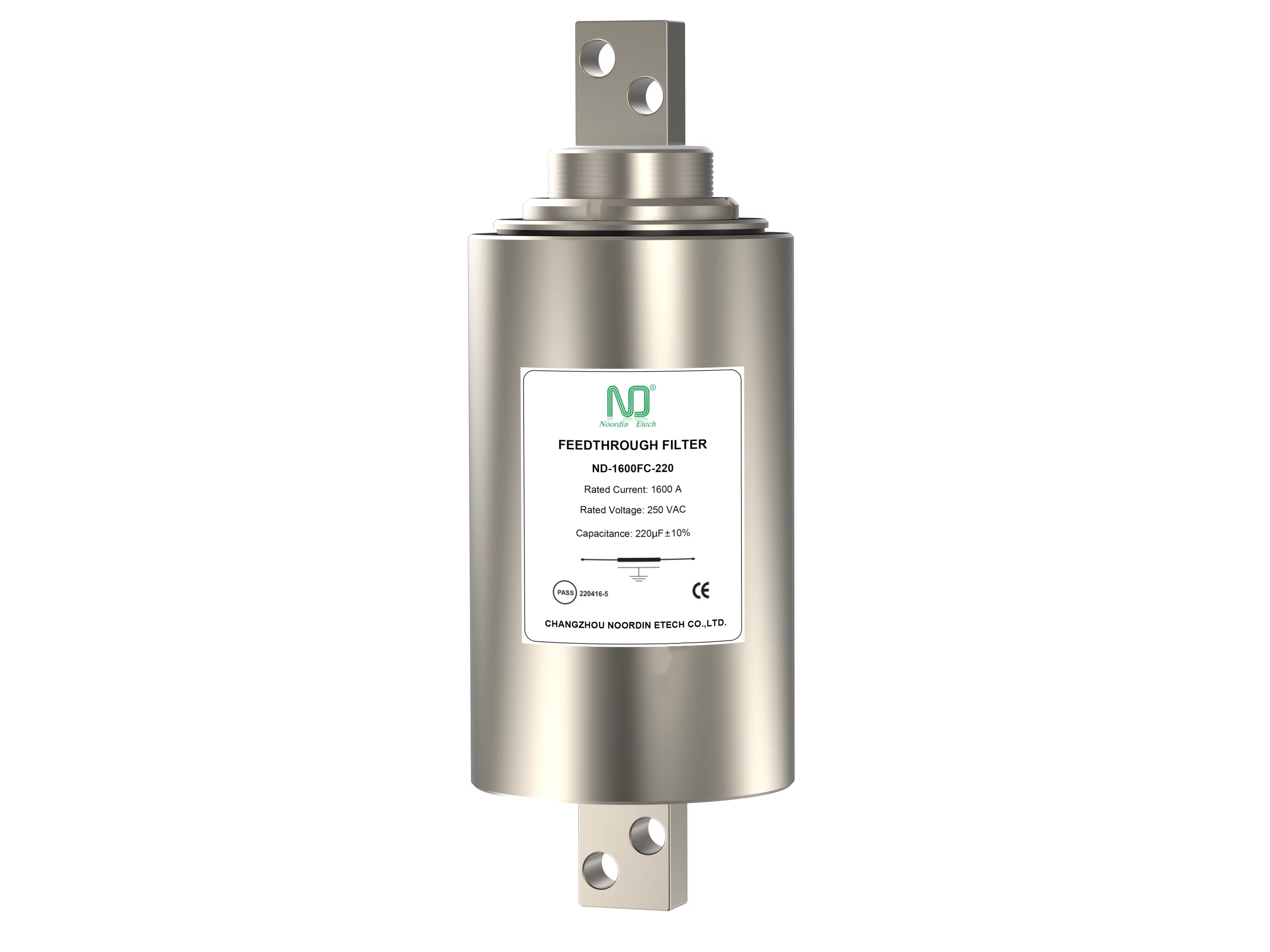

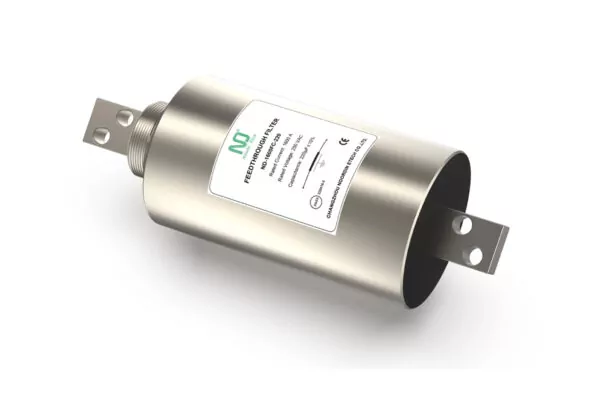

Feedthrough Capacitor Filter
Feedthrough Capacitor Filter
Feedthrough Capacitor, Feedthrough Filter, EMC, EMI filter
Technical Data:
- Rated Voltage: 250VAC/1000VDC
- Rated Current: 2-1600A
- Rated Frequency: DC/50/60Hz
- Test Voltage: 2500VDC/2s
- Climatic Category: -55 ~+85℃
Product Description
Feedthrough capacitors excel in broadband interference suppression within the GHz range. Their concentric structure allows for high insertion loss and excellent insulation resistance across a wide frequency range from kHz to GHz, all while maintaining a compact design to ensure superior quality and reliability.
Feedthrough Capacitor Filter is ideal for applications where space is limited but high-performance EMI suppression is essential, such as in medical devices, communication systems, and military-grade equipment. It effectively addresses the challenge of high-frequency conducted noise that standard filters often cannot eliminate, ensuring signal clarity and system stability.
Compared to traditional filtering solutions, our Feedthrough Capacitor Filter offers lower impedance paths to ground, faster response at high frequencies, and minimal signal distortion. With precision-engineered construction and rigorous testing, Noordin delivers filters that meet stringent EMC requirements while maintaining long-term durability and electrical performance.
Learn more in our latest blog:
Typical Applications
Feedthrough Capacitor Filter is widely used in switching power supplies and UPS systems to suppress high-frequency noise, ensuring stable output and improved EMI compliance in compact electronic assemblies.
In switches and communication base stations, Feedthrough Capacitor Filter provides effective broadband attenuation, maintaining signal integrity and minimizing electromagnetic disruption in critical network infrastructure.
For medical equipment, Feedthrough Capacitor Filter ensures low-noise environments, protecting sensitive diagnostic and monitoring systems from power line interference and meeting strict EMC standards.
Feedthrough Capacitor Filter is ideal for shielding rooms, delivering excellent high-frequency suppression through panel-mount configurations that maintain the enclosure’s shielding effectiveness.
In mobile shelters, Feedthrough Capacitor Filter minimizes conducted EMI, supporting reliable operation of embedded electronics and communication systems in high-interference field environments.
Product Features
- Through Bulkhead Installation: Ensures effortless and reliable integration through bulkhead structures.
- Very Low Internal Series Inductance and Self-Healing Dielectrics: Equipped with minimal internal series inductance and advanced self-healing dielectric technology.
- High Insertion Loss Across a Wide Frequency Range (kHz to GHz): Provides outstanding insertion loss performance across frequencies from kHz to GHz.
- Compliance with EMC Standards: Meets international and industry standards such as CISPR 16/25, IEC 61000-4-3, and MIL-STD-461, ensuring reliable test results and compliance.
Technical Data
| Type | Rated Current | Rated Voltage | Capacitance (μF) | Dim. | Insertion Loss in dB |
| ND-2FC-0.22 | 2 A | 250VAC/
1000VDC |
0.22±10% | Fig 1 | Fig 1 |
| ND-2FC-1 | 2 A | 1±10% | Fig 1 | Fig 2 | |
| ND-15FC-10 | 15 A | 10±10% | Fig 2 | Fig 3 | |
| ND-15FC-2*10 | 15 A | 2*10±10% | Fig 3 | Fig 4 | |
| ND-15FC-15 | 15 A | 15±10% | Fig 4 | Fig 3 | |
| ND-63FC-33 | 63 A | 33±10% | Fig 5 | Fig 4 | |
| ND-63FC-2*33 | 63 A | 2*33±10% | Fig 6 | Fig 5 | |
| ND-85FC-45 | 85 A | 45±10% | Fig 7 | Fig 5 | |
| ND-1600FC-120 | 1600 A | 120±10% | Fig 8 | Fig 4 | |
| ND-1600FC-220 | 1600 A | 220±10% | Fig 9 | Fig 5 |
Note: The capacitor can be customized based on customer’s requirements.

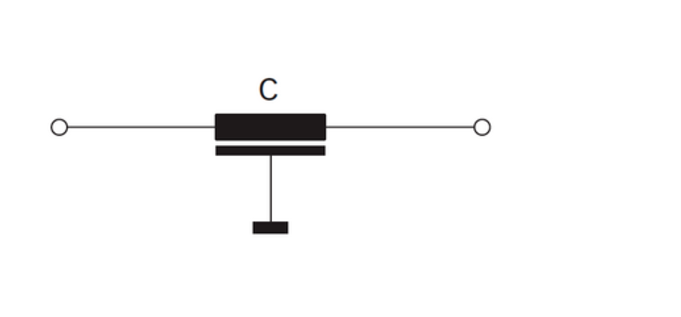

Circuit Diagrams
Outline Drawing (mm)

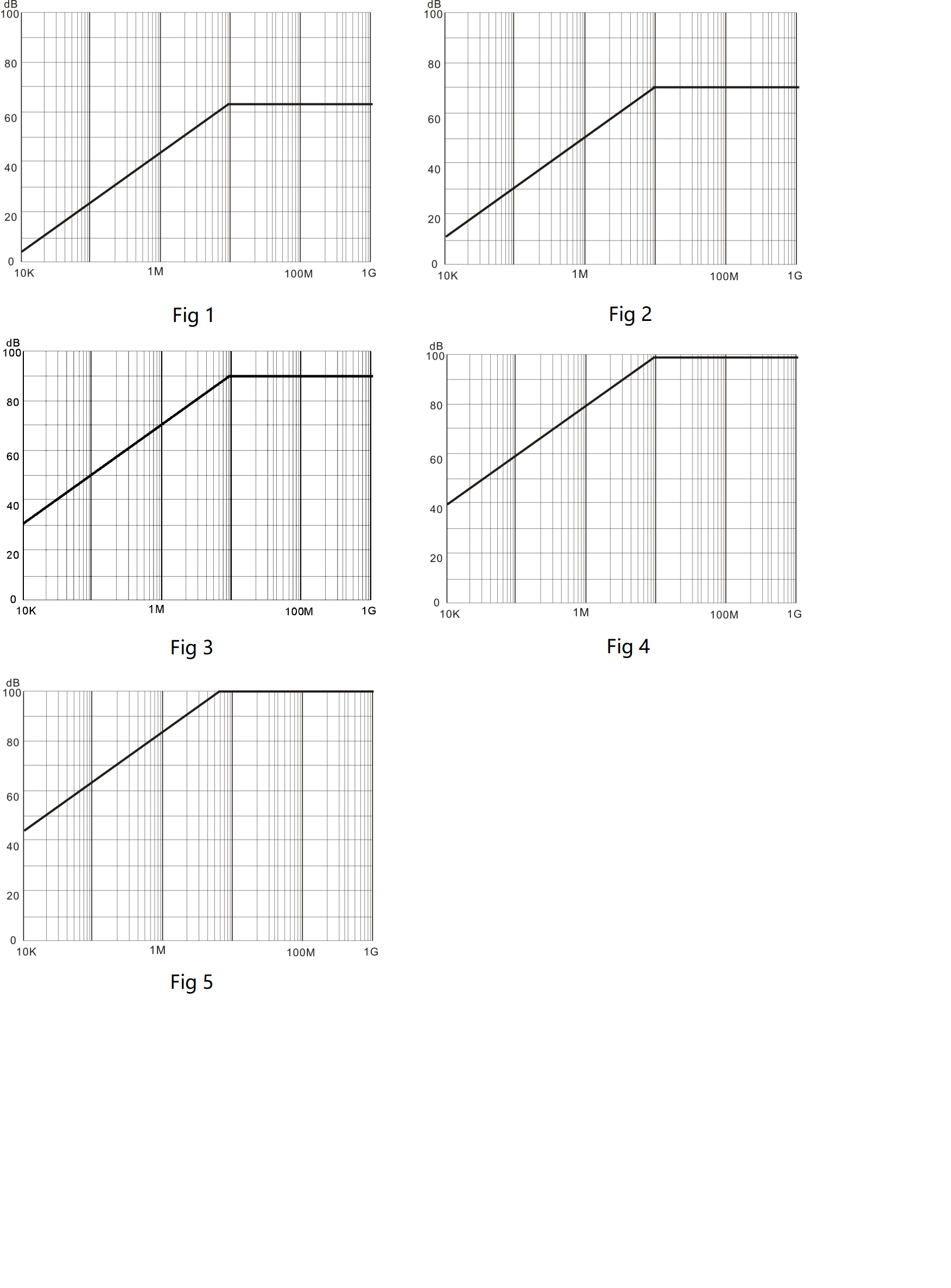

Insertion Loss
(IEC/CISPR NO.17 50 ohm)
