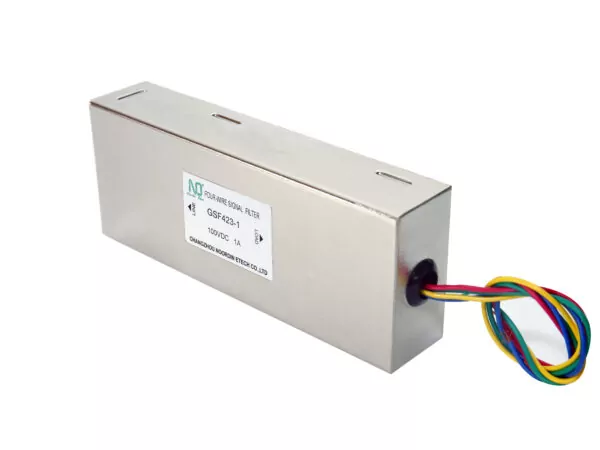

4-wires Humiture Signal Filter
4-wires Humiture Signal Filter
Humiture Signal Filter, EMC, EMI
Technical Data:
- Type: GSF423-1
- Rated Voltage: 100VDC
- Rated Current: 1A
- Band Pass: 200KHz
- Lines: 4
- Climatic Category: 25/070/21
Product Description
Signal filters for communication and control are essential components designed to ensure the integrity of signals in systems used for data transmission, alarm controls, and other critical applications. These filters effectively mitigate electromagnetic interference (EMI) and noise, ensuring smooth and reliable communication. They are widely used in various environments, including shielding rooms and cabinets, where the stability and accuracy of signals are paramount. These filters provide robust protection, allowing communication and control systems to perform optimally without interference.
Typical Applications
Applications in shielded room
- Telephone communication, network data communication, air conditioning control, fire alarm, intercom doorbell, audio, video and other signal transmission and alarm control systems.
- Suitable for a wide range of communication and control systems in shielding rooms, ensuring stable signal transmission and effective isolation of external electromagnetic interference.
Data communication in shielded cabinets
- Shielding data communication of USB, DB9, VGA, and network interfaces in the cabinet.
- Ensures that data transmission through various interfaces within the shielded cabinet is free from external electromagnetic interference.
Product Features
- Compact and Cost-Effective Design: Features a small size and exceptional cost performance.
- Reliable Signal Transmission: Ensures the normal transmission of various signals while fully meeting all testing requirements for shielding chambers.
- Compliance with EMC Standards: Adheres to international and industry standards such as CISPR 16/25, IEC 61000-4-3, and MIL-STD-461, ensuring accurate and reliable test results as well as regulatory compliance.
Technical Data
| Type | Rated Voltage | Rated Current (A) | Lines | Band pass | Dim. | Typical Applications |
| GSF112-3 | 0-250VAC/DC | 1 | 1 | 6MHz | Fig 1 | Frequency conversion conditioner signal |
| GSF-T2 | 100VDC | 0.3 | 2 | 20KHz | Fig 1 | Telephone, fax, confidential fax |
| GSF203-1 | 0-250VAC/DC | 1 | 2 | 200KHz | Special telephone, fire alarm, monitoring and environmental monitoring | |
| GSF202-3 | 0-250VAC/DC | 3 | 2 | 100KHz | AC/DC switch signal, air-conditioner control, voice broadcasting, environmental monitoring | |
| GSF205-1 | 0-250VAC/DC | 1 | 2 | 100KHz | Access control signal | |
| GSF312-3 | 0-250VAC/DC | 3 | 3 | 200KHz | Fig 2 | Frequency conversion conditioner signal |
| GSF405-1 | 100VDC | 1 | 4 | 100KHz | Fig 3 | Access control signal |
| GSF423-1 | 0-250VAC/DC | 1 | 4 | 200KHz | Fig 4 | 4-wires humiture signal |
| GSF-V8 | 100VDC | 1 | 8 | 10MHz | Fig 5 | Network signal |
| GSF-V8/1000 | 100VDC | 1 | 8 | 10MHz | Fig 6 | Gigabit network signal |
| GSF-N*C | 100VDC | 1 | N | 200KHz | Depend on the line | Multi-wires signal |
Circuit Diagrams
Outline Drawing (mm)
Insertion Loss
