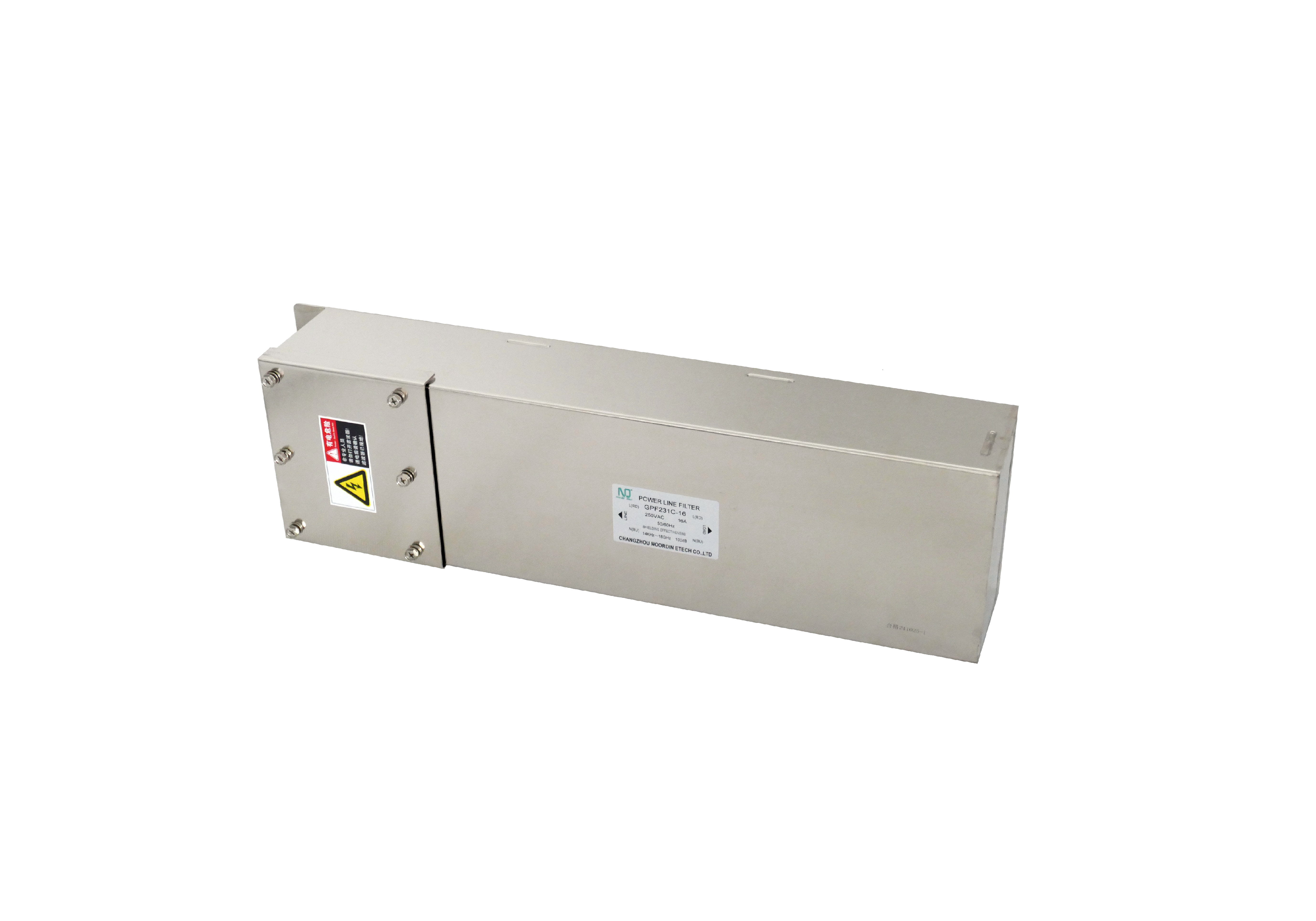

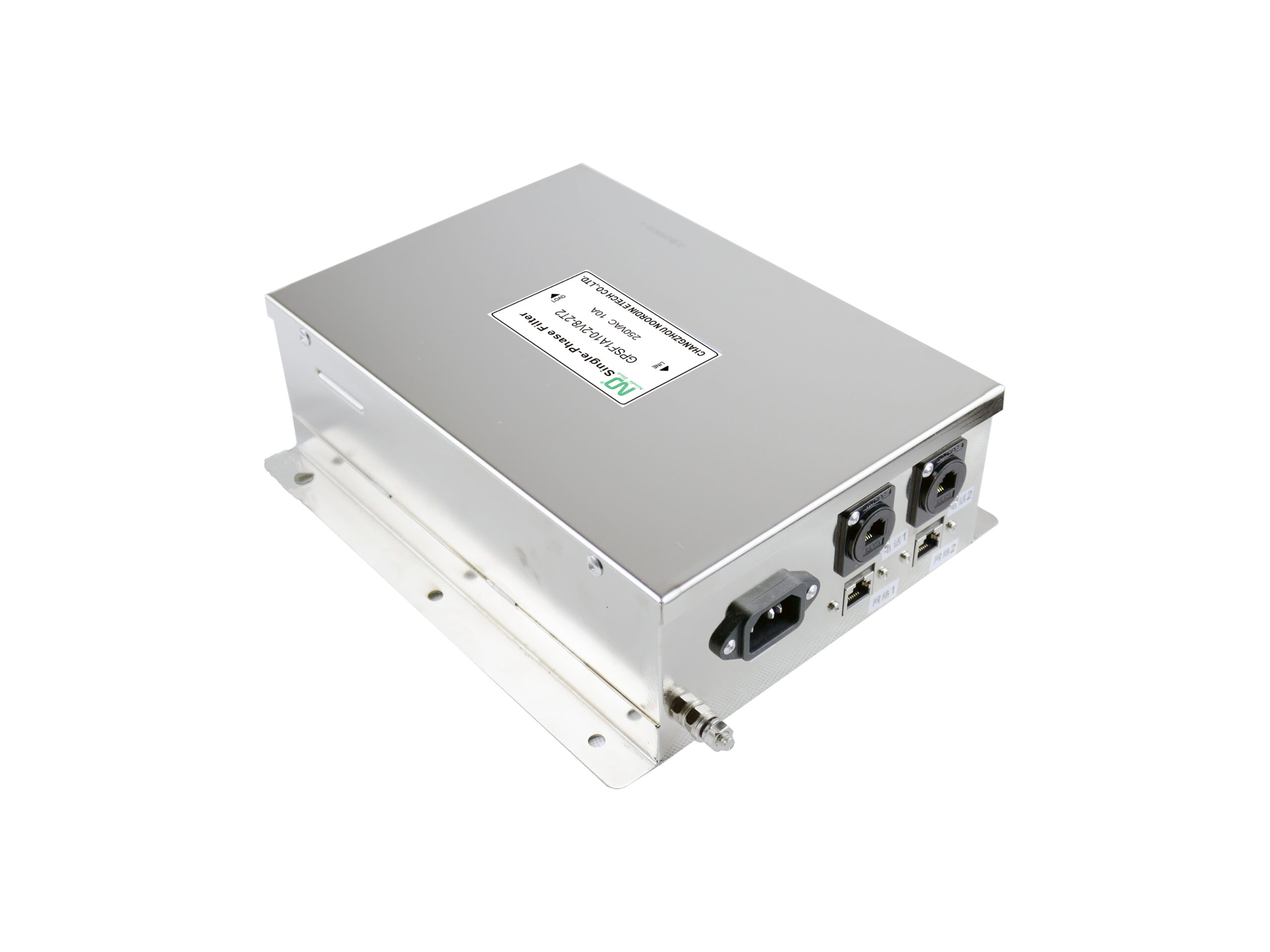

Power Line Filter For Shielded Cabinets
Power Line Filter For Shielded Cabinets
EMI, Power Line Filter, EMC, Shielded Cabinets
Technical Data:
- Rated Voltage: 250VAC
- Rated Current: 16-1000A
- Rated Frequency: 50/60Hz
- Test Voltage: 1000Vdc/2s
- Climatic Category: 25/070/21
Product Description
The power line filter is specifically engineered for shielded cabinets, electronic shelters, testing boxes, and shielded tents, offering effective suppression of electromagnetic interference (EMI) in power systems. By filtering noise from power lines, it ensures the stable operation of equipment in complex electromagnetic environments. Key features include low leakage current, minimal voltage drop, and a compact design, delivering superior electromagnetic compatibility while preventing external interference from compromising device performance.
Typical Applications
- Shielded cabinets
- Purified power supply shielding rooms
- Electronic shelters
- Testing boxes
- Shielded tents
Product Features
- Low Leakage Current, Low Voltage Drop: The filter maintains leakage current in the range of milliamps to tens of milliamps during normal operation, ensuring minimal voltage drop and stable performance.
- Tailored for Shielded Cabinets: Designed specifically for shielded cabinets, it offers optimized grounding performance to enhance shielding effectiveness.
- Compact and Efficient: With a compact size, the filter meets the shielding requirements for Class B and Class C shielded cabinets, ensuring high efficiency.
- EMC Compliance: Compliant with international and industry standards such as CISPR 16/25, IEC 61000-4-3, and MIL-STD-461, ensuring reliable test results and full compliance.
Technical Data
| Type | Rated Current (A) | I Leakage (mA) | Shielding Efficiency |
| GPF205C-6 | 2×6 | 50 | 100dB,14KHz-40GHz |
| GPF205C-16 | 2×16 | 50 | 100dB,14KHz-40GHz |
| GPF205A-16 | 2×16 | 10 | 100dB,100KHz-40GHz |
| GPF205A-32 | 2×32 | 10 | 100dB,100KHz-40GHz |
Circuit Diagrams
Outline Drawing (mm)
Insertion Loss
Frequency of 150kHz-40GHz, insertion loss over 100dB.
Frequency of 14kHz-40GHz, insertion loss over 100dB.
