1. EMC Noise Challenges in Shielded Spaces
Even in shielded rooms, electromagnetic noise can persist due to internal reflections, cable coupling, and equipment radiation. These issues are especially critical during conducted and radiated emission tests.
Ferrite tiles help mitigate these problems by absorbing electromagnetic energy instead of allowing it to reflect repeatedly within the enclosure.
2. Noise Absorption vs Reflection
Metallic shielding surfaces reflect EM waves, which can cause:
-
Standing waves
-
Resonance peaks
-
Measurement instability
Ferrite tiles suppress these effects by introducing lossy magnetic materials into the environment, significantly improving test repeatability.
3. Frequency Performance Characteristics
Ferrite tiles are particularly effective in:
-
30 MHz – 300 MHz range
-
Low-frequency zones where foam absorbers are inefficient
This makes them indispensable for EMC compliance testing and military standards validation.
4. Installation and System-Level Benefits
Properly installed ferrite tiles:
-
Improve chamber field uniformity
-
Reduce measurement uncertainty
-
Enhance correlation between test sites

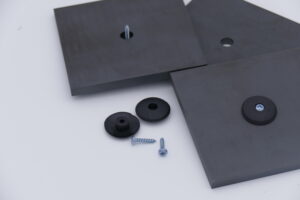

They are typically mounted directly onto conductive walls or panels using adhesive or mechanical fixtures.
5. Visual Demonstration and Testing
For a clearer understanding of how ferrite tiles behave in real EMC environments, you may find this YouTube technical demonstration helpful
Conclusion
Ferrite tiles are not optional accessories—they are essential tools for controlling electromagnetic behavior in shielded environments.
