1. Introduction

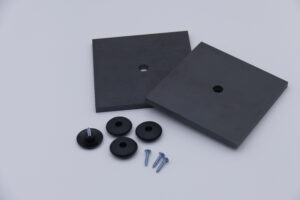

Ferrite tiles are widely used in EMC chambers, shielded rooms, and high-sensitivity electronic environments to suppress low-frequency and mid-frequency electromagnetic interference (EMI). Compared with flexible ferrite sheets, ferrite tiles are rigid absorbers designed for structural installation, offering stable performance, durability, and predictable shielding behavior.
In EMC testing and compliance environments, improper absorption of reflected electromagnetic energy can directly affect test accuracy. Ferrite tiles play a critical role in controlling resonances, standing waves, and unwanted reflections, especially below 1 GHz.
2. How Ferrite Tiles Work
Ferrite tiles are typically manufactured from manganese-zinc (MnZn) or nickel-zinc (NiZn) ferrite materials. Their EMI suppression mechanism is based on magnetic loss, where incident electromagnetic energy is converted into heat inside the ferrite material.
Key characteristics include:
-
High magnetic permeability
-
Controlled dielectric properties
-
Effective absorption in low-frequency ranges where foam absorbers are less efficient
Unlike purely reflective shielding materials, ferrite tiles reduce EMI by attenuation rather than reflection, which is essential in EMC environments.
3. Material Selection Considerations
When selecting ferrite tiles, engineers should evaluate:
-
Frequency range
Ferrite tiles are most effective from tens of MHz up to several hundred MHz. -
Tile thickness and size
Thicker tiles generally improve low-frequency absorption but increase weight and installation load. -
Mechanical strength and flatness
Important for long-term wall or panel mounting in chambers. -
Environmental stability
Temperature variation and humidity resistance should be considered for long-term installations.
4. Typical Applications
Ferrite tiles are commonly used in:
-
EMC and EMI anechoic chambers
-
Shielded rooms and enclosures
-
Military and aerospace test facilities
-
Automotive and power electronics EMC labs
They are often combined with hybrid absorbers (ferrite tile + foam absorber) to achieve wideband performance.
5. Further Discussion
For industry updates, practical EMC discussions, and application examples, you can also follow professional insights shared on LinkedIn
Conclusion
Ferrite tiles remain a foundational absorber technology in EMC environments. Understanding their working principles and material characteristics helps engineers design stable and repeatable EMC test setups.
