Capacitors are essential components in nearly all electronic circuits. They serve various purposes—ranging from smoothing voltage to timing signal delays. However, not all capacitors are used in the same way. One commonly misunderstood distinction is between filter capacitors and regular capacitors.
While both share the same fundamental operating principle—storing and releasing electrical charge—their design intentions, placements, and applications can be quite different. This article explores their distinctions, diving into functions, use cases, and behavior in circuits.

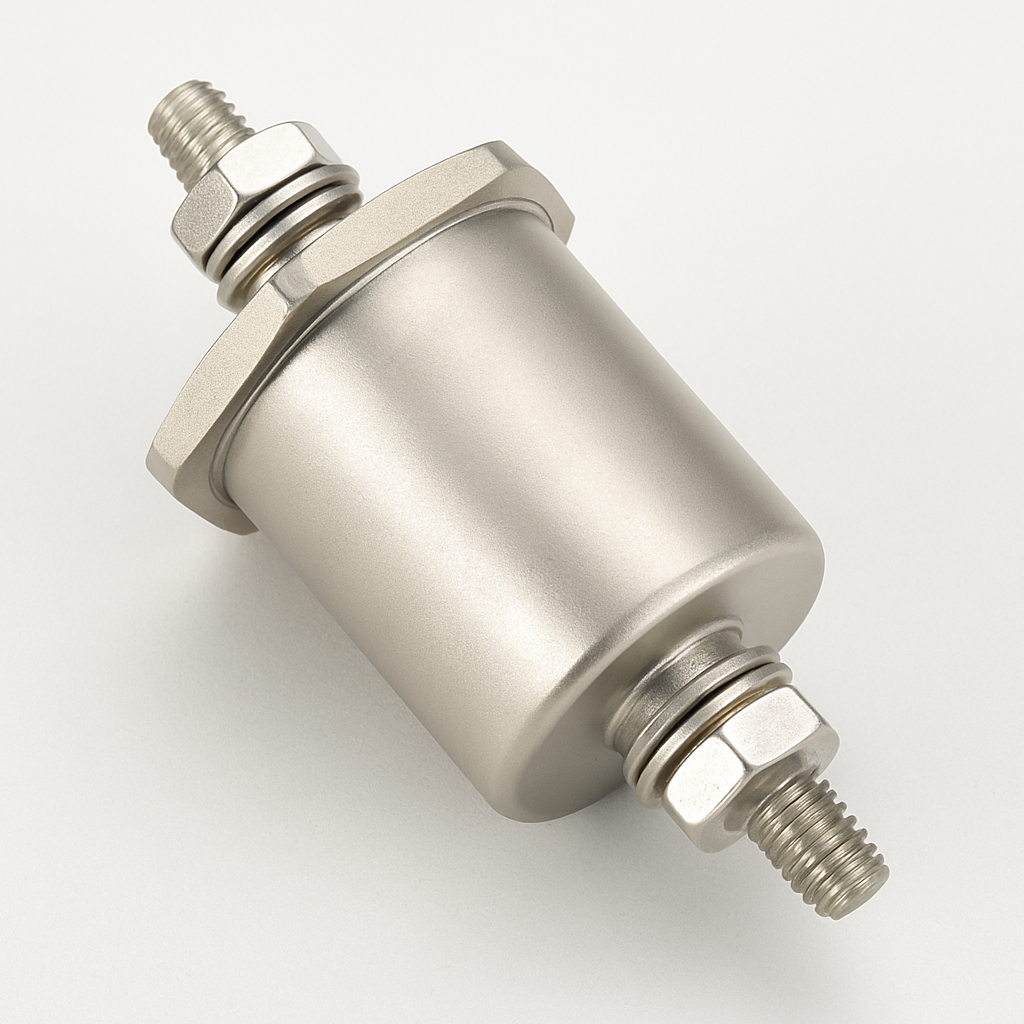

What Is a Filter Capacitor?
A filter capacitor is a capacitor used primarily for removing unwanted frequency components from a signal or power supply. These are most commonly found in rectifier circuits and power supply filtering, where they help smooth out voltage fluctuations and reduce electrical noise.
● Function: Smoothing and Noise Filtering
Filter capacitors are engineered to reduce AC ripple in DC power lines by allowing the AC components (like noise or harmonics) to pass through to ground, while retaining the DC voltage for stable operation. They act as low-pass filters, attenuating high-frequency signals and preserving low-frequency or steady DC signals.
● Typical Placement in Circuits
Filter capacitors are usually connected in parallel with the load across the DC output in a power supply circuit. This allows them to continuously charge and discharge, filling in voltage dips and absorbing high-frequency noise that would otherwise affect downstream components.
● Common Types of Capacitors Used for Filtering
While any capacitor can technically be used for filtering, specific types are preferred depending on the circuit needs:
-
Electrolytic capacitors – Chosen for high capacitance in power filtering.
-
Ceramic capacitors – Excellent for high-frequency noise suppression.
-
Tantalum capacitors – Stable and compact, often used in space-limited designs.
-
Film capacitors – Offer better temperature and frequency stability.
What Is a Regular Capacitor?
A regular capacitor is a broader term that encompasses all capacitors used in various applications—not only filtering. These capacitors are typically selected based on their capacitance, voltage rating, size, ESR, and dielectric type, depending on their intended role in a circuit.
● Function: General-Purpose Applications
Regular capacitors are used in a variety of functional contexts, such as:
-
Coupling – Transmit AC signals between stages while blocking DC.
-
Decoupling / Bypassing – Eliminate high-frequency noise from power lines.
-
Timing and Oscillation – Paired with resistors or inductors to form RC or LC timing circuits.
-
Energy Storage – Temporarily store energy for use during power dips.
-
Signal Filtering – In some cases, regular capacitors can serve filtering functions as well, but this is not their primary design intent.
● Placement and Circuit Behavior
Unlike filter capacitors that are generally fixed in one configuration, regular capacitors can be placed:
-
In series to control signal paths or create voltage dividers.
-
In parallel to smooth voltage or store energy.
-
Between signal stages to decouple AC and DC components.
Comparing Filter Capacitors and Regular Capacitors
| Criteria | Filter Capacitor | Regular Capacitor |
|---|---|---|
| Primary Function | Remove ripple and noise from DC signals | Versatile roles: coupling, decoupling, timing, energy storage |
| Placement | Parallel with load in power supply | Series or parallel depending on application |
| Typical Capacitance | Often high (µF to mF range) | Varies widely depending on use |
| Used For | Power supply filtering, noise suppression | Signal conditioning, timing, DC blocking |
| Design Focus | Voltage smoothing and EMI filtering | General circuit operation and signal control |
Real-World Examples
● Example of a Filter Capacitor in Action
In a bridge rectifier circuit, AC voltage is converted to pulsating DC. A large electrolytic capacitor is connected across the output. This capacitor charges during voltage peaks and discharges during drops, thereby smoothing the output voltage. Without this filter, the DC output would be too unstable for most electronics to use.
IndMALL explains that filter capacitors play a key role in converting pulsating DC into usable stable DC for electronics.
● Example of a Regular Capacitor in Signal Coupling
In an audio amplifier, you may need to pass only the AC audio signal from one transistor stage to another while blocking any DC bias. A coupling capacitor is used in series with the signal path. This allows AC to flow while preventing DC interference from affecting the next stage.
A post on Quora describes how coupling capacitors block DC while preserving AC signal transmission.
Can a Regular Capacitor Be Used as a Filter Capacitor?
Yes, in many cases, a regular capacitor can serve as a filter if selected and implemented appropriately. However, what makes a capacitor a “filter capacitor” is how and where it is used, not just its structure. The function and behavior in the circuit are what define its role.
For example, a ceramic capacitor may be used as a decoupling capacitor in one case (shunting high-frequency noise to ground), and as part of an active filter in another. The same physical capacitor may perform different actions depending on circuit configuration.
Which One Should You Use?
Choosing between a filter capacitor and a general-purpose capacitor depends on your circuit’s needs:
-
Need to smooth out voltage in a power supply? Use a filter capacitor with high capacitance.
-
Need to couple AC signals or block DC? Use a regular capacitor selected for the correct capacitance and voltage rating.
-
Building a high-speed digital or analog circuit? Include bypass and decoupling capacitors in strategic locations.
Understanding the role and placement of each capacitor type helps ensure reliable circuit operation and minimizes issues such as noise, instability, or signal loss.
