What is an LC Filter?

Electromagnetic interference (EMI) is a growing concern in modern electronic systems. With the increasing density of electronic devices and the complexity of circuits, effective filtering solutions have become essential to ensure performance and compliance with global EMC standards. One such solution is the LC filter—a reliable and widely-used configuration for attenuating unwanted noise in both power and signal lines.

Understanding the Basics of LC Filters

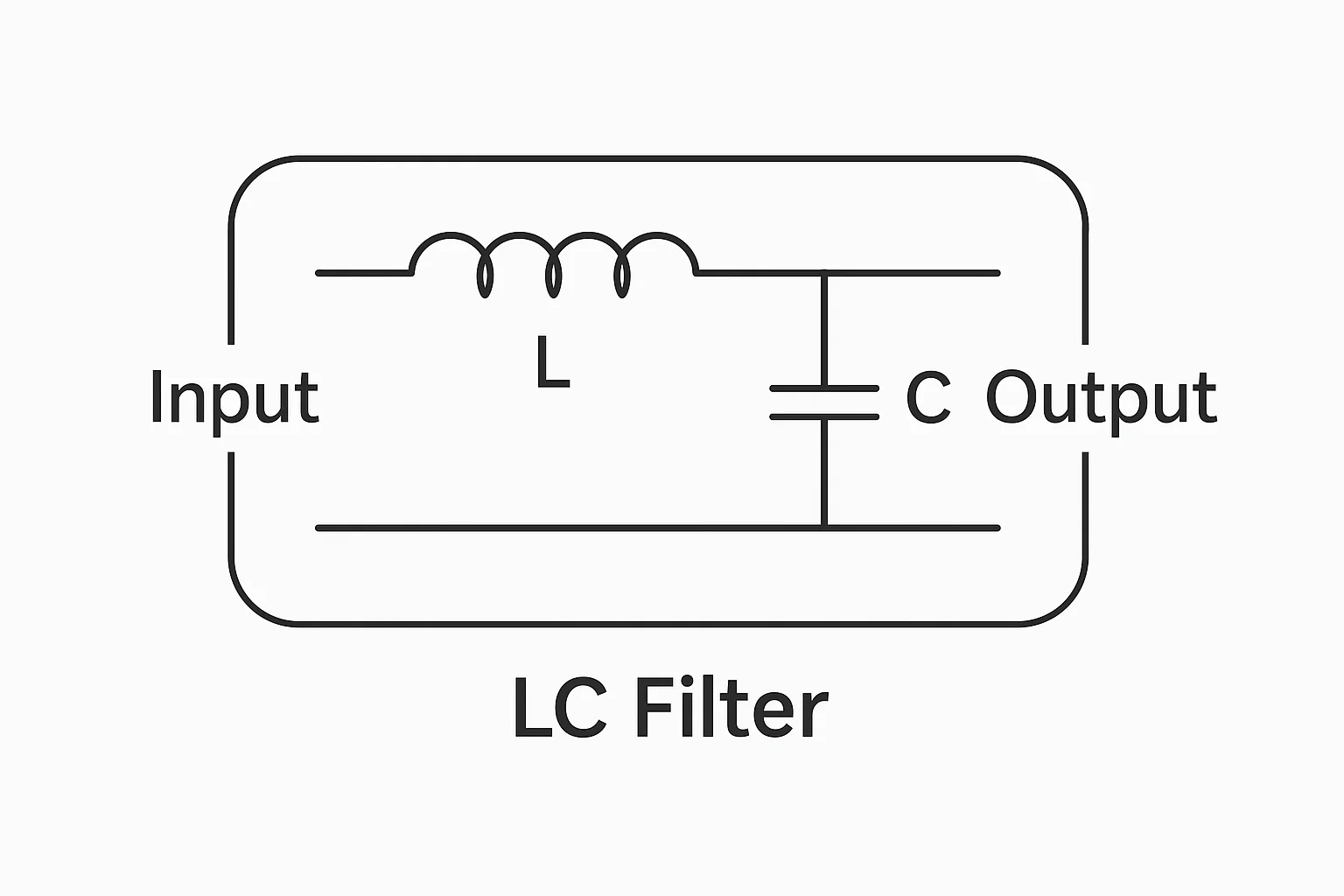

An LC filter is a passive electronic circuit composed of inductors (L) and capacitors (C). These components work together to block or attenuate specific frequencies of electromagnetic interference while allowing desired signals to pass. LC filters are commonly used in power electronics, signal conditioning, and radio frequency (RF) applications.

The fundamental working principle of an LC filter is based on the frequency-dependent reactance of inductors and capacitors:

• Inductors have high impedance at high frequencies and low impedance at low frequencies.
• Capacitors have low impedance at high frequencies and high impedance at low frequencies.

By strategically combining these two components, LC filters can be tailored to eliminate noise within certain frequency bands.

Types of LC Filters

LC filters come in various configurations depending on the intended function. The most commonly used types are:

• Low-pass filters: Allow low-frequency signals to pass while blocking high-frequency interference.
• High-pass filters: Allow high-frequency signals to pass while attenuating low-frequency noise.
• Band-pass filters: Permit a specific range of frequencies to pass, blocking both lower and higher frequencies.
• Band-stop filters: Reject a specific range of frequencies, letting through all others.

In EMI suppression applications, low-pass LC filters are most frequently used, especially in power line filtering where the goal is to suppress high-frequency noise from reaching sensitive equipment.

Components of an LC Filter

Inductor (L)

An inductor is a coil of wire that resists changes in current. In LC filters, inductors serve as barriers to high-frequency noise. The effectiveness of an inductor depends on its inductance value (measured in Henrys), core material, and winding structure.

Capacitor (C)

A capacitor stores and releases electrical energy. In filtering applications, capacitors provide a path for high-frequency signals to return to ground, thus preventing them from continuing through the circuit. Capacitor characteristics such as capacitance value, dielectric material, and rated voltage affect performance.

How LC Filters Work in Practice

To understand how an LC filter performs in real-world scenarios, we can analyze a graph of insertion loss versus frequency for common-mode (CM) and differential-mode (DM) signals. Insertion loss, measured in decibels (dB), indicates how much noise a filter can attenuate.

For example, in a typical LC filter performance graph:

• At frequencies below 0.1 MHz, the insertion loss may be modest (10–30 dB).
• Between 0.1 and 1 MHz, the filter becomes significantly more effective, reaching 70–80 dB attenuation.
• Beyond 1 MHz, the performance is maintained or slightly reduced due to the characteristics of the inductors and capacitors used.

This kind of performance makes LC filters suitable for EMI suppression in demanding applications such as aerospace, automotive electronics, and precision instrumentation.

Key Advantages of LC Filters

• Effective attenuation: LC filters can achieve high levels of insertion loss over a wide frequency range.
• Simple and passive: No external power is needed; they rely solely on passive components.
• Customizability: By varying the values and configuration of inductors and capacitors, designers can fine-tune filters to meet specific requirements.
• Cost-effective: LC filters are economical for both low- and high-volume applications.

Applications of LC Filters

LC filters are widely used across industries. Some notable applications include:

• Power line filtering: To eliminate conducted EMI from switching power supplies.
• Motor drive systems: To suppress harmonics and improve the quality of motor control signals.
• Communication equipment: To ensure clean signal transmission in RF and microwave systems.
• Medical devices: To maintain electromagnetic compatibility in environments where signal integrity is critical.
• Shielded rooms and EMC test chambers: LC feedthrough filters are installed at power entry points to prevent EMI leakage.

Innovations in LC Filter Design

Modern LC filters are benefiting from advances in materials and design techniques. High-permeability magnetic cores, multilayer ceramic capacitors, and improved winding technologies all contribute to better filter performance.

For instance, Noordin Etech’s newly developed high-altitude electromagnetic pulse (HEMP) filters—based on LC principles—have passed testing in a national key laboratory and meet the U.S. military standard MIL-STD-188-125. This demonstrates how LC filtering techniques can be scaled to meet stringent international defense standards.

Practical Considerations in LC Filter Design

When designing or selecting an LC filter, engineers must consider several key factors:

• Impedance matching: Proper matching ensures that the filter does not reflect signals back into the source.
• Component tolerances: Variations in inductance and capacitance can shift the filter’s frequency response.
• Thermal stability: Components should be able to withstand temperature variations without performance degradation.
• Mechanical robustness: Filters in industrial or military settings must be vibration-resistant and durable.

For more information, please refer to our article What is the difference between a filter capacitor and a regular capacitor?
