What is the best material for EMC shielding?

When designing and developing electronic devices, ensuring their electromagnetic compatibility (EMC) is crucial for compliance with regulations like the FCC Part 15 and other international standards. One of the most effective ways to achieve EMC is through the use of EMC shielding materials, which help to block or reduce electromagnetic interference (EMI). However, choosing the right material for EMC shielding can be a daunting task due to the variety of materials available, each with its unique properties, advantages, and drawbacks. This article delves into the different types of EMC shielding materials, their applications, and how to choose the best one for your device.

Understanding EMC Shielding

EMC shielding refers to the techniques and materials used to protect electronic devices from unwanted electromagnetic interference. EMI occurs when electromagnetic energy from one device interferes with the proper operation of another device, often causing performance issues like signal loss, malfunction, or inaccurate readings. Shielding can reduce these emissions and protect your device from external interference.

EMC shielding works by either absorbing or reflecting electromagnetic waves, preventing them from entering or leaving the device. A key principle in many shielding solutions is the Faraday cage concept—creating an enclosure that blocks electromagnetic fields from entering or leaving a device.

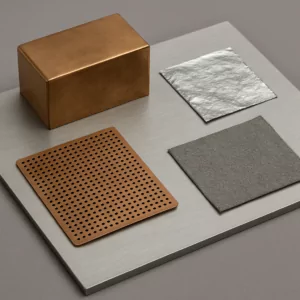

Key Types of EMC Shielding Materials

There are numerous materials used in EMC shielding, each suited for specific applications depending on factors such as the frequency of the EMI, the environment, and the size and shape of the device. Here are some of the most commonly used materials:

1. Metals for Shielding

Metals are among the most effective materials for EMC shielding due to their high conductivity. Some of the most popular metals used for shielding include:

• Aluminum: A lightweight, cost-effective material with good conductivity, making it ideal for consumer electronics, telecommunications, and aerospace applications. It provides excellent shielding against high-frequency emissions but is more prone to corrosion than other materials.

• Copper: Copper is one of the best materials for EMC shielding because of its excellent electrical conductivity. It works well in absorbing and reflecting both electrical and magnetic waves, making it highly effective in medical devices, computers, and industrial machinery. However, copper is more expensive than aluminum.

• Steel (Stainless Steel): Stainless steel, especially when used in its alloy form, is highly effective for shielding against magnetic fields. It is durable, resistant to corrosion, and often used for shielding industrial equipment and heavy machinery.

• Nickel: Nickel is often used as a coating for other metals or as a part of metal alloys to improve corrosion resistance. It is highly effective for high-frequency shielding, but it is less conductive than copper.

2. Copper Alloy 770 (Nickel-Silver)

Copper alloy 770, also known as nickel-silver, is a combination of copper, nickel, and zinc. This alloy offers a balanced level of conductivity and corrosion resistance, making it ideal for shielding in mid-frequency ranges (from kHz to GHz). It is often used for connectors, enclosures, and other components where aesthetic appeal is also important, as it has a silver-like appearance.

3. EMC Shielding Foils, Tapes, and Films

For lightweight and flexible applications, EMC shielding foils, tapes, and films are widely used. These materials are typically made from aluminum or copper and are applied as thin layers to provide EMC shielding in devices with limited space. These materials are commonly used for shielding cables, irregular-shaped components, and board-level shielding.

• Shielding Tapes: Shielding tapes are adhesive-backed foils that are ideal for sealing seams and gaps or wrapping cables and other components. They are especially useful in environments where traditional enclosures or gaskets may not fit.

• Shielding Films: These are often used to shield windows or other transparent components, while still allowing visibility. A conductive mesh may be embedded within the film for effective shielding.

4. Silicone and Carbon Foam

• Silicone Shielding: Although silicone is not conductive on its own, when embedded with conductive materials such as nickel or copper, it can serve as a flexible and cost-effective solution for EMC shielding. It’s often used in aerospace, automotive, and other applications where flexibility, environmental sealing, and temperature resistance are required.

• Carbon Foam Shielding: Carbon foam is lightweight and has a large surface area, making it an excellent choice for absorbing electromagnetic interference. It is commonly used in panels and inserts within electronic devices. Its flexibility and corrosion resistance make it a versatile option for shielding in harsh environments.

5. Conductive Coatings and Paints

Conductive coatings are often applied to non-metal surfaces like plastics to enhance their electromagnetic shielding properties. These coatings typically contain conductive materials such as copper, nickel, or silver, and they provide an easy-to-apply, cost-effective solution for EMC shielding.

• Conductive Coatings: Applied as a thin layer, these coatings are used on plastic enclosures and other surfaces to improve their ability to reflect or absorb electromagnetic waves.

• Conductive Paints: These paints can be used on a variety of surfaces to provide low-cost EMC shielding. They are commonly used in environments where traditional metal enclosures might not be feasible.

6. Gaskets and Seals

Gaskets and seals are used to close any gaps or seams in enclosures where electromagnetic interference could leak through. These components are typically made from conductive materials like copper, aluminum, or stainless steel and are essential for ensuring the integrity of an enclosure.

• EMC/RFI Gaskets: EMI gaskets are designed to provide a conductive path around gaps and openings, preventing the leakage of EMI. They are available in various shapes, including strips, sheets, and custom designs to meet specific requirements.

Factors to Consider When Choosing the Best Material

When choosing the best material for EMC shielding, it’s important to consider several factors that can affect both the performance and cost of the shielding solution:

1. Shielding Effectiveness (SE): This refers to how effectively a material blocks or attenuates EMI, typically measured in decibels (dB). The effectiveness depends on the material’s thickness, conductivity, and permeability, as well as the frequency of the interference.

2. Galvanic Compatibility: If the material is in contact with other metals, it’s important to ensure that galvanic corrosion will not occur. This is particularly relevant when using materials like aluminum with copper.

3. Environment and Durability: Consider the operating environment of your device. Some materials, such as silicone or foam, offer excellent performance in harsh environments, while metals like aluminum may be more vulnerable to corrosion.

4. Cost vs. Performance: Some materials, like copper, offer excellent shielding but are more expensive than others. Balancing cost with performance is essential, especially for consumer electronics or cost-sensitive applications.

5. Weight and Flexibility: For portable devices, the weight of the shielding material is an important consideration. Materials like aluminum foil or conductive fabrics provide effective shielding while keeping the device lightweight.

Conclusion

Selecting the best material for EMC shielding depends on a variety of factors, including the specific interference to be blocked, the environment in which the device will operate, and the budget allocated for the project. Each material offers its own set of benefits, and the choice of shielding material will directly impact the device’s EMC performance, cost, and durability.

For more information, please refer to our article Where should I place my EMI filter? to better understand the nature of electromagnetic interference and how shielding can help protect your devices.
