A power line filter, also known as an EMI (Electromagnetic Interference) or RFI (Radio Frequency Interference) filter, plays a critical role in modern electronics. Its main function is to attenuate unwanted high-frequency noise and interference present on power lines, ensuring that sensitive equipment operates correctly, safely, and efficiently. These filters are essential components in many industries, from telecommunications to aerospace, offering protection, performance enhancement, and compliance with EMC (Electromagnetic Compatibility) standards.
What Does a Power Line Filter Actually Do?
1. Attenuates Electromagnetic and Radio Frequency Interference
Power line filters are designed to suppress unwanted electromagnetic noise signals, which are typically generated by switching power supplies, electric motors, lighting systems, and RF transmitters. These high-frequency signals can travel along power lines, potentially interfering with or damaging connected equipment.
2. Protects Sensitive Electronic Equipment
Unfiltered EMI/RFI noise can lead to malfunctioning of sensitive devices such as medical instruments, communication systems, and precision manufacturing equipment. Power line filters protect these devices by filtering out high-frequency disturbances, surges, and transient voltages.
3. Enhances System Performance and Reliability
By reducing or eliminating conducted noise, filters help improve the overall performance and operational stability of electrical and electronic systems. This is especially critical in environments where consistent, clean power is necessary.

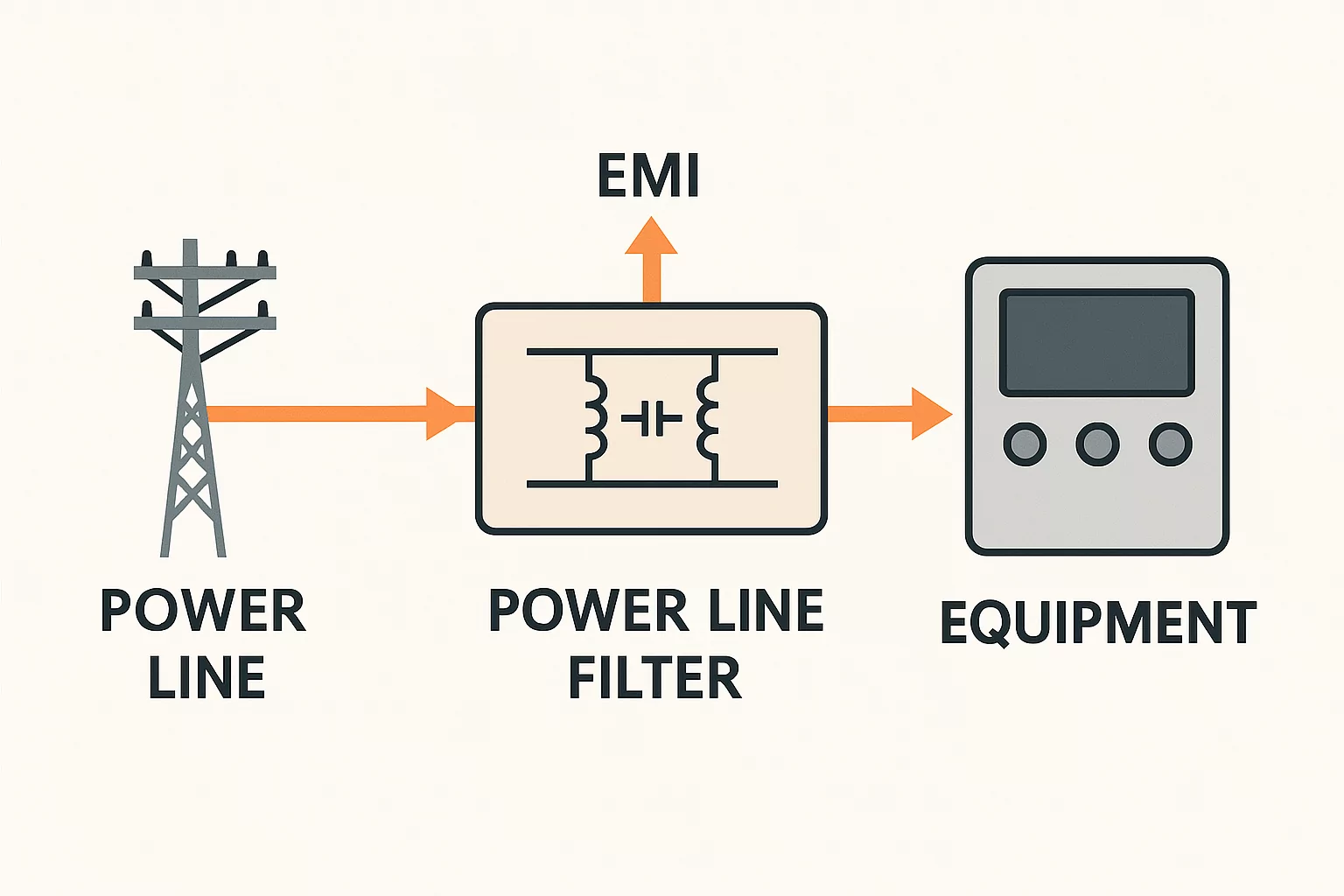

How Does a Power Line Filter Work?
1. Low-Pass Filtering Mechanism
Power line filters act as low-pass filters. They allow low-frequency currents (50/60/400 Hz or DC) to pass through while attenuating high-frequency noise components. This is achieved through a network of inductors and capacitors arranged in specific topologies such as LC, Pi, or T filters.
2. Redirection of Noise
High-frequency noise currents are diverted either back to their source or to the ground, depending on the filter design. The goal is to prevent these currents from reaching the protected load.
3. Key Components
- Inductors (L): Resist changes in current, impeding high-frequency signals.
- Capacitors (C): Provide a low-impedance path for high-frequency noise, effectively bypassing it.
- X Capacitors: Placed between line and neutral, they suppress differential mode interference.
- Y Capacitors: Placed between line/neutral and ground, they suppress common mode interference.
Construction and Types of Power Line Filters
1. Single-Phase and Three-Phase Filters
- 2-Line Filters: For single-phase or DC power systems.
- 3-Line Filters: For three-phase delta configurations.
- 4-Line Filters: For three-phase systems with a neutral conductor (wye configuration).
2. Specialized Filters
- HEMP-Phase Filters: Designed for high-impact electromagnetic pulse (HEMP) protection in critical infrastructure. These filters can withstand transient fields of up to 50kV/m (as per MIL-STD-188-125), ensuring zero downtime in nuclear plants, satellite ground stations, and military communication systems.
3. Package Types
- Screw Mount
- DIN Rail Mount
- Chassis Mount
- Panel Mount
- PCB Mount
Applications of Power Line Filters
1. Industrial and Consumer Electronics
Power line filters are widely used in industrial automation, factory machinery, CNC systems, and even household appliances. They are crucial in maintaining device integrity and extending service life.
2. Medical and Laboratory Equipment
EMI filters ensure that sensitive diagnostic instruments and laboratory equipment receive clean, uninterrupted power, preventing false readings and malfunctions.
3. Telecommunications and Data Centers
In communication networks and data centers, power quality is paramount. EMI filters help suppress conducted disturbances, safeguarding servers, routers, and other mission-critical hardware.
4. Military and Aerospace Systems
Filters used in military-grade equipment often comply with both MIL-STD and GJB standards, such as MIL-STD-1275 or GJB8848-2016. These ensure compatibility and protection in hybrid energy systems, radar systems, and avionics.
5. Shielded Enclosures and Anechoic Chambers
For EMC testing and secure environments, power line filters provide clean power while preserving shielding effectiveness. They are installed at the power entry point to shielded rooms, chambers, and cabinets, maintaining isolation from external interference.
How to Choose the Right Power Line Filter?
1. Rated Voltage and Current
Ensure the filter’s voltage and current ratings meet or exceed the operating parameters of your application.
2. Leakage Current Considerations
Choose a filter with suitable leakage current characteristics to comply with safety standards, especially in medical or consumer electronics.
3. Insertion Loss and Performance
Higher insertion loss values (measured in dB) indicate greater filtering effectiveness. Cascading filters can also enhance attenuation across a wider frequency range.
4. Environmental Factors
Filters designed for harsh conditions—such as high humidity, temperature fluctuations, or exposure to electromagnetic pulses—should meet the corresponding environmental and reliability standards.
