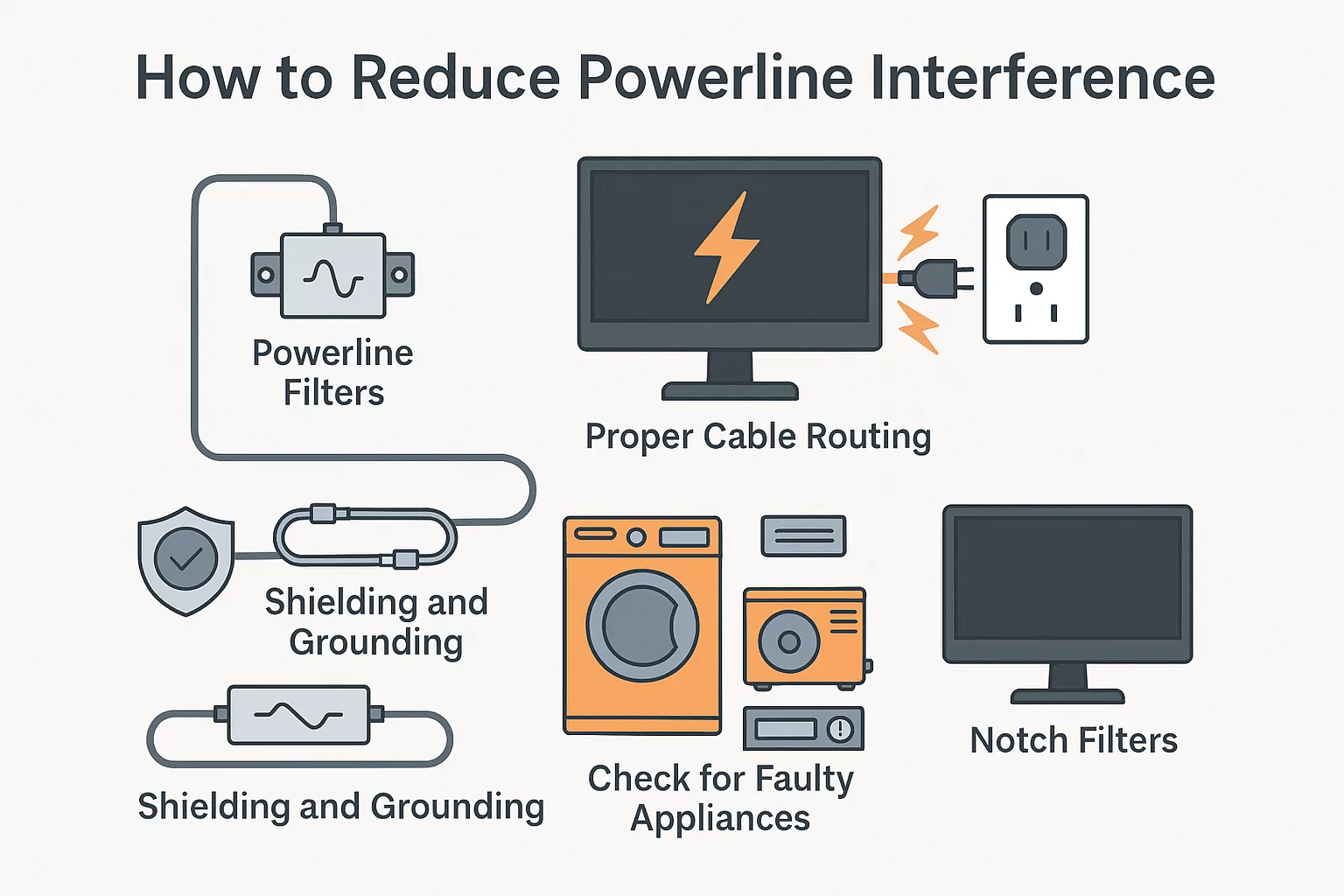

Powerline interference is a common problem in both residential and industrial environments, manifesting as humming sounds in audio equipment, communication disruptions, or even malfunctioning of sensitive electronics. Whether you’re dealing with a home recording setup or a complex industrial system, reducing powerline interference is essential for maintaining signal integrity and protecting equipment. In this article, we’ll explore effective strategies for reducing powerline interference, combining practical methods with expert insights and technical approaches.
Understanding Powerline Interference
Powerline interference refers to unwanted noise or electromagnetic disturbances transmitted along electrical power lines. These disturbances often stem from switching power supplies, faulty appliances, lighting systems, or electromagnetic emissions from nearby equipment. The interference typically falls within low-frequency ranges such as 50 Hz or 60 Hz and their harmonics, but it can also extend into the radio frequency (RF) spectrum.

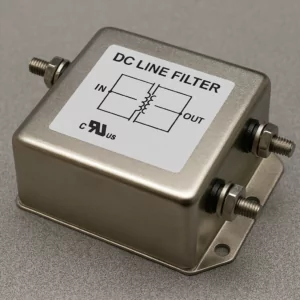

Method 1: Powerline Filters
What Are Powerline Filters?
Powerline filters, also known as EMI (Electromagnetic Interference) or RFI (Radio Frequency Interference) filters, are electrical devices designed to attenuate unwanted high-frequency signals on power lines. These filters act as low-pass filters, allowing the standard AC power (50/60 Hz) to pass through while blocking higher-frequency noise.
How They Work
Powerline filters use inductors, capacitors, and sometimes semiconductor elements to absorb or redirect electrical noise. X capacitors handle differential mode interference (line-to-line), while Y capacitors suppress common mode interference (line-to-ground). These components effectively clean the power line, reducing noise propagation to connected devices.
Real-World Applications
Powerline filters are widely used in industrial automation systems, CNC machinery, medical devices, consumer electronics, and even aircraft systems. In harsh environments, rugged EMI filters mitigate harmonics and noise in equipment ranging from food processors (250V single-phase) to 480V three-phase industrial machinery.
Method 2: Proper Cable Routing
Separation of Power and Signal Lines
One overlooked but critical strategy in interference reduction is cable management. Routing power lines and signal lines together increases the risk of electromagnetic coupling. Instead, keep signal and power cables separate whenever possible.
Shielded Cabling
If routing cables together is unavoidable, use shielded cables. The shielding layer acts as a Faraday cage, preventing external noise from interfering with the internal signals. Pairing shielded cables with proper grounding is key to reducing coupled noise.
Method 3: Shielding and Grounding
Why Shielding Matters
Shielding involves wrapping sensitive signal conductors in a conductive material such as copper braid or foil. This prevents external electromagnetic fields from inducing unwanted currents in the conductors.
Effective Grounding Techniques
Grounding provides a safe path for unwanted noise to travel to earth. All shielding materials must be connected to a proper ground for maximum effectiveness. Improper grounding can exacerbate interference rather than eliminate it.
Specialized Equipment for Military and Critical Infrastructure
In critical systems like nuclear facilities and satellite ground stations, electromagnetic shielding goes further. Filters designed to resist high-level EMP (electromagnetic pulse) attacks are built to MIL-STD-188-125 standards and can withstand fields up to 50 kV/m without failure. These filters are validated for performance up to 40 GHz shielding at national EMC labs.
Method 4: Relocating Devices
Sometimes, the simplest solution is the most effective. Moving devices away from sources of interference can yield immediate improvements. Devices that share power strips with noisy appliances may benefit from being relocated to a dedicated circuit or isolated outlet.
Method 5: Identifying and Eliminating Faulty Appliances
Common Offenders
Certain home and industrial appliances are notorious for generating electrical noise. These include:
- Air conditioners
- Washing machines and dryers
- LED lighting systems
- Cheap surge protectors
- Fluorescent ballasts
Troubleshooting Steps
To identify a noisy appliance, turn off each circuit breaker in your panel one at a time. Observe when the interference disappears. Once identified, replace or isolate the offending device using a powerline filter.
Method 6: Use of Notch Filters
Targeted Frequency Suppression
Unlike broadband filters, notch filters are designed to reject specific frequencies, such as 50 Hz or 60 Hz. This makes them particularly useful in medical electronics or communication systems where these low-frequency noises are most disruptive.
Integration in EMI Filtering Systems
Some advanced EMI filters integrate notch filtering to tackle persistent interference. These filters can be found in hybrid systems with dual certification to standards like MIL-STD-1275 and GJB8848-2016, often used in military and hybrid energy systems.
Method 7: Use of Software-Assisted Monitoring
Modern Monitoring Tools
Today’s EMI filtering and noise reduction systems often include software that allows for remote control, automated calibration, and interference diagnostics. These systems, such as those based on the Navigator-2023 platform, help users identify noise sources and adjust filter parameters accordingly.
Portable Test Equipment
A typical EMI analysis kit includes spectrum analyzers, broadband antennas, and voltage probes capable of detecting interference across 3 Hz to 40 GHz. These tools are essential for diagnosing complex noise issues in industrial and defense settings.
