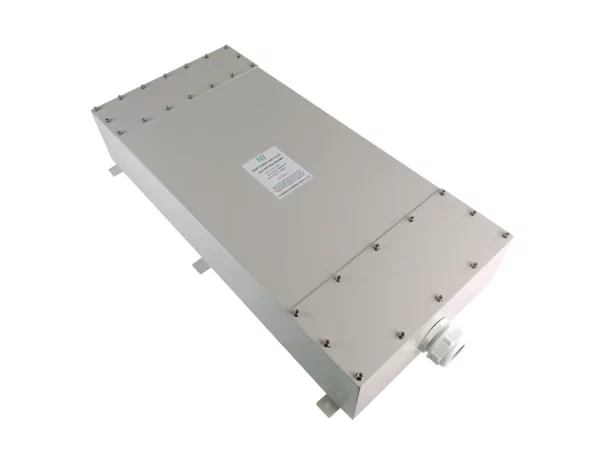

Standard HEMP/HPM Power Line Filter
Standard HEMP/HPM Power Line Filter
HEMP Filter, HPM Power Line Filter, EMC
Technical Data:
- Product Type: GPF452A-200/EMP
- Rated Voltage: 250/440VAC
- Rated Current: 16-200A
- Rated Frequency: 50/60Hz
- Test Voltage: Line/Line 2250VDC, Line/ Ground 2250VDC
- Climatic Category: 40/085/21
Product Description
HEMP filters protect electronic devices from High-Altitude Electromagnetic Pulses (HEMP). With transient pulse suppression circuits, they filter regular interference and weaken EMP signals, preventing damage or failure and ensuring device stability and reliability during high-energy events.
HPM High Power Microwave Power Filter is specifically designed for protection against high-power microwaves. It features transient pulse suppression capabilities, effectively filtering electromagnetic interference, resisting HPM and EMP threats. The product complies with international standards and has been certified by key national testing institutions.
Compared to competing products, our HPM Power Filter offers superior pulse-handling capacity and faster response times. It is engineered to provide robust protection against both HEMP and HPM threats, unlike many market alternatives that only address one domain. Additionally, our filters are rigorously tested and certified by nationally recognized institutions. We also offer comprehensive technical support for seamless custom integration. These advantages ensure enhanced protection, higher reliability, and long-term operational stability.
For a deeper dive into how electromagnetic threats are evolving and how to prepare for them, read our latest blog post:
“What is an EMP Surge Protector? Full Guide + 10 Critical EMP Risks & How to Defend Against Them”
Typical Applications
Provide protection for public service facilities, financial centers, data centers, and similar applications by ensuring a clean electromagnetic environment and effectively suppressing radiation interference. The Standard HEMP/HPM Power Line Filter ensures uninterrupted operation by blocking high-energy pulses and electromagnetic noise from the power source.
Shielding Room: Applied in shielding rooms to enhance electromagnetic shielding performance and protect internal devices from external interference. With the Standard HEMP/HPM Power Line Filter, the room’s isolation from external electromagnetic threats is significantly strengthened.
Electronic Shelter: Suitable for electronic shelters, improving resistance to electromagnetic interference and ensuring stable operation of critical equipment. The Standard HEMP/HPM Power Line Filter maintains internal system stability against both natural and man-made EMP events.
Shielded Cabinet: Used for electromagnetic interference protection in cabinets, ensuring the reliability and safety of equipment operation. The Standard HEMP/HPM Power Line Filter minimizes conducted interference and supports high-reliability environments.
Product Features
- Electromagnetic Pulse Protection: Integrates anti-EMP modules and optimized circuit design to effectively protect against lightning-induced electromagnetic pulses and EMP, complying with MIL-STD-188-125-1 (1998) and MIL-STD-188-125-2 (1999).
- High-Strength Metal Enclosure: Made from specialized stainless steel, offering excellent mechanical strength and corrosion resistance for harsh environments.
- Innovative Wiring Structure: Unique design allows wiring within an open shielding cavity, providing convenience and enhanced safety.
Technical Data
| Rated Voltage | 250VAC
250/440VAC |
Single-phase
Three-phase |
| Rated Frequency | 50/60Hz | |
| Number of lines | 2 or 4 | |
| Max Leakage Current | 1A | |
| Peak Surge Current | 40kA (8/20µs) | |
| Power Dissipation | Refer to product selection table | At Rated Current |
| Test Voltage | 2250Vdc, 2s | Line/Ground |
| Voltage Drop/line | <1% | Rated Voltage 250/440V@50/60Hz |
| Discharge Time to Blow 34V | <30s | |
| Climatic Category (EN 60068-1) | -40℃~+85℃ |
- Transient Suppression Performance
| MIL-STD-188-125-1 Acceptance Test Short Pulse Current Injection, Waveform: 20/500 ns |
|||||
| Input pulse amplitude | 250A | 500A | 1000A | 1800A | 2500A |
| MIL-STD-188-125 residual requirement | <10A | <10A | <10A | <10A | <10A |
| Typical filter residual let-through | <1.5A | <2A | <3A | <3.5A | <4.5A |
Circuit Diagrams
Currently, there is no circuit diagram available for Standard HEMP/HPM Power Line Filter.
If you have any specific requirements or questions, please feel free to contact our customer service or technical support team — we are here to assist you.
Outline Drawing (mm)
| Type | Rated Current (A) | Rated Voltage (VAC) | Line | Power Dissipation (W) | Terminal | Dimension |
| GPF252A-16/EMP | 16 | 250 | 2 | <15 | Fig 1 | |
| GPF252A-32/EMP | 32 | 250 | 2 | <15 | ||
| GPF252A-50/EMP | 50 | 250 | 2 | <25 | ||
| GPF252A-63/EMP | 63 | 250 | 2 | <25 | ||
| GPF452A-16/EMP | 16 | 250/440 | 4 | <30 | Fig 2 | |
| GPF452A-32/EMP | 32 | 250/440 | 4 | <30 | ||
| GPF452A-50/EMP | 50 | 250/440 | 4 | <35 | ||
| GPF452A-63/EMP | 63 | 250/440 | 4 | <35 | ||
| GPF452A-100/EMP | 100 | 250/440 | 4 | <45 | Fig 3 | |
| GPF452A-150/EMP | 150 | 250/440 | 4 | <55 | Fig 4 | |
| GPF452A-200/EMP | 200 | 250/440 | 4 | <55 |
Insertion Loss
| Minimum Insertion Loss in 50Ω System with/without Load (Meets shielding effectiveness requirements per MIL-STD-188-125) |
||||||
| Frequency | 10kHz | 100kHz | 1MHz | 10MHz | 100MHz | 1GHz |
| Insertion loss | 20dB | 40dB | 60dB | 80dB | 80dB | 80dB |
