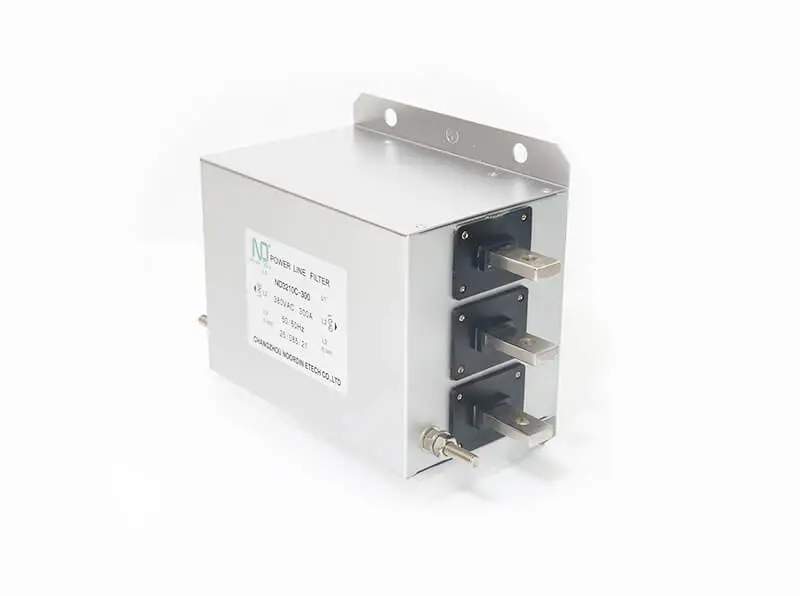

Output Power Line Filter For Inverter
Output Power Line Filter For Inverter
EMC, Inverter, VFD
Technical Data:
- Rated Voltage: 250/440VAC
- Rated Current: 5-1600A
- Rated Frequency: 50/60Hz
- Test Voltage: Line/Line 1500VDC, Line/ Ground 2250VDC
- Climatic Category: 25/085/21
Product Description
Output Power Line Filter For Inverter ensures stable operation of surrounding electronic devices and addresses interference issues caused by inverters. It effectively suppresses dv/dt, mitigating the impact of peak voltages from inverters on the motor, reducing noise, and preventing rapid motor aging, ultimately extending motor life. Additionally, it prevents harmonic distortion generated by inverters from interfering with motor performance, promoting overall operational stability. This solution helps maintain the efficiency and longevity of both the inverter and motor, ensuring reliable, long-term performance in industrial applications.
In industrial systems that rely on precision and uninterrupted operation, the Output Power Line Filter For Inverter solves key pain points such as electromagnetic interference, unstable motor behavior, and component degradation. It ensures clean and stable power delivery at the inverter output, minimizing disruptions caused by electrical noise and improving the durability and performance of motor-driven equipment.
Compared with conventional filters, our Output Power Line Filter For Inverter offers enhanced attenuation across a broader frequency spectrum, robust thermal performance, and optimized structure for high-speed switching applications. Its compact design allows seamless integration into control panels, while its superior filtering capability ensures long-term reliability and reduced maintenance needs.
Learn more in our latest blog:
“How Output Power Line Filters Enhance Inverter and Motor Reliability”
Connection Diagram
Typical Applications
Output Power Line Filter For Inverter is suitable for inverters from most brands, ensuring effective EMI suppression and stable power delivery across diverse equipment configurations.
Output Power Line Filter For Inverter is ideal for VVVF servo motors, providing reliable dv/dt suppression to protect motor windings and extend operational lifespan in high-frequency switching environments.
Output Power Line Filter For Inverter supports industrial electronic equipment operating on frequency conversion principles, ensuring smooth performance and reducing the risk of malfunction due to power disturbances.
Product Features
- Designed to effectively limit the rate of voltage change (dv/dt), ensuring system stability and protection against voltage spikes.
- Reduces electromagnetic interference (EMI) levels generated by inverters, improving system reliability and performance.
- CE approved, meeting international quality and safety standards for reliable operation.
- Three-stage filtering design with special materials ensures high impedance characteristics across a wide frequency range.
- Copper bar suitable for versions above 250A, complying with international standards for simple and safe connections.
- Customized products available according to customer specifications.
Technical Data
| Type | Rated Current (A) | Rated Voltage | I Leakage (≤mA) | Rated Frequency | Test Voltage (2s) | Dim. | Output | Output |
| ND3310-5-SL | 5 | 250/440VAC | 6 250VAC/50Hz |
50/60Hz | Line/Line 1500VDC Line/Ground 2250VDC |
Fig 1 |  |
25/85/21 |
| ND3310-10-SL | 10 | Fig 2 | ||||||
| ND3310-20-SL | 20 | Fig 3 | ||||||
| ND3310-36-SL | 36 | |||||||
| ND3310-50-SL | 50 | |||||||
| ND3310-100-SL | 100 | Fig 4 | ||||||
| ND3310-150-SL | 150 | |||||||
| ND3310-200-SL | 200 | |||||||
| ND3310-300-CL | 300 | Fig 5 |  |
|||||
| ND3310-400-CL | 400 | |||||||
| ND3310-600-CL | 600 | |||||||
| ND3310-1000-CL | 1000 | |||||||
| ND3310-1600-CL | 1600 |
Circuit Diagrams
Outline Drawing (mm)
| A | B | C | D | E | F | G | H | I | J | S | T | U | V | W | X | Y | Z | |
| 100A | 300 | 210 | 120 | 160 | 120 | 185 | φ12 | 2 | 33 | M8 | / | / | 50 | / | / | / | / | / |
| 150A | 300 | 210 | 120 | 160 | 120 | 185 | φ12 | 2 | 33 | M10 | / | / | 50 | / | / | / | / | / |
| 200A | 300 | 210 | 120 | 160 | 120 | 185 | φ12 | 2 | 33 | M10 | / | / | 50 | / | / | / | / | / |
| 300A | 300 | 260 | 115 | 210 | 120 | 235 | φ12 | 2 | 43 | M12 | / | / | 60 | 25 | 4 | 15 | 40 | Φ11 |
| 400A | 300 | 260 | 115 | 210 | 120 | 235 | φ12 | 2 | 43 | M12 | / | / | 60 | 25 | 6 | 15 | 40 | Φ11 |
| 600A | 300 | 260 | 135 | 210 | 120 | 235 | φ12 | 2 | 43 | M12 | / | / | 60 | 25 | 8 | 15 | 40 | Φ11 |
| 1000A | 350 | 280 | 170 | 230 | 145 | 255 | φ12 | 3 | 53 | M12 | / | / | 60 | 40 | 8 | 20 | 50 | Φ14 |
| 1600A | 400 | 300 | 160 | 250 | 170 | 275 | φ12 | 3 | 93 | M12 | 26 | 26 | 60 | 60 | 10 | 17 | 93 | Φ14 |
Insertion Loss
Insertion loss data for Output Power Line Filter For Inverter is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
