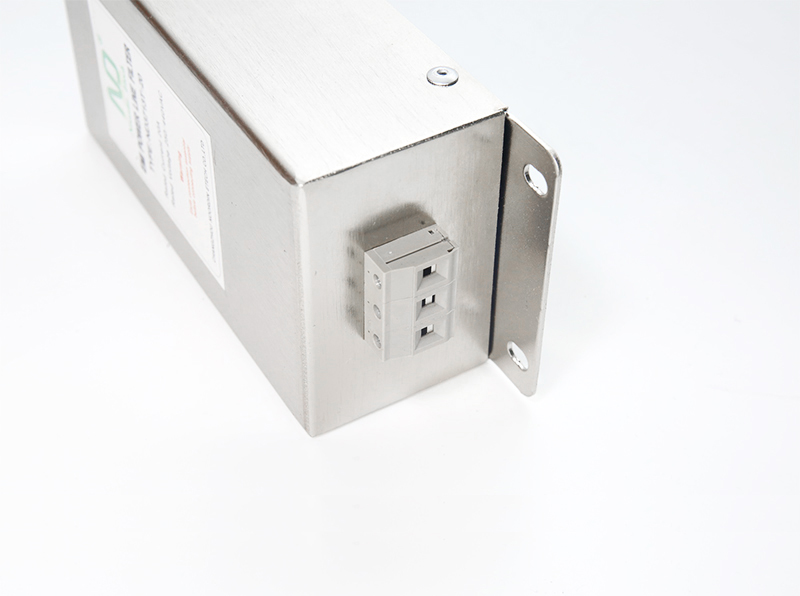

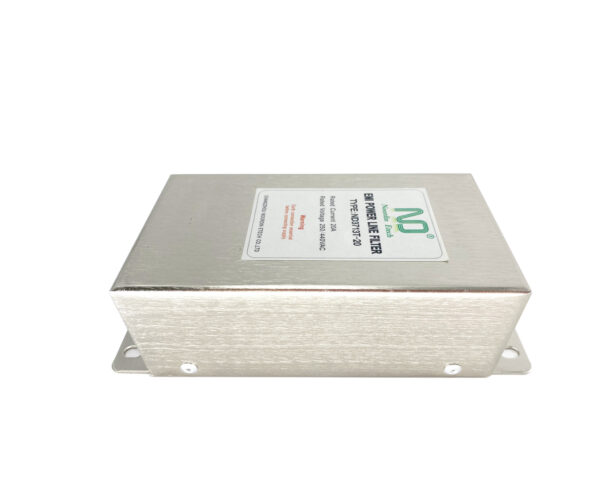

Input Power Line Filter For Inverter
Input Power Line Filter For Inverter
EMC, Inverter, VFD
Technical Data:
- Rated Voltage: 250/440VAC
- Rated Current: 5-1600A
- Rated Frequency: 50/60Hz
- Test Voltage: Line/Line 1500VDC, Line/ Ground 2250VDC
- Climatic Category: 25/085/21
Product Description
This filter effectively suppresses harmonics and surges from the power network, addressing common inverter issues such as over-voltage, over-current, overload, overheating, and malfunction. It ensures the reliable and smooth operation of inverters, enhancing their overall performance and longevity.
Typical Applications
- Inverters from most brands
- VVVF Servo motors
- dv/dt suppression
- Industrial electronic equipment operating with frequency conversion principles
Product Features
- The filter features a three-stage filtering design, with special materials ensuring high impedance characteristics across a wide frequency range.
- Optimized for VVVF and high-noise environments
- Delivers outstanding attenuation for both common mode and differential mode noise, particularly at low frequencies

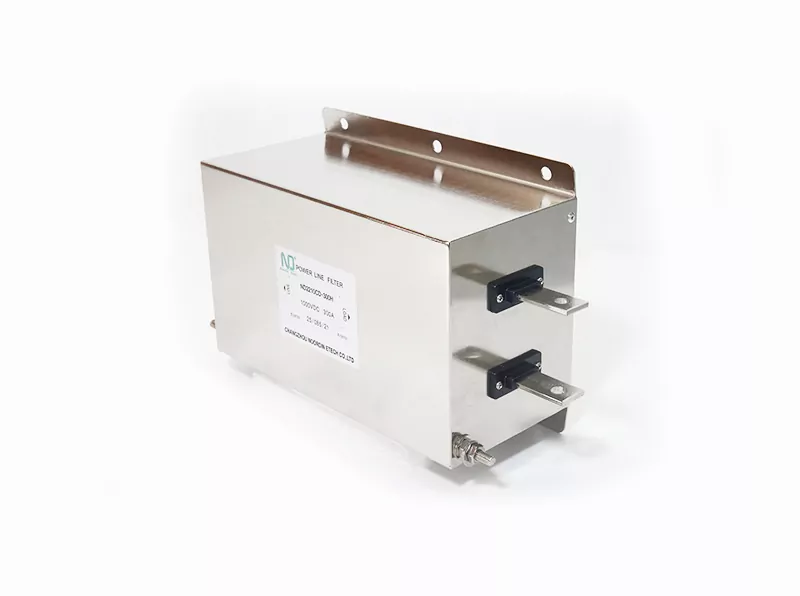

- The copper bar is suitable for versions above 250A, meeting international standards for simple and secure connections
- CE approved, ensuring compliance with international quality and safety standards
Technical Data
| Type | Rated Current (A) | Rated Voltage | Rated Frequency | I Leakage (≤mA) | Test Voltage (2s) | Dim. | Circuit | Output | Climate Category |
| ND3310-5-S | 5 | 250/440VAC | 50/60Hz | 6 250VAC/50Hz |
Line/Line 1500VDC Line/Ground 2250VDC |
Fig 1 | Fig 1 |
|
25/85/21 |
| ND3310-10-S | 10 | Fig 2 | |||||||
| ND3310-20-S | 20 | Fig 3 | |||||||
| ND3310-20-T | 20 | Fig 6 |  |
||||||
| ND3310-36-S | 36 | Fig 3 |  |
||||||
| ND3310-50-S | 50 | ||||||||
| ND3310-100-S | 100 | Fig 4 | |||||||
| ND3310-150-S | 150 | ||||||||
| ND3310-200-S | 200 | Fig 2 | |||||||
| ND3310-300-C | 300 | Fig 5 |  |
||||||
| ND3310-400-C | 400 | ||||||||
| ND3310-600-C | 600 | ||||||||
| ND3310-1000-C | 1000 | ||||||||
| ND3310-1600-C | 1600 |
Circuit Diagrams
Outline Drawing (mm)
| A | B | C | D | E | F | G | H | I | J | S | T | U | V | W | X | Y | Z | |
| 100A | 300 | 210 | 120 | 160 | 120 | 185 | φ12 | 2 | 33 | M8 | / | / | 50 | / | / | / | / | / |
| 150A | 300 | 210 | 120 | 160 | 120 | 185 | φ12 | 2 | 33 | M10 | / | / | 50 | / | / | / | / | / |
| 200A | 300 | 210 | 120 | 160 | 120 | 185 | φ12 | 2 | 33 | M10 | / | / | 50 | / | / | / | / | / |
| 300A | 300 | 260 | 115 | 210 | 120 | 235 | φ12 | 2 | 43 | M12 | / | / | 60 | 25 | 4 | 15 | 40 | Φ11 |
| 400A | 300 | 260 | 115 | 210 | 120 | 235 | φ12 | 2 | 43 | M12 | / | / | 60 | 25 | 6 | 15 | 40 | Φ11 |
| 600A | 300 | 260 | 135 | 210 | 120 | 235 | φ12 | 2 | 43 | M12 | / | / | 60 | 25 | 8 | 15 | 40 | Φ11 |
| 1000A | 350 | 280 | 170 | 230 | 145 | 255 | φ12 | 3 | 53 | M12 | / | / | 60 | 40 | 8 | 20 | 50 | Φ14 |
| 1600A | 400 | 300 | 160 | 250 | 170 | 275 | φ12 | 3 | 93 | M12 | 26 | 26 | 60 | 60 | 10 | 17 | 93 | Φ14 |
Insertion Loss
Insertion loss measured in 50Ω/50Ω system, as IEC/CISPR No. 17
A=Differential mode B=Common Mode
