Harmonic Filter
Harmonic Filter
Harmonic suppression, Power quality, EMI suppression, Passive filter
Technical Data:
- Protection level: IP20
- Rated working voltage: AC380V~480V 50Hz
- Insulation level: Overvoltage category III (in accordance with EN61800-5-1)
- Full load efficiency: greater than 98%
Product Description
A harmonic filter is a device designed to suppress harmonic currents and voltages in power systems. By filtering out higher-order harmonics generated by nonlinear loads—such as variable frequency drives (VFDs), UPS systems, and other power electronics—it helps to improve power quality, reduce system losses, extend equipment lifespan, and enhance overall operational efficiency.
Harmonics can lead to overheating of transformers, misoperation of protection devices, increased energy consumption, and even system downtime. The harmonic filter mitigates these risks by maintaining a clean sinusoidal waveform, ensuring that sensitive equipment operates within its design specifications and that power distribution systems remain stable and efficient.
Compared to basic passive filtering solutions, our harmonic filters are engineered with optimized impedance characteristics, high-performance components, and custom tuning to target specific harmonic orders. This results in more effective attenuation, lower total harmonic distortion (THD), and greater reliability—particularly in industrial, commercial, and mission-critical power environments.
Learn more in our latest blog:
“How Harmonic Filters Improve Power Quality in Modern Electrical Systems“
Typical Applications
In industrial automation systems, a harmonic filter helps stabilize power supply to sensitive equipment, reducing disruptions caused by nonlinear loads like VFDs and servo drives.
For solar and wind inverter systems, the harmonic filter ensures smooth grid integration by eliminating high-frequency harmonics generated during DC to AC conversion.
In data centers and server rooms, harmonic filters reduce total harmonic distortion (THD), protecting servers, UPS systems, and switchgear from overheating and performance issues.
Elevator and rail transit systems benefit from harmonic filters by minimizing electromagnetic interference and improving the efficiency and reliability of traction and control units.
For medical devices and laboratories, harmonic filters ensure clean and stable power, safeguarding precise instrumentation from distortion and interference.
In aerospace and defense electronics, the harmonic filter is essential for maintaining electromagnetic compatibility and operational integrity in highly sensitive, mission-critical environments.
Product Features
- Compared with traditional passive filters, ND series products have a smaller volume and stronger harmonic suppression ability
- When connected to the front end of the frequency converter and filtered by a harmonic filter, the total harmonic current is less than 10% of the fundamental current at full load
- The efficiency is greater than 98%, and the passive harmonic filter provides a harmonic solution with high cost-effectiveness and stable reliability
- As an independent option, it is easy to install into existing cabinets
- This series of filters has been carefully matched with branded frequency converters, suitable for various motor control methods, ensuring stable system operation withoutany adverse effects on the power grid
- It can be used directly with previously installed DC reactances, EMC/EMI filters, etc

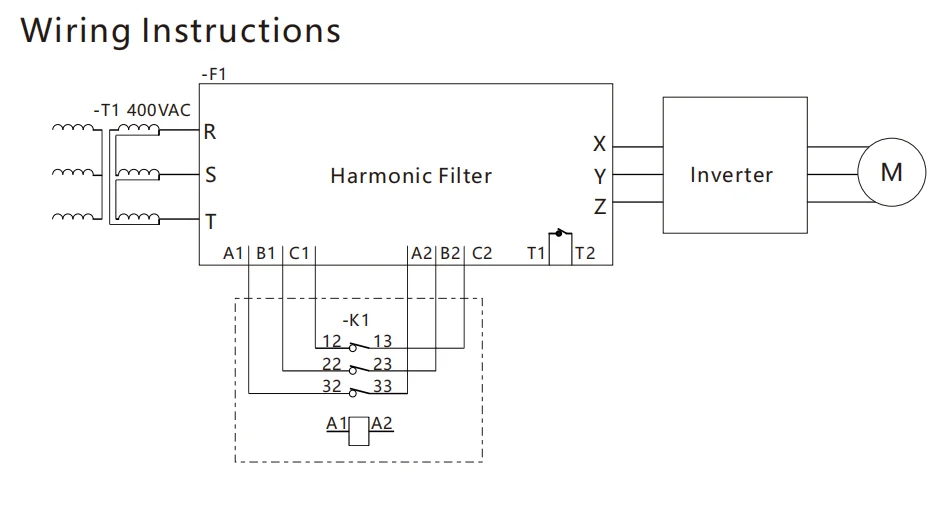

- The entire series comes standard with a filtering branch bypass control function, which can be controlled through an external contactor according to actual usage.
Technical Data
- Protection level: IP20 (all series have protective shells)
- Rated working voltage: AC380V~480V 50Hz
- Insulation level: Overvoltage category III (in accordance with EN61800-5-1)
- Full load efficiency: greater than 98%
- Cooling method: AN
- Harmonic filtering effect: Under full load conditions, the total harmonic current distortion rate THDI at the input end of the -10 series product is ≤ 10% (background voltage THDU<2%, grid short-circuit power to installed load ratio>66)
- Environmental temperature (working): Under full load conditions, -25 ℃ to+50 ℃
- Storage temperature: -25 ℃~65 ℃
- Working altitude: 0-2000 meters above sea level
- Relative humidity: 0-95% without condensation
- No load current: less than 25% of rated current
- Applicable standard: IEEE519; GB/T 14549-1993

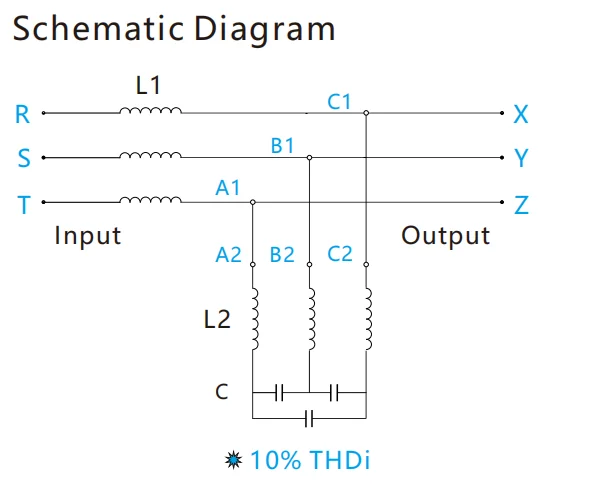

Circuit Diagrams

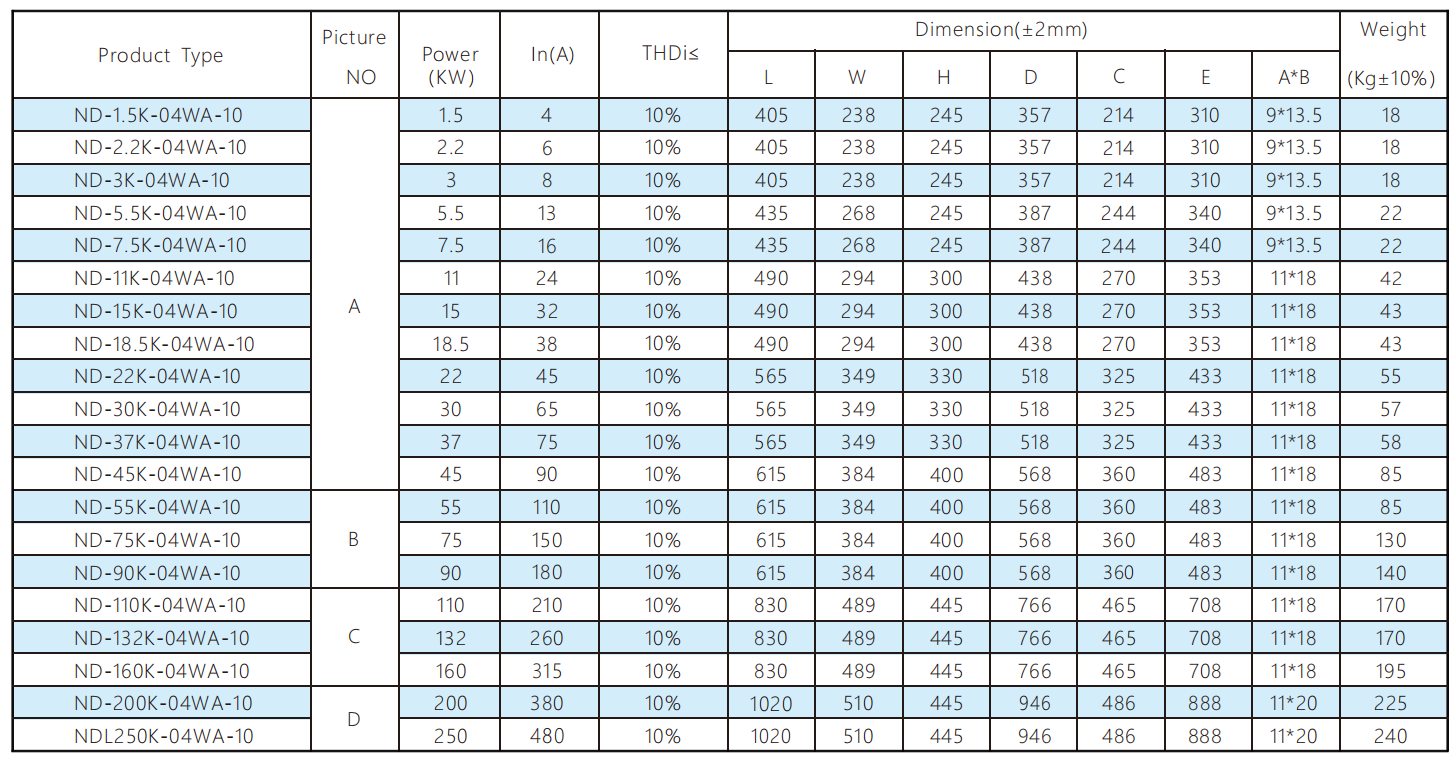

Outline Drawing (mm)
Insertion Loss
Insertion loss data for Harmonic Filter is currently unavailable.
If you have specific performance requirements or would like to learn more, please don’t hesitate to get in touch — we’d be happy to help.
