A Practical Buyer’s Guide for EMC Engineers and Test Laboratories
Introduction
Selecting LED lighting for an EMC anechoic chamber is not the same as choosing lighting for an office or industrial facility. In EMC test environments, lighting is a continuous, always-on subsystem that can directly affect measurement accuracy and test repeatability.
Many EMC projects underestimate the impact of lighting—often discovering EMI issues only after the chamber is commissioned. Choosing the right low-emission LED lighting upfront is critical to ensuring reliable measurements.
This guide provides a practical, engineering-oriented framework for selecting low-emission LED lighting for EMC anechoic chambers, helping engineers and procurement teams avoid common pitfalls and ensure interference-free illumination.
Why Lighting Should Be Treated as an EMC-Critical Component
An EMC chamber is only as quiet as its noisiest auxiliary device. Lighting systems installed inside the chamber can:
-
Mask low-level emissions from the EUT
-
Introduce spurious signals at critical frequencies
-
Reduce test repeatability and confidence
For accredited EMC laboratories and high-power test facilities, these risks are unacceptable.
Step 1: Understand the EMI Risks of Standard LED Lighting
Most commercial LED lights rely on high-frequency switching power supplies optimized for efficiency and cost—not EMI suppression.
Typical issues include:
-
Broadband switching noise from LED drivers
-
Harmonics overlapping EMC test bands
-
Radiation from unshielded cables and plastic housings
-
EMI peaks during startup or dimming
Even when external EMI filters are added, internal radiation paths and poor grounding often remain unresolved.
Step 2: Evaluate Power Architecture and Filtering
The power design of an LED lighting system is the most critical factor in determining its EMI behavior.
When evaluating low-emission LED lights, look for:
-
Low-noise or EMC-optimized driver topologies
-
Reduced high-frequency energy generation
-
Multi-stage filtering for differential-mode and common-mode noise
In high-performance chambers, power electronics are often located outside the chamber or combined with dedicated EMI power-line filters.
Step 3: Inspect Mechanical Shielding and Bonding
Mechanical construction is key in controlling radiated emissions. Low-emission LED lights should have:
-
Conductive metal housings
-
Continuous electrical bonding at seams and joints
-
Reliable grounding interfaces compatible with chamber shielding panels
Fixtures with plastic enclosures or cosmetic metal covers typically provide little real shielding effectiveness.
Step 4: Assess Cable Management and Interfaces
Cables are among the most common sources of unintended radiation. Selection criteria:
-
Shielded and properly terminated power cables
-
Minimized cable length inside the chamber
-
EMC-qualified feedthroughs for chamber wall penetrations
Step 5: Consider Verified EMC Performance
Low-emission performance should be validated under real EMC chamber conditions:
-
Noise floor comparisons with lights on/off
-
Radiated emission scans across relevant frequency ranges
-
Long-duration stability tests
Step 6: A Practical Solution – Why You Can Consider Noordin

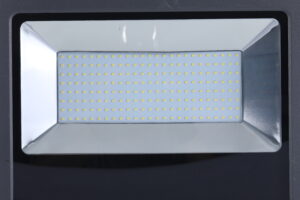

To simplify selection and reduce integration risk, some laboratories turn to solutions designed specifically for EMC environments. Noordin’s low-emission LED lighting is engineered to meet the demands of sensitive chambers:
-
Optimized driver design: Reduces switching noise and minimizes high-frequency emissions.
-
Integrated EMI filtering: Suppresses both differential-mode and common-mode noise directly at the source.
-
Shielded housings: Metal enclosures and bonded seams prevent radiated emissions from entering the chamber.
-
Verified performance: Tested in real EMC chamber conditions to ensure no measurable impact on the noise floor.
These features provide stable illumination without affecting measurement accuracy, making it a reliable choice for high-sensitivity test chambers.
Learn more about Noordin low-emission LED lighting here: https://www.emcnoordin.com/product/low-radiation-led-light-for-emc-applications/
Step 7: Consider System-Level Compatibility
Lighting does not operate in isolation. Its EMC performance depends on integration with other chamber systems:
-
EMI/RFI power-line filters
-
Shielded enclosures and panels
-
Filtered ventilation and monitoring systems
Working with a supplier experienced in EMC infrastructure, like Noordin, reduces integration risk and commissioning time.
Common Selection Mistakes to Avoid
-
Choosing lighting based on brightness or efficiency alone
-
Relying solely on general regulatory EMC compliance data
-
Adding filters after installation instead of designing for EMC upfront
-
Overlooking mechanical bonding and grounding
These mistakes often lead to costly rework or compromised test results.
Conclusion
Selecting low-emission LED lighting for EMC anechoic chambers requires a disciplined, EMC-driven approach. Power architecture, filtering, shielding, cabling, and real-world verification are all critical.
By following a structured selection process—and considering solutions engineered specifically for EMC environments like Noordin—labs and integrators can achieve reliable, interference-free illumination.
