Monitoring systems are essential components in modern EMC anechoic chambers. They allow operators to visually observe equipment under test (EUT), verify test conditions, and ensure safety without entering the chamber during operation.
However, installing standard surveillance cameras inside an EMC chamber can introduce unexpected electromagnetic interference (EMI), potentially affecting measurement accuracy and test repeatability. Selecting an EMC-compatible monitoring system requires a fundamentally different approach than choosing conventional CCTV equipment.
This article outlines the key design considerations for selecting monitoring systems suitable for EMC anechoic chambers, focusing on minimizing interference while maintaining reliable visual performance.
Why Monitoring Systems Matter in EMC Chambers
In EMC testing, even passive auxiliary systems can influence the electromagnetic environment. Monitoring systems are often:
-
Continuously powered during tests
-
Installed close to the EUT or antennas
-
Connected via long cables penetrating the chamber
If not properly designed, they can become unintended sources of conducted or radiated emissions.
An EMC-compatible monitoring system must therefore operate invisibly from an electromagnetic perspective while remaining reliable from an operational standpoint.
Step 1: Understand EMI Risks in Standard Monitoring Systems
Conventional surveillance cameras are not designed for EMC chamber environments. Common EMI risk sources include:
-
High-frequency switching regulators inside cameras
-
Clock signals from image sensors and processors
-
Ethernet PHYs and data transmission circuits
-
Poorly shielded housings and connectors
These noise sources can radiate directly into the chamber or couple through cables, raising the noise floor.
Step 2: Power Supply Design and Noise Control
Power architecture is one of the most critical aspects of EMC-compatible monitoring systems.
Key considerations include:
-
Use of low-noise or linear power designs where feasible
-
Isolation between power input and internal electronics
-
Effective suppression of common-mode and differential-mode noise
In many installations, power supplies are located outside the chamber, with filtered DC power fed through EMC-qualified feedthroughs.
Step 3: Shielding and Mechanical Construction
The mechanical design of a monitoring system directly affects its EMI behavior.
An EMC-compatible camera system should feature:
-
Conductive metal housings with continuous electrical bonding
-
Shielded internal compartments for sensitive electronics
-
Minimized gaps, seams, and apertures
Plastic housings or decorative metal shells typically provide insufficient shielding in sensitive EMC environments.
Step 4: Cable Types and Signal Interfaces
Cables are among the most common EMI leakage paths.
When selecting monitoring systems, ensure:
-
Use of shielded cables with proper termination
-
Avoidance of unfiltered Ethernet or HDMI lines entering the chamber
-
Use of fiber-optic links where possible to eliminate conducted emissions
All chamber wall penetrations should be treated as EMC-critical interfaces.
Step 5: Camera Placement and Field of View
Monitoring system placement affects both usability and EMC performance.
Best practices include:
-
Installing cameras away from antennas and measurement zones
-
Avoiding direct alignment with sensitive test paths
-
Minimizing cable routing near absorbers or antenna supports
Camera placement should be considered early in chamber design to avoid compromises later.
Step 6: EMC Verification and Validation
Monitoring systems should be verified under real test conditions.
Validation steps typically include:
-
Noise floor comparison with cameras powered on and off
-
Radiated emission scans with monitoring active
-
Long-duration stability testing
Only systems that demonstrate no measurable impact on EMC performance should be approved for use.
Conclusion
Selecting an EMC-compatible monitoring system for anechoic chambers requires careful attention to power design, shielding, cabling, and system integration. Standard surveillance solutions often fail to meet these requirements.
By treating monitoring systems as EMC-critical infrastructure rather than auxiliary accessories, laboratories can ensure reliable visual surveillance without compromising test integrity.
Learn more in our latest blog:

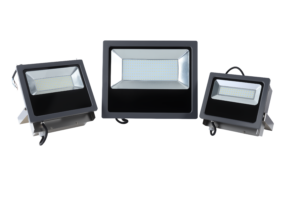

How to Select Low-Emission LED Lighting for EMC Anechoic Chambers
