The Engineering Challenge Behind Honeycomb Ventilation
EMI honeycomb ventilation panels are widely used in shielded enclosures where electronic equipment needs cooling without creating an uncontrolled electromagnetic opening.
Although the honeycomb structure looks simple, its performance depends on several interacting design parameters.
Choosing a panel based only on its external dimensions or nominal shielding effectiveness can lead to unexpected results. A panel may meet the shielding target but restrict airflow, or it may provide sufficient ventilation while failing to meet the required attenuation.
For this reason, EMI honeycomb ventilation panels should be selected by evaluating shielding, airflow, mechanical integration, and operating conditions together.
1. Understanding the Waveguide-Below-Cutoff Principle
A honeycomb core consists of many small conductive channels.
Each channel acts as a short waveguide. When electromagnetic energy travels through a channel below its cutoff frequency, the field decays along the channel instead of propagating efficiently through it.
This is known as the waveguide-below-cutoff principle.
The effectiveness of this arrangement depends on the geometry of the cells and the frequency of interest.
In general, smaller apertures and greater cell depth can improve attenuation under comparable conditions. However, actual performance also depends on cell geometry, material conductivity, manufacturing quality, and the electrical connection between the honeycomb and its frame.
It is therefore important to use tested performance data for the selected panel rather than relying on a simplified calculation alone.
2. Cell Size: A Key Design Variable
The cell aperture affects both electromagnetic performance and airflow.
Smaller cells generally provide a higher cutoff frequency and can improve attenuation at higher frequencies. However, they may also reduce the available open area and increase airflow resistance.
Larger cells can allow air to pass more freely, but may provide less attenuation under some frequency conditions.
When selecting cell size, consider:
- Highest frequency that must be shielded
- Required attenuation across the frequency range
- Available ventilation area
- Fan operating conditions
- Dust and contamination risks
- Cleaning and maintenance requirements
The smallest available cell is not always the most suitable choice.
For a well-balanced design, the cell aperture must be selected according to the shielding requirement and the required airflow.
3. Panel Thickness and Cell Depth
Panel thickness determines how far electromagnetic energy travels through the honeycomb channels.
For otherwise comparable designs, increasing the channel depth can improve attenuation. However, deeper channels can also increase airflow resistance.
The relationship is particularly important when a fan must move a specific volume of air through a limited wall opening.
Consider two panels with the same external dimensions and similar cell apertures.
A thinner panel may offer lower airflow resistance, while a thicker panel may provide greater attenuation. Which one is preferable depends on the application’s priority and available fan pressure.
The design should therefore establish the required shielding level first, then verify whether the selected panel can meet the airflow requirement.
4. Material and Surface Treatment
Material selection affects conductivity, weight, corrosion resistance, and manufacturing options.
Aluminum is widely used for honeycomb ventilation panels because it offers a useful combination of electrical conductivity and low weight.
Surface treatment may be required to improve corrosion resistance or support electrical contact with the surrounding structure.
When specifying a finish, consider:
- Base material
- Conductivity at contact surfaces
- Corrosion protection
- Environmental conditions
- Compatibility with the frame
- Long-term bonding reliability
A coating that provides good corrosion resistance may not necessarily provide the best electrical contact at every interface. The intended bonding surfaces and installation method should be defined clearly.
5. Shielding Effectiveness Is a System-Level Requirement
A panel’s shielding effectiveness is normally expressed in decibels (dB). However, a single dB value is incomplete without the associated frequency range and test conditions.
For example, a specification stating “100 dB shielding” does not by itself explain the performance at every frequency or field condition.
When reviewing a datasheet, confirm:
- Frequency range
- Test method
- Field type and test configuration
- Panel dimensions
- Core geometry
- Surface finish
- Frame and gasket configuration
- Whether the data represents the core or the complete assembly
The distinction between a bare honeycomb core and an installed panel is important.
In practice, leakage around the perimeter or through an imperfect bonding interface can limit the shielding of the complete assembly, even when the core itself provides strong attenuation.
6. Airflow and Pressure Drop
A ventilation panel must allow sufficient air to pass through the enclosure.
Airflow performance depends on more than the panel’s external dimensions. Cell size, panel thickness, open area, filters, and the surrounding duct arrangement all affect pressure drop.
To select a panel correctly, establish:
Required airflow: Determine the volume of air needed for cooling.
Available pressure: Identify the pressure that the fan can provide at the intended operating point.
Panel resistance: Obtain pressure-drop data for the proposed panel at the expected airflow.
Complete system resistance: Include ducts, filters, grilles, bends, and other restrictions.
The fan’s free-air airflow rating should not be treated as the actual airflow through the installed system.
If a ventilation panel is added to an existing design, the fan operating point may change. The complete system should be checked to ensure adequate cooling remains available.
7. Designing for Cooling Fans
For a fan-cooled shielded enclosure, the ventilation panel should be matched to the fan and the thermal load.
A useful design process is:
- Estimate the heat generated by the equipment.
- Determine the required cooling airflow.
- Select a fan capable of delivering the airflow at the expected system resistance.
- Identify the available panel opening.
- Compare candidate panels using shielding and pressure-drop data.
- Verify the airflow and shielding requirements after installation.
For equipment with high heat dissipation, a larger ventilation area may be needed. If the enclosure opening is limited, engineers may need to compare different cell geometries, panel depths, or multiple ventilation locations.
The aim is to achieve the required thermal performance without compromising the shielding design.
8. Frame Design and Conductive Bonding
The frame provides mechanical support and a means of mounting the honeycomb core.
It also forms part of the electromagnetic interface between the ventilation panel and the enclosure.
Poor contact at the perimeter can create a leakage path. This is why frame dimensions, mounting pressure, fastener spacing, surface finish, and gasket selection should be considered during design.
Depending on the installation, a conductive gasket may be needed between the panel and the enclosure.
Before installation, confirm:
- The frame fits the prepared opening.
- The mounting surface is suitable.
- The bonding interface is continuous.
- Fasteners provide the required contact pressure.
- Surface treatments are compatible.
- The assembly can be inspected and maintained.
The panel should not be considered electrically integrated simply because it is mechanically attached.
9. When Should a Conductive Gasket Be Used?
A conductive gasket can help maintain electrical continuity between the panel frame and the shielded enclosure.
Whether it is needed depends on the mechanical design and the specified shielding requirements.
The choice should account for:
- Contact surfaces
- Compression requirements
- Environmental exposure
- Corrosion compatibility
- Repeated opening or removal
- Long-term maintenance
The gasket should be suitable for the actual mating surfaces and installed according to the specified compression range.
A gasket cannot compensate for every mechanical or bonding problem. The frame, enclosure, fasteners, and contact surfaces must still be designed correctly.
10. Installation Errors to Avoid
Several installation mistakes can undermine a well-selected panel.
Do not leave gaps around the frame. Uncontrolled gaps may compromise shielding continuity.
Do not assume mechanical contact guarantees electrical bonding. Paint, oxidation, and unsuitable surface finishes can affect the interface.
Do not ignore fan pressure. A panel with excessive pressure drop may reduce actual airflow.
Do not use a single shielding number without checking its frequency range. The application may require different performance across different frequencies.
Do not select panel thickness independently of airflow. A deeper honeycomb structure may change the operating point of the ventilation system.
Do not overlook maintenance. Dust and contamination can accumulate and reduce effective airflow over time.
Addressing these details during the design stage is generally easier than modifying the system after commissioning.
11. A Practical Design Checklist
Before approving an EMI honeycomb ventilation panel, confirm the following.
Electromagnetic requirements
- Required shielding effectiveness
- Frequency range
- Relevant test conditions
- Frame and enclosure bonding method
Airflow requirements
- Required airflow
- Fan performance at operating pressure
- Panel pressure drop
- Available ventilation area
- Cooling requirements of the equipment
Mechanical requirements
- Panel dimensions
- Core thickness
- Mounting method
- Frame material
- Surface treatment
- Gasket and fastener requirements
Service requirements
- Environmental conditions
- Corrosion protection
- Cleaning access
- Replacement and maintenance procedures
A complete review helps ensure the panel performs as part of the real enclosure rather than as an isolated component.
Conclusion
Optimizing EMI honeycomb ventilation panels requires balancing electromagnetic attenuation with airflow and mechanical integration.
Cell size, panel thickness, material, surface finish, frame bonding, and fan performance all contribute to the final result.
Rather than selecting a panel based on a single specification, engineers should evaluate the complete assembly against the required frequency range, airflow, pressure drop, and installation conditions.
This approach helps create a ventilation system that supports effective cooling while preserving the shielding requirements of EMC chambers and electronic enclosures.

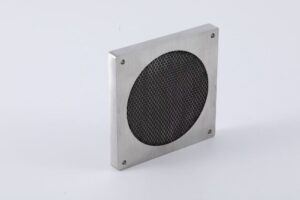

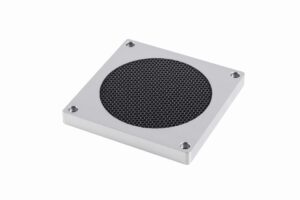

Explore Noordin EMI Ventilation Panels:
