Electromagnetic interference (EMI) poses a critical challenge across industries—from aerospace and automotive to medical and telecommunications. As devices become smaller, faster, and more interconnected, the demand for reliable EMI shielding has surged. Among various shielding components, fingerstock gaskets—also known as EMI fingerstrips—stand out as one of the most effective and versatile solutions. This article explores how high-quality fingerstock designs contribute to EMI shielding efficiency, offering insight into materials, mechanical design, compliance standards, and best practices for application.
What Are EMI Fingerstock Gaskets?
EMI fingerstock gaskets are metallic spring contacts used to provide electromagnetic shielding and grounding in enclosures, doors, seams, and panel interfaces. These components are typically mounted along conductive surfaces to maintain electrical continuity and to shield against radiated and conducted EMI. Their spring-like behavior allows them to compress and maintain contact across a range of mechanical tolerances, making them ideal for dynamic or removable interfaces.
Key Advantages of Fingerstock Solutions
1. High Electrical Conductivity
High-quality fingerstock gaskets are typically made from beryllium copper or stainless steel, which offer excellent electrical conductivity. This ensures low-resistance grounding paths and minimizes voltage differences that could result in unwanted emissions.
2. Mechanical Flexibility and Durability
The spring structure of fingerstock gaskets accommodates repeated insertions, thermal expansion, and mechanical vibrations without degradation. Their high fatigue resistance makes them ideal for applications requiring long-term reliability.
3. Wide Frequency Range Protection
Fingerstock solutions provide effective EMI shielding across a broad frequency spectrum—from kilohertz (kHz) to gigahertz (GHz)—making them suitable for both low- and high-frequency applications, including radar, RF communication, and digital circuitry.
4. Customization Options
These gaskets are available in numerous cross-sectional profiles, plating options (such as tin, nickel, or gold), and mounting configurations (clip-on, adhesive, weld-on). This allows for optimal customization based on specific application requirements, including shielding effectiveness, environmental exposure, and cost.
Materials Matter: Choosing the Right Alloy
Material selection plays a pivotal role in shielding performance and long-term reliability. The most common materials used for EMI fingerstock gaskets include:
- Beryllium Copper (BeCu): Known for its superior electrical conductivity, corrosion resistance, and fatigue life. It is often plated with tin, gold, or silver for enhanced conductivity and environmental protection.
- Stainless Steel: Offers high mechanical strength and corrosion resistance, although it is less conductive than BeCu.
- Phosphor Bronze: A cost-effective alternative offering good corrosion resistance and moderate conductivity.
The choice depends on the application’s electrical, mechanical, and environmental demands.
Plating Options and Environmental Considerations
Proper surface plating can significantly enhance both electrical and corrosion resistance. Here are common plating choices:
- Tin Plating: Provides good solderability and corrosion resistance in less aggressive environments.
- Nickel Plating: Offers superior hardness and wear resistance.
- Gold or Silver Plating: Used in critical applications requiring excellent conductivity and low contact resistance.
For outdoor or harsh industrial settings, corrosion-resistant coatings and conformal environmental seals may be added to maintain performance over time.
Compliance with Industry Standards
High-quality fingerstock gaskets must comply with EMI shielding standards such as:
- MIL-STD-285 and IEEE-299 for shielding effectiveness
- RoHS compliance for hazardous substances
- UL 94 ratings for flammability
These certifications ensure that the gaskets meet the stringent performance and safety criteria necessary for mission-critical environments.
Application Scenarios
1. Military and Aerospace
Fingerstock gaskets are widely used in avionics enclosures, radar modules, and satellite systems. Their lightweight yet robust nature makes them suitable for aerospace-grade applications.
2. Medical Equipment
In environments where electronic devices coexist with life-support systems, minimizing EMI is essential. Fingerstock gaskets provide consistent shielding without introducing contaminants or outgassing materials.
3. Telecommunications
With the advent of 5G, base stations and network equipment must be heavily shielded. Fingerstock gaskets offer the high-frequency shielding required to maintain signal integrity.
4. Automotive Electronics
As electric vehicles (EVs) and advanced driver-assistance systems (ADAS) proliferate, EMI shielding in control units and power electronics becomes increasingly crucial. Fingerstock gaskets provide reliable grounding in such dynamic environments.
Installation and Design Considerations
For optimal performance, consider the following during the design and installation phase:
- Ensure uniform compression and contact pressure.
- Avoid sharp bends that could weaken the spring structure.
- Use appropriate adhesives or mechanical fasteners to maintain consistent placement.
- Design for ease of maintenance and replacement.
Computer-aided simulation tools can help model electromagnetic fields and evaluate gasket placement for maximum shielding efficiency.
Future Outlook: Fingerstock Innovation
As EMI threats evolve with the proliferation of high-frequency and high-speed digital systems, fingerstock solutions are also advancing. Emerging developments include:
- Miniaturized Profiles: Suitable for compact electronic assemblies.
- Hybrid Materials: Combining conductive polymers and metals for dual shielding and environmental protection.
- Smart Gaskets: Embedded with sensors for real-time monitoring of contact integrity.
Conclusion
High-quality fingerstock gaskets are essential tools in the ongoing battle against electromagnetic interference. Their unique combination of mechanical resilience, high conductivity, and design versatility makes them indispensable for industries that depend on precision electronics. Selecting the right material, profile, and plating—along with careful design and installation—can maximize shielding efficiency and ensure long-term performance.

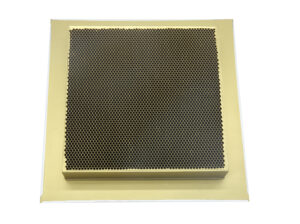

For more information, read our next article: Enhancing EMI Shielding and Ventilation with Honeycomb Waveguide Windows.
