What Is an EMI Shielding Gasket?

EMI shielding gaskets are essential components in modern electronics, providing critical protection against electromagnetic interference that can disrupt sensitive systems. From aerospace and medical devices to consumer electronics and industrial automation, these gaskets ensure reliable performance and compliance with regulatory standards. This guide explores what EMI shielding gaskets are, how they work, the materials used in their construction, and key considerations for installation, maintenance, and selection. By understanding their role and future trends in EMI shielding technology, engineers and decision-makers can make informed choices to safeguard their systems against evolving electromagnetic threats.

What Is an EMI Shielding Gasket?

An EMI shielding gasket is a specialized component used to prevent electromagnetic interference (EMI) from entering or escaping electronic devices. These gaskets are typically installed at the seams, joints, or openings of enclosures to ensure a continuous conductive path that blocks unwanted electromagnetic signals. By creating a reliable seal, EMI shielding gaskets help maintain electromagnetic compatibility (EMC) and protect sensitive electronics from external interference or internal signal leakage.

EMI shielding gaskets are widely used in industries such as telecommunications, aerospace, automotive, medical devices, and military applications. They are particularly important in environments where electromagnetic noise can disrupt the performance of critical systems or where regulatory compliance requires strict EMI control.

How Does an EMI Shielding Gasket Work?

To understand how an EMI shielding gasket functions, it’s essential to explore its role in blocking electromagnetic waves and ensuring a conductive seal. Below is an explanation of its working principles:

1. Conductive Path Creation:
   • EMI shielding gaskets are designed to fill gaps between metal surfaces or enclosure components, ensuring a continuous conductive connection. This prevents electromagnetic waves from leaking through seams or openings.
2. Reflection and Absorption:
   • The gasket material reflects incoming electromagnetic waves back toward their source, preventing them from penetrating the enclosure. Additionally, some materials absorb the energy of the waves, converting it into heat to further reduce interference.
3. Compression and Sealing:
   • When compressed during installation, the gasket conforms to the surface irregularities of the enclosure, creating a tight seal. This compression ensures optimal electrical contact and minimizes the risk of signal leakage.
4. Frequency Attenuation:
   • EMI shielding gaskets are engineered to attenuate specific frequency ranges, depending on the application. For example, high-frequency signals may require gaskets with enhanced conductivity, while low-frequency signals may need materials with higher magnetic permeability.
5. Environmental Protection:
   • In addition to EMI shielding, many gaskets also provide protection against environmental factors such as dust, moisture, and vibration. This dual functionality makes them ideal for rugged or outdoor applications.

By combining these mechanisms, EMI shielding gaskets effectively block electromagnetic interference, ensuring the reliable operation of electronic systems in even the most challenging environments.

Key Materials in EMI Shielding Gaskets

The performance of an EMI shielding gasket depends significantly on the materials used in its construction. Each material offers unique properties that make it suitable for specific applications. Below are the key materials commonly used in EMI shielding gaskets:

1. Conductive Elastomers:
   • Overview: A combination of rubber (e.g., silicone, fluorosilicone) and conductive particles (e.g., silver, nickel, or aluminum).
   • Properties: Flexible, durable, and capable of providing both EMI shielding and environmental sealing.
   • Applications: Ideal for aerospace, military, and industrial applications where flexibility and resistance to extreme conditions are required.
2. Metal Foams and Meshes:
   • Overview: Made from metals like aluminum, copper, or stainless steel, these materials are lightweight and highly conductive.
   • Properties: Provide excellent EMI shielding while maintaining structural integrity.
   • Applications: Commonly used in telecommunications equipment and data centers for high-performance shielding.
3. Fabric-Over-Foam (FOF):
   • Overview: Consists of a conductive fabric wrapped around a soft foam core.
   • Properties: Lightweight, compressible, and cost-effective. Offers good EMI shielding with minimal compression force.
   • Applications: Suitable for consumer electronics, automotive systems, and portable devices.

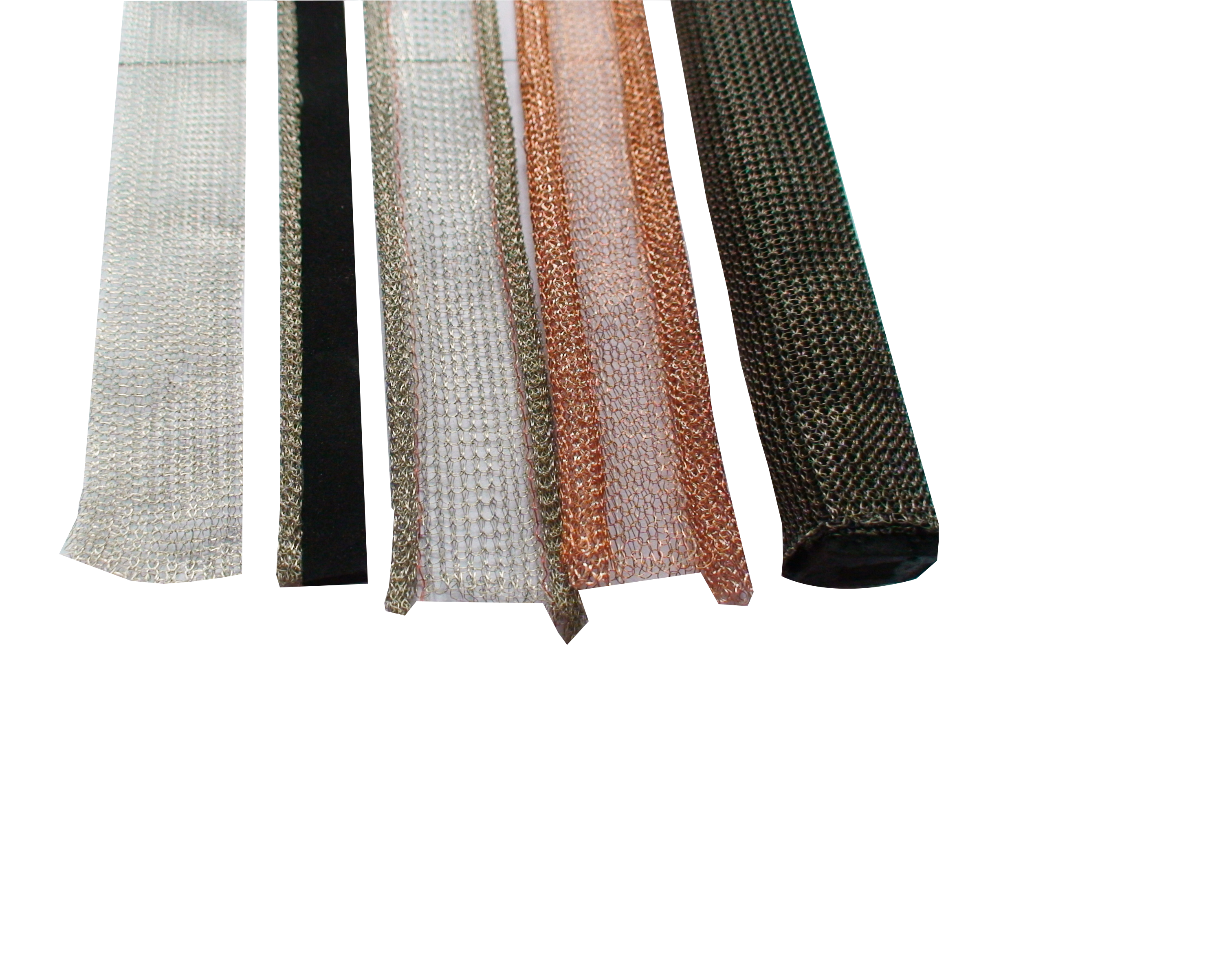

4. Wire Mesh Gaskets:
   • Overview: Made from braided metal wires, often combined with elastomeric cores.
   • Properties: Highly conductive and capable of handling high compression forces.
   • Applications: Used in military and industrial applications where robust shielding is required.
5. Conductive Adhesives and Tapes:
   • Overview: Adhesives or tapes infused with conductive particles, used for bonding or sealing small gaps.
   • Properties: Easy to apply and provide localized EMI shielding.
   • Applications: Ideal for repairing or enhancing existing enclosures without replacing entire gaskets.
6. Magnetic Alloys:
   • Overview: Materials like mu-metal or permalloy, which have high magnetic permeability.
   • Properties: Excellent for shielding low-frequency magnetic fields.
   • Applications: Used in medical devices, power transformers, and other systems sensitive to magnetic interference.

By selecting the appropriate material based on the application’s requirements, engineers can ensure that EMI shielding gaskets deliver optimal performance and reliability.

Where Are EMI Shielding Gaskets Critical?

EMI shielding gaskets play a vital role in environments where electromagnetic interference (EMI) can disrupt sensitive electronic systems or compromise regulatory compliance. Below are some of the most critical applications where these gaskets are indispensable:

1. Telecommunications Equipment:
   • Overview: Base stations, antennas, and data transmission systems require EMI shielding gaskets to prevent signal leakage and external interference.
   • Importance: Ensures reliable communication and minimizes noise that could degrade network performance.
2. Aerospace and Defense Systems:
   • Overview: Aircraft, satellites, radar systems, and military equipment rely on EMI shielding gaskets to protect avionics, navigation systems, and communication devices.
   • Importance: Maintains operational integrity in high-stakes environments where failure is not an option.
3. Medical Devices:
   • Overview: MRI machines, patient monitors, and diagnostic equipment use EMI shielding gaskets to block interference from external sources.
   • Importance: Prevents inaccurate readings or malfunctions that could endanger patient safety.
4. Automotive Electronics:
   • Overview: Modern vehicles with advanced driver-assistance systems (ADAS), infotainment systems, and engine control units (ECUs) depend on EMI shielding gaskets.
   • Importance: Protects against interference caused by wireless signals, power lines, or other vehicle components.
5. Data Centers and Servers:
   • Overview: Data centers use EMI shielding gaskets to safeguard servers, storage systems, and networking equipment from electromagnetic noise.
   • Importance: Ensures uninterrupted operation and prevents data loss or corruption.
6. Industrial Automation:
   • Overview: Manufacturing plants and industrial facilities use EMI shielding gaskets to protect programmable logic controllers (PLCs), robotics, and sensors.
   • Importance: Reduces downtime and enhances system reliability in harsh electromagnetic environments.
7. Consumer Electronics:
   • Overview: Smartphones, laptops, and gaming consoles incorporate EMI shielding gaskets to minimize interference between internal components.
   • Importance: Improves device performance and ensures compliance with regulatory standards.

By addressing the unique challenges of each application, EMI shielding gaskets ensure the resilience and reliability of modern technological systems.

EMI Shielding Gasket vs. Conductive Tape

While both EMI shielding gaskets and conductive tapes are used to mitigate electromagnetic interference, they serve different purposes and are suited to distinct applications. Below is a comparison of these two solutions:

1. Design and Form Factor:
   • EMI Shielding Gasket: Typically designed as a compressible seal that fits into seams, joints, or openings. It provides a robust and reusable solution for long-term applications.
   • Conductive Tape: A thin, flexible adhesive material used for quick fixes or localized shielding. It is more suitable for temporary or small-scale applications.
2. Performance:
   • EMI Shielding Gasket: Offers superior EMI attenuation due to its ability to create a continuous conductive path under compression. It is ideal for high-performance environments.
   • Conductive Tape: Provides moderate shielding effectiveness but may degrade over time or under harsh conditions.
3. Installation:
   • EMI Shielding Gasket: Requires precise installation and often involves mechanical fastening or adhesives. It is better suited for permanent or semi-permanent applications.
   • Conductive Tape: Easy to apply and remove, making it ideal for rapid prototyping, repairs, or short-term fixes.
4. Durability:
   • EMI Shielding Gasket: Highly durable and resistant to environmental factors such as moisture, temperature fluctuations, and vibration.
   • Conductive Tape: Less durable and prone to wear, especially in demanding environments.
5. Cost:
   • EMI Shielding Gasket: Typically more expensive due to its specialized design and materials. However, it offers long-term value for critical applications.
   • Conductive Tape: More cost-effective for small-scale or temporary solutions but may incur higher costs over time due to replacement needs.
6. Applications:
   • EMI Shielding Gasket: Used in aerospace, defense, medical devices, and industrial automation where reliability and performance are paramount.
   • Conductive Tape: Commonly used in consumer electronics, prototyping, and minor repairs where flexibility and ease of use are prioritized.

By understanding these differences, engineers can choose the right solution based on the specific requirements of their application.

EMI Shielding Gasket Industry Standards

To ensure the effectiveness and reliability of EMI shielding gaskets, they must comply with industry standards that define their performance, testing protocols, and safety requirements. Below are some of the key standards relevant to EMI shielding gaskets:

1. MIL-DTL-83528:
   • Overview: A U.S. military standard specifying the requirements for electrically conductive elastomeric gaskets.
   • Key Features:
     • Defines material properties, electrical conductivity, and environmental resistance.
     • Ensures compatibility with military-grade applications.
   • Applications: Widely used in defense and aerospace industries.
2. IEC 61000 Series:
   • Overview: A set of international standards addressing electromagnetic compatibility (EMC), including immunity to electromagnetic disturbances.
   • Key Features:
     • Specifies test methods and performance criteria for EMI shielding components.
     • Covers both conducted and radiated interference.
   • Applications: Applicable to industrial, commercial, and consumer electronics.
3. ASTM D4935:
   • Overview: A standard developed by ASTM International for measuring the electromagnetic shielding effectiveness of planar materials.
   • Key Features:
     • Provides a standardized method for evaluating the performance of gasket materials.
     • Helps manufacturers ensure consistent quality and performance.
   • Applications: Used in material development and product validation.
4. FCC Part 15:
   • Overview: A Federal Communications Commission (FCC) regulation governing unintentional electromagnetic emissions from electronic devices.
   • Key Features:
     • Sets limits on radiated and conducted emissions to prevent interference with other devices.
     • Relevant for ensuring that EMI shielding gaskets meet regulatory requirements.
   • Applications: Applies to consumer electronics and communication systems in the United States.
5. ISO 11452:
   • Overview: An international standard for testing the immunity of automotive components to electromagnetic interference.
   • Key Features:
     • Specifies test methods for evaluating the performance of shielding solutions in vehicles.
     • Ensures compliance with automotive industry requirements.
   • Applications: Used in the design and testing of automotive electronics.

By adhering to these industry standards, manufacturers ensure that EMI shielding gaskets deliver exceptional performance and reliability in even the most demanding environments.

How to Install and Maintain EMI Gaskets

Proper installation and maintenance of EMI shielding gaskets are crucial for ensuring their effectiveness and longevity. Below is a step-by-step guide to help engineers and technicians achieve optimal performance:

1. Installation Steps:
   • Surface Preparation: Clean the surfaces where the gasket will be installed to remove dirt, grease, or oxidation. This ensures optimal electrical contact and adhesion.
   • Alignment and Placement: Carefully align the gasket with the seams, joints, or openings it is designed to seal. Ensure proper positioning to avoid gaps or misalignment.
   • Compression Control: Apply uniform compression during installation to ensure the gasket conforms to surface irregularities without over-compressing, which can reduce its effectiveness.
   • Fastening Methods: Use appropriate fasteners (e.g., screws, clips, or adhesives) to secure the gasket in place. Avoid excessive force that could damage the material.
2. Maintenance Tips:
   • Regular Inspections: Periodically check the gasket for signs of wear, corrosion, or deformation. Replace damaged gaskets promptly to prevent EMI leakage.
   • Cleaning: Use non-abrasive cleaning agents to remove dust, dirt, or contaminants that may accumulate on the gasket or surrounding surfaces.
   • Environmental Monitoring: Ensure the gasket is not exposed to conditions beyond its specified tolerances (e.g., extreme temperatures, chemicals, or moisture).
   • Reapplication of Adhesives: If the gasket uses adhesive backing, reapply adhesive as needed to maintain a secure fit.

By following these steps, users can maximize the lifespan and performance of EMI shielding gaskets, ensuring reliable electromagnetic protection.

How to Choose the Right EMI Shielding Gasket

Selecting the right EMI shielding gasket requires careful consideration of several factors to match the application’s specific needs. Below are the key considerations for choosing the ideal gasket:

1. Application Requirements:
   • Determine the type of equipment you need to protect and the level of EMI shielding required. For example, high-frequency applications may require materials with enhanced conductivity, while low-frequency magnetic fields may need materials with high permeability.
2. Material Selection:
   • Evaluate the properties of different materials (e.g., conductive elastomers, metal foams, or fabric-over-foam) to find one that meets your application’s environmental and performance requirements.
3. Frequency Range:
   • Choose a gasket that effectively attenuates the frequency range of the electromagnetic interference you need to block. Different materials and designs are optimized for specific frequency bands.
4. Environmental Conditions:
   • Consider the operating environment, including temperature, humidity, exposure to chemicals, and mechanical stress. Select gaskets with appropriate environmental ratings to ensure durability and reliability.
5. Form Factor and Size:
   • Ensure the gasket’s size and shape are compatible with your installation space. Customizable options may be available for unique or complex designs.
6. Cost vs. Performance:
   • Balance upfront costs with long-term value. While premium materials may have a higher initial price, their superior performance and durability often justify the investment, especially for critical applications.
7. Certifications and Standards:
   • Verify that the gasket complies with relevant industry standards, such as MIL-DTL-83528, IEC 61000, or ASTM D4935, depending on your application requirements. Compliance ensures the gasket meets rigorous testing and performance criteria.

By carefully evaluating these factors, you can select an EMI shielding gasket that provides optimal protection, reliability, and compatibility for your specific application.

Future Trends in EMI Shielding Technology

As technology evolves and electromagnetic environments become increasingly complex, the field of EMI shielding is undergoing significant innovation. Below are some key trends shaping the future of EMI shielding technology:

1. Advanced Materials:
   • The development of nanomaterials, graphene, and metamaterials is revolutionizing EMI shielding by offering superior conductivity, lightweight properties, and enhanced attenuation capabilities. These materials enable thinner, more efficient shielding solutions.
2. Integration with Smart Systems:
   • Future EMI shielding solutions may incorporate smart features, such as self-monitoring and adaptive shielding. These features will enable real-time adjustments to changing electromagnetic conditions, enhancing system resilience.
3. Miniaturization and Flexibility:
   • Advances in manufacturing techniques are driving the creation of smaller, more flexible shielding components. These innovations are ideal for use in compact devices, wearable electronics, and IoT applications.
4. Sustainability and Eco-Friendly Designs:
   • Manufacturers are increasingly focusing on sustainable practices, such as using recyclable materials and reducing energy consumption during production. This trend will extend to EMI shielding products, making them more environmentally friendly.
5. Increased Focus on Cybersecurity:
   • As the line between physical and cyber threats blurs, EMI shielding will play a critical role in protecting interconnected systems from both electromagnetic and cyber attacks. Integrated solutions addressing both threats are expected to emerge.
6. Expansion into Emerging Industries:
   • As industries like autonomous vehicles, renewable energy, and 5G networks grow, the demand for advanced EMI shielding solutions will increase. These sectors require robust protection against high-frequency interference and signal degradation.
7. Global Standardization Efforts:
   • Efforts to standardize EMI shielding measures across industries and countries will continue to grow. This will ensure consistency and interoperability in the design and implementation of shielding solutions, particularly for global infrastructure projects.

By staying ahead of these trends, manufacturers and users of EMI shielding gaskets can ensure they are prepared to meet the challenges of tomorrow’s electromagnetic landscape. These advancements will not only enhance the effectiveness of EMI shielding but also expand its applications across a broader range of industries.
