As electronic systems become more compact and power-dense, thermal management has become a critical design challenge. At the same time, many applications—such as EMC test environments, communication systems, and industrial electronics—require EMI Shielded Vent Panels.
This creates a classic engineering contradiction:
how to maintain efficient airflow without degrading EMI shielding.
EMI shielded vent panels are designed to resolve this conflict, but selecting the right solution requires careful technical evaluation rather than simple mechanical sizing.
Why Ventilation Is an EMC-Critical Design Element
Any opening in a shielded enclosure represents a potential electromagnetic leakage path. Standard ventilation grilles, perforated plates, or fan openings often behave as slot antennas, significantly reducing enclosure shielding effectiveness—especially at higher frequencies.
In EMC-sensitive systems, ventilation must therefore be treated as a functional shielding component, not just a thermal accessory.
Key Technical Principles of EMI Shielded Vent Panels

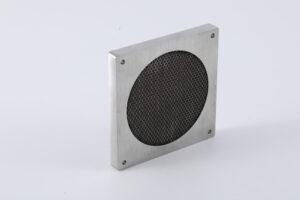

Most EMI shielded vent panels use waveguide-below-cutoff or honeycomb structures that allow airflow while attenuating electromagnetic energy.
Their effectiveness depends on:
-
Cell size and length
-
Electrical conductivity of the material
-
Mechanical bonding to the enclosure
When properly designed, these structures provide high attenuation across a wide frequency range without fully blocking airflow.
Critical Selection Criteria
1. Shielding Effectiveness (SE)
Shielding effectiveness is typically specified in dB across a frequency range. High-performance vent panels commonly offer 70–120 dB, depending on frequency and construction.
Always confirm:
-
The applicable test standard
-
The frequency range of interest
-
Whether values represent panel-level or system-level performance
2. Airflow and Pressure Drop
Higher shielding generally increases airflow resistance. Engineers must balance:
-
Open area ratio
-
Pressure drop at operating airflow
-
Thermal load of the enclosure
Ignoring airflow performance can lead to overheating, even if EMC targets are met.
3. Materials and Surface Finishes
Aluminum is widely used due to its favorable balance of conductivity, weight, and corrosion resistance.
Common finishes include:
-
Clear chromate
-
Tin plating
-
Other conductive coatings depending on environment
Surface treatment directly impacts long-term electrical performance.
4. Installation and Sealing
Even the best vent panel can fail if improperly installed.
Effective integration requires:
-
Good surface flatness
-
Solid electrical bonding
-
EMI shielding gaskets around the perimeter
Without proper sealing, EMI can bypass the vent structure entirely.
Typical Applications
EMI shielded vent panels are commonly used in:
-
Electronic enclosures
-
Equipment racks and cabinets
-
Shielded housings
-
Industrial and communication equipment
Industry Discussion & Practical Insights
Many EMC engineers actively discuss vent panel selection challenges, real-world failures, and test results within professional communities.
📌 Related technical discussions and application insights are often shared on LinkedIn:
https://www.linkedin.com/posts/noordin_emiventpanel-shieldedvent-emcprotection-activity-7401568338839269377-v95a?utm_source=share&utm_medium=member_desktop&rcm=ACoAADG6Tj0BPeQeluyvA_t3rP9wCCu_uVp3Hss
Conclusion
Selecting EMI shielded vent panels requires a system-level perspective that balances airflow, shielding effectiveness, materials, and installation quality. Treating ventilation as an EMC-critical element helps ensure long-term stability, compliance, and performance.
