In high-sensitivity electronic environments, ventilation openings are among the most common causes of shielding degradation. While necessary for thermal management, poorly designed vents can compromise even the most robust enclosures.

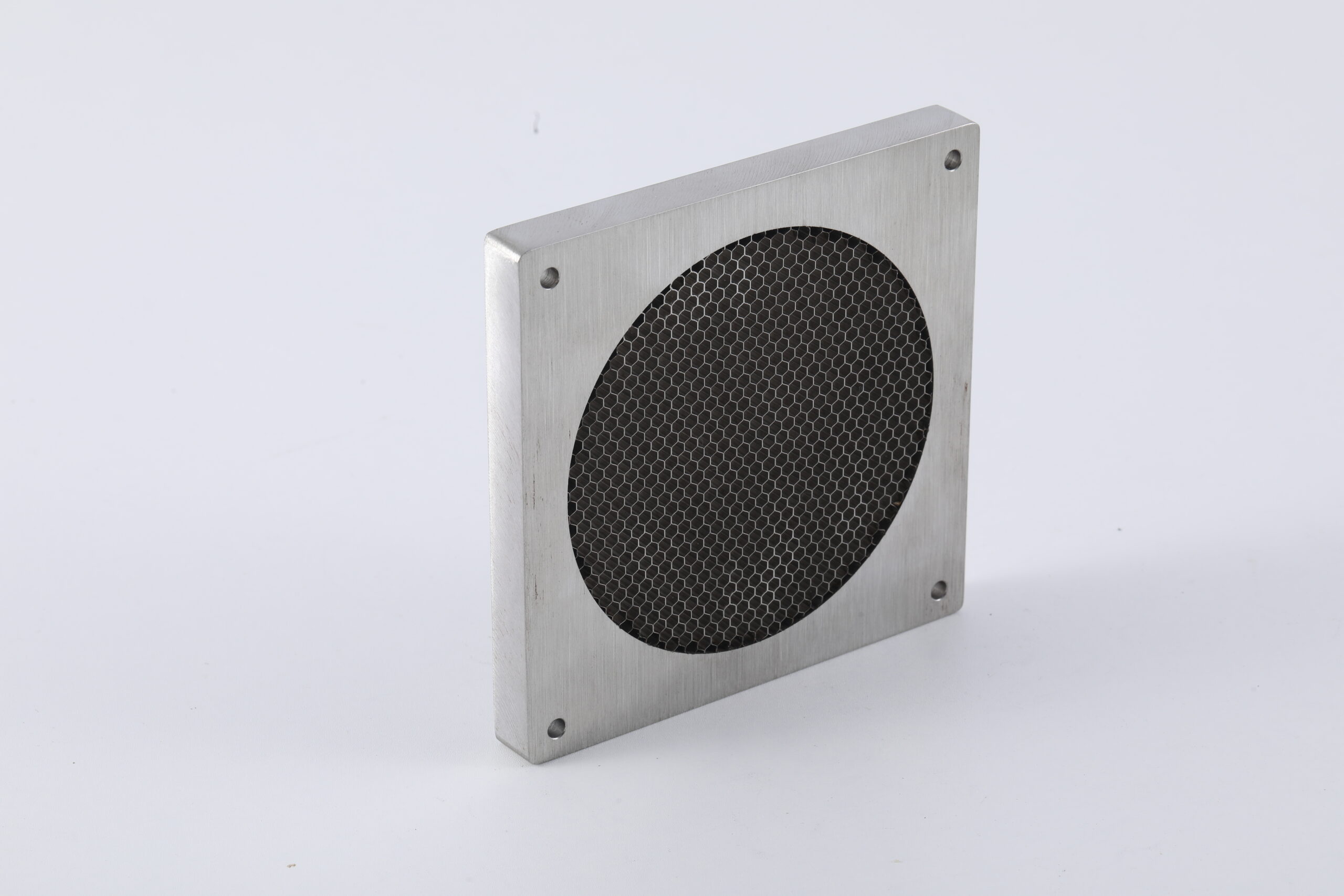

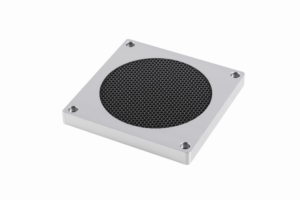

EMI shielded vent panels are specifically engineered to prevent this problem by combining airflow functionality with electromagnetic attenuation.
This article explains how these panels work, what design factors influence performance, and why standard solutions often fail.
Why Conventional Ventilation Causes EMI Leakage
Openings in metal enclosures interrupt shielding continuity. At RF frequencies, these apertures allow electromagnetic energy to escape or enter the enclosure with minimal attenuation.
Typical issues include:
-
Radiated emissions leaking through vent openings
-
External RF coupling into sensitive electronics
-
Increased noise floor during EMC testing
Standard ventilation products are not designed to address these risks.
How EMI Shielded Vent Panels Work
EMI shielded vent panels rely on controlled electromagnetic behavior rather than brute-force blocking.
Their operation is based on:
-
Waveguide-below-cutoff theory, where RF signals are attenuated due to geometric constraints
-
High-conductivity materials to minimize losses
-
Continuous electrical paths to prevent leakage
This approach allows airflow while maintaining shielding performance across defined frequency ranges.
Key Design Factors Affecting Performance
Cell Geometry
Smaller cell sizes increase shielding effectiveness but restrict airflow. Longer cell lengths improve attenuation at lower frequencies.
Material Conductivity
Higher conductivity materials improve shielding by reducing surface resistance and reflection losses.
Mechanical Bonding
Poor bonding creates gaps that act as unintended antennas, significantly reducing overall effectiveness.
Shielding Effectiveness vs Frequency
Shielding performance is frequency-dependent. Vent panels may perform exceptionally well at higher frequencies but show reduced attenuation at lower ranges if not properly designed.
Understanding the target frequency spectrum is essential when specifying vent panels for EMC applications.
Real-World Application Scenarios
EMI shielded vent panels are widely used in:
-
EMC and RF test chambers
-
Shielded electronic housings
-
Communication infrastructure
-
Industrial automation systems
In these environments, consistent shielding performance is essential for reliable operation and regulatory compliance.
Visual Explanation and Demonstrations
Because vent panel behavior can be difficult to visualize, video demonstrations are often helpful for understanding airflow paths and EMI attenuation mechanisms.
📌 Watch a detailed explanation and application example on YouTube:
https://youtu.be/wBYjAyZ4Ieg
Conclusion
EMI shielded vent panels are a critical interface between thermal and electromagnetic design. Understanding their operating principles, material behavior, and integration requirements allows engineers to avoid common pitfalls and achieve reliable system performance.
