In high-power industrial environments, EMI filtering is often underestimated—until system instability appears.
A standard filter may work in low-power systems, but it often fails in high current industrial busbar applications.
Do not assume standard EMI filters scale with current.
Do not ignore system architecture differences.
The Reality of Industrial EMI
Industrial systems such as:
- Variable frequency drives
- Renewable energy inverters
- Heavy-duty power supplies
generate strong electromagnetic interference due to:
- High switching speeds
- Large current loops
- Parasitic inductance and capacitance
Without a proper high current EMI filter, this noise propagates through the entire system.
Why Standard Filters Fail
Most standard EMI filters fail in high current applications because they:
- Use wire-terminal connections
- Have limited current capacity
- Cannot dissipate heat effectively
- Provide insufficient high-frequency attenuation

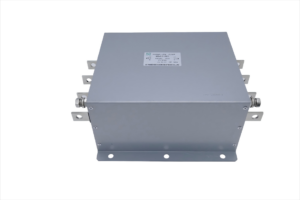

A busbar high current EMI filter solves these issues by using solid copper conductors and optimized internal structures.
The Importance of Busbar Design
Copper busbar-based filters offer:
- Lower resistance connections
- Higher current handling (up to 1000A)
- Better mechanical stability
- Improved heat dissipation
Do not rely on terminal-based filters for high current systems.
Do not underestimate connection structure in EMI design.
Common Engineering Mistakes
- Selecting filters based only on current rating
- Ignoring common-mode interference
- Overlooking installation layout
- Assuming all filters perform equally
These mistakes often result in EMC test failures and system instability.
Watch the Video
For a deeper explanation of industrial EMI filtering, watch here:
🎥 https://youtu.be/acoEE5Oqs4Q
Conclusion
A high current industrial EMI filter must be engineered specifically for busbar systems.
Standard solutions are not sufficient for modern high-power applications.
Choosing the right design ensures:
- Stable system operation
- Compliance with EMC standards
- Long-term reliability
