Introduction
In the realm of industrial automation and power electronics, Variable Frequency Drives (VFDs) are critical components that enable precise control of motor speed and torque. However, when VFDs are used to drive motors over long cable distances, they introduce electrical challenges that can lead to equipment failure, electromagnetic interference (EMI), and increased maintenance costs. One of the most effective solutions to these challenges is the implementation of sine wave filters. These specialized filters smooth out the PWM output of VFDs, transforming it into a nearly perfect sinusoidal waveform.

This article explores the key reasons why sine wave filters are essential in long-distance motor drive applications, how they improve system performance and reliability, and the factors to consider when selecting and applying them in real-world scenarios.

Understanding the Problem: PWM and Long Motor Leads

VFDs control motor speed by converting fixed-frequency AC power into variable-frequency AC power using Pulse Width Modulation (PWM). While PWM is efficient and cost-effective, it creates high-frequency voltage pulses with steep rise times, known as “dv/dt.” When these high-frequency signals travel over long cable runs—typically over 15–30 meters—they can cause multiple issues, including:

• Voltage Reflection and Overvoltage: High dv/dt values can reflect at the motor terminals, causing voltage overshoots that exceed the motor’s insulation ratings.

• Motor Heating and Bearing Currents: Excessive harmonic content and overvoltage increase motor losses, leading to heat buildup and premature failure.

• EMI Emissions: Long cables act as antennas, radiating EMI that can disrupt nearby sensitive equipment.

• Cable and Insulation Stress: High-frequency components deteriorate cable insulation, shortening cable lifespan.

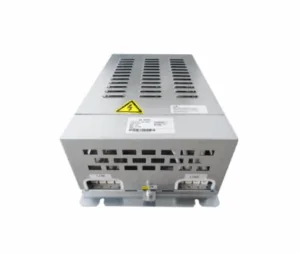

What Are Sine Wave Filters?

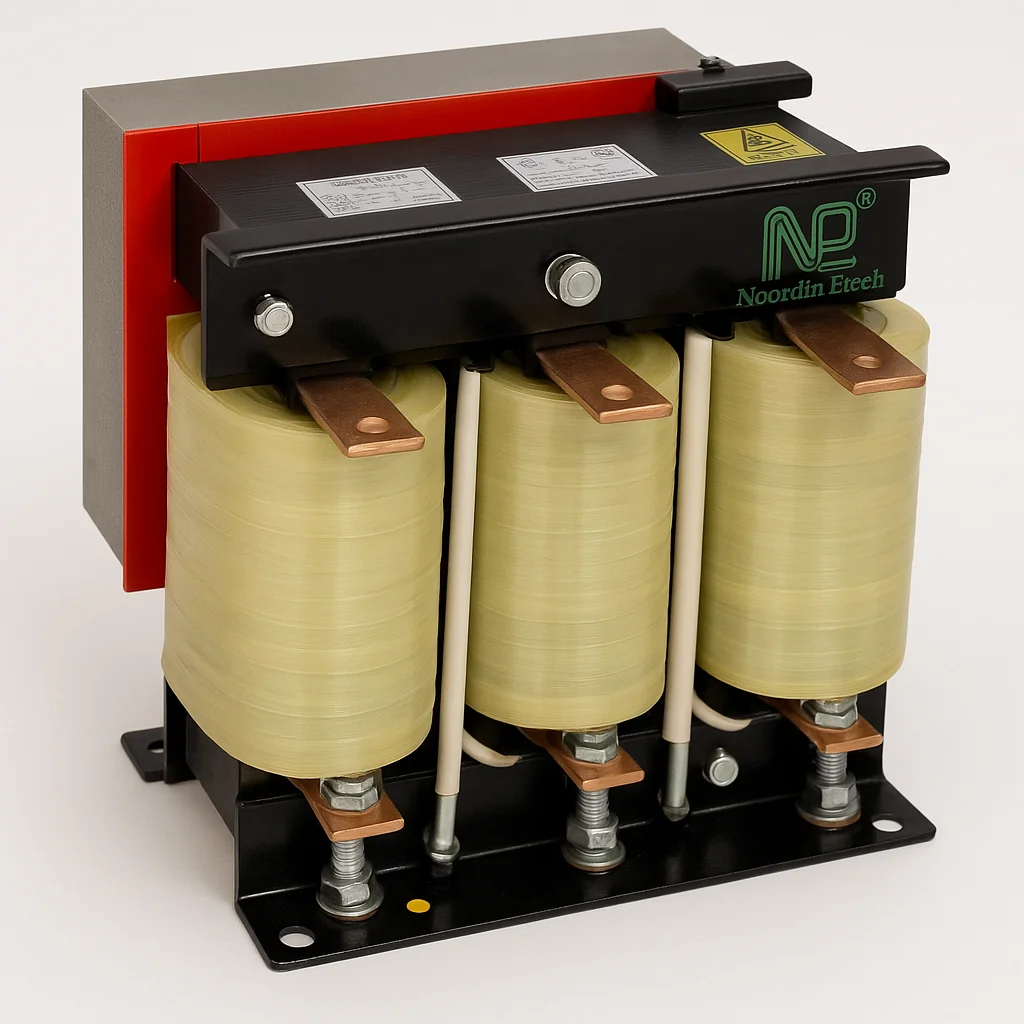

Sine wave filters are low-pass LC filters that remove high-frequency components from a VFD’s PWM output. By smoothing the waveform, they allow the motor to receive a clean, sinusoidal signal, similar to what it would get from a traditional line power source.

Key components typically include:

• Inductors (L) to attenuate high-frequency content

• Capacitors (C) to filter out voltage spikes and harmonics

• Damping resistors (optional) for optimized transient response

Why Sine Wave Filters Are Essential in Long-Distance Motor Drives

1. Protect Motor Insulation and Extend Lifespan

Sine wave filters reduce voltage peaks and dv/dt stress at the motor terminals, preventing insulation breakdown. Motors not designed for inverter-duty are especially vulnerable. A properly selected filter significantly extends motor lifespan.

2. Minimize EMI and Ensure EMC Compliance

Without a filter, the high-frequency switching noise from VFDs can radiate through motor cables, violating electromagnetic compatibility (EMC) regulations. Sine wave filters reduce EMI emissions, making systems compliant with industrial and governmental standards (e.g., CE, FCC, CISPR).

3. Enable Longer Cable Runs

When driving motors over distances exceeding 100 meters, signal degradation and overvoltage become severe. Sine wave filters allow these long runs without compromising performance, enabling flexible equipment layouts and reducing the need for motor relocation.

4. Improve Motor Efficiency and Reduce Losses

PWM voltage causes motor core losses and increases bearing currents due to common-mode voltages. Sine wave filters reduce harmonic content, allowing motors to operate more efficiently and with less heat generation.

5. Quiet Motor Operation

PWM-driven motors often emit audible noise due to high switching frequencies. A sine wave filter smooths the waveform, eliminating high-frequency content and resulting in quieter operation—important for HVAC, elevators, and sound-sensitive environments.

6. Reduce Maintenance Costs

By protecting the motor, cables, and surrounding equipment, sine wave filters reduce the frequency and cost of maintenance. Bearing replacement, insulation repairs, and EMI troubleshooting become less frequent.

Application Considerations

When selecting and applying sine wave filters, keep the following factors in mind:

• Voltage and Current Ratings: The filter must match the VFD output voltage and the full load current of the motor.

• Motor Cable Length: The longer the cable, the more critical the filter becomes.

• Switching Frequency: Filters must be designed to attenuate the specific frequency range of the VFD’s PWM output.

• Cooling and Installation: Some filters require forced air cooling or larger enclosures; consider thermal management in your cabinet design.

• System Resonance: Improper filter-motor matching can introduce resonance. Use manufacturer guidelines or simulations to avoid this issue.

• Frequency Response and Attenuation Profile: Different filters offer different roll-off characteristics. For long cable runs, a filter with steep attenuation above 1 kHz is typically ideal.

Case Study: Water Pump System with 200m Cable Run

A municipal water treatment facility in Southeast Asia installed a VFD system to control a 75kW pump located 200 meters from the control room. Shortly after installation, the motor insulation failed due to overvoltage spikes, and nearby sensors experienced repeated malfunctions.

Solution: A sine wave filter was added between the VFD and motor.

Results:

• Voltage spikes were reduced by 70%

• EMI emissions dropped below CISPR 11 limits

• Motor and sensors have operated without failure for over 3 years

Alternative Solutions: Are dV/dt Filters Enough?

dV/dt filters reduce voltage rise time but do not fully eliminate high-frequency harmonics. They are suitable for medium cable lengths (15–50m), but for longer distances or sensitive environments, sine wave filters are the preferred choice.

Conclusion

Sine wave filters are not just optional accessories for VFD systems—they are essential components for long-distance motor drive applications. By mitigating voltage stress, EMI, and harmonic distortion, these filters ensure that your motors run efficiently, quietly, and reliably.

They also play a crucial role in meeting compliance standards and protecting the broader system from electromagnetic disruption. For any application involving VFDs and cable lengths exceeding 30 meters, sine wave filters should be a standard design consideration.
