What is the working principle of an EMC filter?

Electromagnetic Compatibility (EMC) filters play a crucial role in ensuring the proper functioning of electronic devices and systems by eliminating electromagnetic interference (EMI). These filters are essential in various industries, including medical, automotive, industrial, and consumer electronics, where interference can significantly affect the performance and reliability of electronic equipment. This article delves into the working principle of EMC filters, explaining how they function, their components, and their significance in electromagnetic noise suppression.

1. Understanding EMC and EMI

Before exploring the working principle of EMC filters, it is essential to understand the concepts of Electromagnetic Compatibility (EMC) and Electromagnetic Interference (EMI).

• EMC refers to the ability of an electronic device to function properly without causing interference to other devices and without being affected by external interference.

• EMI is the unwanted electromagnetic energy that can disrupt the normal functioning of electronic devices, such as power supplies, motors, or communication systems. It can originate internally from switching transients, or externally from sources like power lines, mobile phones, or radio signals.

2. What is an EMC Filter?

An EMC filter, often referred to as an EMI filter, is a passive electrical component that prevents EMI from disrupting the operation of electronic devices. EMC filters are used to suppress high-frequency noise signals that can interfere with the performance of a device. These filters are strategically placed in the power supply or signal lines of electronic systems to protect them from unwanted interference.

3. Basic Components of an EMC Filter

The core components of an EMC filter include capacitors, inductors, and sometimes resistors. These components work together to provide effective noise suppression across a wide range of frequencies. The design and selection of these components depend on the type and frequency of interference being addressed.

• Capacitors: Capacitors in EMC filters are designed to shunt high-frequency noise away from the protected circuit to ground or another safe path. They allow AC signals to pass while blocking high-frequency interference.

• Inductors: Inductors act as low-pass filters, allowing low-frequency signals to pass while blocking high-frequency noise. Inductors help in providing impedance to the noise signals, thereby reducing the intensity of EMI.

• Resistors: In some filter designs, resistors are included to provide additional control over the filter’s impedance and to dampen any oscillations or spikes in the frequency range.

4. Differential Mode and Common Mode Filters

EMC filters are commonly categorized into differential mode and common mode filters. These two types target different sources of interference and are used for different applications.

• Differential Mode Filters: These filters suppress noise that appears between two conductors. They are effective for filtering out noise generated within the circuit itself, such as switching transients in power supplies or data transmission systems.

• Common Mode Filters: These filters target noise that appears equally on both conductors relative to ground. They are often used to suppress external EMI sources, such as power lines or electromagnetic radiation from nearby devices.

5. Working Principle of an EMC Filter

The primary function of an EMC filter is to create an impedance mismatch between the noise source and the device being protected. This mismatch forces the unwanted noise to be reflected back toward the source or diverted to a safe path. Here’s how this works in more detail:

• Impedance Mismatch: The filter presents a high impedance to high-frequency signals and a low impedance to the desired signals, allowing the high-frequency EMI to be either reflected back to the source or absorbed by the filter.

• Low-Pass Filtering: EMC filters are generally designed as low-pass filters, meaning they allow low-frequency signals (such as AC power) to pass through with minimal attenuation, while high-frequency EMI signals are attenuated or blocked.

• Shunting of Noise: Capacitors in the filter divert high-frequency noise away from the protected circuit. In common mode filters, inductors play a crucial role in providing additional impedance to the noise signals.

6. Types of EMC Filter Circuits

EMC filters can be passive or active, depending on the type of components used and the desired filtering effect.

• Passive Filters: These filters are made from inductors, capacitors, and resistors, and they do not require an external power supply. They are commonly used for noise suppression in most electronic devices.

  • LC Filters: These are basic filters composed of inductors and capacitors that block high-frequency noise.

  • RC Filters: These filters use resistors and capacitors to attenuate unwanted frequencies.

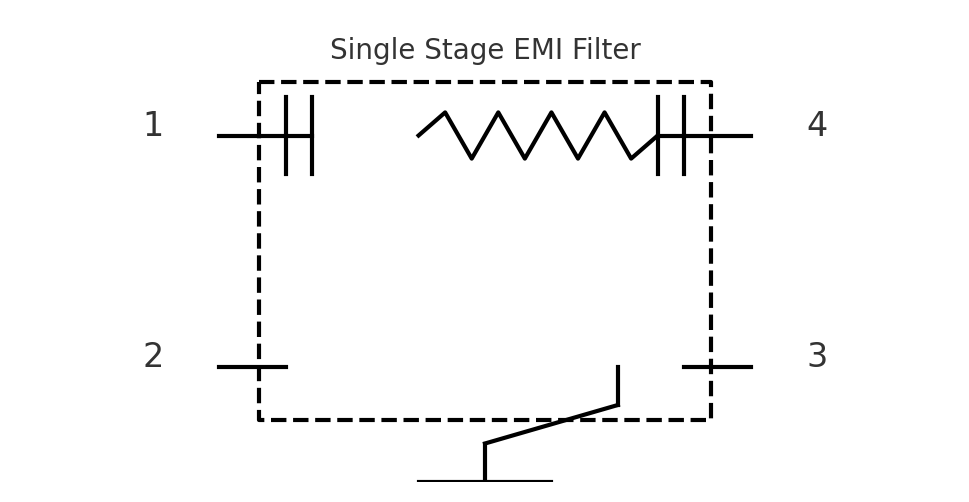

  • π Filters: These filters combine inductors and capacitors in a π-shaped network to achieve better filtering performance.

• Active Filters: These filters use active components, such as op-amps, in conjunction with passive components to achieve better attenuation of unwanted signals. Active filters are often used in more complex applications where passive filters may not be sufficient.

7. EMI Filter Design and Selection Criteria

When selecting an EMI filter, several factors must be considered to ensure that the filter meets the requirements of the application. These factors include:

• Frequency Range: The filter must be designed to block the specific frequencies associated with the EMI in the system.

• Insertion Loss: The filter’s ability to attenuate unwanted noise signals should be specified, along with its effect on the desired signal.

• Impedance Matching: The filter must match the impedance of the device it is protecting to avoid signal reflections and ensure efficient noise suppression.

• Environmental Considerations: The filter must be capable of withstanding environmental factors such as temperature, humidity, and vibration, depending on the application.

8. Applications of EMC Filters

EMC filters are used in a wide variety of electronic systems to ensure reliable operation and prevent malfunction due to interference. Some of the key applications include:

• Power Supply Systems: EMI filters are used in power supplies to prevent noise from entering or leaving the system.

• Communication Systems: Filters are applied to data transmission lines to reduce interference and maintain signal integrity.

• Medical Devices: EMC filters ensure that medical equipment, such as MRI machines and pacemakers, operates reliably without interference from external noise sources.

• Industrial Equipment: In industrial automation systems, EMC filters help protect sensitive control equipment from EMI, ensuring smooth operation.
