In the world of electronic components and electromagnetic compatibility (EMC), feedthrough capacitors play an indispensable role. Often overlooked due to their compact size, these components provide a powerful solution for suppressing electromagnetic interference (EMI) and filtering high-frequency noise in sensitive systems. But what exactly is a feedthrough capacitor, how does it work, and why is it so vital in modern electronics?
What is a Feedthrough Capacitor?

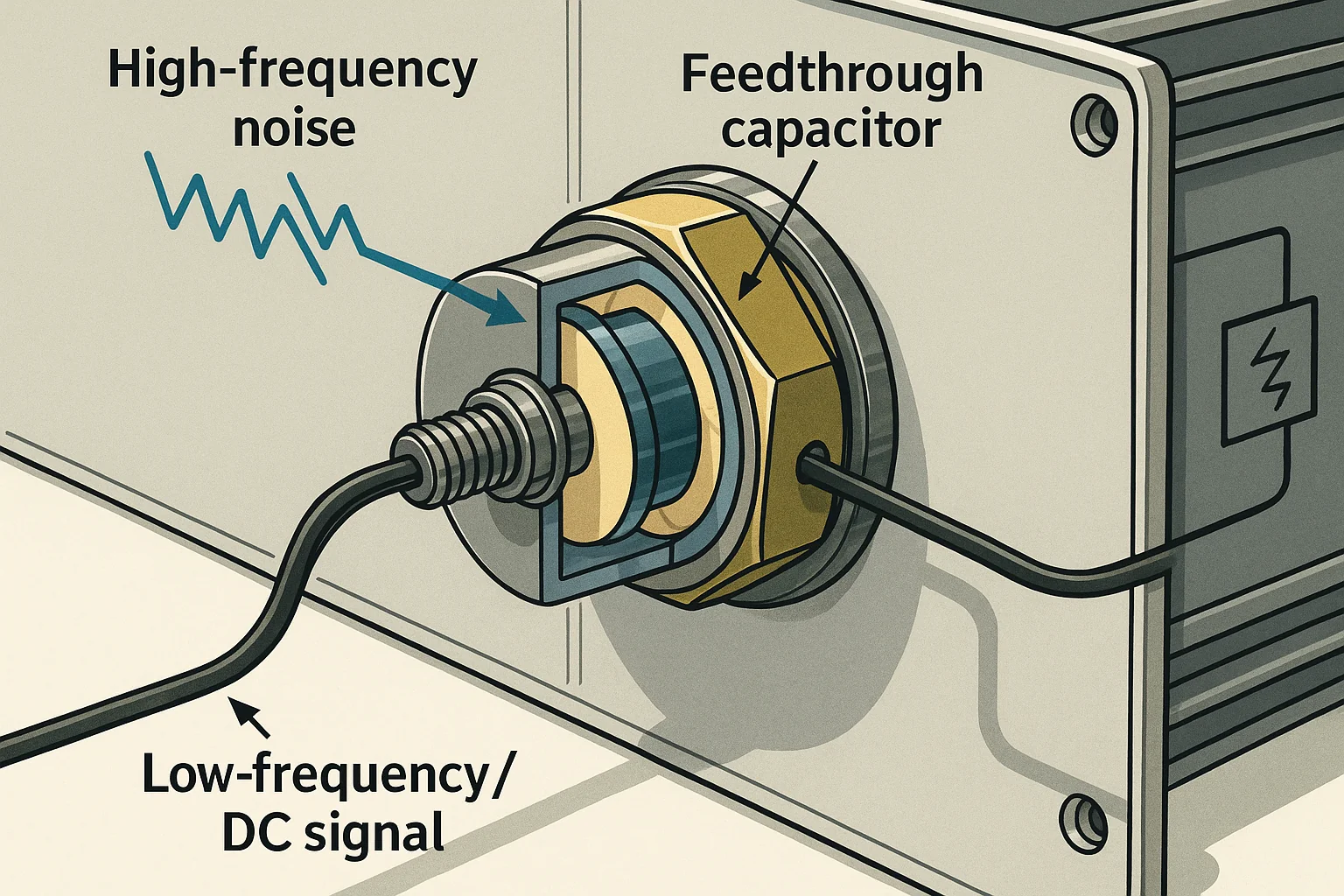

A feedthrough capacitor is a type of capacitor specifically engineered to block high-frequency signals while allowing DC or low-frequency AC signals to pass. Structurally, it is a three-terminal component: two terminals carry the signal through, and the third is grounded. This configuration allows the device to act as a low-pass filter directly integrated into the power or signal path.
Feedthrough capacitors are typically installed in panels, filters, or bulkhead-type assemblies, where a wire or conductor passes through a shielded enclosure, requiring both filtering and shielding in one compact form.
EMI Suppression: The Core Function
One of the primary reasons for using a feedthrough capacitor is electromagnetic interference (EMI) suppression. In complex electronic systems, EMI can stem from internal switching devices, power converters, or even external radio sources. If left unchecked, EMI can compromise signal integrity, reduce system performance, or even cause total device failure.
Feedthrough capacitors mitigate this by:
-
Providing a low-impedance path to ground for high-frequency noise.
-
Blocking unwanted RF (radio frequency) energy from entering or exiting a system.
-
Helping equipment comply with international EMC standards.
They’re commonly used in high-reliability environments such as aerospace, telecommunications, military, and medical electronics where EMI suppression is mission-critical.
High-Frequency Filtering Capabilities
While general-purpose capacitors can provide some level of noise filtering, feedthrough capacitors are specifically optimized for high-frequency attenuation.
Their unique construction offers superior performance at frequencies ranging from tens of kilohertz to several gigahertz. This makes them suitable for:
-
Filtering power supply noise.
-
Protecting signal lines in RF circuits.
-
Reducing conducted emissions from power lines.
What distinguishes a feedthrough capacitor is its ability to maintain a consistent filtering performance across a wide range of frequencies, particularly in the megahertz to gigahertz spectrum where traditional capacitors become less effective due to inductive parasitics.
Low-Inductance Design for High-Efficiency
A critical feature of feedthrough capacitors is their low-inductance design. Standard capacitors may struggle to suppress high-frequency signals due to internal inductance that reduces filtering effectiveness at elevated frequencies.
Feedthrough capacitors overcome this by:
-
Incorporating a coaxial structure where the signal conductor runs through the center, surrounded by a dielectric and an outer grounded shell.
-
Minimizing the loop area, thereby reducing inductive reactance.
-
Ensuring tight coupling between the input and output terminals with minimal path resistance.
This low-inductance pathway ensures rapid diversion of high-frequency noise directly to ground—essential in environments requiring ultra-clean power or signal integrity.
Real-World Applications of Feedthrough Capacitors
Feedthrough capacitors are employed in a wide range of practical applications where noise suppression and EMI filtering are critical:
1. AC and DC Power Lines
They are commonly used in power entry modules and bulkhead panels to prevent EMI from being conducted into sensitive equipment or back into the power grid.
2. Power Supplies
When installed on the input or output of DC power supplies, feedthrough capacitors help clean up voltage rails and improve power quality.
3. Shielded Enclosures and Faraday Cages
Feedthrough capacitors enable signal or power lines to pass through a shielded enclosure without compromising EMI containment, preserving the integrity of the protected environment.
4. Radio Communication Equipment
In transceivers and base stations, feedthrough capacitors prevent transmitted signals from interfering with other parts of the circuitry and ensure clear communication.
5. Medical and Industrial Equipment
Devices such as MRI machines or industrial controllers rely on clean power to function reliably. Feedthrough capacitors are essential in filtering unwanted interference in these critical systems.
Understanding Coaxial Behavior
Another defining characteristic of feedthrough capacitors is their coaxial structure, which mimics the performance of coaxial transmission lines. This structure offers several advantages:
-
Excellent shielding and minimal leakage.
-
Consistent characteristic impedance over a wide frequency range.
-
Improved return loss and minimal signal distortion.
This makes them ideal for high-speed signal applications or sensitive analog circuitry, where interference can distort the signal waveform or introduce data errors.
Types of Feedthrough Capacitors
Feedthrough capacitors come in various types depending on application requirements:
1. C-Type (General-Purpose)
Suitable for standard EMI filtering applications; offers broad attenuation and cost-effective performance.
2. Pi-Type
Offers enhanced filtering performance by combining two capacitors and an inductor into one assembly, ideal for more demanding environments.
3. L-Type
More compact and used for moderate filtering when space is limited.
4. High-Voltage or High-Current Rated
Engineered to handle more extreme operating conditions like power lines in industrial or military systems.
Feedthrough Capacitors vs. Bypass Capacitors
It’s worth noting the distinction between feedthrough capacitors and bypass capacitors. While both serve filtering functions, feedthrough capacitors are:
-
Integrated directly into the signal or power path.
-
Designed for panel-mount installation.
-
Better suited for high-frequency attenuation and shielding integration.
Bypass capacitors, by contrast, are typically placed between a power line and ground on a PCB to locally filter noise.
Compliance with EMC Regulations
Modern electronic devices are subject to strict electromagnetic compatibility (EMC) standards to ensure they don’t emit or are not susceptible to harmful interference.
Feedthrough capacitors play an important role in ensuring devices comply with:
-
FCC Part 15 (USA)
-
CISPR 22 / EN 55022 (EU)
-
MIL-STD-461 (Military)
-
IEC 61000 series (Industrial)
By providing clean, interference-free signal and power pathways, these components help pass compliance testing and avoid costly redesigns or regulatory penalties.
Summary of Key Benefits
-
Superior EMI/RFI filtering across a broad frequency range.
-
Compact, integrated form factor for use in panels and bulkheads.
-
Low impedance to ground ensures efficient noise suppression.
-
Reliability in harsh environments, from defense to medical sectors.
-
Support for compliance with global EMI/EMC standards.
