In the rapidly evolving world of electronics and industrial automation, electromagnetic compatibility (EMC) is no longer optional—it is essential. From smartphones and home appliances to aerospace and medical devices, every piece of modern technology must operate harmoniously within an increasingly dense electromagnetic environment. At the heart of this silent coordination lies the EMC filter—a small but powerful component that ensures electronic systems remain efficient, safe, and compliant.
Introduction to EMC and EMI
Before understanding what an EMC filter does, it’s important to clarify two key terms:
-
EMI (Electromagnetic Interference) refers to unwanted signals generated by electronic devices that can cause malfunction or performance degradation in nearby equipment.
-
EMC (Electromagnetic Compatibility) is the ability of a device to operate correctly in its environment without introducing intolerable electromagnetic disturbances.
In essence, EMC filters help achieve EMC by suppressing EMI.
What Is an EMC Filter?
An EMC filter—often called an EMI filter—is an electronic component or module designed to attenuate unwanted electromagnetic noise. It acts like a gatekeeper, allowing desired signals and power to pass while blocking or reducing harmful interference.
These filters are typically placed between a power source and an electronic device, ensuring that both incoming and outgoing EMI are kept within regulatory limits.
How Does an EMC Filter Work?
EMC filters work on the principle of impedance mismatch and low-pass filtering. The key components of an EMC filter include:
-
Inductors (chokes) – block high-frequency noise while allowing low-frequency signals (like 50/60Hz power) to pass.
-
Capacitors – shunt high-frequency noise to ground.
-
Resistors – assist in damping and controlling the filter response.
When high-frequency EMI tries to travel along a power line or signal line, the filter redirects or attenuates it before it reaches sensitive circuits.
Types of EMC Filters
1. Single-Stage Filters
-
Simple construction
-
Suitable for general-purpose use
-
Provides basic noise attenuation
2. Two-Stage and Three-Stage Filters
-
Enhanced filtering capability
-
Used where higher EMI suppression is required (industrial, military, or medical applications)
3. Common Mode Filters
-
Suppress interference that appears identically on all lines relative to ground
-
Effective against externally induced noise
4. Differential Mode Filters
-
Target noise between conductors
-
Useful for controlling noise generated within the system
5. Feedthrough Filters
-
High-frequency filters often used in RF applications or shielded enclosures
Applications of EMC Filters
EMC filters are used in an incredibly diverse range of industries and devices:
-
Industrial automation: Motor drives, control panels, laser welders, robotics
-
Consumer electronics: Audio systems, TVs, gaming consoles
-
Medical devices: Imaging systems, monitors, life support machines
-
Transportation: Electric vehicles, railway systems, aerospace control units
-
Power electronics: UPS, SMPS, inverters
-
Communications: Base stations, routers, data centers
They are essential wherever EMI can cause malfunction, safety risk, or regulation violations.

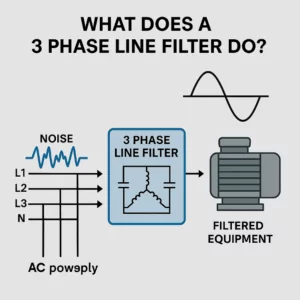

Three-Phase EMI/EMC Filters
Three-phase power systems often require specialized EMC filters to suppress conducted noise. These filters come in:
-
3-line filters (L1, L2, L3)
-
4-line filters (L1, L2, L3, N)
Their function is to suppress both common mode and differential mode noise on power lines. They prevent EMI from turning power cables into antennas that radiate interference into surrounding environments.
Why Is an EMC Filter Needed?
Even when devices claim EMC compliance, real-world installations can introduce unexpected EMI issues:
-
Improper grounding
-
Proximity of cables
-
External sources (e.g., motors, transmitters)
-
Variable loads and switching circuits
EMC filters act as a safeguard—ensuring continued compliance and maintaining system reliability.
Legislation and Compliance Standards
To sell electronic products in most regions, compliance with EMC regulations is mandatory. Some key standards include:
-
EN 55011 / EN 55032 / EN 61000 (Europe)
-
FCC Part 15 (USA)
-
MIL-STD-461 (Military applications)
-
CE / UKCA Marks (Europe and UK)
Relevant test procedures:
-
EN 61000-4-4: Fast transient burst immunity
-
EN 61000-4-5: Surge immunity (e.g., lightning strikes)
Devices are tested under performance criteria (A to D), where Class A denotes full operation during EMI, and D indicates irreversible failure.
Design Considerations for EMC Filters
When choosing or designing an EMC filter, engineers must consider:
-
Frequency range of the noise
-
Type of interference (common vs. differential mode)
-
Voltage and current rating
-
Leakage current (important for battery-operated and medical devices)
-
Insertion loss (minimizing power signal degradation)
-
Physical size and mounting style
-
Environmental resilience (IP rating, temperature, vibration)
EMC Filter Use Cases in Critical Environments
1. Aerospace and Defense
-
High reliability is paramount
-
Filters must withstand extreme temperatures and vibration
2. Medical Applications
-
Life-support systems must be shielded from EMI
-
Class B EMC filters with ultra-low leakage currents are preferred
3. Consumer and Commercial Electronics
-
Filters ensure devices meet FCC/CE emissions limits
-
Prevents cross-device interference in home and office environments
Beyond Conducted EMI: Radiated Interference Control
While EMC filters primarily suppress conducted EMI, they indirectly help in reducing radiated EMI by:
-
Preventing cables from becoming antennas
-
Reducing high-frequency currents in wiring
-
Supporting shielding strategies in system design
Some advanced filters, like REO’s high-current filters or REOWAVEpassive, also offer hybrid benefits: improved power factor, reduced THD, and lower system losses.
Common Causes of EMI That Filters Help Manage
-
Switching power supplies (SMPS)
-
Electric motors and relays
-
Variable frequency drives (VFDs)
-
Fluorescent lights and LEDs
-
Microcontrollers and RF circuits
-
High-speed digital devices
Whether it’s a noisy drill in the next room or a misbehaving UPS, EMI filters provide a consistent layer of protection.
Key Benefits of EMC Filters
-
Enhance device reliability
-
Improve signal integrity and performance
-
Extend lifespan of components
-
Help meet regulatory compliance
-
Reduce maintenance costs
-
Prevent system downtime
-
Protect both input and output signal paths
Choosing the Right EMC Filter
When selecting an EMC filter:
-
Identify the type of noise: common mode or differential
-
Know your system’s voltage, current, and frequency
-
Define the required attenuation level (insertion loss at specific frequencies)
-
Consider cost vs. benefit for the application
-
Verify compliance with the target standards (CISPR, FCC, MIL-STD)
For more information, please refer to our article <Does an EMC Filter Reduce Harmonics?> to explore best practices, case studies, and product recommendations.
