Electromagnetic Compatibility (EMC) filters are crucial components used to mitigate electromagnetic interference (EMI) in various electrical systems. They ensure that devices meet strict regulatory standards by preventing unwanted electrical noise from affecting other systems or being emitted from the device itself. In this article, we will explore the essential components of an EMC filter, how they function, and the types of interference they address.

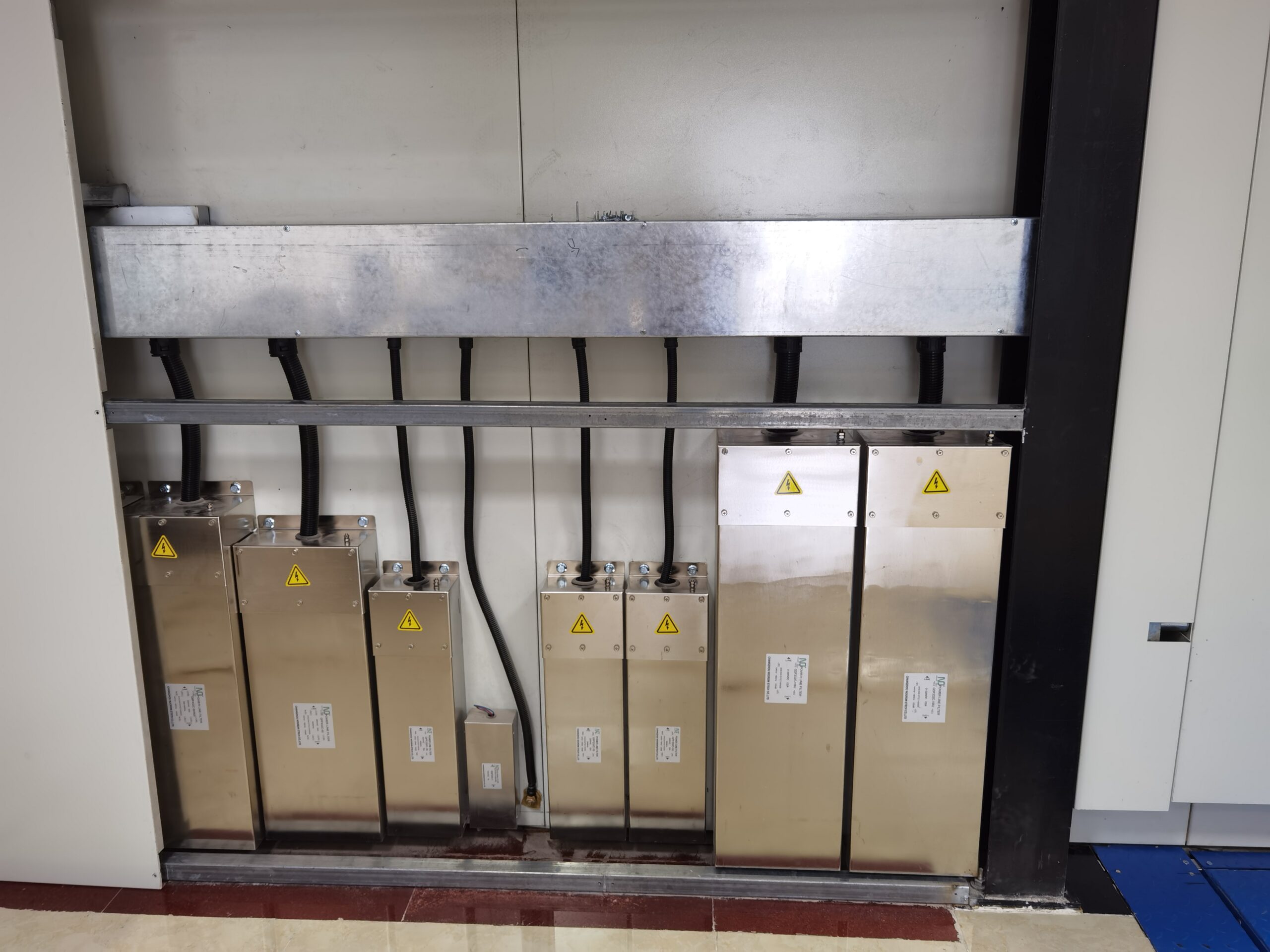

1. Introduction to EMC Filters
An EMC filter is a network of passive components, including inductors, capacitors, and resistors, that suppress electromagnetic interference (EMI) in both conducted and radiated forms. These filters are mainly used to limit electrical noise on power lines and signal lines, ensuring that electrical devices comply with EMC regulations. The primary purpose of these filters is to reduce unwanted emissions that could potentially disrupt the normal operation of other devices or equipment.
2. Key Components of EMC Filters
The basic components of an EMC filter typically include the following:
X Capacitors (Cx)
X capacitors are used to suppress differential-mode interference in the lower frequency range. They are placed between two phases or between a phase and a neutral conductor. These capacitors are critical in reducing symmetrical interference, particularly at lower frequencies, and play an essential role in filtering noise that can travel between different phases.
Differential Mode Chokes
Differential mode chokes are inductive components that help attenuate high-frequency noise in the differential mode. These chokes present a high impedance to the interference signal while allowing the normal operating current to pass through. They are key in ensuring that the power supply is shielded from unwanted signals without affecting its functionality. Differential mode chokes are often combined with capacitors to form low-pass filters.
Y Capacitors (Cy)
Y capacitors are connected between the live conductor and the reference ground to suppress common-mode interference. They are designed to prevent high-frequency noise from entering the device from external sources, particularly in the higher frequency range. Y capacitors are crucial for filtering asymmetrical interference and are typically used in three-phase applications, where the connection is made from phase to a virtual star point.
Current-Compensated Chokes
A current-compensated choke is a special type of inductor used to attenuate common-mode disturbances while allowing normal operating currents to pass through. The design of these chokes compensates for the magnetic flux generated by the differential mode operating current, effectively nullifying its impact on the filter. This component plays a significant role in reducing noise from both internal and external sources without disrupting the functionality of the system.
Discharge Resistors
Discharge resistors are used in EMC filters to ensure that any stored energy in the capacitors is safely discharged when the device is powered down. These resistors help prevent dangerous voltage buildup and ensure the safe operation of the filter. They are essential in maintaining the long-term reliability of the filter system and minimizing the risk of electrical hazards.
3. Types of EMC Filters
EMC filters come in various configurations depending on the application. These filters can be classified based on the number of lines they serve and the type of interference they are designed to suppress.
2-Line Filters
These filters are used for single-phase or DC applications, where there are only two lines: the live and neutral conductors. The components in 2-line filters are designed to reduce EMI on the input power lines by providing a path for noise to be filtered out before it reaches the device.
3-Line and 4-Line Filters
Three-phase systems, which are commonly used in industrial applications, require 3-line or 4-line filters. These filters are designed to filter EMI in three-phase AC systems, with the 4-line filter including a neutral conductor. They are capable of handling the more complex interference patterns in three-phase power systems and ensuring that the power supply operates cleanly and efficiently.
4. How EMC Filters Work
The operation of an EMC filter depends on its components and the configuration of the system. Typically, EMC filters work by providing a path for the unwanted interference to be diverted or absorbed.
Reflection Filters
Most EMC filters operate on the principle of reflection, where the filter components, such as capacitors and inductors, create a mismatch between the source of interference and the equipment being protected. This mismatch prevents the noise from traveling further into the system, effectively reflecting it back to the source. This method is common in filters that address conducted emissions (CE).
Absorbing Filters
In some cases, EMC filters use absorbing components that convert interference energy into heat. These filters are less commonly used in practice, as they are typically less efficient compared to reflection filters. However, they can be effective in specific applications where reflection-based filters may not provide sufficient noise suppression.
5. Applications of EMC Filters
EMC filters are used in a wide range of applications where electromagnetic interference can cause operational issues or regulatory non-compliance. Some common applications include:
-
Power Supplies: EMC filters are commonly used in power supplies to prevent noise from entering or leaving the system, ensuring stable and efficient operation.
-
Communication Systems: In communication networks, EMC filters help prevent interference from external sources and ensure the integrity of transmitted signals.
-
Medical Devices: Medical equipment must comply with strict EMC standards to ensure that external interference does not affect their operation, and EMC filters play a crucial role in meeting these standards.
-
Industrial Machinery: Industrial equipment, including robotics and control systems, often operates in environments with high levels of electromagnetic noise. EMC filters ensure that these systems remain reliable and functional.
For more information, please refer to our article on “What Devices Need EMC Testing?” to learn more about their role in electronic systems.
