Electromagnetic interference (EMI) has become one of the most persistent challenges in modern electronics. As devices become smaller and more powerful, and as power electronics proliferate in both industrial and consumer sectors, the demand for effective EMI suppression continues to grow. Among the most effective strategies for combating EMI is the implementation of two-stage insert filters. These advanced components offer superior attenuation across a wider frequency range and provide robust performance in the most demanding environments.
This article explores how two-stage insert filters maximize EMI suppression, their benefits, and key application areas where their use is essential.
Understanding the Basics: What Is a Two-Stage Insert Filter?

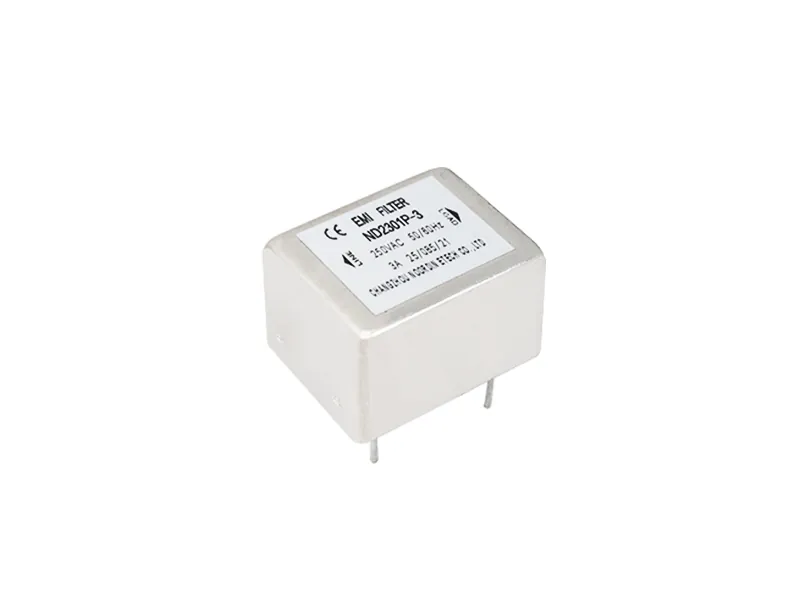

A two-stage insert filter is a type of electromagnetic interference filter designed to suppress both differential-mode and common-mode noise. It consists of two separate filtering stages, typically combining inductors and capacitors in series and parallel configurations. The additional stage provides enhanced noise attenuation by increasing the impedance to noise currents and widening the filter’s effective bandwidth.
Compared to single-stage filters, two-stage filters are more complex but significantly more effective at suppressing noise—especially in applications that involve high-frequency switching, long cable runs, or sensitive electronics.
Benefits of Two-Stage Insert Filters
1. Enhanced EMI Suppression
The main advantage of two-stage filters is their superior EMI suppression performance. By incorporating two filtering stages, they offer a steeper insertion loss curve and better performance across a broader spectrum of frequencies.
2. Improved Common-Mode and Differential-Mode Noise Rejection
Two-stage filters are designed to target both types of noise. Common-mode noise is usually caused by ground loop interference or external radiated fields, while differential-mode noise stems from switching activities and unbalanced loads. Two-stage filters mitigate both, ensuring clean power and signal integrity.
3. High Insertion Loss with Low Leakage Current
In sensitive environments—such as medical or communication systems—low leakage current is crucial. Two-stage filters can be engineered to maintain high attenuation while minimizing leakage current, making them ideal for safety-critical systems.
4. Flexibility in Design and Mounting
Insert-style filters are typically compact and designed to be mounted directly into enclosures or control panels. Two-stage designs often come in shielded enclosures that further enhance EMI performance.
5. Compliance with International EMC Standards
With increasing global regulation of electromagnetic emissions (such as CISPR, FCC, and EN standards), two-stage filters help products meet required compliance, reducing the risk of market access issues.
Key Applications of Two-Stage Insert Filters
1. Industrial Equipment
From CNC machines to programmable logic controllers (PLCs), industrial systems often produce or are exposed to significant electromagnetic noise. Two-stage filters ensure stable operation and protect neighboring equipment.
2. Medical Devices
Medical environments demand both performance and safety. Two-stage filters reduce emissions from diagnostic and treatment equipment while ensuring low leakage current for patient safety.
3. Power Inverters and Motor Drives
Inverters and variable-frequency drives (VFDs) are notorious for generating high-frequency EMI. Two-stage filters are essential for minimizing conducted emissions and ensuring compliance.
4. Telecommunications and Networking
Sensitive communication infrastructure—especially in 5G and fiber-optic networks—requires tight EMI control. Two-stage filters protect signal integrity and reduce downtime caused by interference.
5. Renewable Energy Systems
Solar inverters and wind turbine controllers rely heavily on power electronics, which are prone to EMI issues. Two-stage filters ensure that renewable systems do not interfere with the grid or nearby electronics.
Design Considerations
When selecting or designing a two-stage insert filter, several factors must be taken into account:
- Rated Current and Voltage: Ensure the filter matches the application’s electrical parameters.
- Mounting Requirements: Consider the mechanical layout and available space.
- Operating Environment: Temperature, humidity, and vibration can affect filter performance.
- Shielding Requirements: Metal enclosures or additional shielding may be needed for harsh EMI environments.
Proper integration into the system—including grounding and cable routing—is also critical to achieving optimal suppression performance.
Conclusion
As electronic systems become more complex and regulatory standards more stringent, two-stage insert filters offer a powerful solution for maximizing EMI suppression. Their enhanced attenuation capabilities, safety features, and versatility make them indispensable across a wide range of industries.
