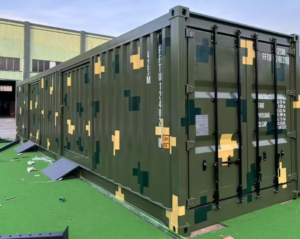

When discussing a Shielded Container, engineers often focus first on the shielding material.
Steel thickness.
Conductive lining.
Shielding effectiveness.
But in many practical applications, the wall itself is not the most difficult part of the design.
The real challenge is everything that has to pass through it.
Do not spend all your attention on the shielding wall while overlooking the penetrations.
Do not assume that adding thicker metal will solve every EMC problem.
Every Penetration Changes the Shielding Boundary
A shielded container needs utilities and connections.
It may require:
- AC power
- DC power
- Ethernet
- USB
- Control signals
- Antenna connections
- HVAC
- Fire protection
- Monitoring systems
Every one of these interfaces creates a potential electromagnetic path.

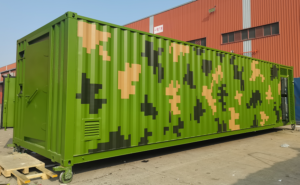

This is why professional Containerized Shielded Enclosures are designed around penetration control rather than simply adding shielding material to the outside. Commercial solutions can integrate bulkhead panels, waveguide penetrations, filtered power, HVAC, and other utilities as part of the enclosure design.
Don’t Use Ordinary Ventilation Openings
A ventilation opening is effectively an opening in the electromagnetic boundary.
An ordinary louver may provide excellent airflow but can compromise RF isolation.
For a high-performance EMI Shielded Container, ventilation can instead be designed using waveguide-below-cutoff structures or honeycomb shielding vents.
This allows air to move without creating the same direct electromagnetic path as an open hole.
Don’t Treat Power Entry as Just an Electrical Connection
Power cables are another major consideration.
The container may have excellent RF shielding, but an unfiltered power cable can provide a conductive path through the enclosure boundary.
This is why shielded facilities commonly integrate power filters into their penetration systems. EMC test chamber designs, for example, can incorporate power-line filters alongside doors, ventilation, and bulkhead interfaces.
The filter and the shielding wall need to work together.
Don’t Ignore Communication Interfaces
Modern mobile test facilities rarely operate without data connections.
Ethernet, USB, control signals, and other interfaces may all need to cross the shielded boundary.
Simply installing a standard connector can create an unintended RF path.
Filtered interfaces or fiber-optic connections can provide a more appropriate solution depending on the application.
Shielding Performance Is a Chain
A useful way to understand a Shielded Container is to think of its shielding performance as a chain.
Wall → Door → Ventilation → Power → Signal → Grounding → Interfaces
If one section is significantly weaker than the others, the overall enclosure performance can be limited by that weak point.
The wall cannot compensate for a poorly designed penetration.
Don’t Confuse a High Shielding Number With a Complete Solution
A datasheet may show impressive shielding effectiveness at a particular frequency.
But a real installation involves multiple components and frequency ranges.
A properly engineered EMI Shielded Container should therefore be evaluated according to the actual application, required frequency range, penetration configuration, and testing requirements.
For demanding projects, shielding effectiveness is typically verified using recognized measurement approaches rather than assumed from the material alone. Some commercial shielded-container solutions specify testing against standards such as EN 50147-1 or IEEE 299.
The Takeaway
The biggest mistake in shielded-container design is often not choosing the wrong wall material.
It is forgetting that every penetration becomes part of the shielding system.
Do not design the wall first and add utilities afterward.
Design the electromagnetic boundary as a complete system from the beginning.
